Alpine X009-RAM 9" Manuale utente

RAM

FULL SIZE TRUCK  1/13

RAM

X009-RAM 9”

Installation Manual

 Model: Full Size Truck

 Model Year: 2013-UP

 Trim Level: All models without

8.4-Inch Touchscreen Display

RAM

1500

Introduction

Design and specications are subject to change without notice for improvement.

To Ensure Safe Use, Always Follow These Precautions

The installation of this product requires specialized skills and experience. We recommend that you have the

product installed by the store that you purchased it from.

Before you use this product, be sure to carefully read this installation manual and the separate user's manual

so that you can use the product correctly. Alpine Electronics bears no responsibility for problems that arise as

a result of failure to follow the instructions in the manuals.

This manual includes a number of symbols that are intended to help you use the product safely, to prevent

harm to you and others, and to protect against damage to property. These symbols and their meanings are

listed below. Make sure you fully understand these symbols before you begin reading the main text.

Explanations of Injury and Damage That May Result from Incorrect Use

Warning Ignoring the content marked by this indication and using the product incorrectly is

expected to lead to death or serious injury.

Caution Ignoring the content marked by this indication and using the product incorrectly is only

expected to lead to injury or property damage.

DODGE

Model Year

RAM 1500 2013 - UP

RAM 2500 2013 - UP

RAM 3500 2013 - UP

* The speciﬁed vehicles have been tested and have met compatibility specs at the time of testing. Compatibility is

not guaranteed if the manufacturer has made production changes to the listed vehicles above.

RAM

FULL SIZE TRUCK  2/13

Types of Precautions

Forbidden

Indicates actions that are forbidden

(must not be performed)

Mandatory

Indicates actions that are

mandatory (must be performed)

Forbidden

Indicates that disassembly is

forbidden.

Marks content that should receive

your full attention.

Warning

Do not disassemble or modify the product. Doing so could lead to an accident, re,

or electric shock.

Forbidden

Store screws and other small objects where small children cannot reach them. If one of these

small objects is swallowed, consult with a doctor immediately.

When replacing fuses, be sure to use fuses with the specied current rating. Failing to do so could

lead to an accident or re.

Forbidden Mandatory

Only connect the product to a 12 VDC negative ground car. Failing to do so could lead to

an accident or re.

Mandatory

Before you begin wiring, remove the ground wire from the negative terminal of the battery.

Failing to do so could lead to electric shock or injury.

Do not cut the insulation on a cord and take power from another device. Doing so could

lead to re or electric shock.

Forbidden

Do not install the product in a location where it will obstruct the driver’s forward view;

interfere with the operation of the steering wheel, gearshift, or the like; or pose a

threat to passengers. Doing so could lead to an accident or injury. Forbidden

When making a hole in the vehicle body, be careful to avoid damaging pipes, the fuel tank,

electrical wiring, and the like. This kind of damage could lead to an accident or re.

RAM

FULL SIZE TRUCK  3/13

When installing and grounding the product, do not use any of the bolts or nuts of the

steering wheel, brakes, fuel tank, or the like. Doing so could make the brakes stop working

or lead to re. Forbidden

Do not install the product near the passenger-side airbag. Doing so could interfere with the

operation of the airbag and lead to an accident or injury.

Forbidden

Bundle cords so that they don’t interfere with driving. Wrapping cords around the steering

wheel, gearshift, brake pedal, or the like, could lead to an accident or damage equipment.

Caution

Connect the product properly according to the instructions. Failing to do so could lead

to re or an accident.

Forbidden

Do not sandwich cords between the seat railing or allow them to touch protrusions.

Resulting breaks or shorts could lead to electric shock or re.

Do not block vents or heat sinks. Doing so could lead to re or damage equipment.

Use the accessories according to the instructions, and attach them securely.

Failing to do so could lead to an accident or damage equipment.

Forbidden

Do not install the product where it may be exposed to water or in a place with high levels

of humidity or dust. Doing so could lead to re or damage equipment.

Forbidden

The installation and wiring of this product requires specialized skills and experience.

Have the product installed and wired by the store that you purchased it from.

RAM

FULL SIZE TRUCK  4/13

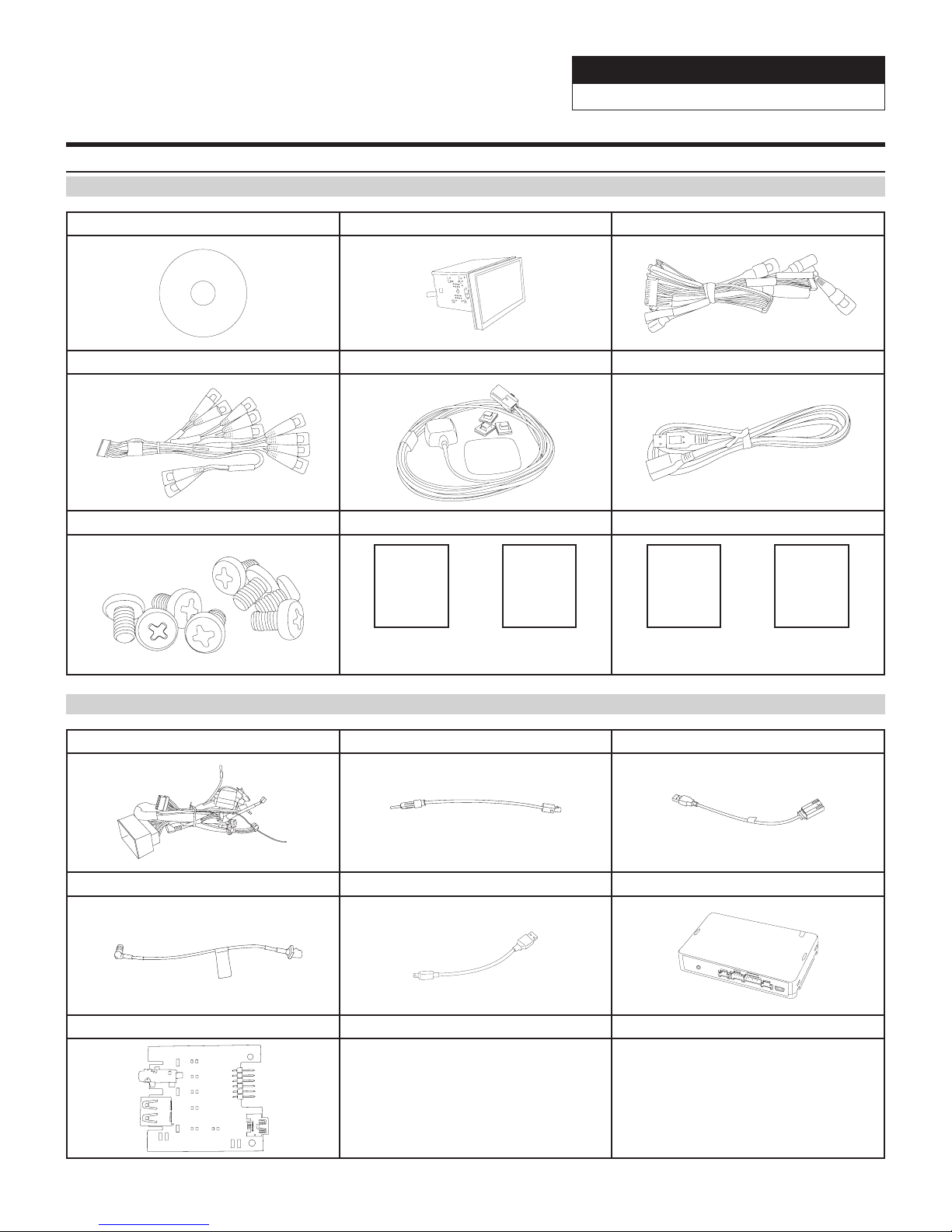

Accessory List

Head Unit Box Parts (X009)

Owner’s Manual Disc X009 Head Unit X009 Camera Harness

AUX/Pre Out Harness GPS Antenna USB Extension Cable

8mm x 8 Screws Quick Reference Guides Registration Cards

QRG

Audio

QRG

Navigation

Alpine

Registration Card

NAVTEQ

Registration Card

iDatalink Maestro Box Parts (ALP-MRR V2.0/ALP-HRN-RAM V2.0)

Main Harness Antenna Adapter OEM USB Adapter

SAT Radio Antenna Adapter

Maestro Module USB Flashing Cable

iDatalink Maestro Module

USB/AUX PCB

RAM

FULL SIZE TRUCK  5/13

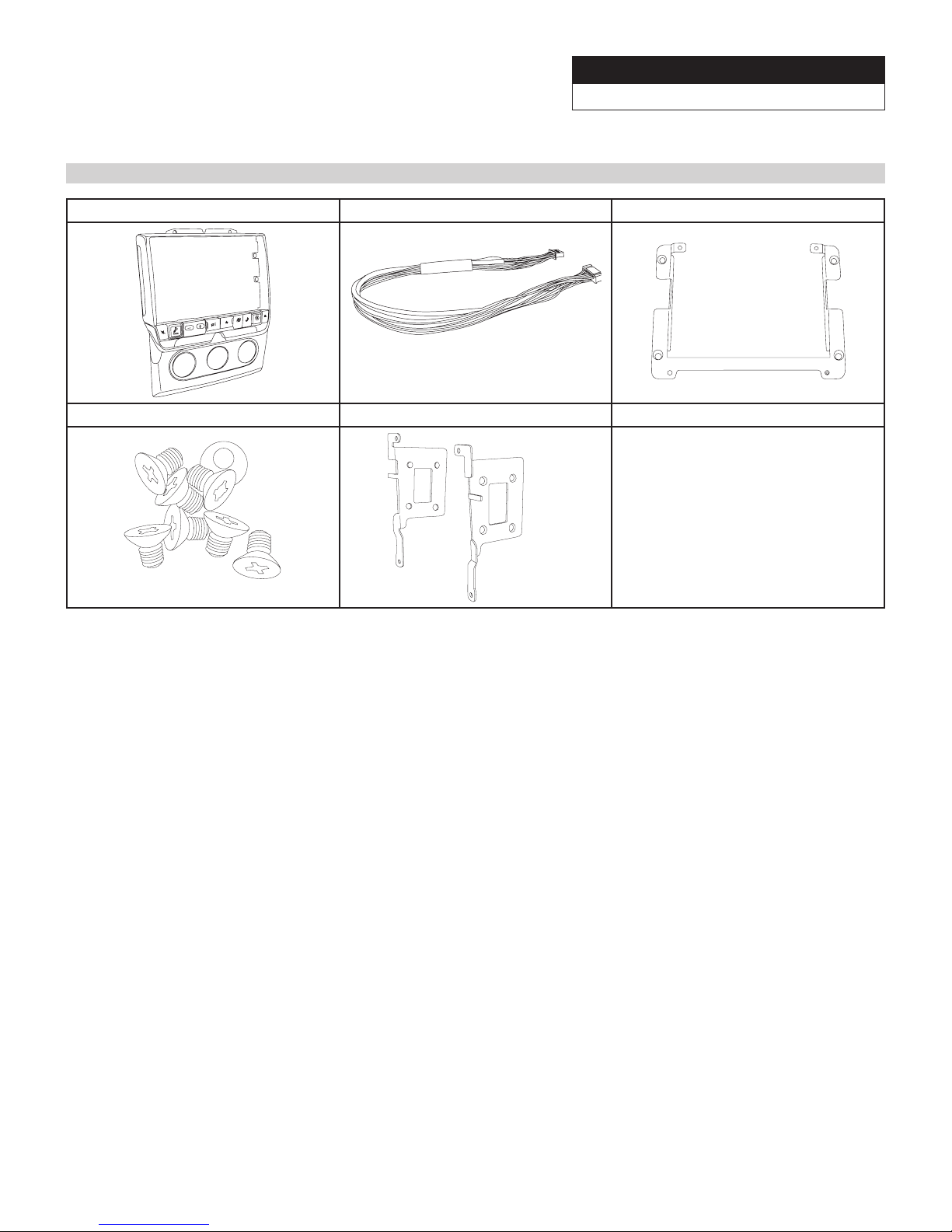

Installation Kit Parts (G-KTX-009-RAM)

X009-RAM Radio Dash Bezel Key Harness Headunit Mounting Plate

Screws x 8 Side Mounting Brackets

RAM

FULL SIZE TRUCK  6/13

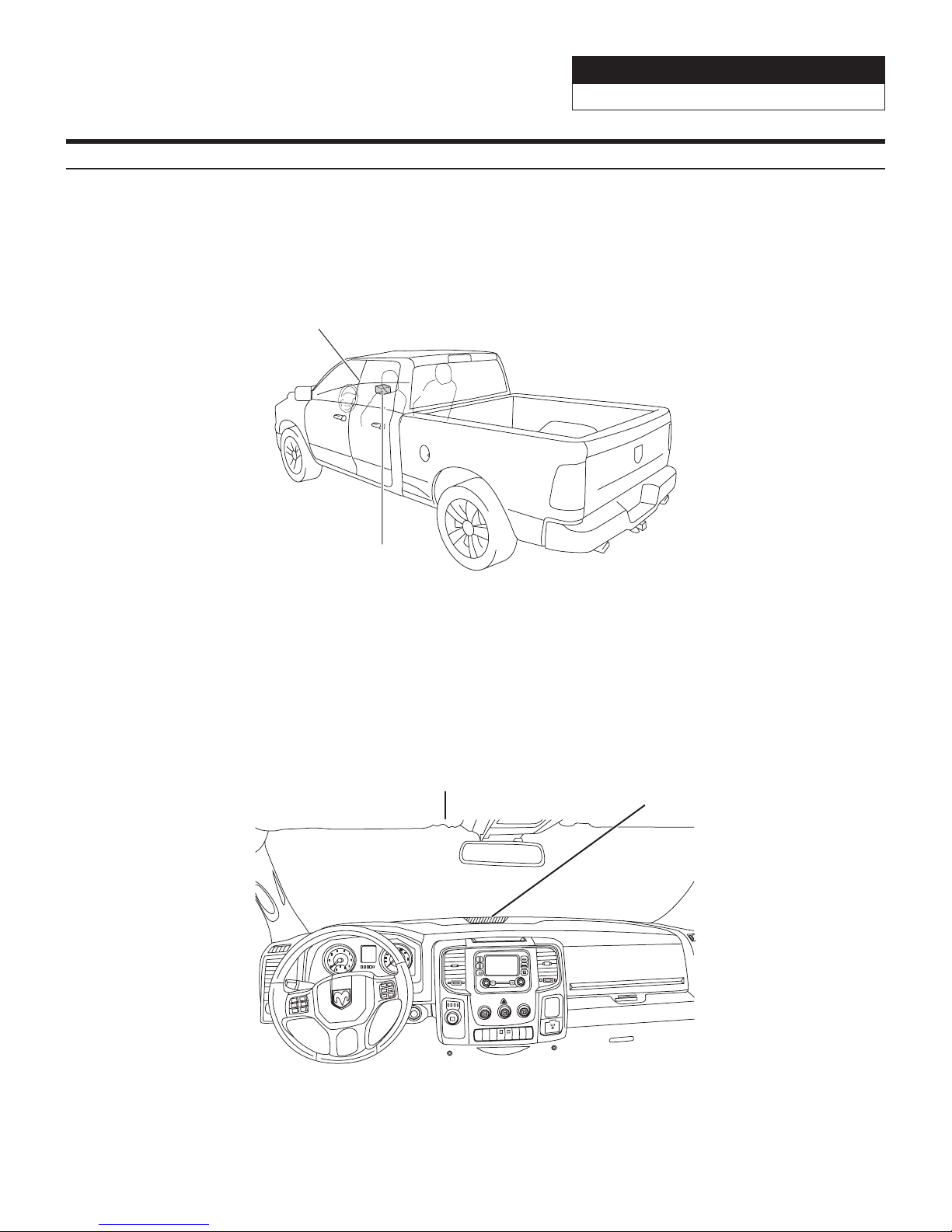

Component Locations

Maestro Module Location

GPS Antenna Location

BT Microphone Location

Head Unit

GPS Antenna

RAM

FULL SIZE TRUCK  7/13

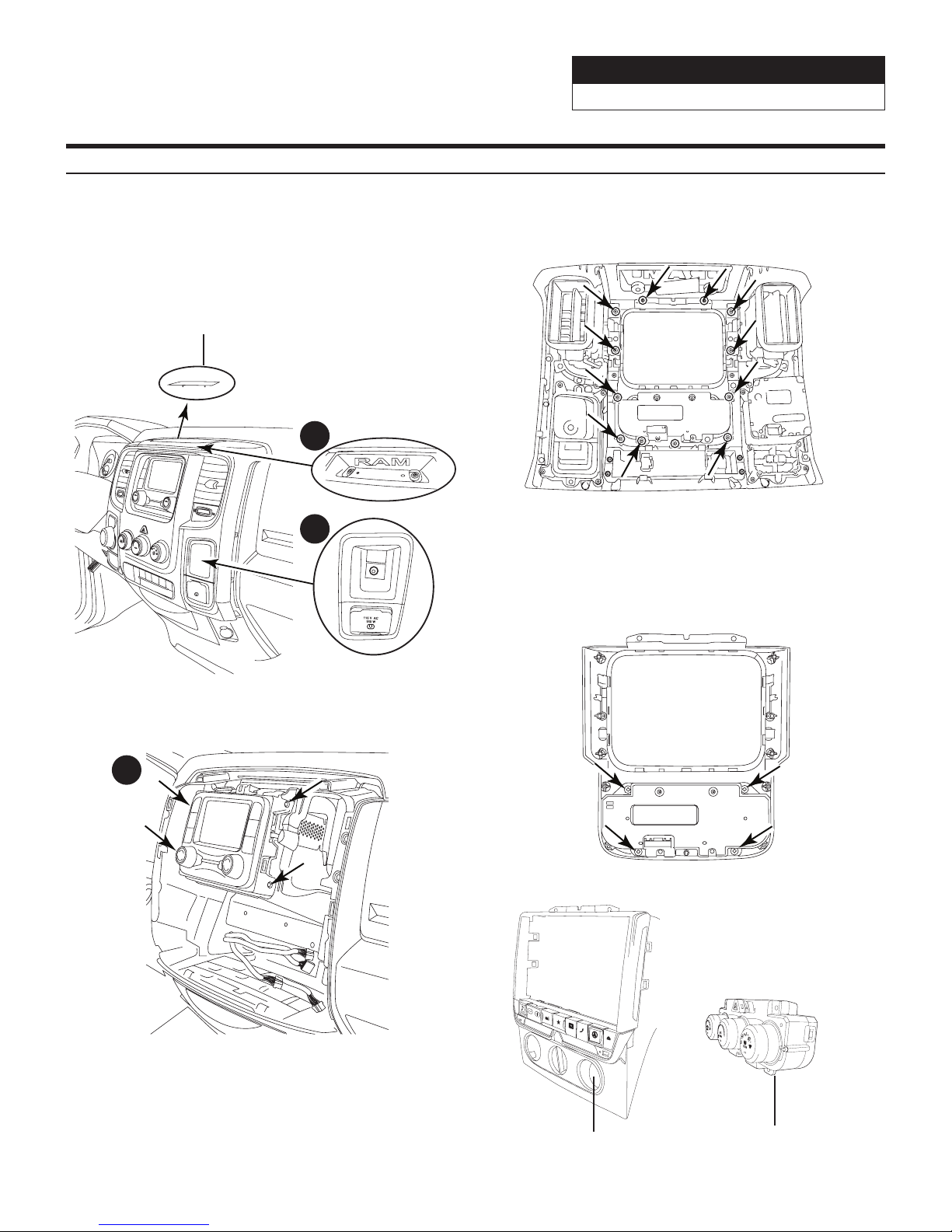

Factory Radio Removal Process

1 Remove the rubber screw cover from the top of the

radio panel and extract 2x #20 Torx screws.

2 Extract 1x 9/32” – 7mm screw from the right side

pocket. (Not required on base models)

3 Pull the entire radio panel out.

115 V AC

150W

4 Extract 4x 9/32” – 7mm screws from the radio and

remove it.

5 Extract 13x Phillips screws from the radio panel and

remove the radio bezel.

6 Remove 4x Phillips screws from the HVAC control

and mount the HVAC on to the new X009-RAM

Radio/Dash Bezel.

Rubber screw cover

X009-RAM Radio/

Dash Bezel

Factory HVAC Control

Unit (Not included)

RAM

FULL SIZE TRUCK  8/13

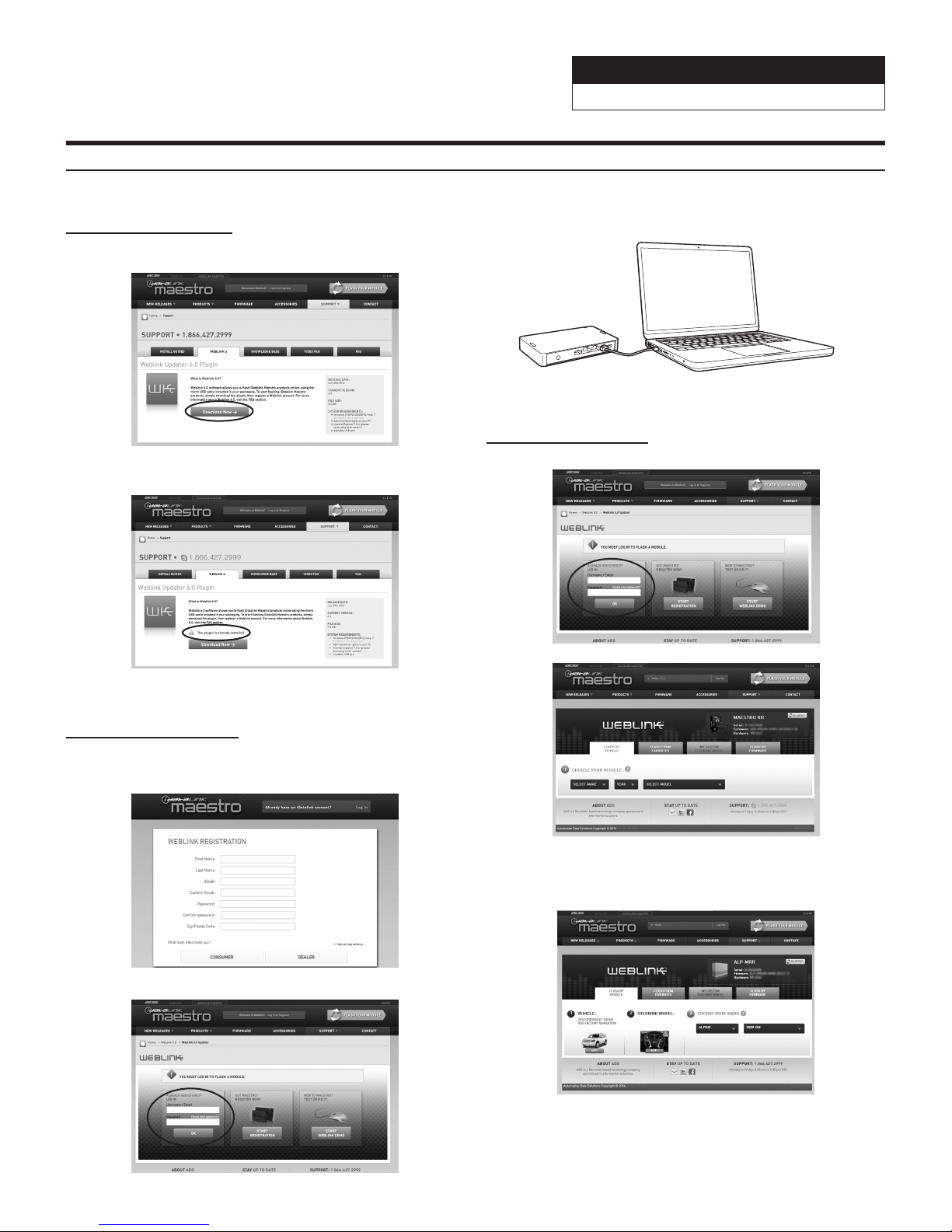

Programing the iDatalink Maestro Module

1 INSTALL THE WEBLINK PLUG-IN

Go to:

idatalinkmaestro.com/plugin and follow the installation steps.

Review the System Requirements before installing.

If the plugin is already installed, the caution, “The plugin is already

installed” appears. Please skip to step 2.

2 REGISTER A WEBLINK ACCOUNT

Go to:

idatalinkmaestro.com/register and complete the registration process.

A conrmation email will be sent to you requiring validation.

For existing customers, click log in.

3 CONNECT YOUR MAESTRO MODULE

Use the included USB cable to connect your Maestro module to your

PC.

4 LOG INTO WEBLINK

Go to:

idatalinkmaestro.com/login.

Enter your username and password, then click OK.

5 PROGRAM YOUR MODULE

Follow the programming steps for your vehicle.

6 Once Programing is complete “FLASHING

COMPLETE” will be displayed.

Proceed to the next page to complete installation.

RAM

FULL SIZE TRUCK  9/13

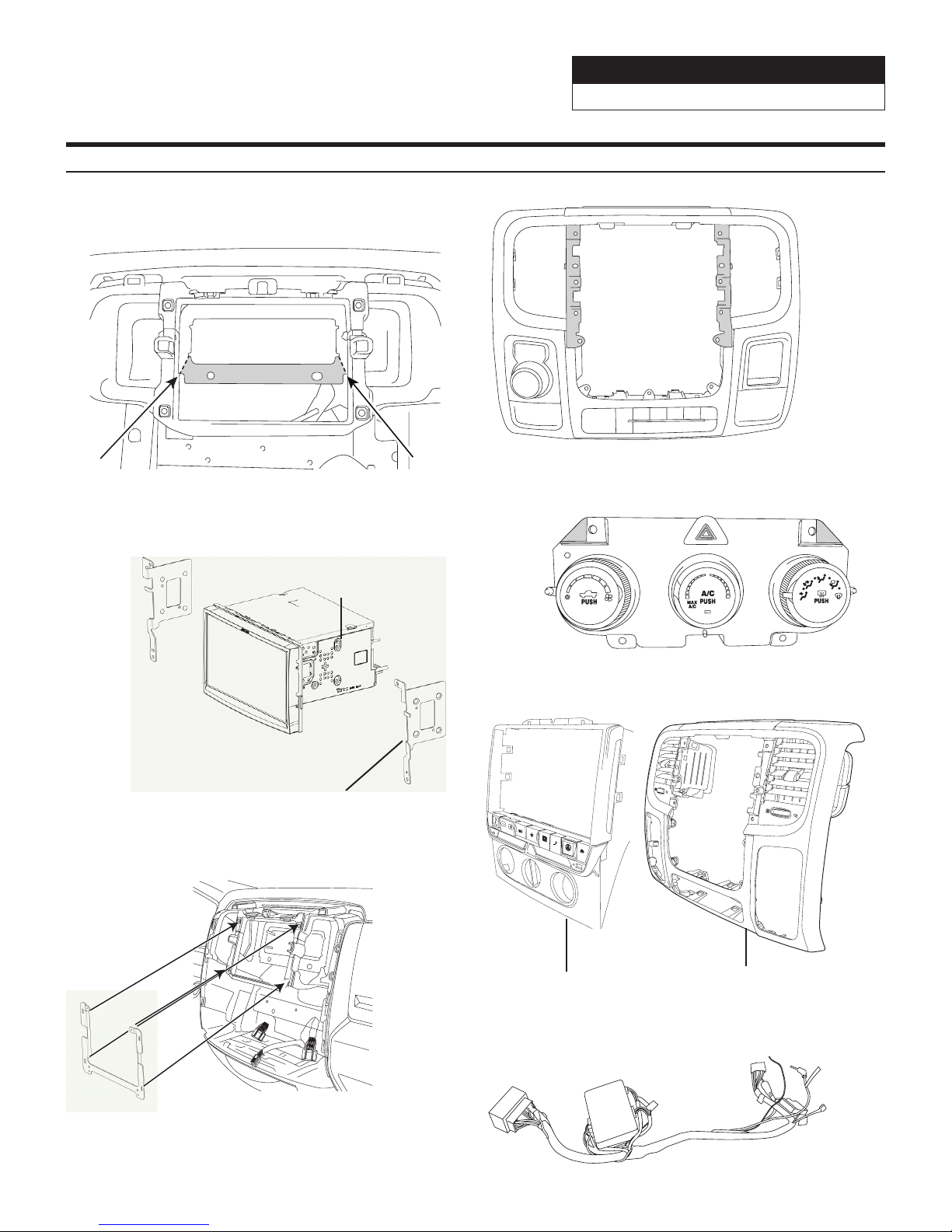

Installation Instructions

4 Trim the shaded area using a cutting tool.

5 Trim the dashed area on the factory HVAC control

unit and mount it on to the X009-RAM Radio/Dash

bezel.

6 Attach the X009-RAM Radio/Dash bezel to the dash

factory trim.

7 Connect the Maestro module to the X009-RAM

main harness.

Dash board

X009-RAM Radio/

Dash Bezel

Factory Dash Trim

1 Using a cutting tool cut the bottom section of the

metal bracket (as shown in the shaded area).

2 Mount the brackets to the sides of the head unit as

shown, using athead Phillips screws supplied.

3 Install the head unit mounting plate using the 4x

factory 9/32” – 7mm screws.

Headunit Side Mounting Brackets

X009 Headunit

Head Unit

Mounting Plate

RAM

FULL SIZE TRUCK  10/13

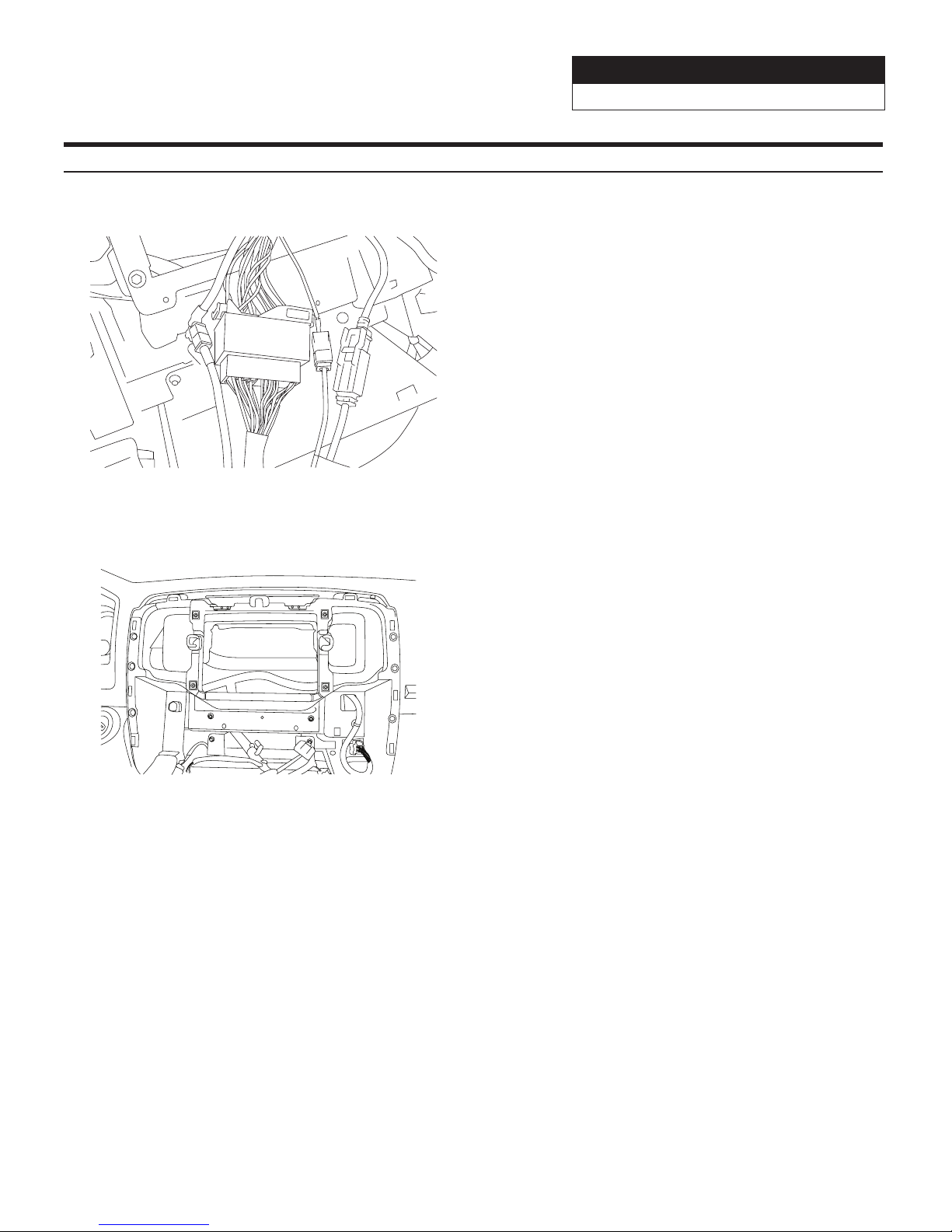

Installation Instructions

8 Connect the main harness and adapters to the

factory harness.

9 Place the GPS antenna in between the vent duct

and the top of the dash. Use the supplied metal

base for the best signal strength.
