ALS Tire Pro
Install Guide
(20.06.2022)
V1.0 – Initial version
2
© Alsense Motorsport SRL
1.Overview
The case needs to be drilled for M2 screws (1.6 drill bit) using the supplied template.
The thickness of the case is 2mm and the drill bit isn’t allowed to go past 3mm (so 1mm
clearance inside) as it can hit the battery and the silicone seal around the sensor.
The recommended way would be to remove the PCB and silicone seal, but, if you can
drill the holes to be 2-3mm, you can jump straight to step #3 in the guide
3
© Alsense Motorsport SRL
2.Taking the sensor apart
Unscrew the 3 x M2 screws of the case and gently lift the lid.
4
© Alsense Motorsport SRL

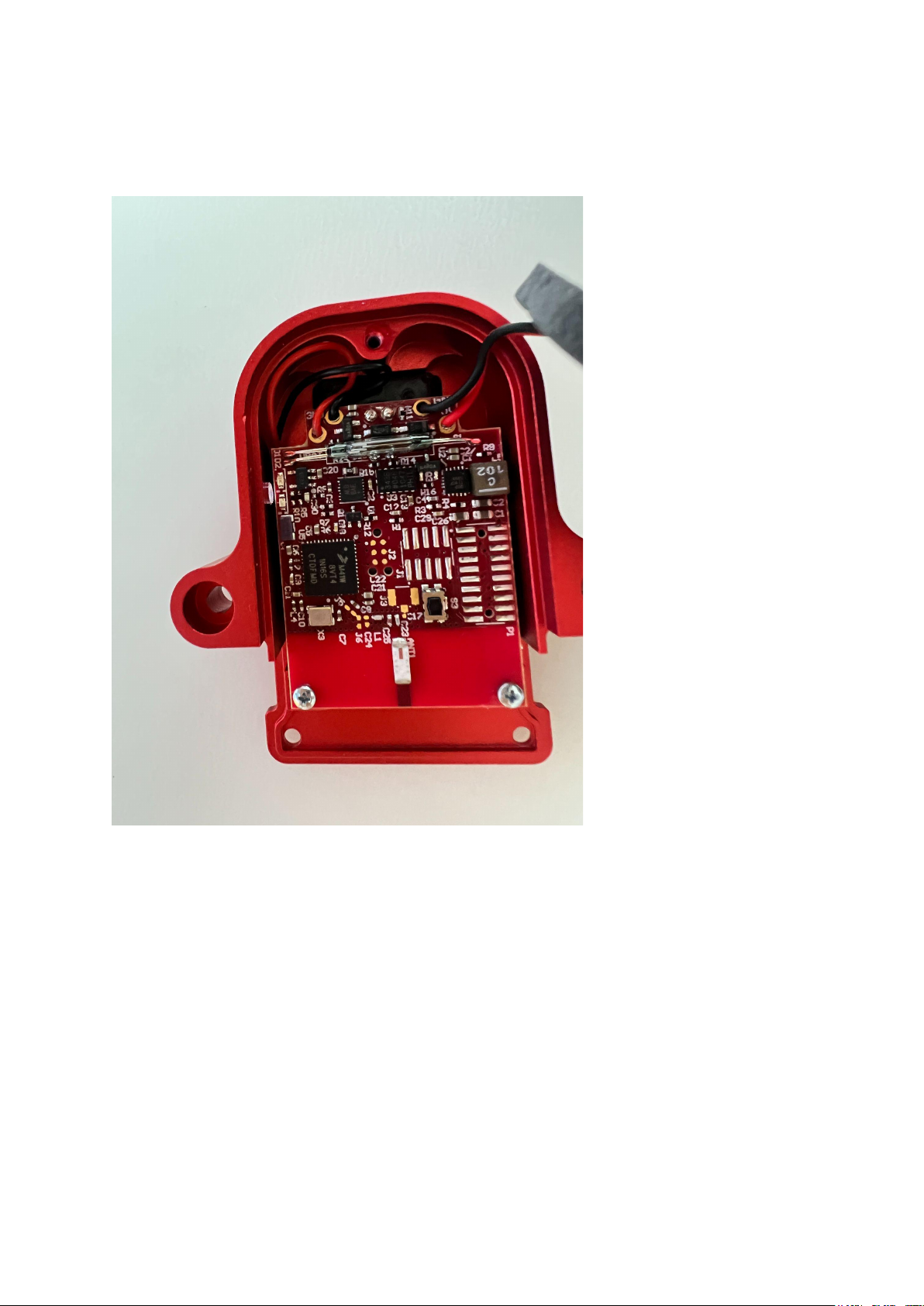

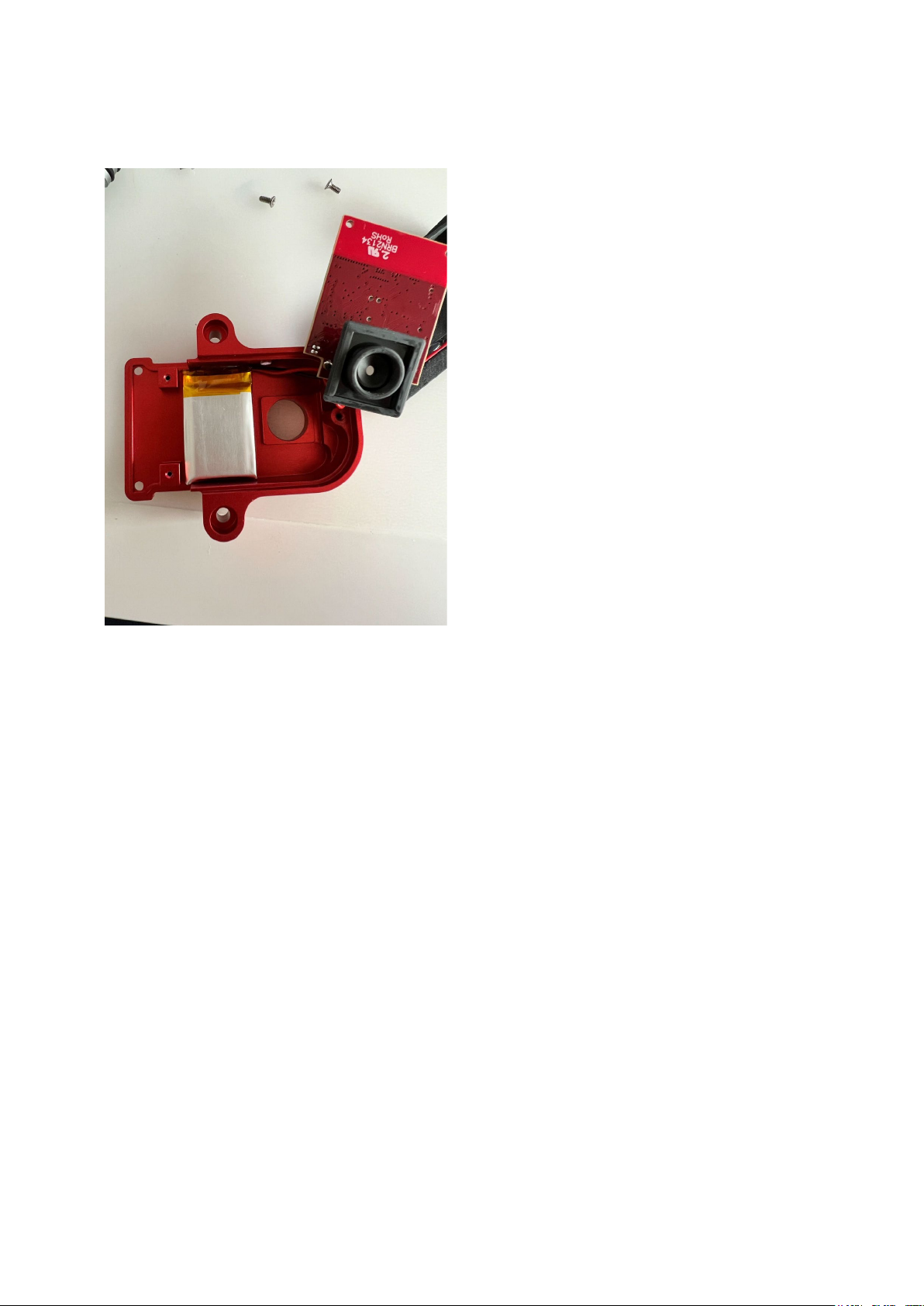

Remove the two screws that fix the PCB to the case and gently push the camera and
silicone seal out
5
© Alsense Motorsport SRL
3.Drilling the holes

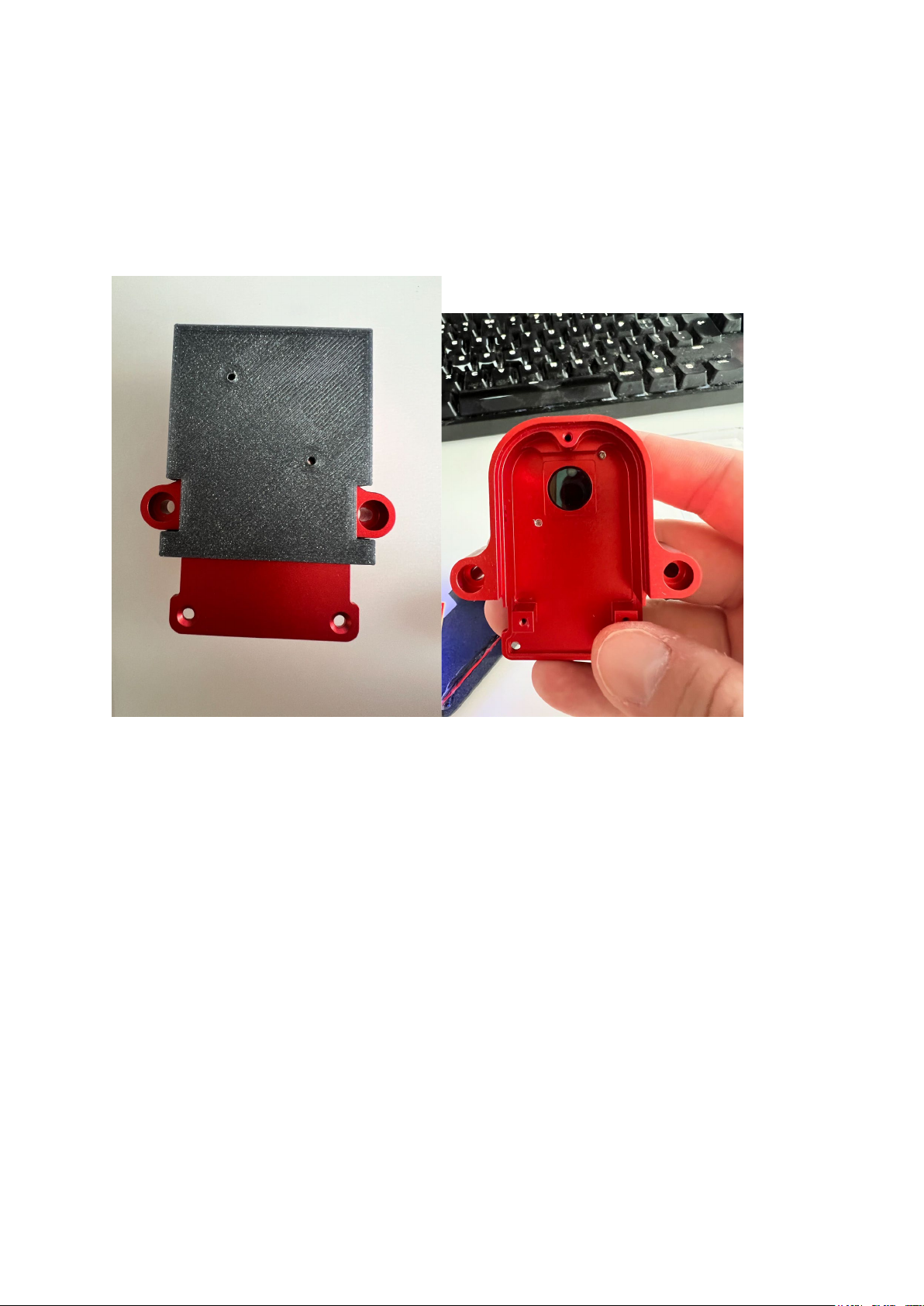

Drill the 2 holes using the supplied template. They need to be tapped for M2 screws, so
use a 1.6 drill bit.

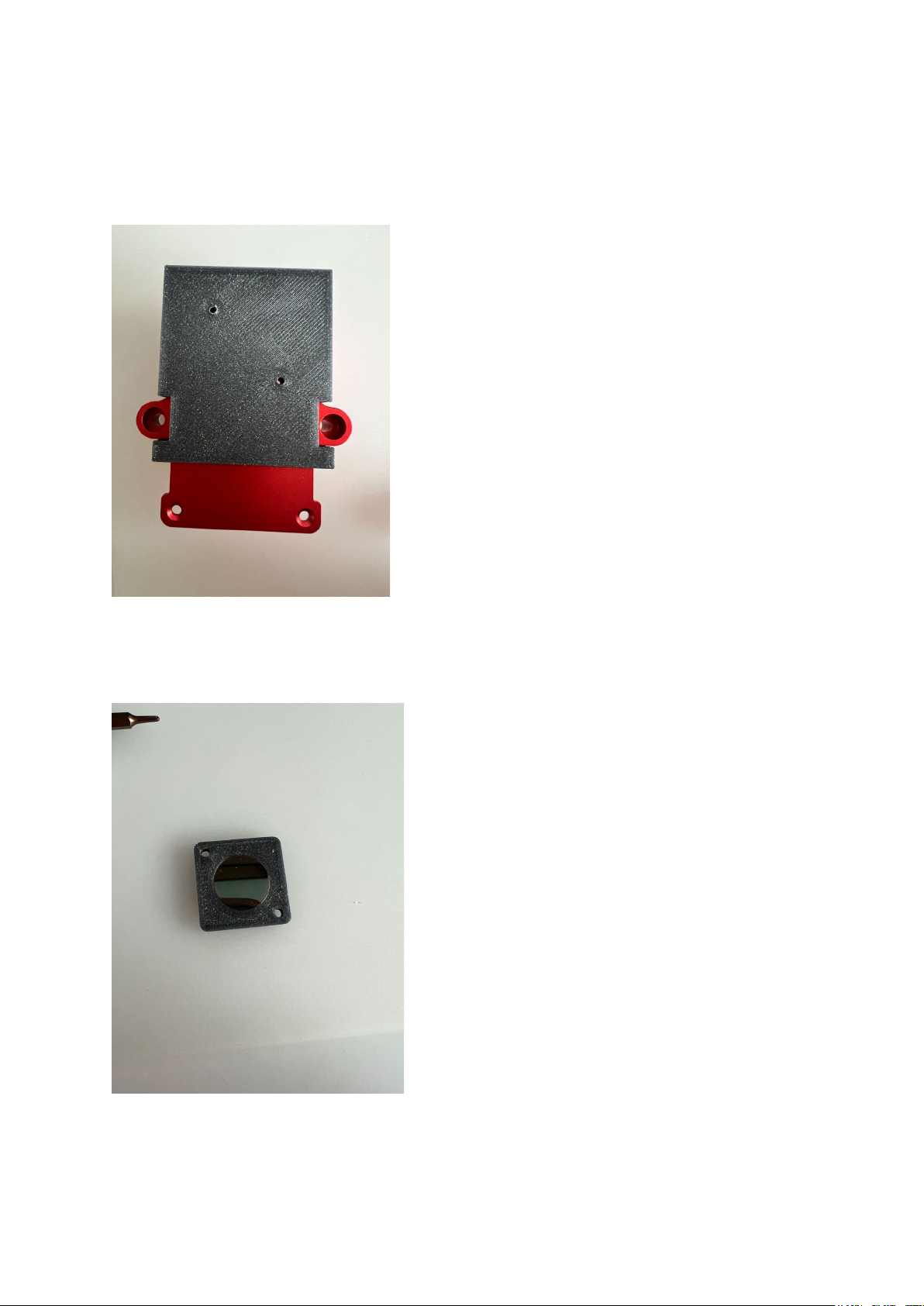

Fit the lens into the mount and put everything in place using the M2 screws provided.
