Altinex MULTI-TASKER MT103-127 Manuale utente

MULTI-TASKER™

MANUAL PART NUMBER: 400-0390-002

VGA TO 5 BNC LINE DRIVER/INTERFACE

AND

VGA TO 3 BNC LINE

DRIVER/INTERFACE/BUFFERED LOOP

CARDS FOR MULTI-TASKER USER’S GUIDE

MT103-127/128

MT103-127 MT103-128

MULTI-TASKER™

TABLE OF CONTENTS

Page

PRECAUTIONS / SAFETY WARNINGS.............. 2

GENERAL......................................................... 2

INSTALLATION................................................. 2

CLEANING........................................................ 2

FCC / CE NOTICE............................................. 2

ABOUT YOUR MT103-127/128........................... 3

TECHNICAL SPECIFICATIONS.......................... 3

PRODUCT DESCRIPTION.................................. 4

DESCRIPTION 1: MT103-127........................... 4

DESCRIPTION 2: MT103-128........................... 4

APPLICATION DIAGRAM.................................... 5

DIAGRAM 1: MT103-127 TYPICAL SETUP...... 5

DIAGRAM 2: MT103-128 TYPICAL SETUP...... 5

DIAGRAM 3: MT103-127 INTERNAL VIEW...... 6

DIAGRAM 4: MT103-128 INTERNAL VIEW...... 7

DIAGRAM 5: MT103-127 SETTINGS................ 8

DIAGRAM 6: MT103-128 SETTINGS................ 9

INSTALLING YOUR MT103-127/128................. 10

OPERATION...................................................... 10

RS-232 CONTROL.......................................... 10

DESCRIPTION OF COMMANDS.................... 10

SUMMARY OF COMMANDS........................... 15

MENU MODE.................................................. 16

TROUBLESHOOTING GUIDE........................... 18

NO DISPLAY................................................... 18

ALTINEX POLICY.............................................. 19

LIMITED WARRANTY/RETURN POLICY....... 19

CONTACT INFORMATION.............................. 19

MULTI-TASKER™

PRODUCT DESCRIPTION 4

DESCRIPTION 1: MT103-127 DESCRIPTION 2: MT103-128

MULTI-TASKER™

APPLICATION DIAGRAM 5

DIAGRAM 1: MT103-127 TYPICAL SETUP

DIAGRAM 2: MT103-128 TYPICAL SETUP

MULTI-TASKER™

DIAGRAM 3: MT103-127 INTERNAL VIEW

MULTI-TASKER™

DIAGRAM 4: MT103-128 INTERNAL VIEW

MULTI-TASKER™

DIAGRAM 5: MT103-127 SETTINGS

MT103-127 SWITCH LOCATIONS AND SETTINGS

DEFAULTS: Horizontal Position = Hardware Control

Equalization = Hardware Control

Composite Sync = OFF (Closed)

Sync Delay = ON

Sync On Green = OFF

MULTI-TASKER™

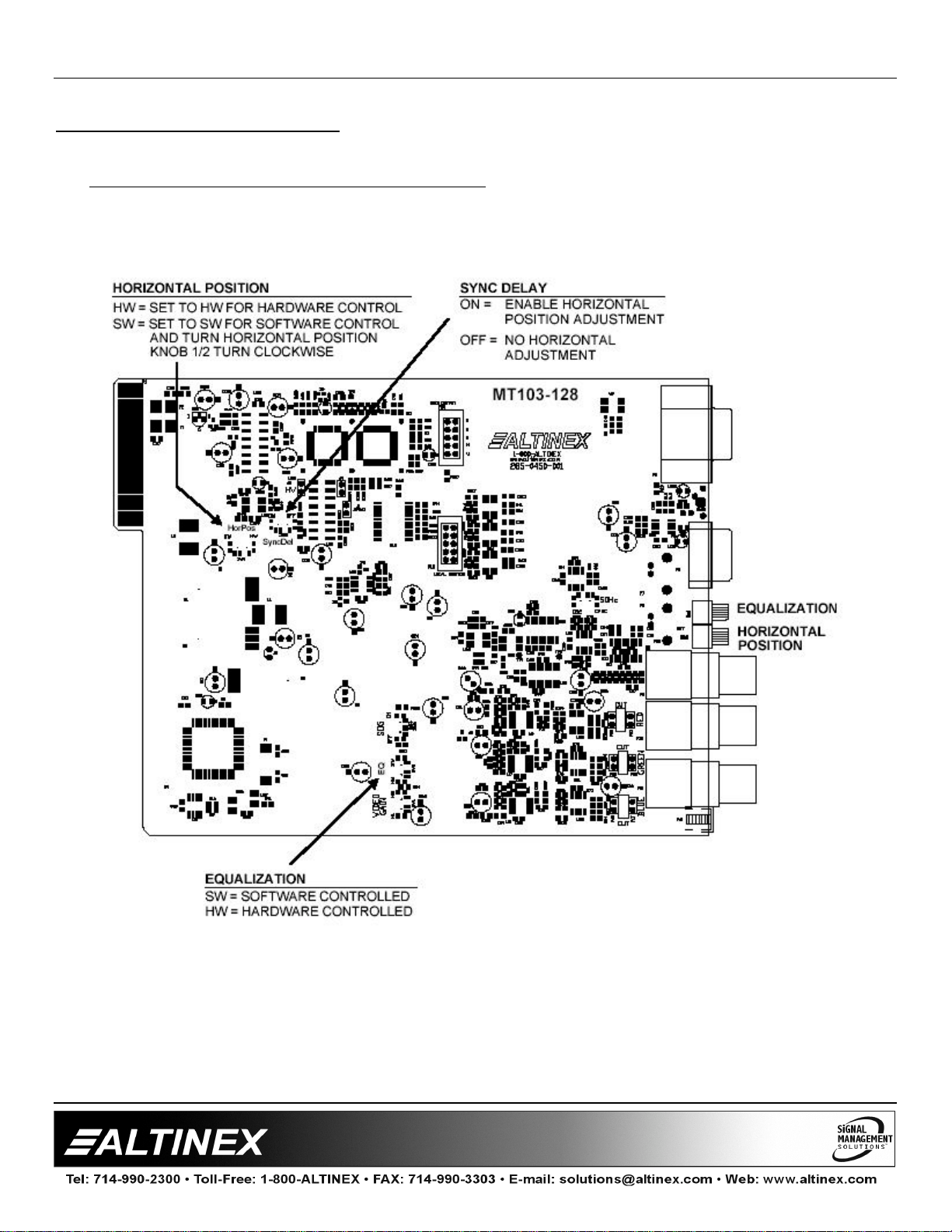

DIAGRAM 6: MT103-128 SETTINGS

MT103-128 SWITCH LOCATIONS AND SETTINGS

DEFAULTS: Horizontal Position = Hardware Control

Equalization = Hardware Control

Sync Delay = ON
