Alto-Shaam HFT2SYS-300 Manuale utente

W164 N9221 Water Street • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 USA

PHONE: 262.251.3800 • 800.558.8744

USA/CANADA

FAX: 262.251.7067 • 800.329.8744

U.S.A. ONLY

www.alto-shaam.com

MN-29506 • 01/12

printed i n u.s.a.

Hot Food Table

Merchandiser

Models:

HFT2SYS-300

HFT2-300

HFT2SYS-400

HFT2-400

HFT2SYS-500

HFT2-500

  •InstallatIon

 •operatIon

•MaIntenance

HFT2-300

HFT2SYS-500 (Deluxe)

HFT2SYS-400 (Standard)

Delivery ...................................... 1

Unpacking .................................... 1

Safety Procedures and Precautions ................. 2

Installation

Installation Requirements ...................... 3

Leveling ................................... 3

Dimension Drawings, weights & capacities ........4-8

Options and Accessories....................... 8

Electrical Specifications ....................... 9

Operating Instructions

User Safety Information. . . . . . . . . . . . . . . . . . . . . . . 10

Start-up Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Operating Procedures ........................ 11

General Holding Guidelines.................... 12

Care and Cleaning

Cleaning and Preventative Maintenance .......... 13

Protecting Stainless Steel Surfaces.............. 13

Cleaning Agents ............................ 13

Cleaning Materials .......................... 13

Equipment Care ............................ 14

Clean Daily ................................ 14

Sanitation

Sanitation/Food Safety ....................... 15

Internal Food Product Temperatures ............. 15

Service

Service View & Parts Lists

Lexan Guards .............................. 16

Tray Slides ................................ 16

Panel Colors, Deluxe Parts .................... 18

Core Unit ...............................18-19

Base ...................................20-21

Cable Heating Replacement Kits................ 21

Calibration................................. 21

Wire Diagrams

Always refer to the wire diagram(s) included with the unit

for most current version.

Warranty

Transportation Damage and Claims ...... Back Cover

Limited Warranty..................... Back Cover

HFT2 INSTALLATION/OPERATION/SERVICE MANUAL • 1.

DELIVERY

This Alto-Shaam appliance has been

thoroughly tested and inspected to ensure only

the highest quality unit is provided. Upon

receipt, check for any possible shipping damage

and report it at once to the delivering carrier.

See Transportation Damage and Claims section

located in this manual.

This appliance, complete with unattached

items and accessories, may have been delivered

in one or more packages. Check to ensure that all

standard items and options have been received

with each model as ordered.

Save all the information and instructions

packed with the appliance. Complete and return

the warranty card to the factory as soon as

possible to ensure prompt service in the event of a

warranty parts and labor claim.

This manual must be read and understood

by all people using or installing the equipment

model. Contact the Alto-Shaam Tech Team Service

Department if you have any questions concerning

installation, operation, or maintenance.

NOTE: All claims for warranty must include the

full model number and serial number of

the unit.

UNPACKING

1. Carefully remove the

appliance from the

carton or crate.

NOTE: Do not discard the

carton and other

packaging material

until you have

inspected the unit

for hidden damage

and tested it for

proper operation.

2. Read all instructions in this manual carefully

before initiating the installation of this appliance.

DO NOT DISCARD THIS MANUAL.

This manual is considered to be part of the

appliance and is to be provided to the owner

or manager of the business or to the person

responsible for training operators. Additional

manuals are available from the Alto-Shaam

Tech Team Service Department.

3. Remove all protective plastic film, packaging

materials, and accessories from the appliance

before connecting electrical power. Store any

accessories in a convenient place for future use.

HFT2 INSTALLATION/OPERATION/SERVICE MANUAL • 2.

NOTE

For equipment delivered for use

in any location regulated by the

following directive:

DO NOT DISPOSE OF ELECTRICAL

OR ELECTRONIC EQUIPMENT WITH

OTHER MUNICIPAL WASTE.

1. This appliance is intended to hold foods

for the purpose of human consumption.

No other use for this appliance is authorized

or recommended.

2. This appliance is intended for use in commercial

establishments where all operators are

familiar with the purpose, limitations, and

associated hazards of this appliance. Operating

instructions and warnings must be read and

understood by all operators and users.

3. Any troubleshooting guides, component views,

and parts lists included in this manual are for

general reference only and are intended for use

by qualified technical personnel.

4. This manual should be considered a permanent

part of this appliance. This manual and all

supplied instructions, diagrams, schematics,

parts lists, notices, and labels must remain with

the appliance if the item is sold or moved to

another location.

NOTE: Used to notify personnel of

installation, operation, or

maintenance information that is

important but not hazard related.

CAUTION

Used to indicate the presence of a hazard that

can or will cause minor personal injury, property

damage, or a potential unsafe practice if the

warning included with this symbol is ignored.

CAUTION

Used to indicate the presence of a

hazard that can or will cause minor or

moderate personal injury or property

damage if the warning included with

this symbol is ignored.

DANGER

Used to indicate the presence of

a hazard that WILL cause severe

personal injury, death, or substantial

property damage if the warning

included with this symbol is ignored.

WARNING

Used to indicate the presence of a

hazard that CAN cause personal injury,

possible death, or major property

damage if the warning included with

this symbol is ignored.

SAFETY PROCEDURES

AND PRECAUTIONS

Knowledge of proper procedures is essential to the

safe operation of electrically and/or gas energized

equipment. In accordance with generally accepted

product safety labeling guidelines for potential

hazards, the following signal words and symbols

may be used throughout this manual.

HFT2 INSTALLATION/OPERATION/SERVICE MANUAL • 3.

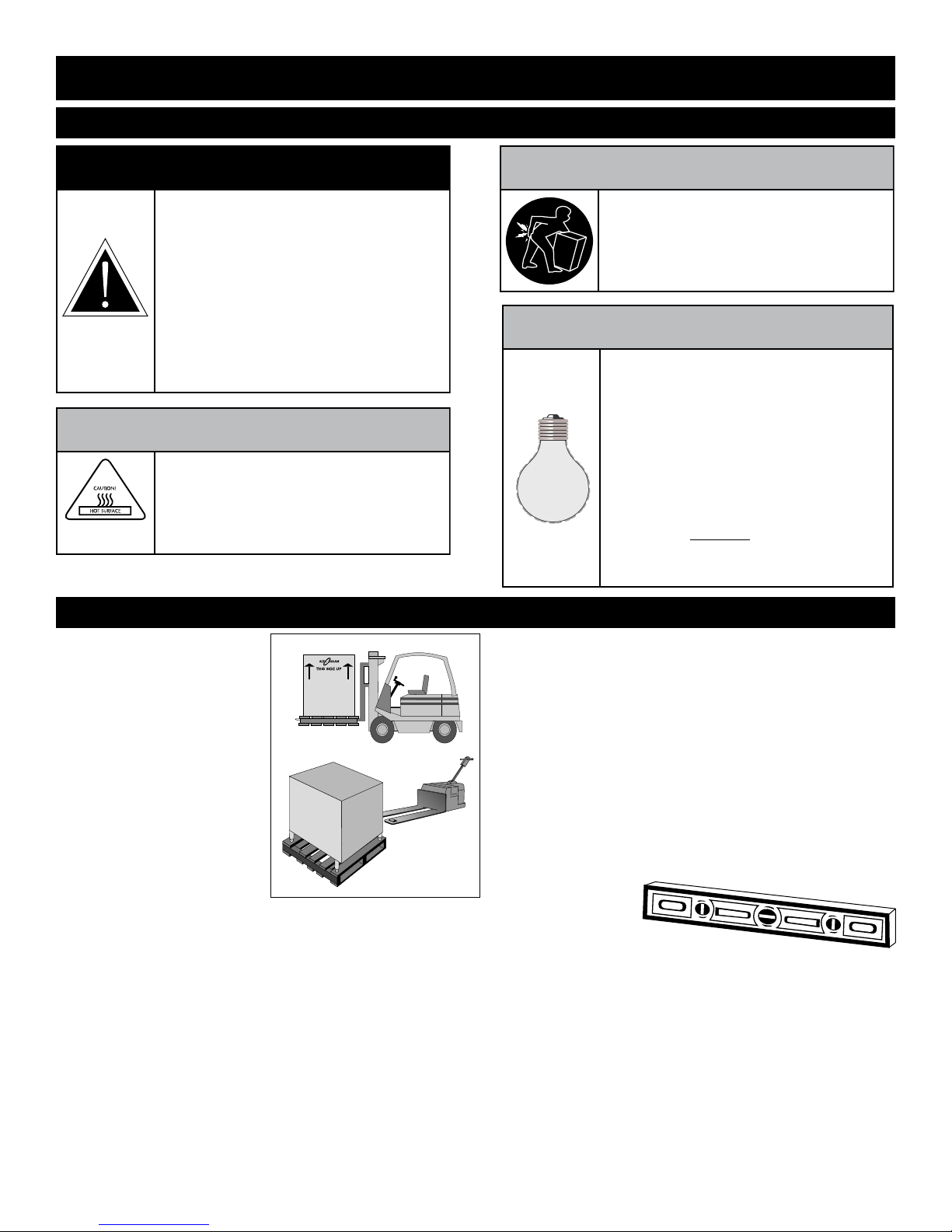

SITE INSTALLATION

INSTALLATION

SITE INSTALLATION

In order to maintain

established National

Sanitation Foundation

standards, all stationary

floor models must be

sealed to the floor with a

R.T.V. or silastic meeting

N.S.F. requirements or

have 6" (153mm)

unobstructed clearance

beneath the unit.

1. The appliance must be

installed on a stable

and level surface.

2. DO NOT install this appliance in any area

where it may be affected by any adverse

conditions such as steam, grease, dripping water,

high temperatures, or any other severely

adverse conditions.

3. DO NOT install a heated display case near a cold

air source such as a freezer, air conditioning vents,

or in any area where outside air fluctuation can

affect performance.

4. This appliance must be kept free and clear of

any obstructions blocking access for

maintenance or service.

A number of adjustments are associated with

initial installation and start-up. It is important

that these adjustments be conducted by a

qualified service technician. Installation and

start-up adjustments are the responsibility of the

dealer or user. These adjustments include but

are not limited to thermostat calibration, door

adjustment, leveling, electrical hook-up and

installation of optional casters or legs.

LEVELING

Level the appliance from side-to-side and

front-to-back with the use of a spirit level.

We recommend checking the level periodically

to make certain the floor has not shifted nor the

appliance moved.

NOTE: Failure to properly level this appliance

can cause improper function.

DANGER

IMPROPER INSTALLATION,

ALTERATION, ADJUSTMENT,

SERVICE, OR MAINTENANCE COULD

RESULT IN SEVERE INJURY, DEATH,

OR CAUSE PROPERTY DAMAGE.

READ THE INSTALLATION,

OPERATING AND MAINTENANCE

INSTRUCTIONS THOROUGHLY

BEFORE INSTALLING OR SERVICING

THIS EQUIPMENT.

CAUTION

METAL PARTS OF THIS EQUIPMENT

BECOME EXTREMELY HOT WHEN

IN OPERATION. TO AVOID BURNS,

ALWAYS USE HAND PROTECTION

WHEN OPERATING THIS APPLIANCE.

CAUTION

TO PREVENT PERSONAL INJURY,

USE CAUTION WHEN MOVING OR

LEVELING THIS APPLIANCE.

CAUTION

The performance of this unit has

been optimized using the factory

provided bulbs. These bulbs should

be replaced with an exact replacement

or with a factory recommended

replacement. These bulbs have been

treated to resist breakage and must be

replaced with similarly treated bulbs in

order to maintain compliance with NSF

standards. DO NOT over-tighten bulbs

in their receptacles as this can cause

damage to the bulb ﬁlament.

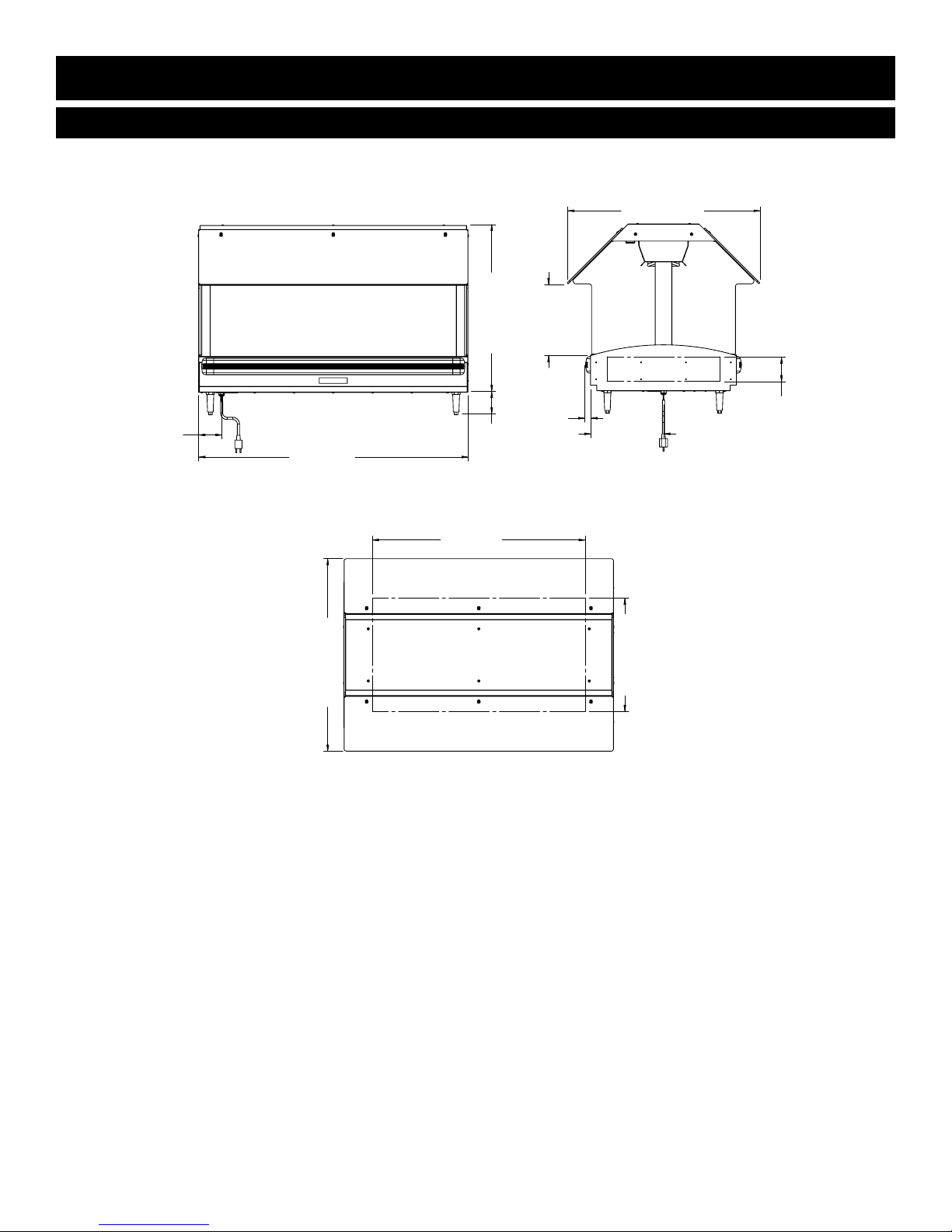

HFT2 INSTALLATION/OPERATION/SERVICE MANUAL • 4.

SITE INSTALLATION

INSTALLATION

48" (1220mm)

43-13/16" (1113mm)

12-1/2"

(318mm)

Top Surface

20-1/8" (509mm)

26-1/8" (663mm)

4-7/16" (111mm)

Well

12-3/4"

(322mm)

Opening

9-13/16"

(248mm)

To Well

20-1/8" (512mm)

13" (331mm)

To Elec.

6-13/16"

(173mm)

Tray Slide

4-1/8"

(104mm)

To Elec.

33-3/4" (857mm)

(102mm)

47-1/2" (1208mm)

Top Surface

38" (964mm)

Well

TOP VIEW

39-3/4" (1008mm)

HFT2-300

48" (1220mm)

1-5/16"

(34mm)

12-1/2" (318mm)

Top Surface

19-13/16"

(504mm)

60-1/2" (1536mm)

23-1/2"

(598mm)

Lower Sales Area

42-5/8" (1081mm)

12-3/4" (322mm)

Opening

7" (178mm)

4-7/16" (111mm)

Well

20-1/8"

(512mm)

Well

9-13/16"

(248mm)

Reach

9-1/4" (233mm)

Shelf Width

8" (203mm)

Shelf Width

20-1/8"

(509mm)

26-1/8"

(663mm)

39-3/4" (1008mm)

TOP VIEW

48" (1220mm)

1-5/16"

(34mm)

12-1/2" (318mm)

Top Surface

19-13/16"

(504mm)

60-1/2" (1536mm)

23-1/2"

(598mm)

Lower Sales Area

42-5/8" (1081mm)

12-3/4" (322mm)

Opening

7" (178mm)

4-7/16" (111mm)

Well

20-1/8"

(512mm)

Well

9-13/16"

(248mm)

Reach

9-1/4" (233mm)

Shelf Width

8" (203mm)

Shelf Width

20-1/8"

(509mm)

26-1/8"

(663mm)

39-3/4" (1008mm)

TOP VIEW

HFT2SYS-300 (Standard)

HFT2SYS-300 (Deluxe)

60-1/2" (1536mm)

(228mm)

37-1/8" (943mm)

To Well Surface

10-1/2"

(267mm)

Shelf Width

49-1/16" (1246mm)

42-5/8" (1081mm)

67" (1701mm)

60-1/2" (1536mm)

39-3/4" (1008mm)

HFT2 INSTALLATION/OPERATION/SERVICE MANUAL • 5.

SITE INSTALLATION

INSTALLATION

12-11/16" (322mm)

Opening

34-3/8" (872mm)

4-7/16"

(111mm)

Well

13" (331mm)

To Elec.

7/8"

(21mm)

38" (964mm)

Well

48" (1220mm)

(102mm)

34-5/16" (872mm)

20-3/16" (513mm)

Well Depth

29-3/4" (756mm)

4-1/8"

(105mm)

To Elec.

HFT2-300 (230V, International, with Bumper)

12-11/16" (322mm)

Opening

34-3/8" (872mm)

4-7/16"

(111mm)

Well

13" (331mm)

To Elec.

7/8"

(21mm)

38" (964mm)

Well

48" (1220mm)

(102mm)

34-5/16" (872mm)

20-3/16" (513mm)

Well Depth

29-3/4" (756mm)

4-1/8"

(105mm)

To Elec.

HFT2 INSTALLATION/OPERATION/SERVICE MANUAL • 6.

SITE INSTALLATION

INSTALLATION

12-1/2" (318mm)

Top Surface

59-1/2" (1512mm)

Top Surface

51" (1296mm)

Well

TOP VIEW

60" (1525mm)

27-15/16" (709mm)

4-1/8"

(104mm)

To Elec.

33-3/4" (857mm)

27-15/16" (709mm)

(102mm)

20-1/8" (509mm)

26-1/8" (663mm)

4-7/16" (111mm)

Well

12-3/4"

(322mm)

Opening

9-13/16"

(248mm)

To Well

20-1/8"

(512mm)

13" (331mm)

To Elec.

6-13/16"

(173mm)

Tray Slide

39-3/4" (1008mm)

HFT2-400

59-7/16" (1509mm)

TOP VIEW

12-1/2" (318mm)

Top Surface

39-3/4" (1008mm)

60" (1525mm)

60-1/2" (1536mm)

23-1/2"

(598mm)

Lower Sales Area

54-5/8" (1386mm)

12-3/4" (322mm)

Opening

7" (178mm)

4-7/16" (111mm)

Well

20-1/8"

(512mm)

Well

9-13/16"

(248mm)

Reach

9-1/4" (233mm)

Shelf Width

8" (203mm)

Shelf Width

20-1/8"

(509mm)

26-1/8"

(663mm)

39-3/4" (1008mm)

59-7/16" (1509mm)

TOP VIEW

12-1/2" (318mm)

Top Surface

39-3/4" (1008mm)

60" (1525mm)

60-1/2" (1536mm)

23-1/2"

(598mm)

Lower Sales Area

54-5/8" (1386mm)

12-3/4" (322mm)

Opening

7" (178mm)

4-7/16" (111mm)

Well

20-1/8"

(512mm)

Well

9-13/16"

(248mm)

Reach

9-1/4" (233mm)

Shelf Width

8" (203mm)

Shelf Width

20-1/8"

(509mm)

26-1/8"

(663mm)

39-3/4" (1008mm)

HFT2SYS-400 (Standard)

HFT2SYS-400 (Deluxe)

10-1/2"

(267mm)

Shelf Width

61-1/16" (1551mm)

54-5/8" (1386mm)

60-1/2" (1536mm)

(228mm)

37-1/8" (943mm)

To Well Surface

60-1/2" (1536mm)

39-3/4" (1008mm) 79-1/8" (2009mm)

HFT2 INSTALLATION/OPERATION/SERVICE MANUAL • 7.

SITE INSTALLATION

INSTALLATION

12-1/2" (318mm)

Top Surface

71-7/16" (1814mm)

Top Surface

64-1/8" (1628mm)

Well

TOP VIEW

72" (1830mm)

33-15/16" (861mm)

4-1/8"

(104mm)

To Elec.

33-3/4" (857mm)

33-15/16" (861mm)

(102mm)

20-1/8"

(509mm)

26-1/8" (663mm)

4-7/16" (111mm)

Well

12-3/4"

(322mm)

Opening

9-13/16"

(248mm)

To Well

20-1/8"

(512mm)

13" (331mm)

To Elec.

6-13/16"

(173mm)

Tray Slide

39-3/4" (1008mm)

HFT2-500

19-7/8

(504 mm)

TOP VIEW

6-9/16"

166 mm

To Elec.

23-1/2"

(598mm)

Lower Sales Area

12-3/4" (322mm)

Opening

7" (178mm)

4-7/16" (111mm)

Well

20-1/8"

(512mm)

Well

9-13/16"

(248mm)

Reach

9-1/4" (233mm)

Shelf Width

8" (203mm)

Shelf Width

20-1/8"

(509mm)

26-1/8"

(663mm)

39-3/4" (1008mm)

12-1/2"

(318mm)

Top Surface

60-1/2" (1536mm)

37-1/8" (943mm)

To Well Surface

72" (1830mm)

66-5/8" (1690mm)

71-7/16" (1814mm)

Top Surface

64-1/8" (1628mm)

Well

19-7/8

(504 mm)

TOP VIEW

6-9/16"

166 mm

To Elec.

23-1/2"

(598mm)

Lower Sales Area

12-3/4" (322mm)

Opening

7" (178mm)

4-7/16" (111mm)

Well

20-1/8"

(512mm)

Well

9-13/16"

(248mm)

Reach

9-1/4" (233mm)

Shelf Width

8" (203mm)

Shelf Width

20-1/8"

(509mm)

26-1/8"

(663mm)

39-3/4" (1008mm)

12-1/2"

(318mm)

Top Surface

60-1/2" (1536mm)

37-1/8" (943mm)

To Well Surface

72" (1830mm)

66-5/8" (1690mm)

71-7/16" (1814mm)

Top Surface

64-1/8" (1628mm)

Well

HFT2SYS-500 (Standard)

HFT2SYS-500 (Deluxe)

73-1/8" (1856mm)

66-5/8" (1690mm)

60-1/2" (1536mm)

37-1/8" (943mm)

To Well Surface

(228mm)

10-1/2"

(267mm)

Shelf Width

60-1/2" (1536mm)

39-3/4" (1008mm) 91" (2311mm)

HFT2 INSTALLATION/OPERATION/SERVICE MANUAL • 8.

capacities • options

INSTALLATION

OPTIONS AND ACCESSORIES

Panel Color Choices see service parts

Pan Dividers, Full Size 16019

Pan Dividers, Half and Third Size 11318

PRODUCT/PAN CAPACITY -

Based on 4" (65mm) deep pans

HFT2-400, HFTSYS-400

96 lb (44 kg) maximum

max. volume: 60 qt (76 L)

FULL-SIZE PANS*: Four (4) 12" x 20" x 4"

GN 1/1 (325mm x 530mm x 102mm)

HALF-SIZE PANS*: Eight (8) 12" x 10" x 4"

GN 1/2 (325mm x 265mm x 102mm)

THIRD-SIZE PANS*: Twelve (12) 12" x 6" x 4"

GN 1/3 (325mm x 176mm x 102mm)

* will also accept 2-1/2" (65mm)deep paNs; d6 uNits will accept 6" (153mm) deep pans

HFT2-500, HFTSYS-500

120 lb (54 kg) maximum

max. volume: 75 qt (95 L)

FULL-SIZE PANS*: Five (5) 12" x 20" x 4"

GN 1/1 (325mm x 530mm x 65mm)

HALF-SIZE PANS*: Ten (10) 12" x 10" x 4"

GN 1/2 (325mm x 265mm x 65mm)

THIRD-SIZE PANS*: Fifteen (15) 12" x 6" x 4"

GN 1/3 (325mm x 176mm x 65mm)

* will also accept 2-1/2" (65mm)deep paNs; d6 uNits will accept 6" (153mm) deep pans

HFT2-300, HFTSYS-300

D4: 62 lb (30 kg) max.

max. volume: D4: 45 qt (57 L)

FULL-SIZE PANS*: Three (3) 12" x 20" x 4"

GN 1/1 (325mm x 530mm x 102mm)

HALF-SIZE PANS*: Six (6) 12" x 10" x 4"

GN 1/2 (325mm x 265mm x 102mm)

THIRD-SIZE PANS*: Nine (9) 12" x 6" x 4"

GN 1/3 (325mm x 176mm x 102mm)

* will also accept 2-1/2" (65mm) deep paNs; d6 uNits will accept 6" (153mm) deep pans

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Alto-Shaam Merchandiser

Alto-Shaam

Alto-Shaam HALO HEAT HOT 2GO Manuale utente

Alto-Shaam

Alto-Shaam HSM-38/3S Istruzioni per l'installazione e il funzionamento

Alto-Shaam

Alto-Shaam Halo Heat GDR-80 Manuale utente

Alto-Shaam

Alto-Shaam ITM-48 Manuale del proprietario

Alto-Shaam

Alto-Shaam 750-GDR Manuale utente

Alto-Shaam

Alto-Shaam AR-7H ELECTRONIC CONTROL Manuale utente

Alto-Shaam

Alto-Shaam HSM-48/5S Manuale utente

Alto-Shaam

Alto-Shaam Hsm-48/4s-PB Manuale del proprietario

Alto-Shaam

Alto-Shaam HSM-24/3S/T Manuale utente

Alto-Shaam

Alto-Shaam HALO HEAT 750-GDU Manuale utente

Alto-Shaam

Alto-Shaam ITM2-72/STD Manuale del proprietario

Alto-Shaam

Alto-Shaam HALO HEAT 750-GDU Manuale del proprietario

Alto-Shaam

Alto-Shaam HSM-38/3S Manuale utente

Alto-Shaam

Alto-Shaam HALO HEAT 200-HST/G Manuale del proprietario

Alto-Shaam

Alto-Shaam ITM2-72 Manuale utente

Alto-Shaam

Alto-Shaam ITM2-48/STD Manuale utente

Alto-Shaam

Alto-Shaam SC-24/2S Manuale utente

Alto-Shaam

Alto-Shaam HSM-24/5S Manuale utente

Alto-Shaam

Alto-Shaam HSM-38/3S Manuale del proprietario

Alto-Shaam

Alto-Shaam SC-24/2S Manuale utente

Alto-Shaam

Alto-Shaam HSM-48/5S Manuale utente

Alto-Shaam

Alto-Shaam 1000-HCM Manuale utente

Alto-Shaam

Alto-Shaam SC-36/2S Manuale utente

Alto-Shaam

Alto-Shaam HSM-38/3S Manuale utente

Manuali Merchandiser popolari di altre marche

FRIGOGLASS

FRIGOGLASS Flex 20 HC Manuale utente

Hussmann

Hussmann ENTYCE TY3 Manuale utente

EPTA

EPTA COSTAN RHINO MULTI Manuale utente

Hussmann

Hussmann CRFD Istruzioni operative

CASCO

CASCO Nano Cube Manuale utente

Hussmann

Hussmann WDCHI Manuale utente

True

True GDIM-26 Manuale utente

Structural Concepts

Structural Concepts Oasis Mobile Series Istruzioni per l'installazione

Hussmann

Hussmann Q2-SS Istruzioni operative originali

Haussmann

Haussmann RL Manuale utente

Howard McCray

Howard McCray R-CDS32E-4 Manuale utente

Hussmann

Hussmann microSC SHM-A Series Manuale utente

Hussmann

Hussmann APT0500 Manuale utente

EPTA

EPTA iarp Cool Emotions Delight Lite Manuale utente

VALERA

VALERA BC 85 Manuale utente

HL Display

HL Display 3eBin Manuale utente

Hussmann

Hussmann Q1-SS Manuale di istruzioni

Hussmann

Hussmann impact Excel C2X-XLEP Manuale di istruzioni
