Installation Guide
Access & Power Integration
Altronix Trove2/Mercury Kits with PTC Outputs
All components of these Trove kits are UL Listed sub-assemblies.
Please refer to the included corresponding Sub-Assembly Installation Guides for further information.
T2MK34D
Fully assembled 4 door kit includes:
- Trove2 enclosure with
TM2 Altronix/Mercury backplane
- (1) AL600ULXB - Power Supply/Charger
- (1) ACM4CB - PTC Access Power Controller
- (1) VR6 - Voltage Regulator
- (1) PDS8CB - Dual Input PTC Power Distribution Module
T2MK38D
Fully assembled 8 door kit includes:
- Trove2 enclosure with
TM2 Altronix/Mercury backplane
- (1) AL600ULXB - Power Supply/Charger
- (1) ACM8CB - PTC Access Power Controller
- (1) VR6 - Voltage Regulator
- (1) PDS8CB - Dual Input PTC Power Distribution Module
T2MK78D
Fully assembled 8 door kit includes:
- Trove2 enclosure with
TM2 Altronix/Mercury backplane
- (1) AL1024ULXB2 - Power Supply/Charger
- (1) ACM8CB- PTC Access Power Controller
- (1) VR6 - Voltage Regulator
- (1) PDS8CB - Dual Input PTC Power Distribution Module
T2MK7516D
Fully assembled 16 door kit includes:
- Trove2 enclosure with TM2 Altronix/Mercury
backplane and TMV2 door backplane
- (1) AL1024ULXB2 - Power Supply/Charger
- (1) AL1012ULXB - Power Supply/Charger
- (2) ACM8CB - PTC Access Power Controllers
- (1) PD16WCB - PTC Power Distribution Module
T2MK7716D
Fully assembled 16 door kit includes:
- Trove2 enclosure with TM2 Altronix/Mercury
backplane and TMV2 door backplane
- (2) AL1024ULXB2 - Power Supply/Chargers
- (2) ACM8CB - PTC Access Power Controllers
- (1) VR6 - Voltage Regulator
- (1) PDS8CB - Dual Input PTC Power Distribution Module
- 2 - Trove2/Mercury PTC ULXB Kits Installation Guide
Overview:
Altronix Trove Mercury kits are pre-assembled and consist of Trove2M2 enclosure with factory installed Altronix power supply/charger(s) and sub-assemblies.
These kits also accommodate various combinations of Mercury boards for up to sixteen (16) doors in a single enclosure.
Configuration Chart:
Altronix
Model Number
115VAC 60Hz
Input Current (A)
Power Supply Board
Input Fuse Rating
Power Supply Board
Battery Fuse Rating
Output Voltage Options
Maximum Supply
Current for Main and Aux.
Outputs on Power Supply
board and ACM4CB/
ACM8CB Access Power
Controller’s outputs
Fail-Safe/Fail-Secure
Auto-Resettable Outputs
Current Per ACM4CB/
ACM8CB Output (A)
ACM4CB/ACM8CB
Board Input Fuse Rating
ACM4CB/ACM8CB Board
Output PTC Rating
PDS8CB Board
Input Fuse Rating
PDS8CB Board
Output PTC Rating
PD8ULCB/PD16WCB
Board Output PTC Rating
Power
Supply 1
Power
Supply 2
T2MK34D 3.5 5A/
250V N/A
12VDC @
5.7A –24VDC @ 5.7A 4 2.0 10A/
250V 2A 10A/
250V 2A –
24VDC @
5.5A
T2MK38D 3.5 5A/
250V N/A
12VDC @
5.7A –24VDC @ 5.7A 8 2.0 10A/
250V 2A 10A/
250V 2A –
24VDC @
5.5A
T2MK78D 4.2 5A/
250V
15A/
32V
24VDC @
9.5A –24VDC @ 9.5A 8 2.0 10A/
250V 2A 10A/
250V 2A –
T2MK7516D 6.8 5A/
250V
15A/
32V
12VDC @
9.5A
24VDC @
9.5A
12VDC @ 9.3A
24VDC @ 9.5A 16 2.0 10A/
250V 2A – – 2A
T2MK7716D 8.4 5A/
250V
15A/
32V
24VDC @
9.5A
24VDC @
9.5A 24VDC @ 9.5A 16 2.0 10A/
250V 2A 10A/
250V 2A –
Installation Instructions:
Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having jurisdiction.
Product is intended for indoor use only.
1. Remove backplane(s) from enclosure. Do not discard hardware.
2. Mark and predrill holes in the wall to line up with the top three keyholes in the enclosure. Install three upper fasteners
and screws in the wall with the screw heads protruding. Place the enclosure’s upper keyholes over the three upper
screws, level and secure. Mark the position of the lower three holes. Remove the enclosure. Drill the lower holes
and install the three fasteners. Place the enclosure’s upper keyholes over the three upper screws. Install the three
lower screws and make sure to tighten all screws.
3. Mount included UL Listed tamper switch (Altronix Model TS112 or equivalent) in desired location, opposite
hinge. Slide the tamper switch bracket onto the edge of the enclosure approximately 2” from the right side
(Fig. 1, pg. 2). Connect tamper switch wiring to the Access Control Panel input or the appropriate UL Listed
reporting device. To activate alarm signal open the door of the enclosure.
4. Refer to the ULXB Power Supply/Charger Installation Guide for AL600ULXB, AL1012ULXB and AL1024ULXB2 and
Sub-Assembly Installation Guide for the following models: ACM4CB, ACM8CB, PDS8CB, VR6 for
further installation instructions.
5. Fasten snap on spacers onto metal pems configuration of backplane depending on the Mercury access controller
(Fig. 2-5, pg. 3-6).
6. Position Mercury access controller module over corresponding spacers and depress onto snap on spacers (Fig. 2-5, pg. 3-6).
7. Mount backplane to enclosure with hardware.
Fig. 1
Tamper Switch
(provided)
To Access Control Panel or
UL Listed Reporting Device
Edge of
Enclosure
Enclosure
Trove2/Mercury PTC ULXB Kits Installation Guide - 3 -

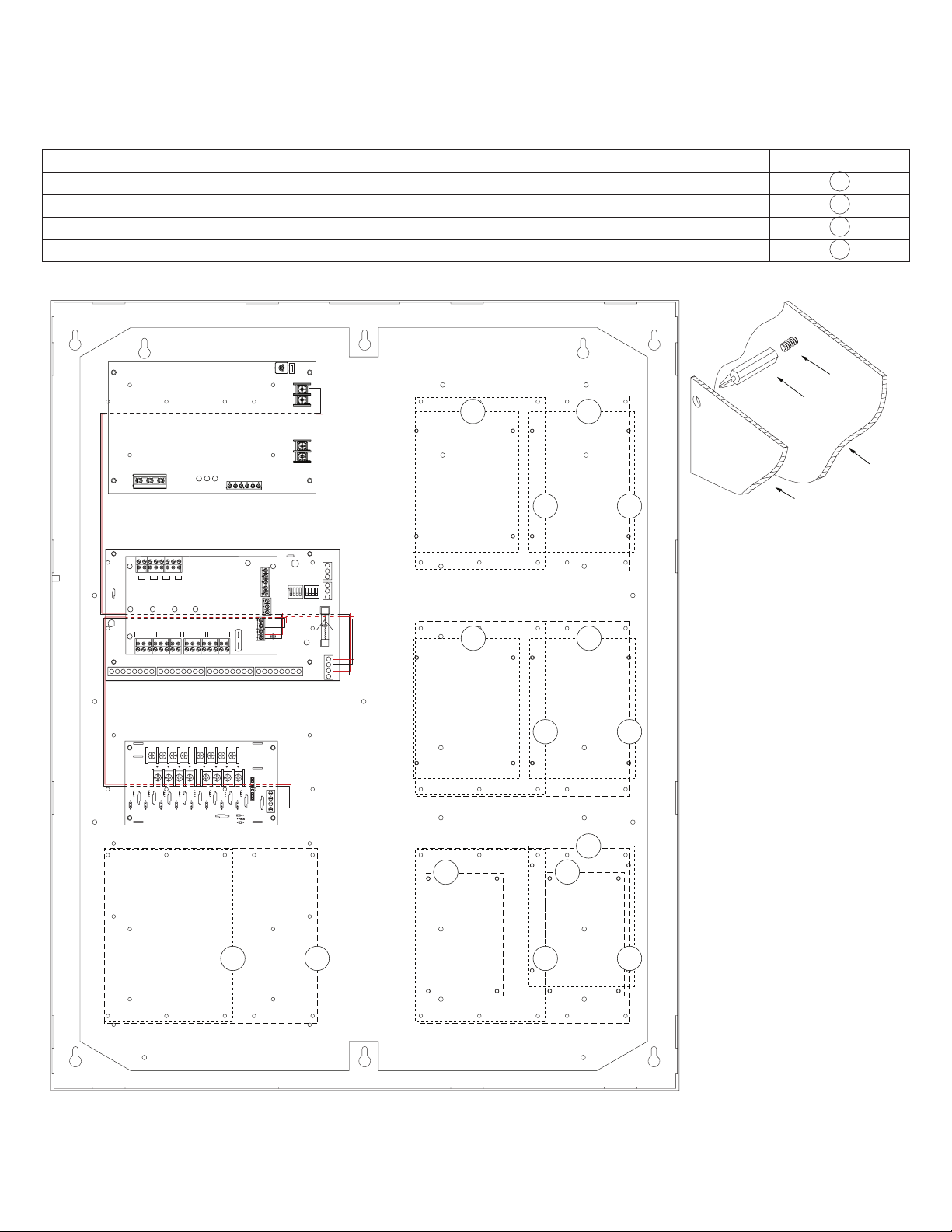

T2MK34D and T2MK38D Configuration of Mercury Boards:
1. Fasten snap on spacers onto metal pems configuration (A), (B), (C) or (D) of backplane depending on the access controller (Fig. 2, pg. 3).
2. Position access controller module over corresponding spacers and depress onto snap on spacers (Fig. 2a, pg. 3).
3. Mount backplane to enclosure with hardware.
Access Controller Position Chart for the Following Models:
Mercury Access Controller Pem Mounting
EP1502, MR52, MR16IN, MR16OUT A
EP2500, MUX8 B
EP1501, MR51e C
MR50 D
Fig. 2
B
B
AB
CC
CC
C
D
D
B
A
A
A
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4 OUTPUT 5 OUTPUT 6 OUTPUT 7 OUTPUT 8
NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM
IN GND IN GND IN GND IN GNDIN GND IN GND IN GND IN GND
1 2 3 4 5 6 7 8
INPUT
TRIGGER
10A 250V
+INP- T + RET-
NO C NC
FACP INTERFACE
Power Control
- + - +
F1 F2 F3 F4 F5 F6 F7 F8
MAIN
TRG
FACP
1 2 3 4
1 2 3 4
ON
ON
1 2 3 4
1 2 3 4
ON
ON
TRG
TRIGGER
INPUT
ACM4
ACCESS POWER
CONTROLLER
LED1 LED2 LED3 LED4
MAIN
OUTPUT 1
NC C NO COM NC C NO COM NC C NO COM NC C NO COM
OUTPUT 2 OUTPUT 3
IN GND
1
IN GND
2
IN GND
3
IN GND
4
OUTPUT 4
-- +
CONTROL
-- +
POWER
+INP- T +RET-
INTERFACE
NO C NC
FACP
+ INP1 --
DM1 +OFF
IN1
IN2
Out1
<1 off 2>
DM1 +
DM2 +
DM2 +
Common (--- )
Common (--- )
+ INP2 --
IN2 Fuse
IN1 Fuse
Common Power Outputs (NEG)
N
P
OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8
1 2 3 4 5 6 7 8
Out2
<1 off 2>
Out3
<1 off 2>
Out4
<1 off 2>
Out5
<1 off 2>
Out6
<1 off 2>
Out7
<1 off 2>
Out8
<1 off 2>
Altronix ACM4CB
(T2MK34D)
Altronix ACM8CB
(T2MK38D)
Altronix - PDS8CB
Altronix VR6 is mounted under PDS8CB
BAT FAIL NC C NO NC C NO AC FAIL
AC DC BAT
+BAT- + DC -
L G N
OFF - 24V
ON - 12V
ON
Altronix - AL600ULXB
Snap On
Spacer
Mercury Board
Backplane
Pem
Fig. 2a
- 4 - Trove2/Mercury PTC ULXB Kits Installation Guide
