Altronix TROVE T1RM3F4D Manuale utente

Rev. T1RM3F4080720 More than just power.TM

Installing Company: _______________ Service Rep. Name: __________________________________

Address: _____________________________________________ Phone #: __________________

Installation Guide

All registered trademarks are property of their respective owners.

T1RM3F4

4 Door Kit with Fused Outputs

Fully assembled kit includes:

- Trove1R rack enclosure with Altronix and Mercury backplane (TM1R)

- (1) eFlow6NB - Power Supply/Charger

- (1) VR6 - Voltage Regulator

- (1) PDS8 - Fused Dual Output Power Distribution Module

- (1) ACM4 - Fused Access Power Controller

T1RM3F4D

4 Door Kit with PTC Outputs

Fully assembled kit includes:

- Trove1R rack enclosure with Altronix and Mercury/LenelS2 backplane (TM1R)

- (1) eFlow6NB - Power Supply/Charger

- (1) VR6 - Voltage Regulator

- (1) PDS8CB - PTC Dual Output Power Distribution Module

- (1) ACM4CB - PTC Access Power Controller

All components of these Trove kits are UL Listed sub-assemblies.

Please refer to the included corresponding

Sub-Assembly Installation Guides for further information.

Access & Power Integration

- 2 - T1RM3F4(D) Installation Guide

Overview:

Altronix T1RM3F4 and T1RM3F4D rack kits are pre-assembled and consist of Trove1M1R enclosure/backplane

with factory installed Altronix power supply/charger and sub-assemblies. These kits also accommodate various

combinations of Mercury boards for up to four (4) doors in a single enclosure.

Configuration Charts:

Altronix

Model

Number

120VAC 60Hz

P/S Input Current (A)

Power Supply Board

Input Fuse Rating

Power Supply Board

Battery Fuse Rating

Nominal DC

Output Voltage Maximum Supply

Current for Main and

Aux. Outputs on

Power Supply board,

PDS8 Power

Distribution Module

and ACM4 Access

Power Controller’s

outputs (A)

Current Per

ACM4 Output (A)

ACM4Board

Input Fuse Rating

ACM4 Board

Output Fuse Rating

Fail-Safe/Fail-Secure or

Dry Form “C” Outputs

PDS8 Board

Input Fuse Rating

PDS8 Board

Output Fuse Rating

[DC] [Aux]

24VDC Output

Range (V)

24VDC Output

Range (V)

T1RM3F4 3.5 5A/

250V

10A/

32V

20.28-

26.4

20.28-

26.4 24VDC @ 5.6A 2.5 10A/

250V

3A/

32V 410A/

32V

3A/

32V

Altronix

Model

Number

120VAC 60Hz

P/S Input Current (A)

Power Supply Board

Input Fuse Rating

Power Supply Board

Battery Fuse Rating

Nominal DC

Output Voltage Maximum Supply

Current for Main and

Aux. Outputs on

Power Supply board,

PDS8CB Power

Distribution Module

and ACM4CB Access

Power Controller’s

outputs (A)

Current Per

ACM4CB Output (A)

ACM4CB Board

Input Fuse Rating

ACM4CB Board

Output PTC Rating

Fail-Safe/Fail-Secure”

Outputs

PDS8CB Board

Input PTC Rating

PDS8CB Board

Output PTC Rating

[DC] [Aux]

24VDC Output

Range (V)

24VDC Output

Range (V)

T1RM3F4D 3.5 5A/

250V

10A/

32V

20.28-

26.4

20.28-

26.4 24VDC @ 5.6A 2.5 10A/

250V 2.5A 4 9A 2.5A

Hardware and Accessories:

Specifications:

Agency Listings:

• CE European Conformity.

Mechanical:

• Black enclosure with ample knockouts for

convenient access.

• Includes: tamper switch, cam lock and

mounting hardware.

• Modular 2U standard EIA 19” drawer with

extendable slides up to 48”.

• Dimensions (H x W x D): 3.375” x 19.0” x 26.5”

(85.8mm x 482.6mm x 673.1mm)

Included Accessories:

• One (1) tamper switch

(Altronix Model TS112 or equivalent).

• Cam lock.

Available Accessories (not included):

• RE2: Rack Mount Battery Enclosure accommodates

up to four (4) 12VDC/7AH batteries.

• WM5, WM25, WM100: Magnetic Cable Tie Mounts

(5, 25, 100 counts).

Spacer | 5/16” Pan Head Screw | Lock Nut

T1RM3F4(D) Installation Guide - 3 -

Installation Instructions for T1RM3F4(D):

Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local

codes and authorities having jurisdiction. These products are for indoor use only and must be installed within

the protected premises.

Note: First assemble and Install Z Bracket Wire Management Accesory

(refer to Z Bracket Installation pg. 4)

1. Remove backplane from enclosure prior to installing into rack cabinet

(do not discard hardware).

2. In order to mount included UL Listed tamper switch (Altronix Model TS112 or

equivalent) turn the enclosure upside down. Punch out the knockout in

designated location, on the back of the unit, from outside of the drawer

(Fig. 1, pg. 3). Insert the tamper switch into the knockout from outside of the

drawer with the button facing outwards and spaded connectors inside the drawer.

Connect tamper switch wiring to the Access Control Panel input or the

appropriate UL Listed reporting device.

To activate alarm signal open the rack drawer.

3. Slide the rack enclosure into an open 2U location in the four post rack cabinet.

4. Utilizing proper fasteners attach front ears to the rack rails.

5. Attach the rear of the adjustable slides to the rear rails of the rack cabinet with the proper fasteners.

6. Secure the rack cover (Fig. 2a, pg. 3) and rack drawer to earth ground (Fig. 2b, pg. 3).

7. Make sure that all internal cofigurations (wiring, voltage selection, switch settings, etc.) are

complete before mounting backplane back into enclosure.

8. Refer to the eFlow Power Supply/Charger Installation Guide for eFlow6NB and corresponding sub-assembly

Installation Guides for the following models: ACM4(CB), PDS8(CB), VR6 for further instructions.

Fig. 1

Back of the drawer,

viewed from outside.

Tamper Switch

mounting location

Fig. 2

Fig. 2a

Fig. 2b

- 4 - T1RM3F4(D) Installation Guide

Assembling and Attaching

Z Bracket Wire Management Accessory (included):

Altronix Trove Rack enclosures include Z Bracket, a convenient and reliable wire management accessory.

Hardware (included):

Ten (10) bolts and eight (8) lock nuts.

1. Carefully unpack Z Bracket. Do not discard hardware

(included) (Fig. 3, pg. 4).

2. Attach arms to each other using bolts and

lock nuts (Fig. 3a, pg. 4).

3. Attach the hinge brackets to the ends of

arms using bolts and nuts positioning

them as shown on (Fig. 3b, pg. 4).

4. Make sure that all nuts are tightened.

5. Attach the hinge bracket on the longer side of Z Bracket to the adjustable slide using bolts and lock nuts

(included) (Fig. 4, 4a, pg. 4).

6. Attach the hinge bracket on the shorter side of Z Bracket to the rear of the rack enclosure using bolts

(included).

Fig. 4

Fig. 4a

Fig. 3b

Two (2)

Fig. 3

Fig. 3a

T1RM3F4(D) Installation Guide - 5 -

T1RM3F4(D): Configuration of Mercury Boards:

1. Fasten spacers onto metal pems configuration (A), (B), (C) or (D) of backplane depending on the access

controller (Fig. 5, pg. 5).

2. Position access controller module over corresponding spacers and fasten screws into spacers (Fig. 5a, pg. 5).

3. Mount backplane to enclosure with hardware.

Access Controller Position Chart for the Following Models:

Mercury/LenelS2 Access Controller Pem Mounting

LP1502, MR52, MR16IN, MR16OUT A

LP2500, MUX8 B

LP1501, MR62e C

MR50 D

Fig. 5

Altronix PDS8(CB)/VR6

OUT1 OUT2 OUT3 OUT4 OUT5 OUT6 OUT7 OUT8

1 2 3 4 5 6 7 8

Common Power Outputs (NEG)

+ INP1 - + INP2 -

PWR1+

PWR2+

COM(-)

PWR1+

COM(-)

PWR1+

Altronix ACM4(CB)

--- +

Control

--- +

Power

NO C NC

FACP INTERFACE

+ INP --- T +RET ---

TRG

TRIGGER

INPUT

IN GND

NC C NO COM

OUTPUT 1

NC C NO COM

OUTPUT 2

NC C NO COM

OUTPUT 3

NC C NO COM

OUTPUT 4

IN GND

ACM4

ACCESS POWER

CONTROLLER

RoHS

MAIN

Altronix

eFlow6NB

L G N

DCAC1 1min

enable

2hr.

disable

OFF - 24V

ON - 12V

TRIGGER EOL

SUPERVISED

--- BAT+ --- DC +

NC C NO

AC FAIL

NC C NO

BATFA IL +AUX ---

NO GND

RESET

VR6 is mounted

under PDS8(CB)

To IEC connector

To LED lense

Pem

Spacer

Backplane

Pan Head Screw

Mercury Board

Fig. 5a

- 6 - T1RM3F4(D) Installation Guide

Notes:

T1RM3F4(D) Installation Guide - 7 -

Notes:

- 8 - T1RM3F4(D) Installation Guide

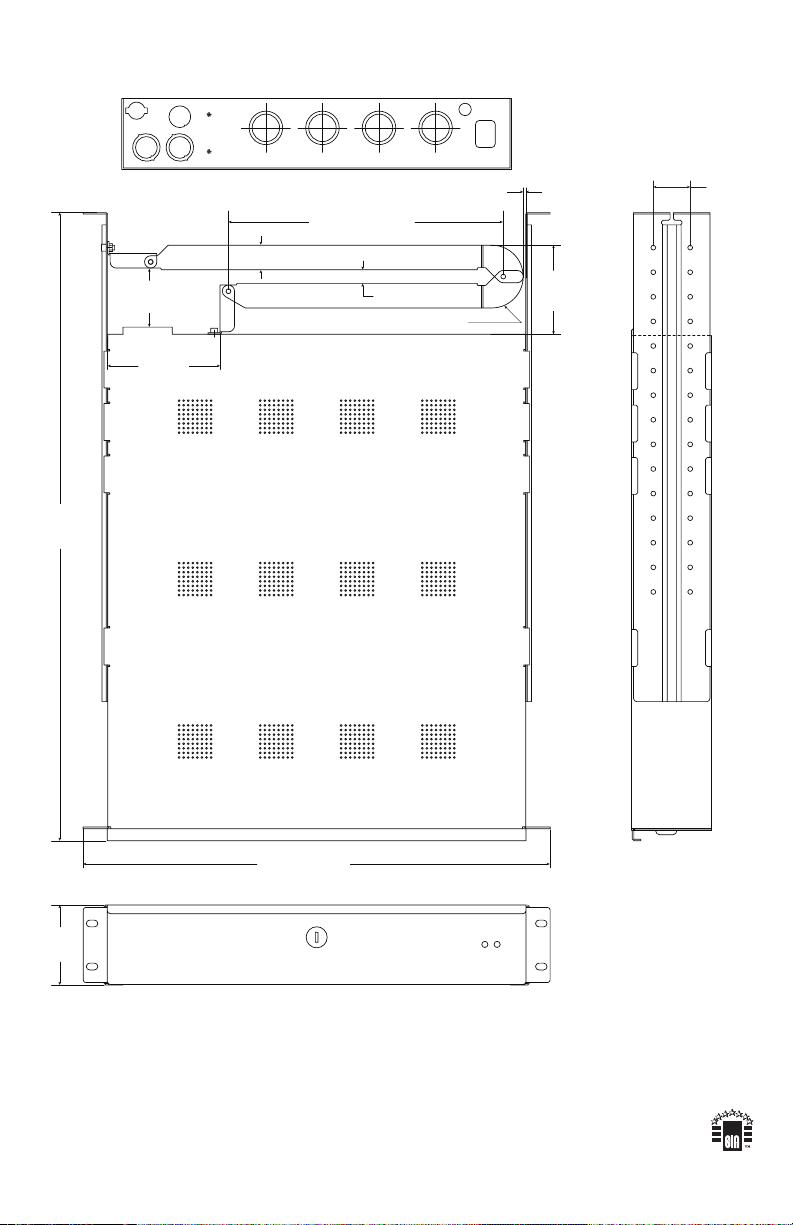

Trove1R Enclosure Dimensions:

3.375” x 19.0” x 26.5” (85.8mm x 482.6mm x 673.1mm). Shown with Z Bracket attached.

0.1”

2.5mm

1.5”

38.1mm

11.175” (283.8mm)

2.4”

61mm

4.57”

116.1mm

3.375”

85.8mm

26.5”

673.1mm

19” (482.6mm)

R 1.27” (32.3mm)

1” (25.4mm)

0.55” (14mm)

3.62”

92mm

Altronix is not responsible for any typographical errors.

––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––

140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056

website: www.altronix.com | e-mail: [email protected] | Lifetime Warranty

IIT1RM3F4(D) I02U MEMBER
