eBook Reader

Instructional Manual | AEBK07FS

1. AEBK07FS Ebook Reader

2. USB cable

3. Power adapter

4. Carrying Pouch

5. QSG

6. Download Guide

7. Registration/Warranty Card

Parts and Controls

Power button –press and hold for 3 seconds to turn on/off,

press and hold 6 seconds to reset

Next pg button –press to turn to next page

Previous pg button –press to turn to previous page

OK / Enter Button

Zoom button –press to adjust the font size or to zoom in/out

Menu button –press to display Option Menu

Directional buttons –to move cursor

Music button –to enter into music menu

Package Content

Getting Started

Return button –press once to return to previous menu, press

and hold to return to Home menu

Earphone jack

Mini USB jack –for data transfer and charging

SD cart slot –supports SD/SDHC/MMC card

DC jack –for charging

LED indicator

Speaker

Power On and Off AEBK07FS

Press and hold the [Power] button for 3 seconds to turn on

AEBK07FS.

When AEBK07FS is on, press and release the [Power] button for

standby mode, press and release the [Power] button again to

return to power on mode.

To turn off AEBK07FS, press and hold the [Power] button for 3

seconds.

Charging AEBK07FS

The battery is not fully charged and it is highly recommended that you

charge your LIBRE before you begin using it.

Note: Using the LIBRE “out of the box” will not harm the device. You

will experience reduced battery life as the unit will not be fully

charged.

Connect the power adapter to the LIBRE’s USB port and you will see

an animation of a battery charging on the LIBRE’s display. Please

charge the battery for a minimum of six (6) hours using the power

adapter. You may also charge the battery by connecting your LIBRE to

the USB port of your PC using the USB cable included with your LIBRE.

However, using this method will extend the charging time to

approximately twelve (12) hours.

Getting Started

When DC/USB power cable is connected to AEBK07FS for charging,

AEBK07FS will go into standby mode after it is idle for 60 seconds.

Press the [Power] button to start AEBK07FS.

The battery status is displayed at the bottom left corner. The

remaining battery playback time is displayed right next to the

battery icon.

Inserting Memory Card

AEBK07FS supports SD/SDHC/MMC card in both FAT and NTFS file

system. NTFS is needed to copy file with size larger than 4GB.

To insert a Memory card:

Open the SD cover.

Check that the SD card is in the correct position with the contact

pin facing upwards as illustrated below. You may damage the card

and AEBK07FS if SD card is not inserted in the right orientation.

Push the SD card into the card slot until it clicks.

To remove SD card, push the SD card once again until it clicks.

When a SD card is inserted in or ejected from AEBK07FS, it may

take few seconds for AEBK07FS to update the content.

Please avoid inserting or ejecting SD card when other operation is

running.

Do not remove the card if the content inside the card is being

played. This will halt the operation of AEBK07FS and cause

AEBK07FS to restart.

Getting Started

If the system is not responding, press and hold the <Power>

button for 6 seconds to reset.

Limitations with NTFS file system:

Books in the card are not recognized by ADE when connected to

PC.

Direct copy of files from internal memory to card is not supported.

Starting from Home Menu

When AEBK07FS is turn on, you will enter into the Home Menu.



Library



Battery Indicator



Page Number



Time & Date



1. 1. Continue Reading

2. -display the page of the last read

book. Press <OK> button to

open the last page read.

2. Library

-display the list of books

available. Move the cursor to the

desired title and press <OK> to

open it.

3. Battery Indicator

-displays battery status during

operation

4. Page Number

-displays current page number

and total available pages.

5. Time & Date

-display current time and date,

you can set this from the

[Settings]

6. File Directory

- indicates the location where the

file is stored. SD –SD card, INT –

internal memory

Getting Started

Entering Option Menu

Press the [Menu] button to display the Option Menu as illustrated.

Press the directional key to move the

cursor to desired item. Selected item

will be highlighted.

Press <OK> to enter.

To exit from Option menu, move cursor

to and press <OK> to confirm.

Alternatively, press the <Return>

button to exit.

To sort books by different categories: Title, Author,

Category, Date, and Format

Jump to a specific page

Read from previously added bookmarks

Adjust brightness of the display screen

Enter into Video Player

Enter into Music Player

Enter into Photo Viewer

Enter into File Explorer for advance file management

Enter into System settings and to read user guide

Open your favorite book list.

Getting Started

Importing Content

AEBK07FS supports USB Mass Storage Device function.

To import contents (ebooks, video, audio, photo etc) into

AEBK07FS, connect AEBK07FS to PC via the supplied USB cable.

Upon successful connection to PC, AEBK07FS will enter USB mode

and all operation will be halted.

Go to [My Computer]; double click on disk “AEBK07FS”to open.

Perform normal file management operation like other USB device.

Importing DRM Contents

Adobe Digital Editions (ADE) is required for downloading DRM content

into AEBK07FS.

Installing Adobe Digital Edition (ADE)

To download the latest Adobe Digital Edition software, please go to

http://www.adobe.com/products/digitaleditions/#fp .

For first time user, you will need to get a free adobe ID from

adobe’s website. Click on the [get an Adobe ID online] link as below:

Enter your email address and complete the online form as

instructed.

Authorizing PC and AEBK07FS

Upon registration, return to the ADE window. Enter the username

and password to activate your Adobe account.

After activation, connect AEBK07FS to PC. ADE will detect

AEBK07FS and you are prompted to authorize the device.

Importing Content

Importing and Transferring Content

After authorization, you will be able to find AEBK07FS recognized

in ADE as below. Contents inside AEBK07FS will be displayed on

the right hand windows.



You can now start downloading or buying ebooks from online

Ebook stores supporting Adobe DRM such as www.borders.com.

Purchased or downloaded ebooks will be stored in [My Digital

Editions] in [My Documents].

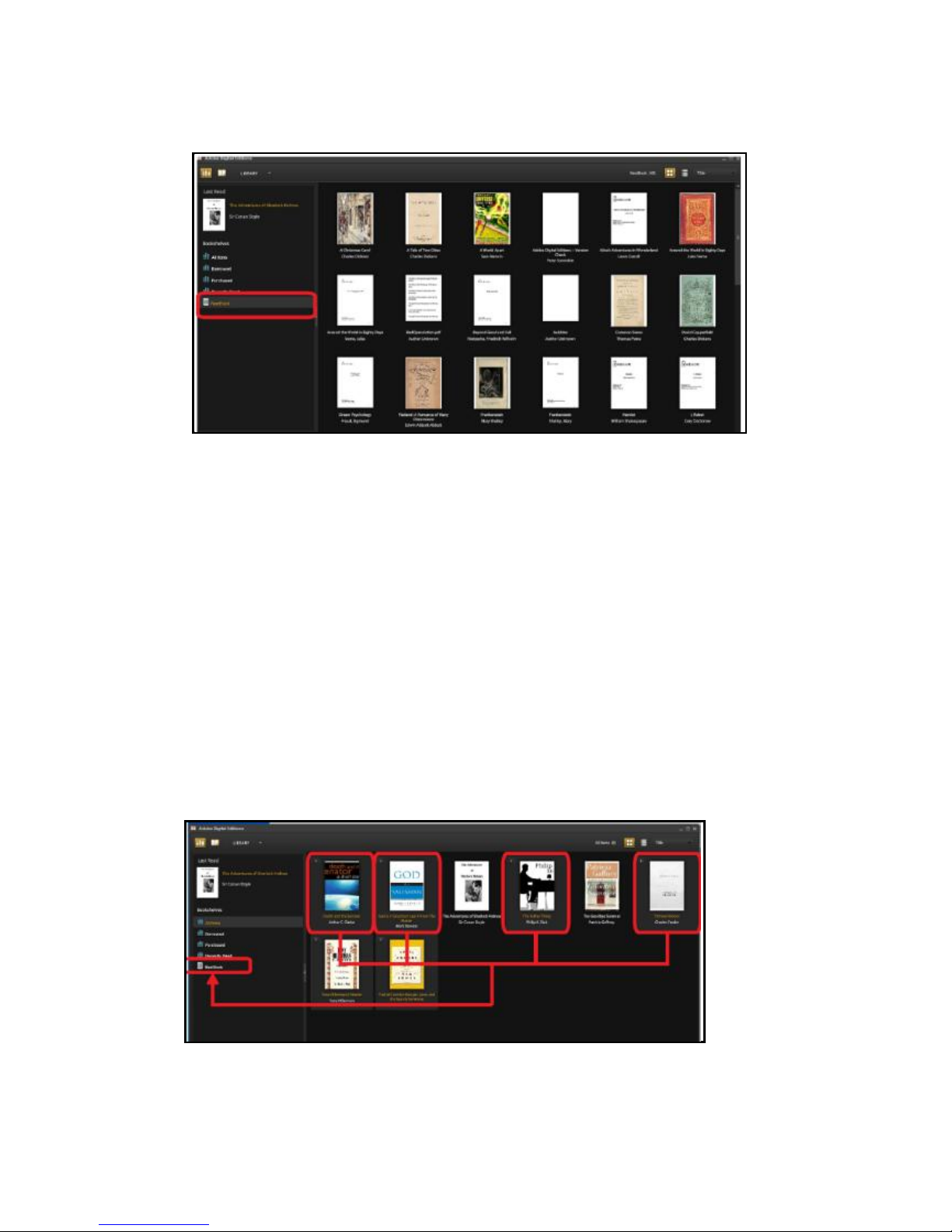

Transferring DRM ebooks to AEBK07FS

From ADE menu, click on [All Items] on the left column

Items in [My Digital Editions] will be listed down in right window.

Select the desired item(s) to be transferred, <Shift> + <Left Click>

to select multiple files.

Drag and drop the selected item(s) into AEBK07FS’s Drive located

on the last row of the column on the left as illustrated below.

Each ADE ID supports only 6 devices; this includes the master device

(AEBK07FS) and the slave device (SD card).

When AEBK07FS is restored to default settings, ALL DRM activation

record and data (including DRM books purchased) will be erased from

AEBK07FS. You are required to authorize the device with your ADE ID

again.

When the number of authorized device has exceeded the allowable

amount, you will come across the following error message:

To request for extension and reset of your ADE ID, go to

http://www.adobe.com/support/digitaleditions/ [Submit a web

case]. You are required to key in your ADE ID info.

Notes in using ADE

E_ACT_TOO_MANY_ACTIVATIONS

Opening Book

Books transferred to AEBK07FS will be listed in Home Menu.

AEBK07FS supports ebooks in epub, pdf, and txt format.

Use the <Directional> buttons to move the cursor to select book

and press <OK> to open.

Book Page Interface

Turning book page

In reading mode, press <Next Page> or <Directional-Right> button

to turn to next page. To turn to previous page, press <Previous

Page> or <Directional-Left> button.

Reading Books

Remaining

Battery Life

Current Page / Total Page

Font Size
