Aluratek CDW530AM Manuale utente
1
CDW530AM
WiFi Combo Router
User Manual
2
Copyright
The contents of this publication may not be reproduced in any part or as a whole, stored,
transcribed in an information retrieval system, translated into any language, or transmitted in any
form or by any means, mechanical, magnetic, electronic, optical, photocopying, manual, or
otherwise, without the prior written permission.
Trademarks
All products, company, brand names are trademarks or registered trademarks of their respective
companies. They are used for identification purpose only. Specifications are subject to be changed
without prior notice.
FCC Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against radio interference in a commercial environment. This equipment can generate, use and
radiate radio frequency energy and, if not installed and used in accordance with the instructions in
this manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause interference, in which case the user, at his own
expense, will be required to take whatever measures are necessary to correct the interference.
CE Declaration of Conformity
This equipment complies with the requirements relating to electromagnetic compatibility, EN
55022/A1 Class B.
3
TABLE OF CONTENTS
COPYRIGHT......................................................................................................................... 2
FCC INTERFERENCE STATEMENT................................................................................... 2
CHAPTER 1 INTRODUCTION.......................................................................................... 4
1.1 PACKAGE LIST........................................................................................................ 4
1.2 HARDWARE INSTALLATION.................................................................................. 5
CHAPTER 2 GETTING STARTED.................................................................................... 7
2.1 EASY SETUP BY WINDOWS UTILITY .................................................................... 7
2.2 EASY SETUP BY CONFIGURING WEB PAGES .................................................. 12
CHAPTER 3 MAKING CONFIGURATION ..................................................................... 17
3.1 BASIC SETTING..................................................................................................... 17
3.2 FORWARDING RULES........................................................................................... 32
3.3 SECURITY SETTING.............................................................................................. 35
3.4 ADVANCED SETTING............................................................................................ 40
3.5 TOOL BOX.............................................................................................................. 47
CHAPTER4 TROUBLESHOOTING............................................................................. 51
APPENDIX A. SPEC SUMMARY TABLE.......................................................................... 55
APPENDIX B. LICENSING INFORMATION ...................................................................... 56
4
Chapter 1. Introduction
Congratulations on your purchase of this outstanding product: CDW530AM WiFi Combo Router.
This product is specifically designed for those who need to have the internet access beyond his
home and office. It provides a complete solution for Internet surfing and broadband sharing.
Instructions for installing and configuring this product can be found in this manual. Before you
install and use this product, please read this manual carefully for fully exploiting the functions of
this product.

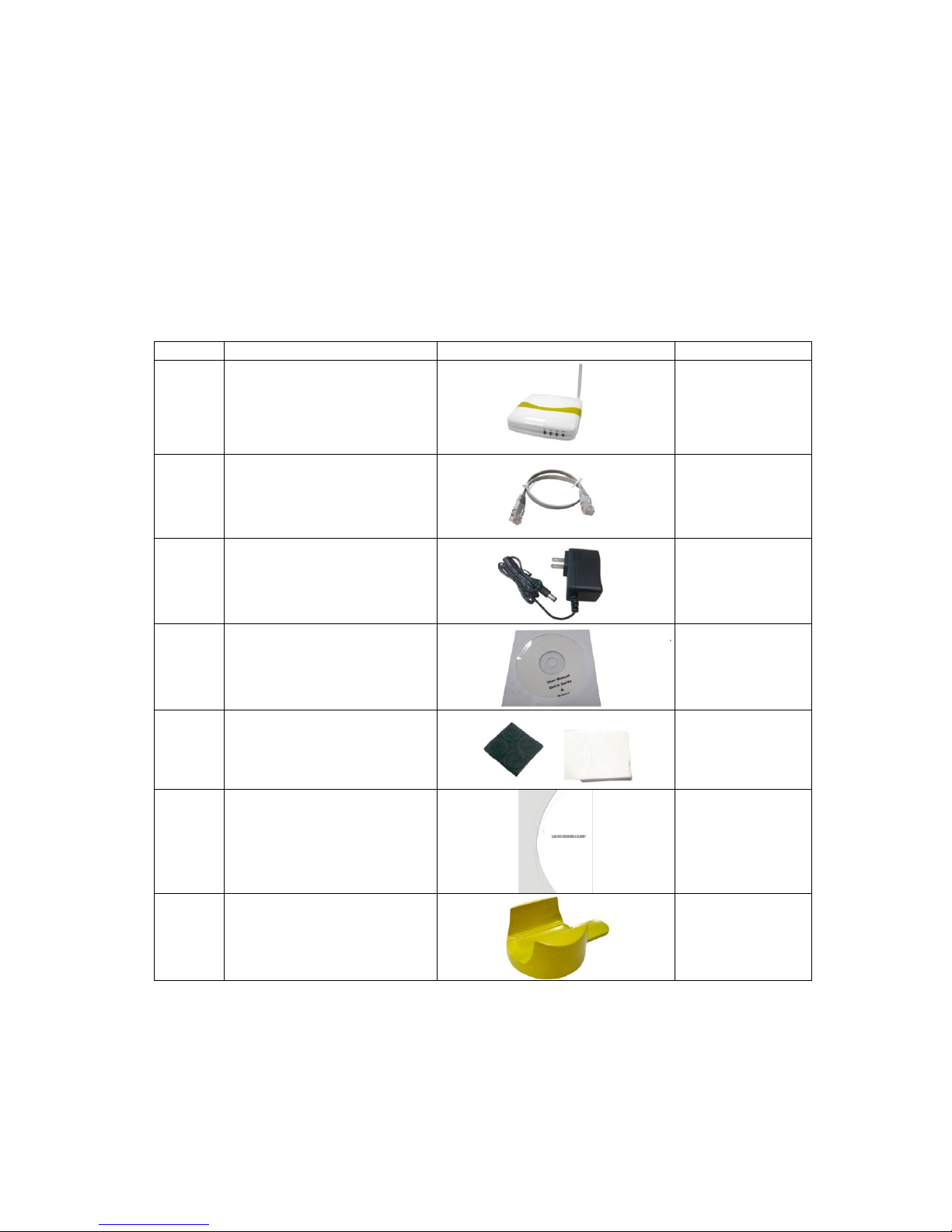

1.1 Package List
Items
Description
Contents
Quantity
1
WiFi Combo Router
1
2
RJ45 Cable
1
3
Power adapter
1
4
CD
1
5
Sponge
2
6
Quick Installation Guide
1
7
Stand
1
5
1.2 Hardware Installation

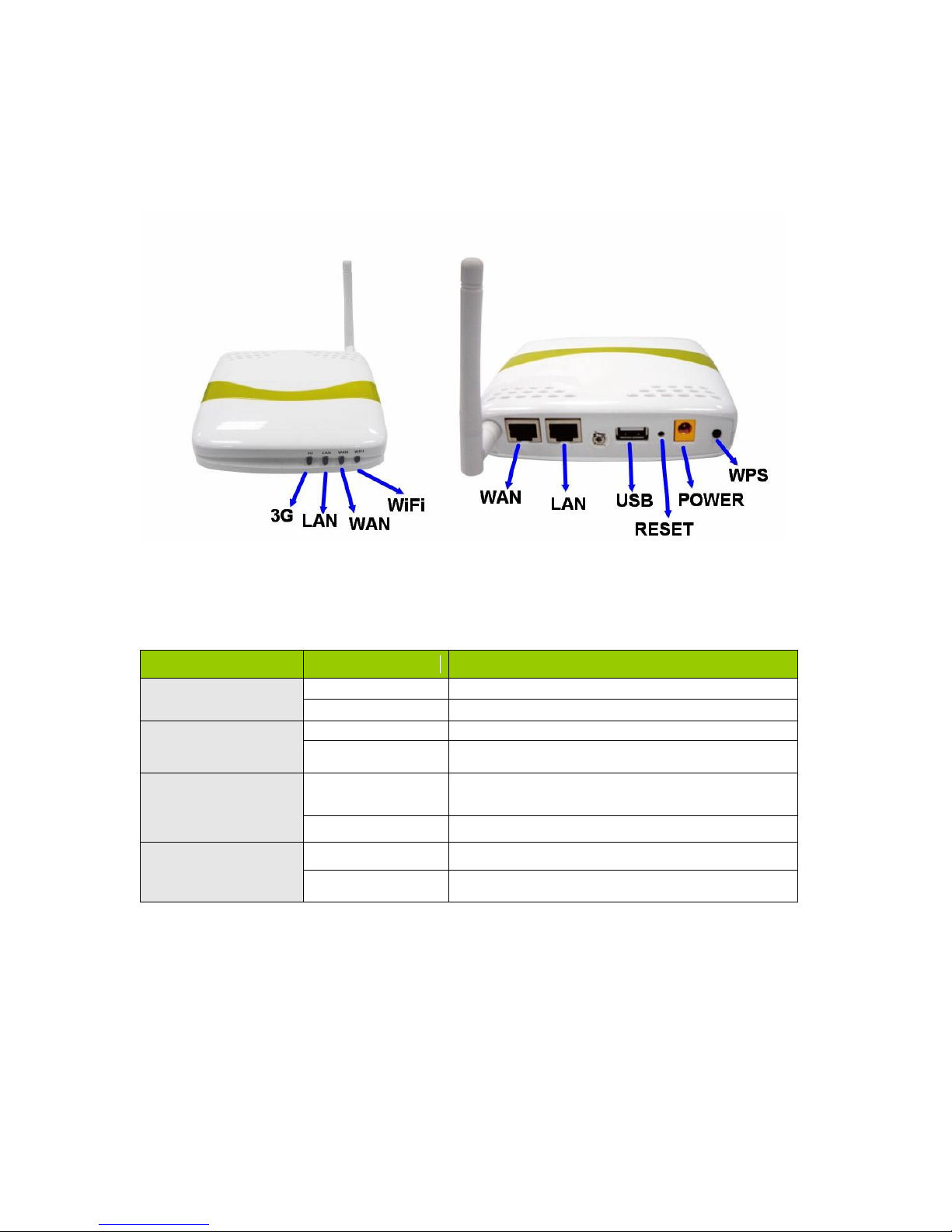

1.2.1 Hardware configuration
1.2.2 LED indicators
LED indicator:
LED Status
Description
3G LED
Green
3G/3.5G is on.
Green in flash
Data access
WAN LED
Green
It is connected to local Ethernet.
Green in flash
Data access
LAN LED
Green
RJ45 cable is plugged, and Ethernet connection
is established.
Green in flash
Data access
WiFi LED
Green
WLAN is available.
Green in flash
Data access
LED Indicators
Power LED
6

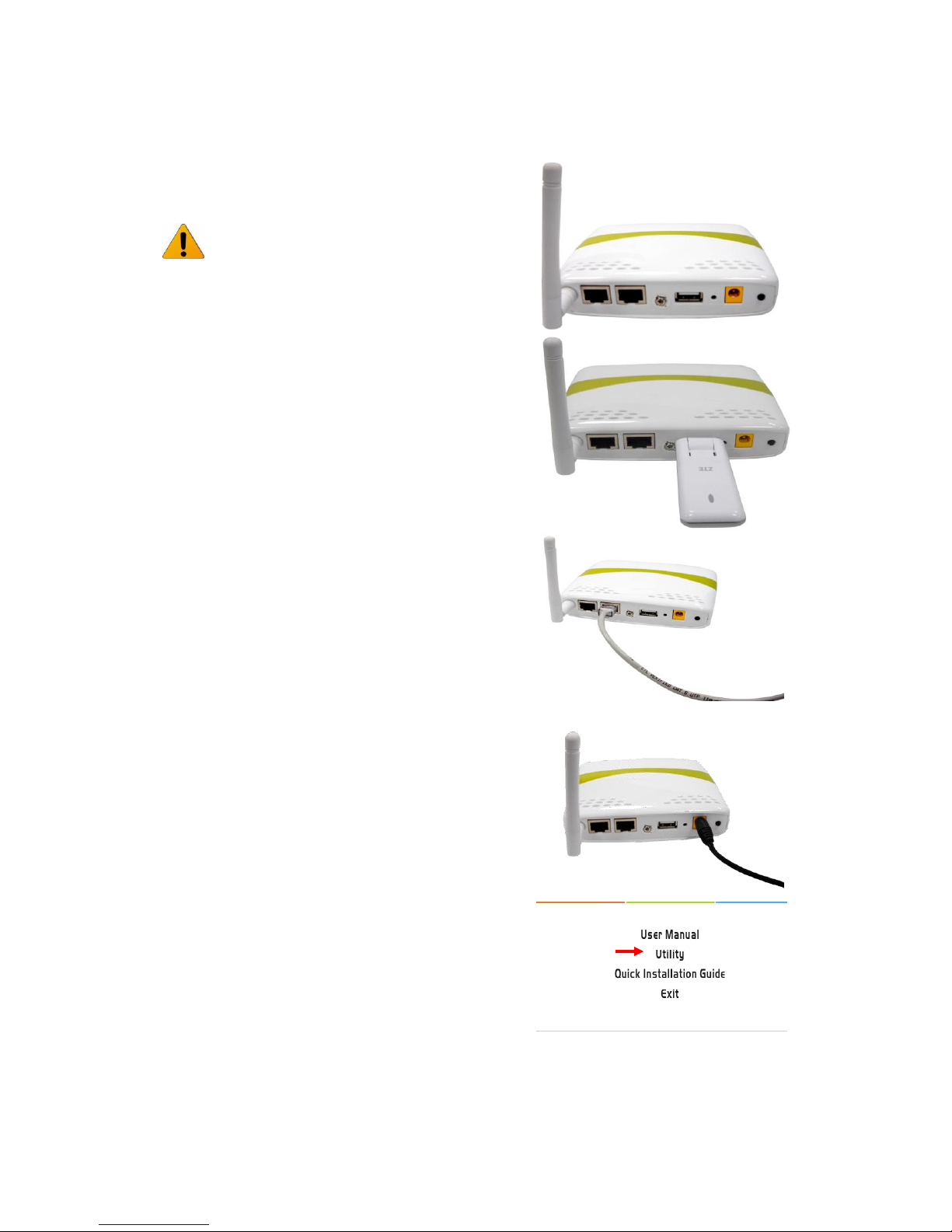

1.2.3 Installation Steps
Step 1. Attach the antenna:
Screw the antenna in a clockwise direction to the
back panel of the unit.
DO NOT connect WiFi Combo Router to
power before performing the installation
steps below.
Step 2. Insert the USB modem to the router:
Plug your USB modem which is with activated SIM
card provided by your 3G service provider.
to the USB interface.
Step 3. Connect with the Ethernet patch cable:
Insert the Ethernet cable into RJ45 Ethernet Port on
the back panel. And then plug the other end of RJ45
into the computer or Laptop computer. The Ethernet
LED will show green color if the Ethernet connection
is normally connected.
Step 4. Connect the power adapter:
Plug the other end of the power adapter into a wall
outlet.
Step 5. Start to configure the device:
You can start to configure the device via the Easy
Setup.
(see Easy Setup Utility)
7
Chapter 2. Getting Started
There are two approaches for you to set up the WiFi Combo Router quickly and easily. One is
through executing the provided Windows Easy Setup Utility on your PC, and the other is through
browsing the web pages of device and configuration.

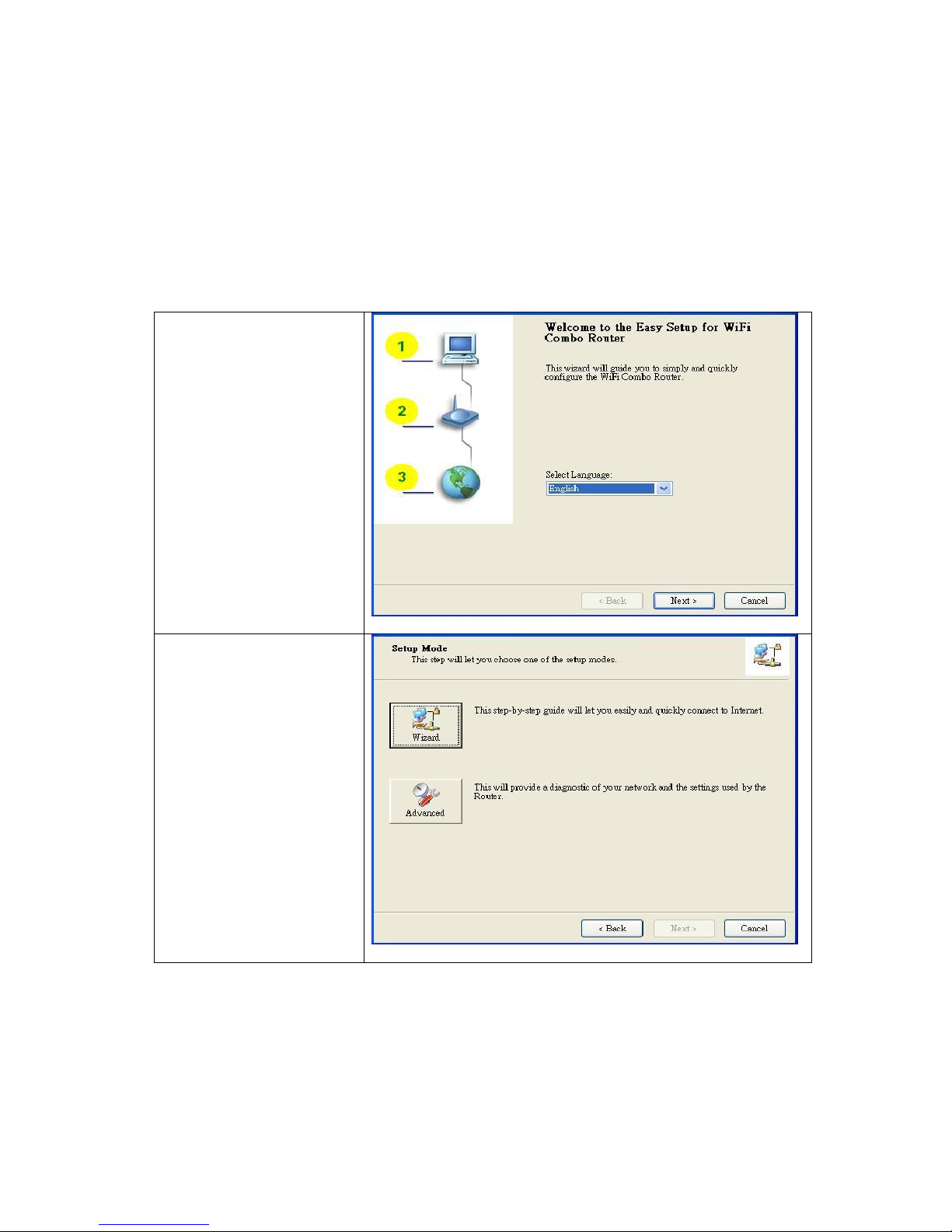

2.1 Easy Setup by Windows Utility
Step 1：
Install the Easy Setup Utility
from the provided CD then
follow the steps to configure
the device.
Step 2：
Select Language then click
“Next” to continue.
Step 3：
Then click the “Wizard” to
continue.
8

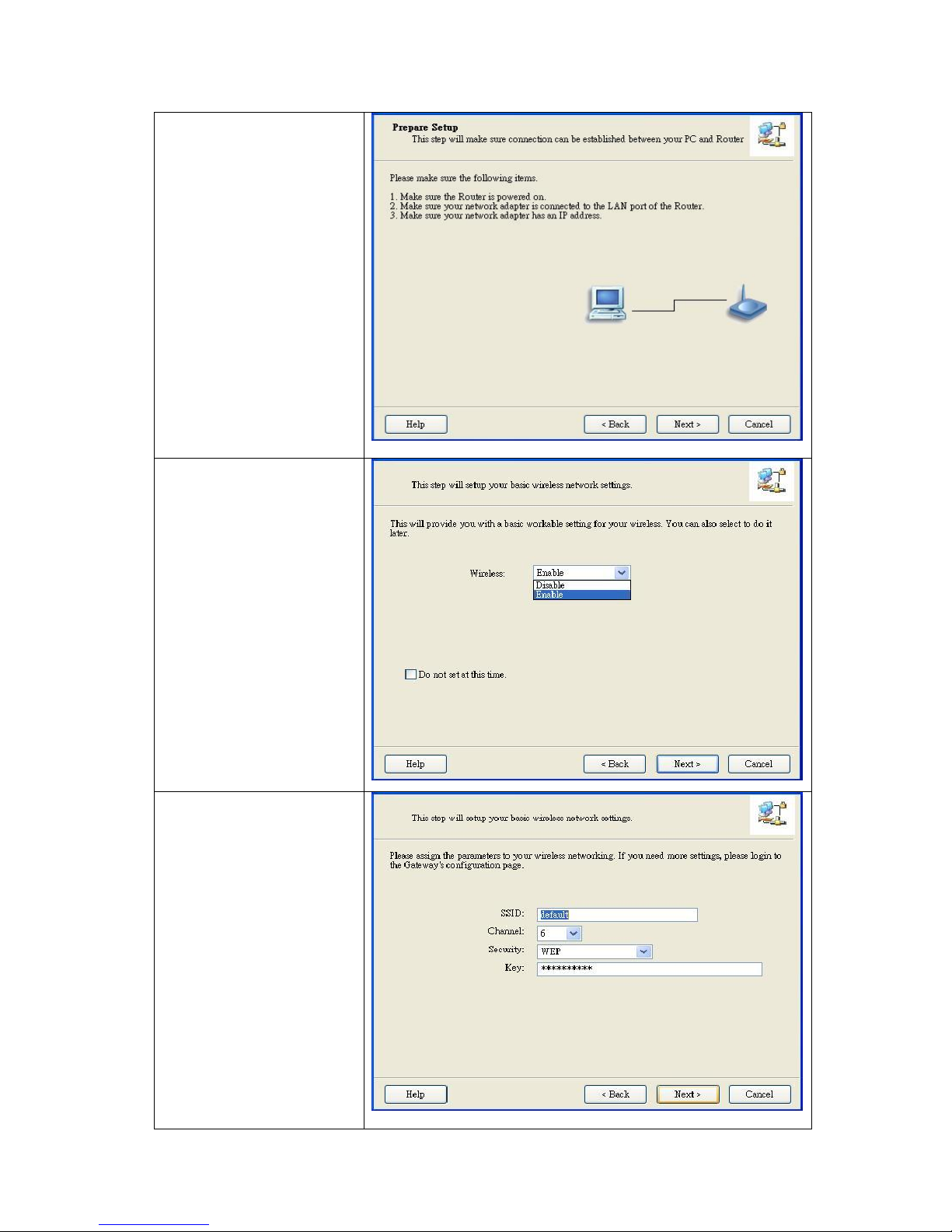

Step 4：
Click “Next” to continue.
Step 5：
Select Wireless Enable,
and then click “Next” to
continue.
Step 6：
Enter SSID, Channel and
Security options, and then
click “Next” to continue.
9

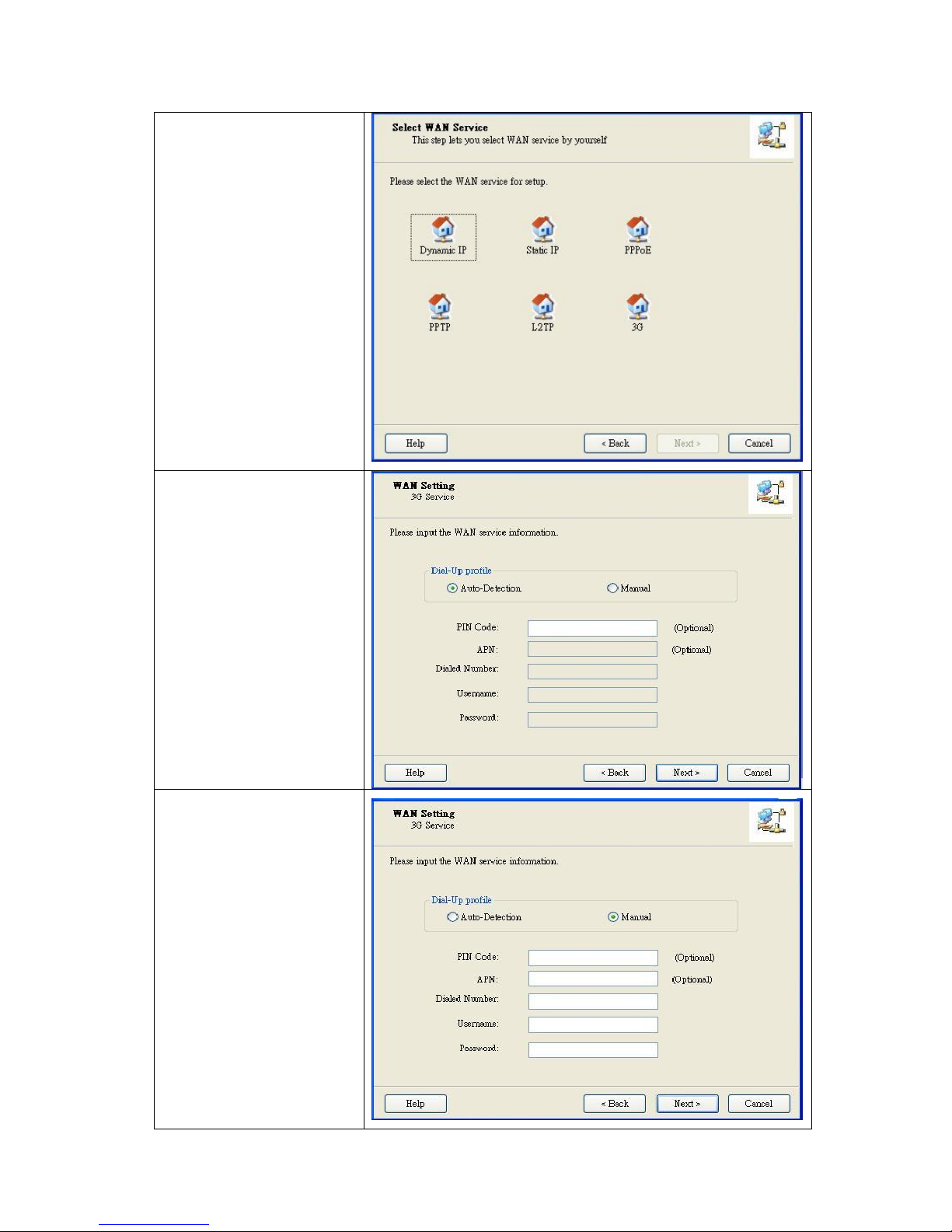

Step 7：
Select 3G Service by
clicking 3G icon to continue.
Step 8-1：
Select “Auto-Detection”,
and the Utility will try to
detect and configure the
required 3G service settings
automatically.
Click “Next” to continue.
Default PIN Code is empty,
if you have PIN Code, you
must enter it. For example
“0000”. If no, just Click
“Next” to continue.
Step 8-2：
Or you can select “Manual”
and manually fill in the
required 3G service settings
provided by your ISP.
Click “Next” to continue.
10

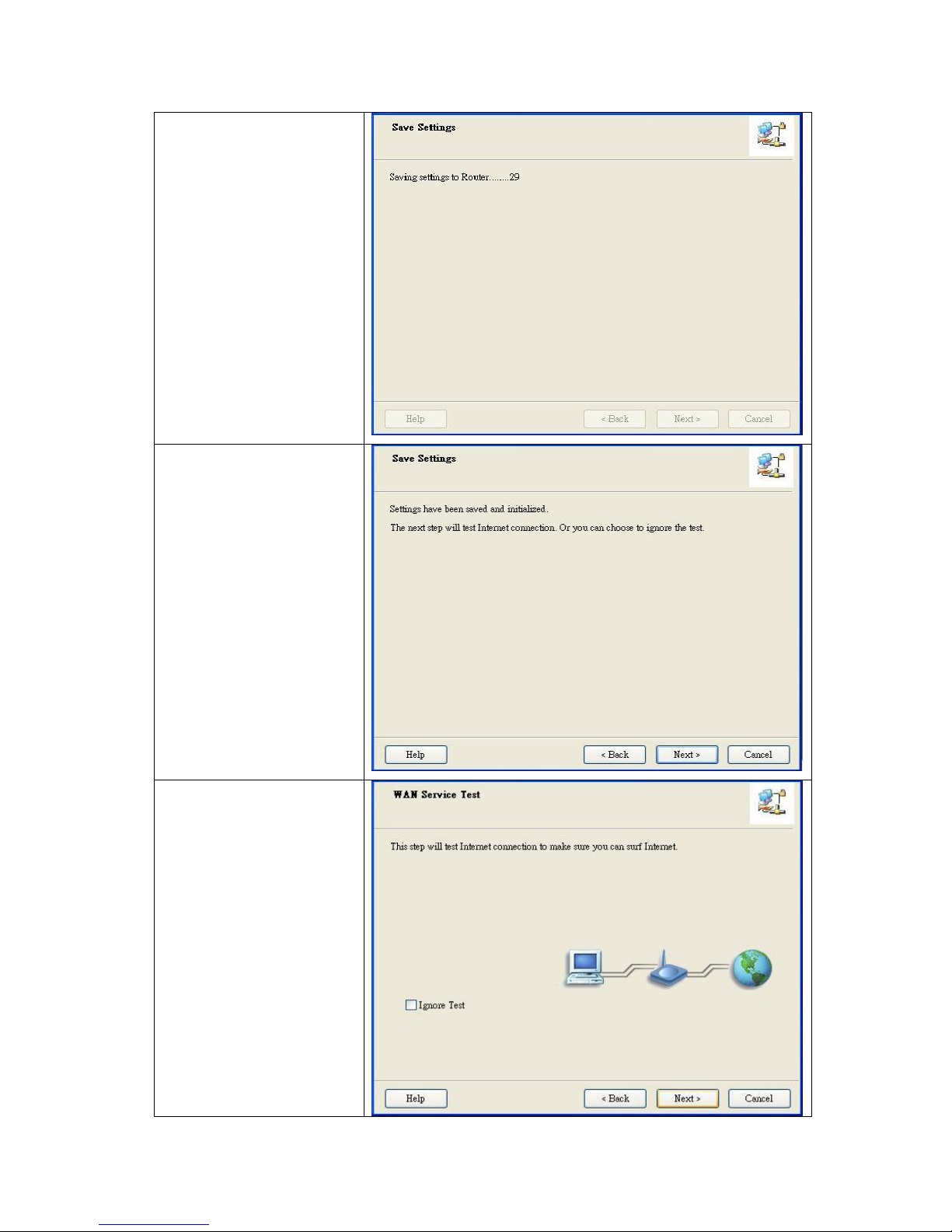

Step 9：
The WiFi Combo Router
is rebooted to make your
entire configuration take
effect.
Step 10：
Click “Next” to test the
Internet connection or you
can ignore test.
Step 11：
Click “Next” to test WAN
Networking service.
