Alzatex DSP3603A Manuale utente

Outboard Racing Starting Clock User Manual

Introduction:

Outboard Racing Starting Clock –

Use for Countdown to Begin Boat

Race

•3-Digit Main Display (DSP3603 ) with 36” High

Digits

•Controller (DS204 -BSC) Capable of Count

Down Timing between 5 Minutes and 0

•Unistrut Stand (SUPERSTRUTB-1400-HS)

•Race Clock Cover

•Go online for video tutorials - http://sports-

timer.com/boat-race-clock/

Components:

Controller (DS204A BSC)

•4-Digit Display with 2.5” High Digits

•6 Waterproof Buttons in Water Resistant

Enclosure

•One Connector for Connecting to Right Digit of

Main Display: 30' 4 -Conductor 18G Cable

Power Specifications

•Display Input Voltage Range: 12-14.5 Volts DC

•Display Powered by 12 Volt Car Battery

•Display lternate Power Source: 15 MP or

Larger Power Supply may be used

•Current consumption:

•ll Segments ON: 12 MP

•ll Segments OFF: 1/2 MP

Cables

•Left Digit to Center Digit: 40” 7-Conductor 14G

Cable

•Center Digit to Right Digit: 40” 7-Conductor

14G Cable

•Right Digit to Power Source: 15” 4-Conductor

14G Cable

•If you have an optional second display, a 10' 4-

Main Display (DSP3603A)

•Overall Display Size 48” High x 96” Wide

•3-Digit Display showing M:SS (min & sec)

•Digits 36” High x 21” Wide

•Red LED Solid Segment Digits

•Digits Each in Separate Enclosures

•Enclosure Each 48” High x 32” Wide

•Enclosure Covered with 1/8” Thick

Transparent Red Plexiglas (#2423)

•Left Digit

•LED Clusters to Represent Colon

between Min and Sec in Mode 0 & 1

•Chassis Mount Connector x 1 for Power

and Data from Center Digit

•Center Digit

•LED Cluster to Represent Decimal

between Sec and Tenths in Mode 1

•Chassis Mount Connector x 2, 1 for

Power and Data, 1 to Pass Power and

Data to Left Digit

•Right Digit

•Chassis Mount Connector x 4, 3 Supply

Power and Data for all 3 Digits (see

Wiring Diagram for Connection Details), 1

for Camera LED

www.alzatex.com 1 lzatex, Inc.

Outboard Racing Starting Clock User Manual

conductor 14G cable connects it to the main

display

Camera LED

•Standard Red Diffused LED

•Connected with 30' 2-Conductor 18G Cord to

Connector in Right Digit

See “Optional Additions” Section for Additional

Optional Features

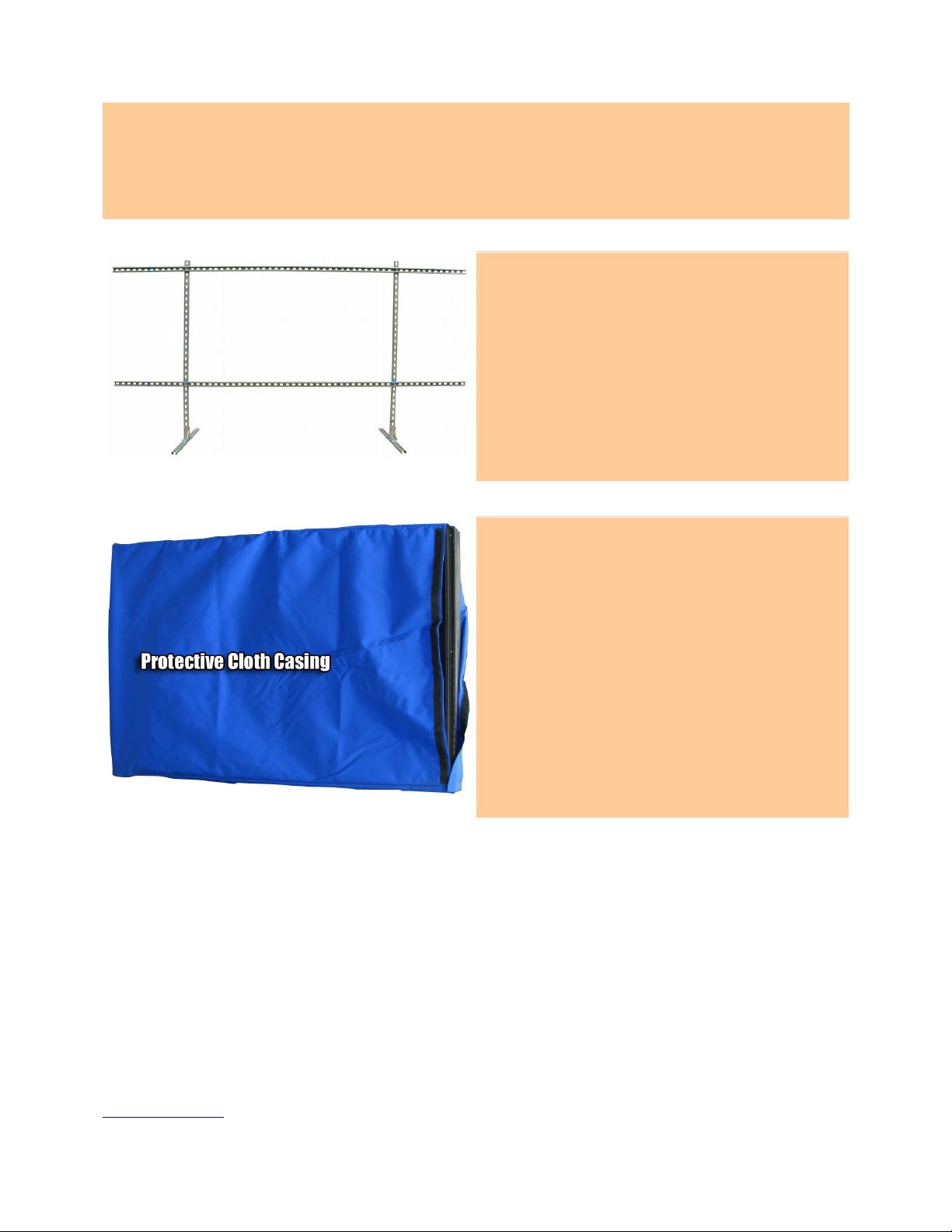

Unistrut Stand (SUPERSTRUTB

1400 HS)

•Stand for supporting each section of the display

•ssembly Required

Race Clock Cover

•Blue Cordura Cloth Casing

•Waterproof

www.alzatex.com 2 lzatex, Inc.

Outboard Racing Starting Clock User Manual

Assembly & Installation Instructions:

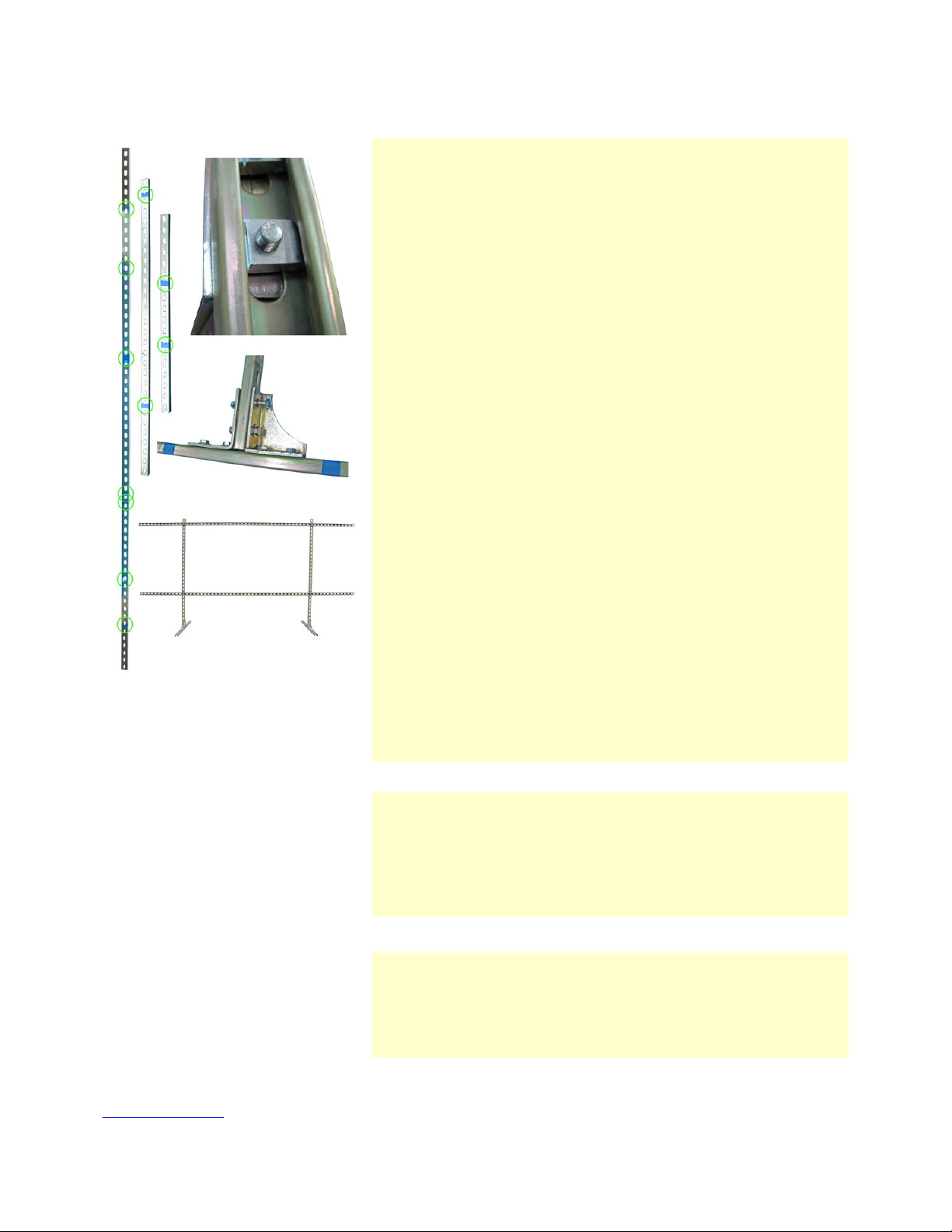

Unistrut Stand Assembly (see online video for

additional instructions – http://sports

timer.com/boat race clock/ ):

Tools Required – 9/16 Socket Wrench, 9/16 Box Wrench

Hardware Included– 12 pieces 3/8”x0.75” hex bolts; 8 pieces

3/8”x1” hex bolts; 4 pieces 3/8”x1.5” hex bolts; 4 pieces 3/8”x2” hex

bolts; 24 pieces 3/8” channel nuts; 32 pieces 3/8” flat washer; 2 L-

brackets; 2 Reinforced L-brackets

•Mark the holes you're going to use on the struts

•3' Foot Pieces – mark between the 7th and 8th hole from each

end, the 8th hole serves as the outer hole for each bracket

•5' Upright Pieces – bracket the 9th hole from one end with tape

and the 3rd hole from the other end for one piece,

•10' Horizontal Cross Pieces – bolt holes 7th and 15 away from

that plus the one after it and another 15 away from that, then do

the same from the other end of the bar

•ttach L-brackets to the 3' foot pieces using 3/8”x1” hex bolt,

flat washer, 3/8” channel nut (drop nut into channel and rotate

into place) – first by hand, then using the 9/16” Socket or Box

Wrench – Before tightening fully, insert an Upright piece

between brackets to ensure proper spacing

•ttach 5' Upright Piece by sliding channel between the two L-

brackets then use 3/8”x2” hex bolts and flat washers to fix in

place – Tighten with 9/16” Socket and Box Wrenches – front of

strut must be facing direction of the reinforced -brackets

•ttach 10' Horizontal Cross Pieces – Take 3/8” channel nut and

put it into the Upright Piece channel then slide a flat washer

over the 3/8”x1.5” and install through the Horizontal Cross

Piece into the Upright Piece; repeat process for second

Horizontal Cross Piece

Display Assembly:

•Lay display face down

•Take Unistrut Stand and lay it on top of display

•Bolt Unistrut Stand to display before standing display up –

Note: Display must be fully disassembled to use the Race

Clock Cover

Unistrut Stand Take Down:

•Lay display down

•Loosen and remove bolts

•Remove struts – Note: Display must be fully disassembled to

use the Race Clock Cover

www.alzatex.com 3 lzatex, Inc.

Outboard Racing Starting Clock User Manual

Operation Instructions & Feature Identification:

Display (DSP3603A):

•Turn display on by turning on the timer, display will remain blank

otherwise

•Display shows M:SS in Mode 0 and switches from M:SS to SS.T in

Mode 1 – See Setup Mode Section for how to switch

•When timer reaches 0, display will show 0 for approximately 5 sec

then go blank – NOTE: Timer must go blank before being restarted

or it will turn off several seconds into the new countdown

•Send test pattern across display by pressing Button 6 or pressing

Button 5 while timer is at 0 and stopped – See Controller Button

Functions Section for how to switch

Controller Button Functions:

•Button 1 (labeled “5 MIN”) – Set timer for 5 min countdown, display

shows 5:00

•Button 1 (labeled “5 MIN”) – Hold for approximately 2 sec to abort a

timing cycle. The display shows - for several seconds, then

goes dark.

•Button 2 (labeled “3 MIN”) – Set timer for 3 min countdown, display

shows 3:00

•Button 3 (labeled “1 MIN”) – Set timer for 1 min countdown, display

shows 1:00

•Button 4 (labeled “V1 MIN”) – Remove 1 min from current

countdown, if timer already counting down it will not interrupt (ex.

Time is 3:27, Button 4 pushed, Time is 2:27)

•Button 5 (labeled “HOLD”) – Hold to pause countdown, release to

resume countdown

•Button 6 (labeled “TEST/SETUP”) – Press to generates test patterns

on display. The display shows Hello..:4..:..

•Button 6 (labeled “TEST/SETUP”) – Hold for approximately 2 sec to

enter Setup Mode, display shows d09

•Button 6 (labeled “TEST/SETUP”) – In Setup Mode this changes

controller display brightness, each successive press steps controller

through 1 of 10 levels of brightness

Setup Display Brightness:

The brightness of the controller display can be varied depending on the

ambient light level.

•Press and hold the Test/Setup button for approximately 2 sec to

enter Setup Mode, display will show d09.

•Wait for at least 2 seconds.

•Press Test/Setup button successively to change the display

brightness. The display will show d00 through d09

•The display brightness of the DSP204B-BSC will change.

www.alzatex.com 4 lzatex, Inc.

Outboard Racing Starting Clock User Manual

Min Mode

Min to Sec Mode

Setup Timer Mode:

Display minutes: seconds or seconds.tenths of a second.

•Press and hold the Test/Setup button for approximately 2 sec to

enter Setup Mode, display will show d09.

•Within one second, tap the Test/Setup button one time. The display

will show u..1.

•Wait for at least 2 seconds.

•Tap Test/Setup button to change the display mode. The display will

show u..0 through u..1

•Mode u..1 (Min Mode) – While timer is running the display

shows M:SS, when timer reaches 0 the display will show dashes for

approximately 5 sec then go blank

•Mode u..0 (Min to Sec Mode) – While timer is running with more

than 1 min left the display shows M:SS, when timer reaches 59.9

sec the display switches to show SS.T, when timer reaches 0 the

display will show dashes for approximately 5 sec then go blank

Setup number of display digits:

Enable serial data output to auxiliary devices or to a computer.

•Press and hold the Test/Setup button for approximately 2 sec to

enter Setup Mode, display will show d09 .

•Within one second, tap the Test/Setup button two times. The display

will show E4 .

•Wait for at least 2 seconds.

•Press Test/Setup button successively to change the number of

display digits. The display will show E2 through E4

•This display should be left at 4 digits ( E4 mode).

Setup Serial Data Output:

Enable serial data output to auxiliary devices or to a computer.

•Press and hold the Test/Setup button for approximately 2 sec to

enter Setup Mode, display will show d09 .

•Within one second, tap the Test/Setup button two times. The display

will show F3 .

•Wait for at least 2 seconds.

•Press Test/Setup button successively to change the display mode.

The display will show F0 through F3

•Mode F0 (Off) – No serial data output is generated.

•Mode F1 (Beep at timer zero) – When the timer reaches zero, a

beep command is generated.

•Mode F2 (Timer Status) – New data is output once per second

or ten times per second if running in tenths mode representing the

timer status.

•Mode F3 (Timer Status,Beep at timer zero) – Combines both

Beep output and timer status output.

www.alzatex.com 5 lzatex, Inc.

Outboard Racing Starting Clock User Manual

Optional Relay Outputs:

Relay outputs to operate auxiliary devices. Relay output is

programmed to come on at 1 minute and remain on until the timer

reaches zero. Relay output B is programmed to come on at 3 seconds

before zero and remain on until 3 seconds after the timer reaches zero.

•Press and hold the V1 Min button for approximately 2 sec to enter

Relay Set Mode, display will show rl00 .

•Tap the 3 Min button to toggle relay B on and off manually. The

display will show rL01 for ON and rL00 for OFF.

•Tap the 1 Min button to exit the relay test mode.

Setup Baud Rate:

Setup the serial port baud rate for radar gun input or output to auxillary

devices or to a computer.

•Press and hold the Test/Setup button for approximately 2 sec to

enter Setup Mode, display will show d09.

•Within one second, tap the Test/Setup button three more times. The

display will show b1.

•Wait for at least 2 seconds.

•Press Test/Setup button successively to change the baud rate. The

display will show b0 through b7

•Mode b0 (Baud 1,200) – Use this baud rate when connecting a

radar gun to the serial port. Most radar guns use 1,200 baud. Some

use 9,600 baud. Check the manual.

•Mode b1 (Baud 2,400) – This is the default baud rate for most

lzatex display devices.

•Mode b2 (Baud 4,800) –

•Mode b3 (Baud 9,600) – Used by some radar guns.

•Mode b4 (Baud 19,200) –

•Mode b5 (Baud 38,400) –

•Mode b6 (Baud 56,800) –

•Mode b7 (Baud 115,200) –

Protective Cloth Casing:

•Store disassembled display digits in blue cordura protective cloth

covers

www.alzatex.com 6 lzatex, Inc.

Outboard Racing Starting Clock User Manual

Camera LED:

•Camera connection cable plugs into back of right digit in port labeled

“Camera LED”

•Turn camera LED on by turning on the timer

•Camera LED will be lit for as long as the timer is not at 0 (at 0 LED

turns off)

•Camera LED remains lit if Button 5 (labeled “HOLD”) is pressed to

pause the timer

Power Sources – Choose at Least One:

Car Battery Adapter Cable:

•Voltage – Standard 12 Volt Car Battery

•Inline Fuse – Install a 15 or 20 MP Fuse

•W RNING – Do not use larger than a 20 MP fuse or you risk

permanently damaging equipment

Power Supply:

•Voltage – Output voltage range is 13.85 VDC Fixed

•Output mperage – 25 MP continuous, 30 MP surge

•Internal Fuse – 6.3 MP at 115 V C

•Input Range – 100-120 V C or 200-240V C, 50/60Hz (Switchable)

•Weight – 3lb

•Dimensions – 6.1” x 5” x 2.5”

www.alzatex.com 7 lzatex, Inc.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Alzatex Orologio

Alzatex

Alzatex ALZML08A Manuale utente

Manuali Orologio popolari di altre marche

Silicon Laboratories

Silicon Laboratories SI5324 Manuale utente

Heathkit

Heathkit GC-1005 Manuale utente

Oregon Scientific

Oregon Scientific PRYSMA RMR221P Manuale utente

Andrew O'Malley

Andrew O'Malley DOTKLOK Manuale utente

ALGE-Timing

ALGE-Timing ASC3 Manuale utente

Bodet

Bodet Profil 960 Manuale utente

Nixie Clock

Nixie Clock Divergence Meter Manuale utente

La Crosse Technology

La Crosse Technology WS-8256-AL Manuale utente

Mini Gadgets

Mini Gadgets MCPro Manuale utente

Casio

Casio TMR-200 Manuale utente

Progetti

Progetti ILTEMPOSTRINGE Manuale

BVItech

BVItech BV-101 Manuale utente

Progetti

Progetti KALIMERO Manuale

La Crosse Technology

La Crosse Technology WT-3141b Manuale

La Crosse Technology

La Crosse Technology W86531 Manuale utente

Sharp

Sharp SPC900 Manuale utente

La Crosse Technology

La Crosse Technology 404-50447 Manuale utente

Datexx

Datexx DF0063 Manuale utente
