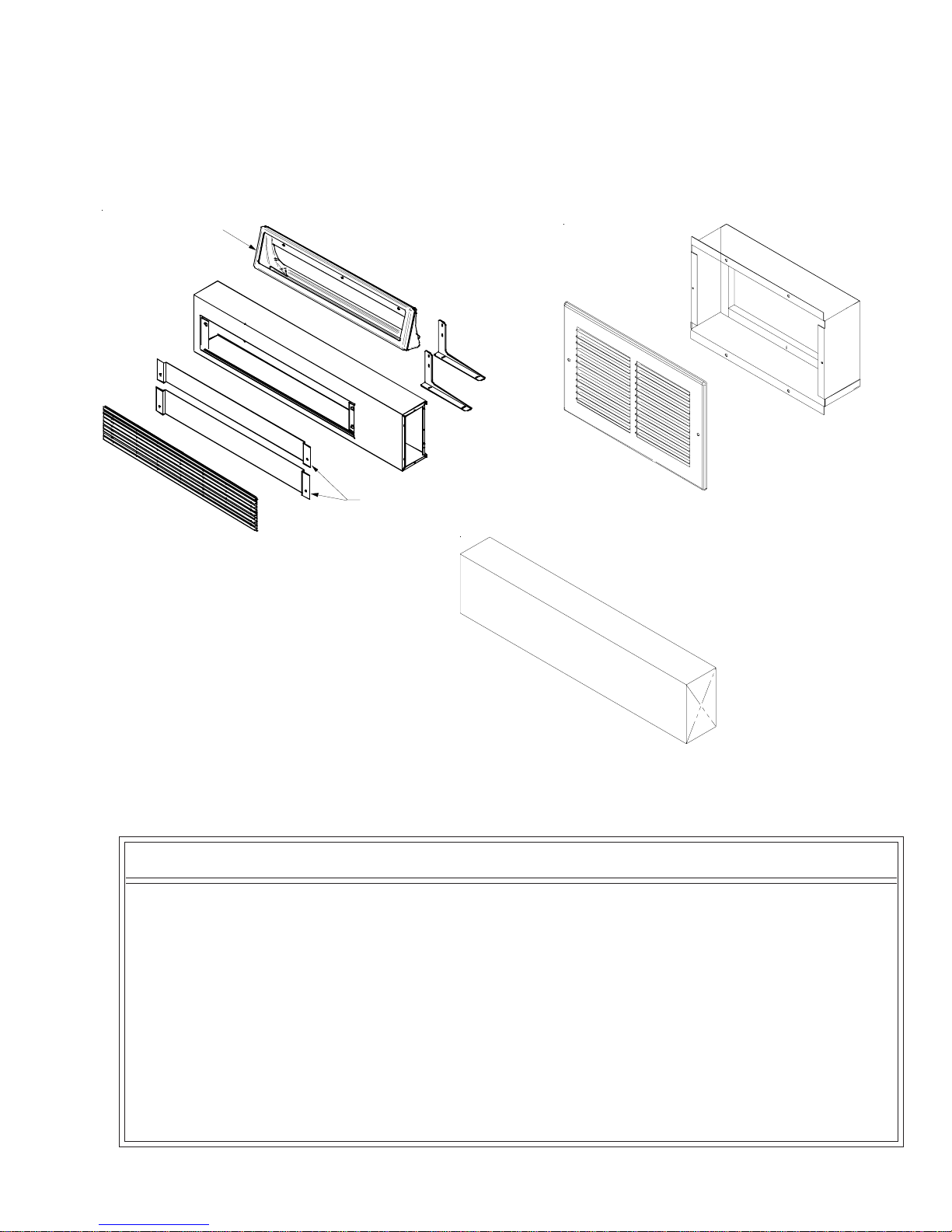

The kit consists of a main duct for the room of origin and an extension duct to reach the adjoining room, and terminal
duct. NOTE: All required hardware is provided within kit.
PTAC
DUCT KIT
INSTALLATION INSTRUCTIONS
Extends air distribution to an adjoining room.
PartNo.11113404
Printed in USA September2004
TRANSITION
BAFFLES
*
**
*
*
**
*
Terminal Duct Kit - TDK02
ATTENTION INSTALLING PERSONNEL
As a professional installer you have an obligation to know the product better than the customer. This
includes all safety precautions and related items.
Prior to actual installation, thoroughly familiarize yourself with this Instruction Manual. Pay special
attention to all safety warnings. Often during installation or repair it is possible to place yourself in a
position which is more hazardous than when the unit is in operation.
Remember, it is your responsibility to install the product safely and to know it well enough to be able to
instruct a customer in its safe use.
Safety is a matter of common sense...a matter of thinking before acting. Most dealers have a list of
specific good safety practices...follow them.
The precautions listed in this Installation Manual are intended as supplemental to existing practices.
However, if there is a direct conflict between existing practices and the content of this manual, the
precautions listed here take precedence.
Extension Duct Kit - EDK02
Main Duct Kit - MDK02
2
OUTSIDE
WALL
WALL SLEEVE
UNIT FRONT
END OF
DUCT
EXTENSION
1/2"
TRANSITION
2-3/4" MIN
(FOR SUBBASE KIT)
1/4" MIN
7-1/2"
18-3/8"
5"
FLOOR LINE
SUBBASE KIT
INNER WALL
CUT-OUT
BOTTOM OF
WALL SLEEVE
2-3/8" MIN
(FOR DUCT KIT)
3-1/4" MIN
10"
20-1/2" MAX

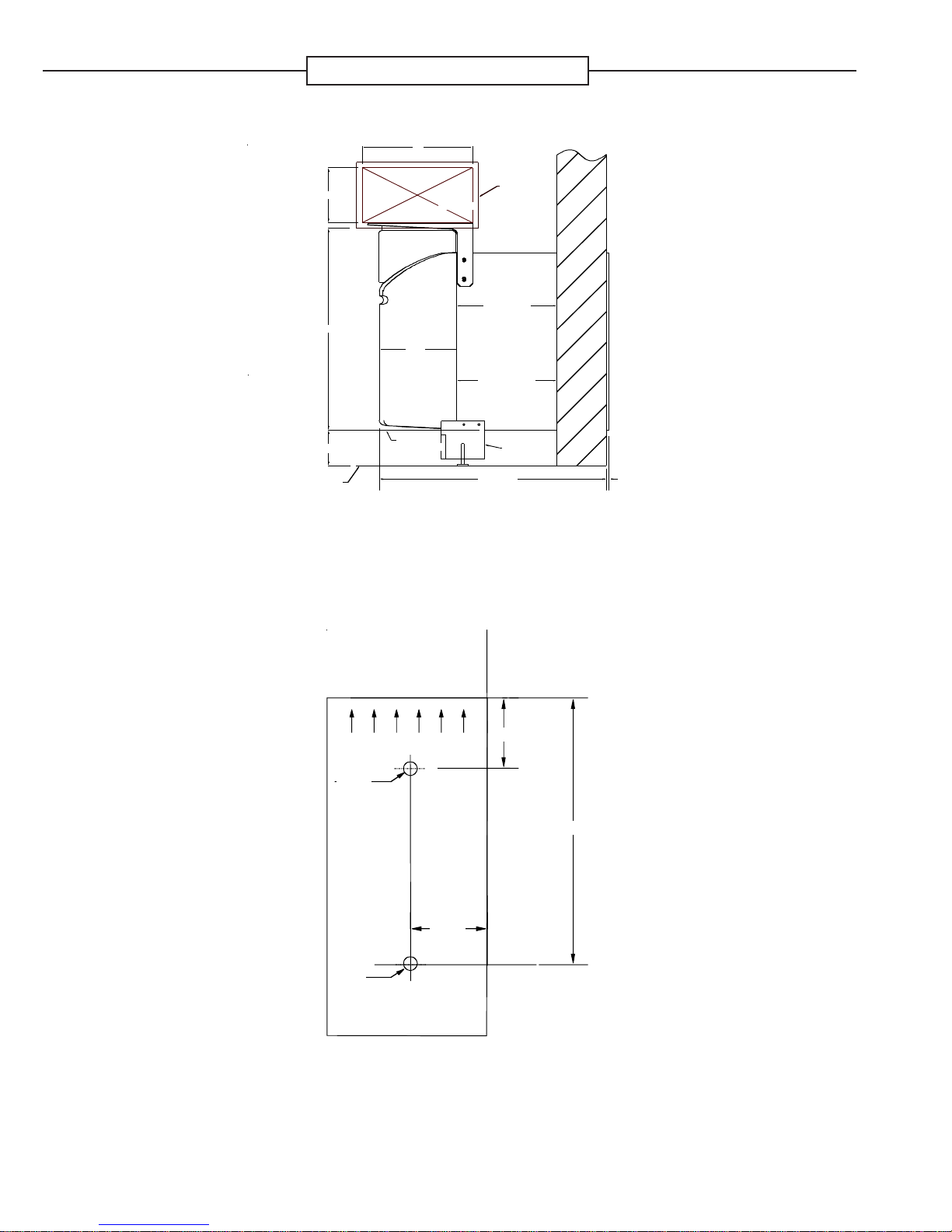

InstallationDimensions
Installation Dimensions
TOP
11/16"
5/8"
2 3/8"
Ø 1/8"
Ø 1/8"
Hole Placement Template
3

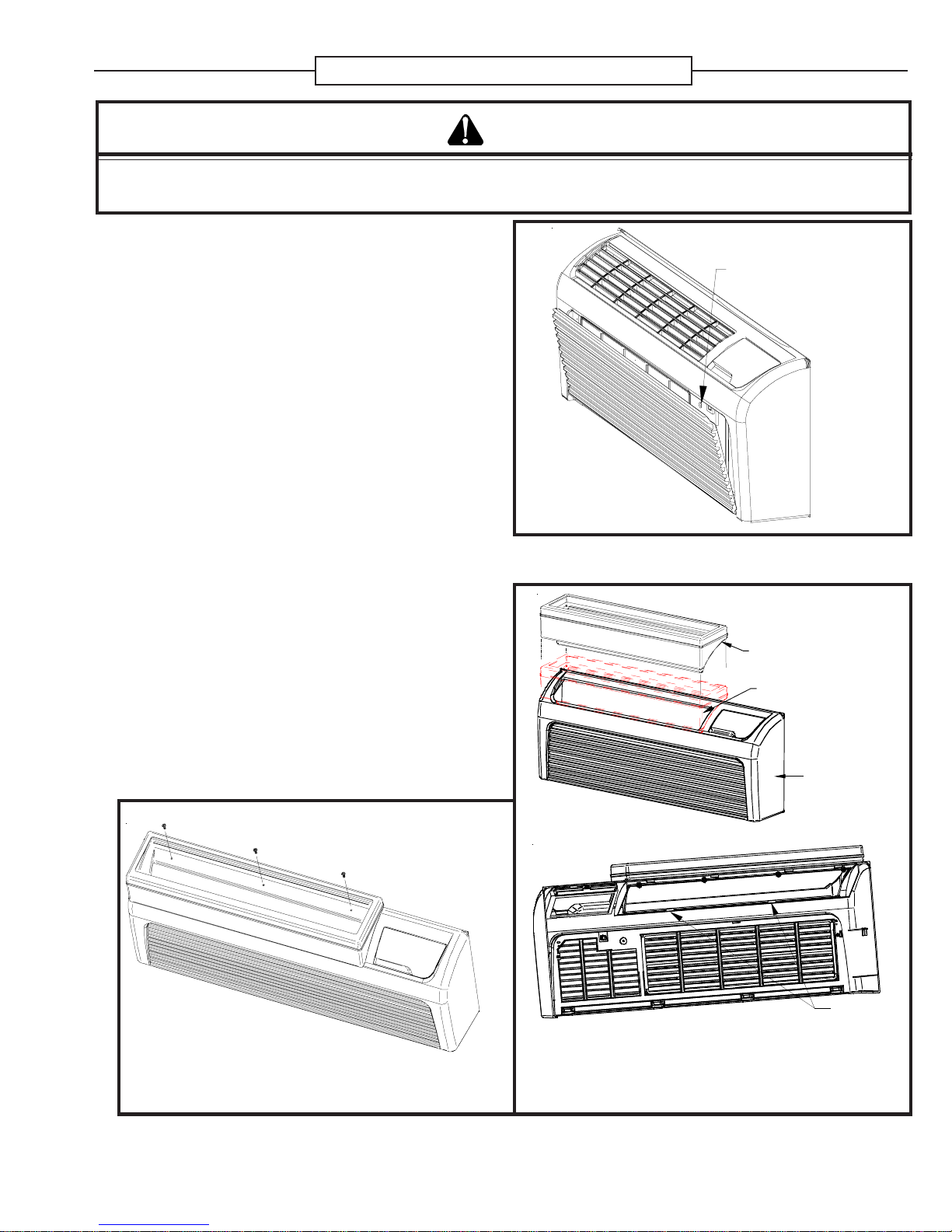

MDK Installation Instructions
1. If the cabinet front is screwed to the chassis, remove
the screw located behind the inlet grille. Pull the inlet
grille forward from the top of the grille to access two
screws.
2. Remove cabinet front from chassis by tilting the bot-
tom of the front forward, lifting slightly up and forward.
3. Disengage discharge grille from cabinet front by re-
moving four pal nuts from under the front
FRONT MOUNTING
HOLE
Cabinet Front Removal
WARNING
To avoid the risk of personal injury or death due to electrical shock, disconnect power
source before removing the chassis.
4. Place transition in air discharge opening of cabinet
front and secure with the provided U-clip.
5. Using 1/8” drill bit, pre-drill holes in front using the ac-
tual transition as a template. Fasten with three
screws. Do not overtighten.
PRE-ASSEMBLY [TRANSITION/FRONT]
TRANSITION
AIR DISCHARGE
OPENING
CABINET
FRONT
`
U-CLIP
Transition Assembly
4
PRE-ASSEMBLY

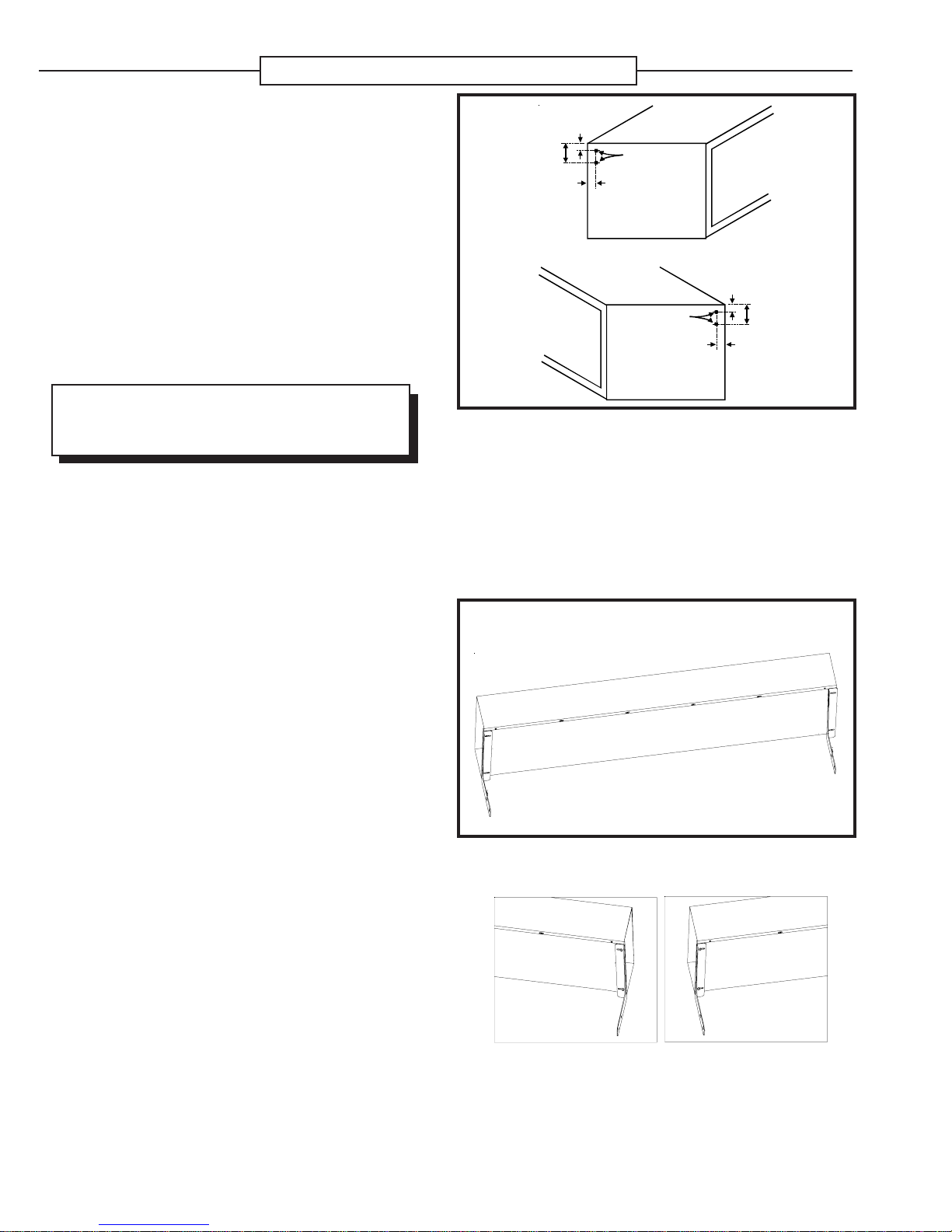

(WALLSLEEVE)HOLE DIMENSIONANDPLACEMENT
1. Unplug and remove chassisfromwall sleeve. Drill two
1/8” holes on left and right sides of wall sleeve in
proper locations (see template on page 2).
2. Install chassis back into wall sleeve.
3. Install transition/front assemby on to chassis. Make
sure top of cabinet front catches metal flange on
chassis.
MDK Installation Instructions
WALL
SLEEVE
INDOOR
11/16"
2-3/8"
5/8"
1/8" HOLES
WALL
SLEEVE
INDOOR
11/16"
2-3/8"
5/8"
1/8" HOLES
Wall Sleeve Hole Placement
MDKASSEMBLY
Determine if the duct is to be extended to the right of the
unit (where controls are located) or to the left of the unit
(opposite the controls).
For left side extensions remove the main duct end cap
and reinstall on the right end of the duct. Using the four
painted sheetmetal screws, secure the two mounting
brackets to the main duct.
Two mounting slots are provided in each bracket. To
mount extension on right side, adjust bracket so the
screws are in left side of bracket slots; for mounting
extension on the left, adjust brackets so the screws are
in right side of slots.
On right side extensions shift the brackets to the right.
For left side extensions shift the brackets to the left.
NOTE: If there is not enough clearance between
sleeve and partition wall to drill the holes, layout
and drill the holes from inside the sleeve.
Mounting Brackets Installation
RIGHT SHIFT
LEFT SHIFT
5

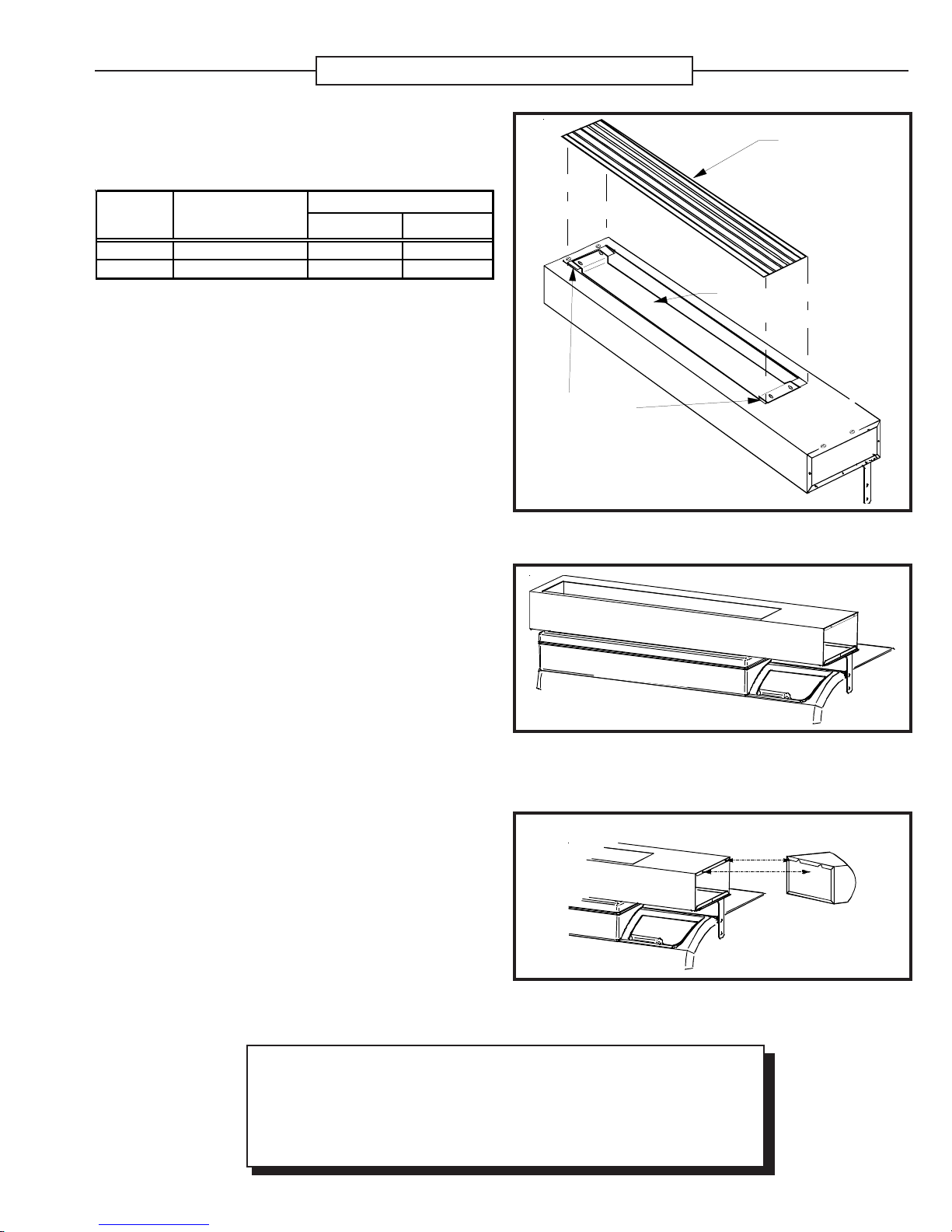

1. Determine amount of air desired at main duct and at
extension duct. Using the table provided, select the
appropriate baffle.
MAIN DUCT EXT. DUCT
Small 3 11/16" x 31 3/4" 80% 20%
Large 4 5/16" x 31 3/4" 65% 35%
BAFFLE DIMENSIONS AIRFLOW
Table 1
2. Place baffle on grille support brackets on main duct.
Ensure the two extruded holes of the baffle are on top
of the front bracket holes.
3. Install discharge air grille on top of the air baffle. Se-
cure the grille to the duct with pal nuts (provided) by
reaching through the opening in the bottom of the
duct.
Air Baffle Installation Instructions
SUPPORT
BRACKETS
DISCHARGE
AIR GRILLE
AIR BAFFLE
Air Grille Installation
MDKASSEMBLY
TRANSITION
MDK Installation Onto Transition Assembly
4. Place main duct assembly on the transition. Secure
the brackets to the wall sleeve with four #10 hex head
screws. Do not apply pressure on top of duct during
this installation!
5. Install two Phillips head screws into the top flange of
the main supply duct at extension duct connection.
Do not tighten screws. Leave space for one thickness
of the duct sheet metal between screw head and
main duct flange.
Main Supply Duct Top Flange
NOTE: Total length of duct extension assembly, including field
supplied duct between main and extension duct, should not exceed
15 effective feet (according to ASHRAE standards). For additional
dimensions, refer to Main Duct and Duct Extension Dimensions
illustration.
6
BRACKET TRANSITION
DUCT
MAIN DUCT
MINIMUM
5"
BOTH SIDES
42-27/32" 6" TO 42-1/2"
BRACKET
5"
PARTITION
WALL
DUCT EXTENSION
AIR FLOW
DUCT
TERMINATION
KIT
AIR FLOW
1" to
adjoining
wall
surface

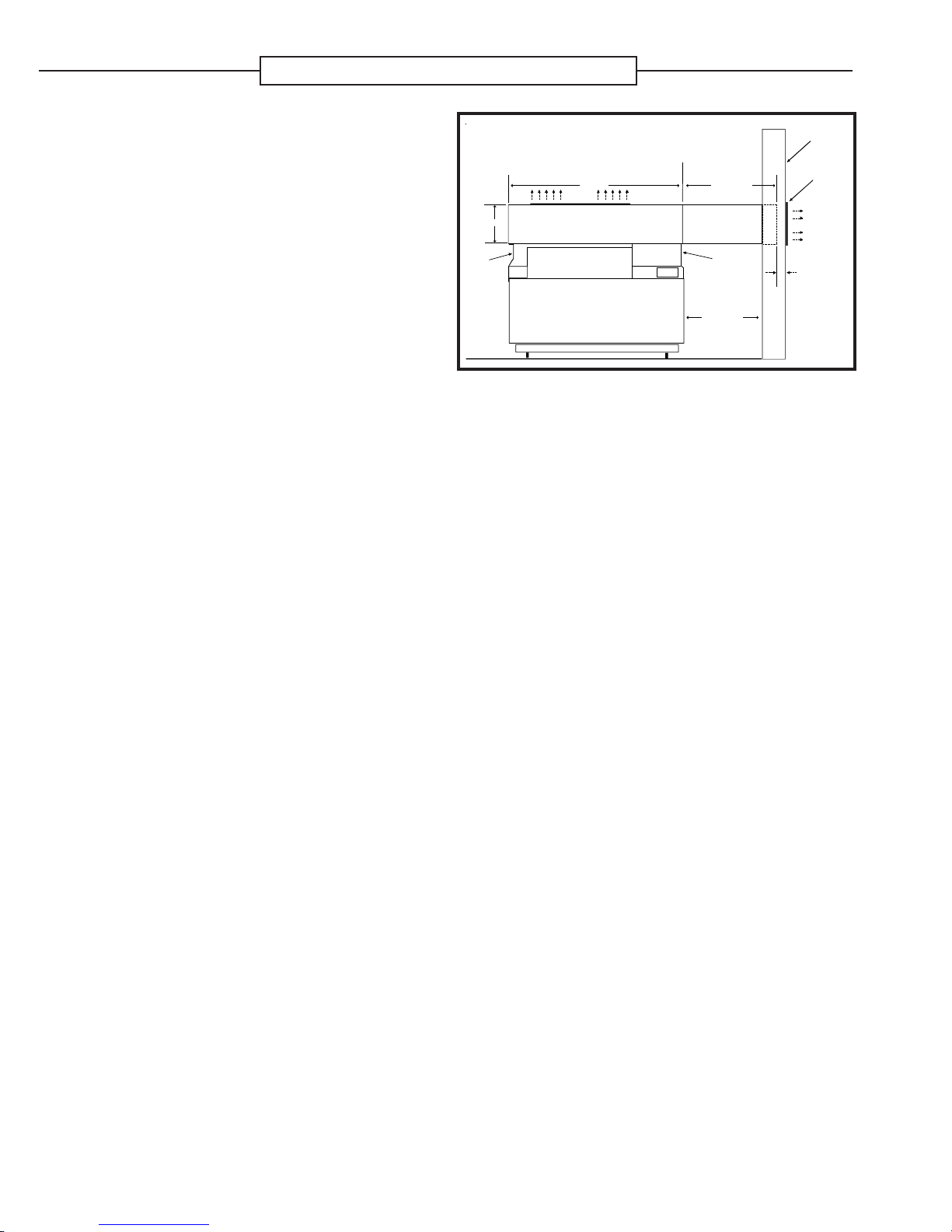

Main Duct and Duct Extension Dimensions
6. In the room where the main duct kit is attached to the
chassis, cut a hole in the wall at the same height from
the floor that the main duct is located. Cut the hole 1/
8” larger than the width and height (10” x 5”) dimen-
sions of the extension duct.
7. Measure from the end of the main duct where the ex-
tension duct will be connected to the hole in the wall.
If necessary cut the extension duct to a length where
the cut end protrudes into the wall’s inner space and
one inch from the adjoining room’s wall surface.
8. Insert the extension duct into the opening in the wall.
Install the extension duct by placing the slotted flange
over the two screws in the main duct. Using two #8
round Phillips head screws, mount bottom of exten-
sion duct to mounting bracket through the bracket slot
(see Main Supply Duct Top Flange illustration).
NOTE: The EDK02 can be cut into two sections and
used with two MDK02s if the needed length does not
exceed 21-1/4”.
Air Baffle Installation Instructions
7

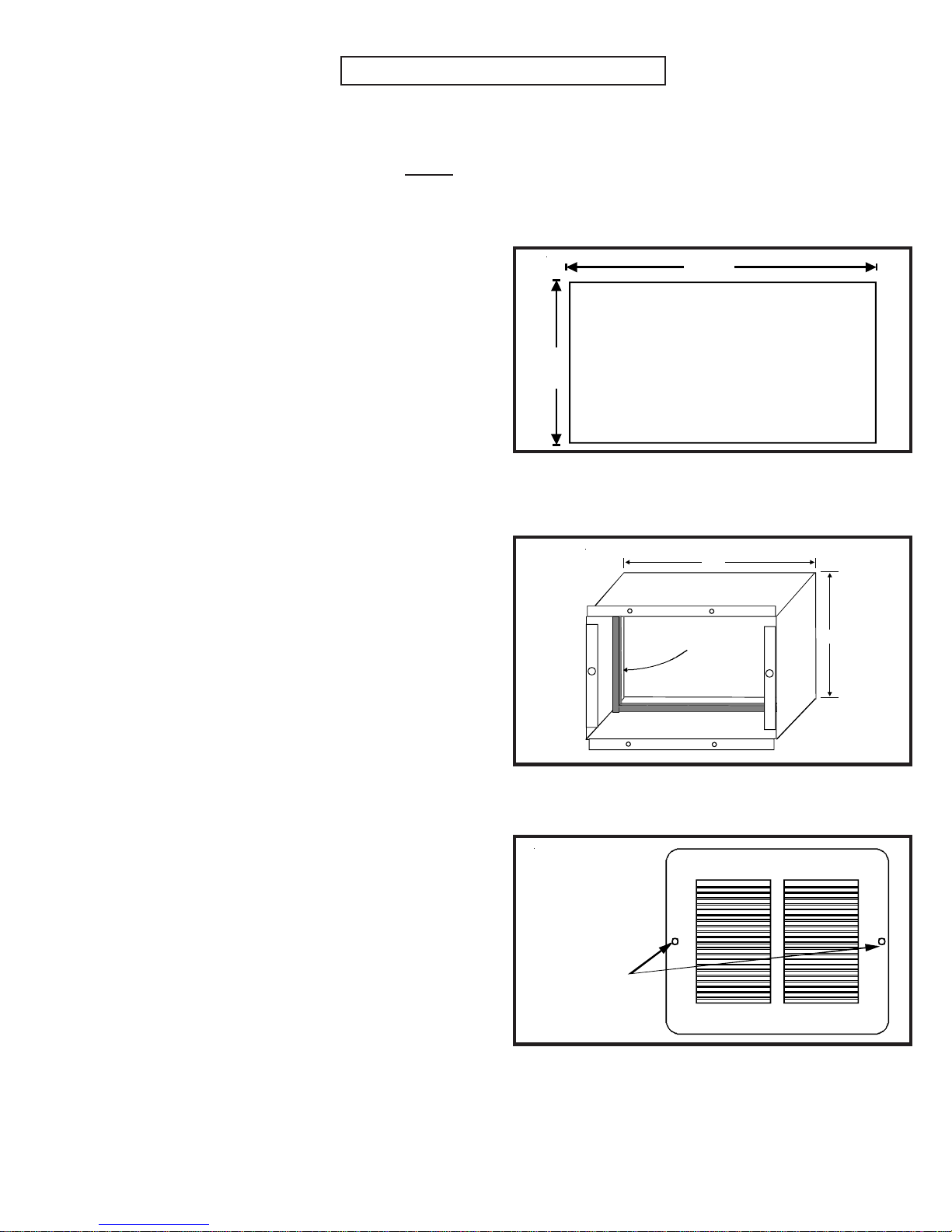

TDK Installation Instructions
IMPORTANT NOTE
ANY FIELD-SUPPLIED GRILLE, MUST HAVE FIXED LOUVERS THAT CANNOT BE CLOSED.
The sheet metal collar of the terminal duct kit must be mounted in the wall of the adjoining room opposite the room
where the main duct kit is attached to the PTAC chassis.
11-1/4"
6-1/4"
Wall Hole Dimension
GASKET
11"
6"
Sheet Metal Collar
USE
TWO
#8 SCREWS
Metal Grille
1. Cut a hole in the wall of the adjoining room such that
the hole is centered on the extension duct that is cur-
rently in the wall of the opposite room. See wall hole
dimensions illustration for sheet metal collar.
2. Insert the sheet metal collar into the wall so that the
flanges will mount flush to the wall after the collar is
pushed all the way into the wall. While pushing the
collar into the wall make sure the extension duct is in-
side the collar. Use four #8 screws to attach metal
collar to wall.
3. Center the metal grille over the sheet metal collar and
use two #8 screws (provided) to attach the grille to
the metal collar .
