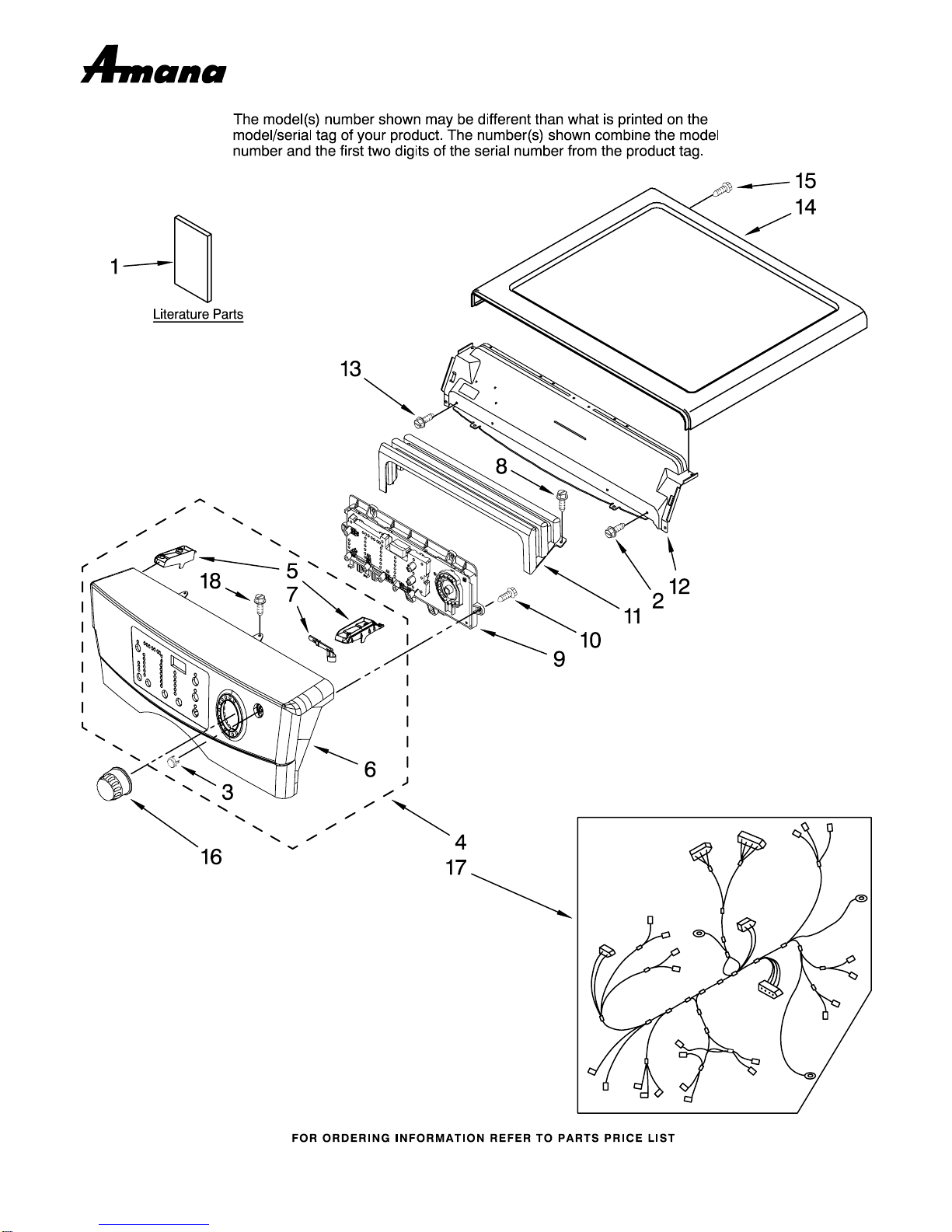

TOP AND CONSOLE PARTS

For Model: NED7200TW10

(White)

11−07 Printed in U.S.A. (LT) Part No. W10171527 Rev. A

29"ELECTRIC DRYER

TOP AND CONSOLE PARTS

For Model: NED7200TW10

(White)

W10171527

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10161016

Use & Care Guide

16026881 Tech Sheet

W10161760

Installation,

Instruction

6006−00174

Screw−Tapping (2)

W10175952

Button, Power

W10177362

Panel−Console

Assembly

5 35001231 Bracket, Panel (2)

6 35001229 Panel, Control

7 34001419 Lever−Power

6002−000470

Screw−Tapping (4)

9 35001269 User−Interface

6002−000213

Screw−Tapping

11 35001232 Support−Panel

12 35001162 Frame−Plate

6006−001170

Screw−Tapping

W10177364

Top

6009−001476

Screw−Hex (2)

W10175949

Knob, Control

17 35001262 Harness, Main

6002−000231

Screw−Tapping (5)

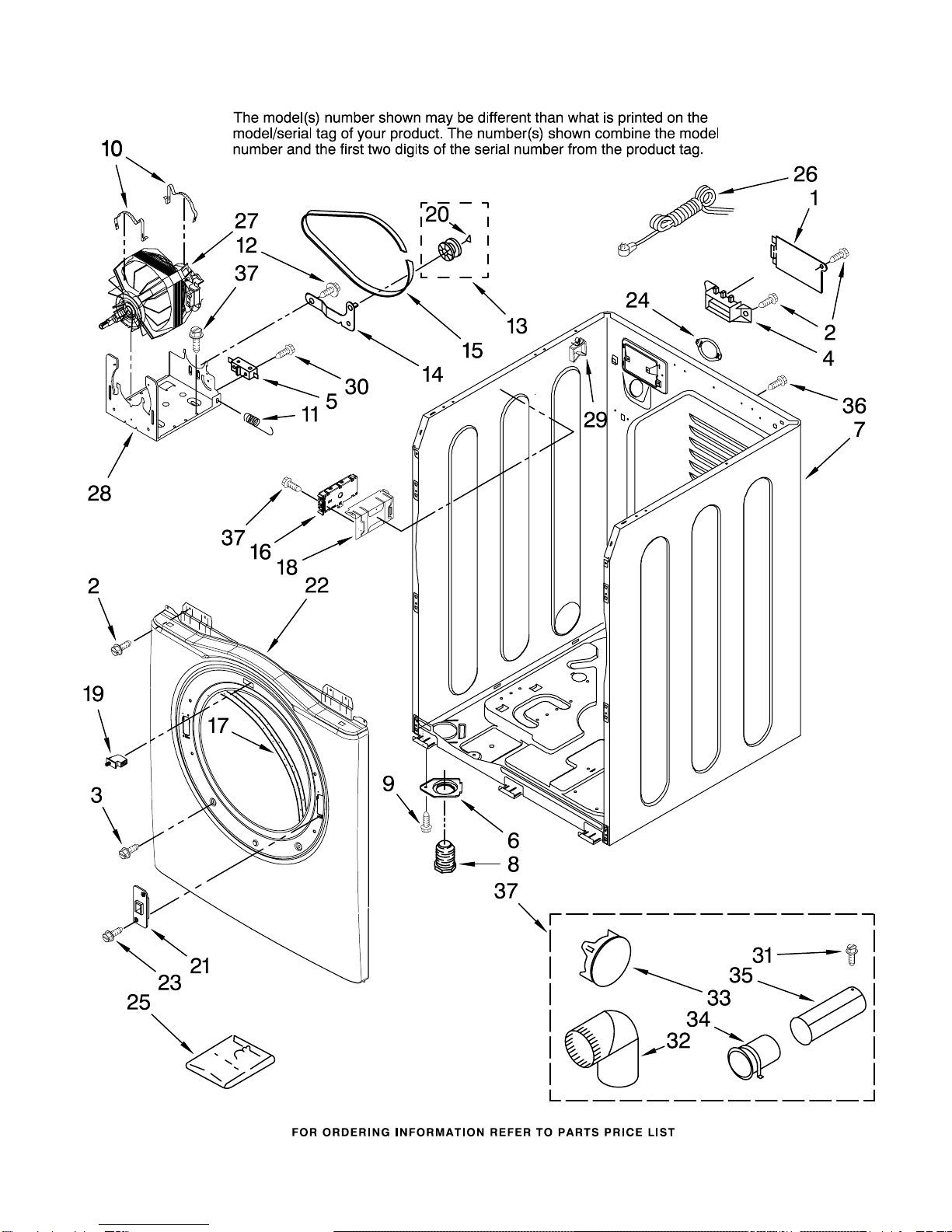

CABINET PARTS

For Model: NED7200TW10

(White)

W10171527

CABINET PARTS

For Model: NED7200TW10

(White)

W10171527

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 35001157 Cover,

Terminal Block

6006−00174

Screw−Tapping

6006−001006

Screw−Tapping

4 34001481 Block, Terminal

5 35001082 Switch, Broken

Belt

6 35001156 Bracket,

Dryer Foot

7 35001169 Cabinet

8 35001158 Foot, Dryer

6002−000239

Screw−Tapping (10)

10 35001081 Clamp, Motor (2)

11 35001278 Spring, Idler

6009−001342

Retainer, Idler

13 35001086 Pulley Assembly

14 35001276 Bracket, Idler

15 35001137 Belt−Drive

16 35001153 Board, Control

W10177398

Seal−Front Panel

18 35001168 Bracket,

Control Board

19 35001125 Door−Switch

20 35001084 Tri−Ring

21 35001112 Catch, Door

Assembly

W10177396

Panel, Front

6002−00213

Screw−Tapping

24 35001167 Strain−Relief

Power Cord

25 35001254 Kit

Stack Assembly

26 35001200 Cord, Power

27 35001080 Assembly, Motor

60 HZ.

28 35001106 Bracket, Motor

29 35001171 Clip, Harness

30 35001107 Screw−Tapping

31 213121 Screw−Tapping

32 Y059131 4" − 90 Elbow

33 35001216 Plug−Multivent

34 35001205 Duct, Exhaust (A)

35 35001204 Duct, Exhaust (B)

6002−000231

Screw−Tapping

Optional Parts Not Included

Dryer Exhaust Kit

(For Side & Bottom Venting)

37 12002641 White

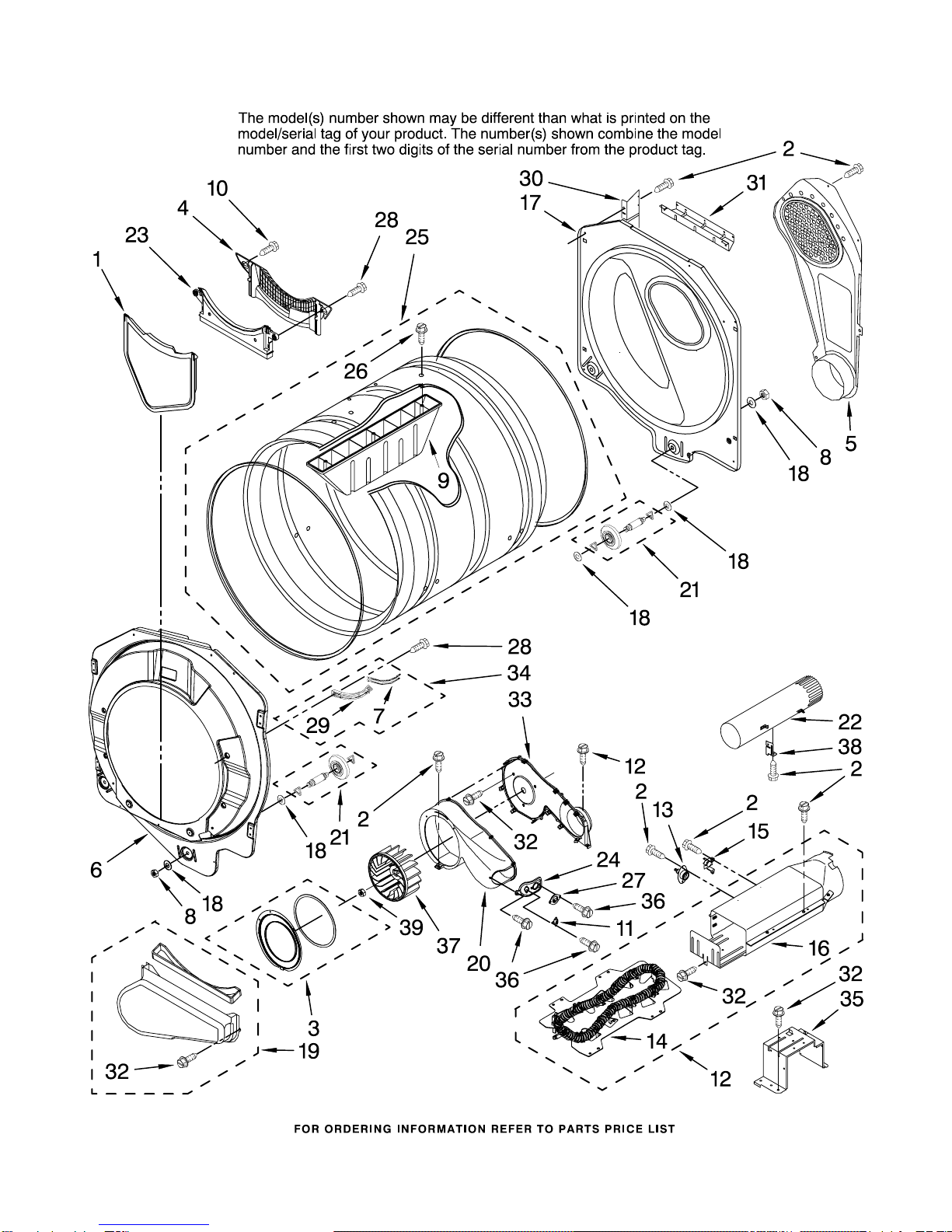

BULKHEAD PARTS

For Model: NED7200TW10

(White)

W10171527

BULKHEAD PARTS

For Model: NED7200TW10

(White)

W10171527

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10177426

Screen, Lint

6002−000239

Screw−Tapping

3 35001246 Cover−Plate

Assembly

4 35001243 Grille, Outlet

5 35001135 Air Duct Assembly

6 35001244 Bulkhead, Front

7 35001241 Plate−Sensor

8 35001132 Nut−Hex

9 35001131 Baffle−Drum

10 34001214 Screw−Tapping

11 35001087 Thermostat

12 35001119 Assembly,

Heater Box

13 35001092 Thermostat

14 35001247 Element, Heater

15 35001193 Assembly−Bracket

Thermostat

16 35001109 Box, Heater

W10177410

Bulkhead, Rear

18 35001133 Washer, Support

19 35001140 Assembly,

Lint Duct

20 35001089 Housing−Blower

Front

W10177428

Assembly,

Roller−Support

22 34001159 Exhaust Pipe

23 35001144 Housing, Outlet

24 35001105 Bracket−Thermistor

W10177409

Assembly, Drum

6002−000215

Screw−Tapping

27 35001191 Thermistor

6002−001320

Screw−Tapping

29 35001242 Guide−Sensor

30 35001146 Channel Bracket,

Rear Bulkhead (2)

31 35001145 Bracket, Upper

Rear Bulkhead

6002−000231

Screw−Tapping

33 35001088 Blower−Housing

Rear

34 35001245 Guide−Sensor

Assembly

35 35001104 Bracket,

Heater−Box

6002−00470

Screw−Tapping

37 35001220 Wheel− Blower

38 35001155 Clip−Exhaust

39 35001079 Nut−Inch

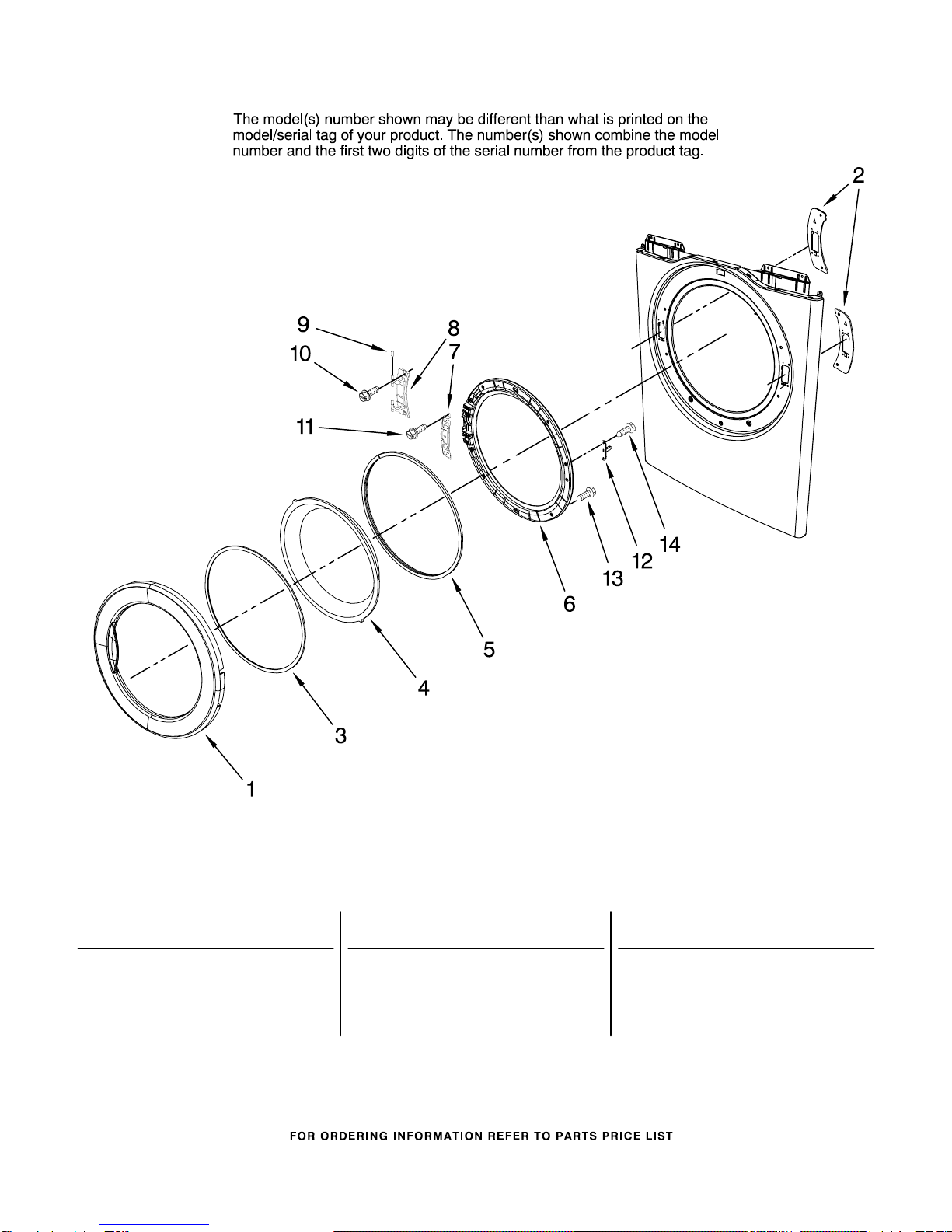

DOOR PARTS

For Model: NED7200TW10

(White)

W10171527

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 35001235 Door−Outer Ring

2 35001129 Bracket−Hinge

3 35001235 Door−Safety

4 35001182 Window

5 35001250 Seal−Door

W10177441

Holder−Glass

7 35001120 Support−Hinge

W10177442

Hinge, Door

9 35001127 Bearing−Hinge

6001−001773

Screw−Machine

6002−000213

Screw−Tapping

12 35001111 Catch−Door

6002−000525

Screw−Tapping

6002−000475

Screw−Tapping

OPTIONAL PARTS (NOT INCLUDED)

For Model: NED7200TW10

(White)

W10171527

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

350938 Primer, Gray

ACCESSORY PARTS

35001151 Assy−Flat

Wire Harness

35001152 Assy, M−Wire

Harness (Heater)

35001164 Assy, Wire Harness

(Touch Sensor)

12002643 Hold Down Kit

12002641 Kit,

Dryer Repair
