Amana AER6011VAW0 Manuale utente

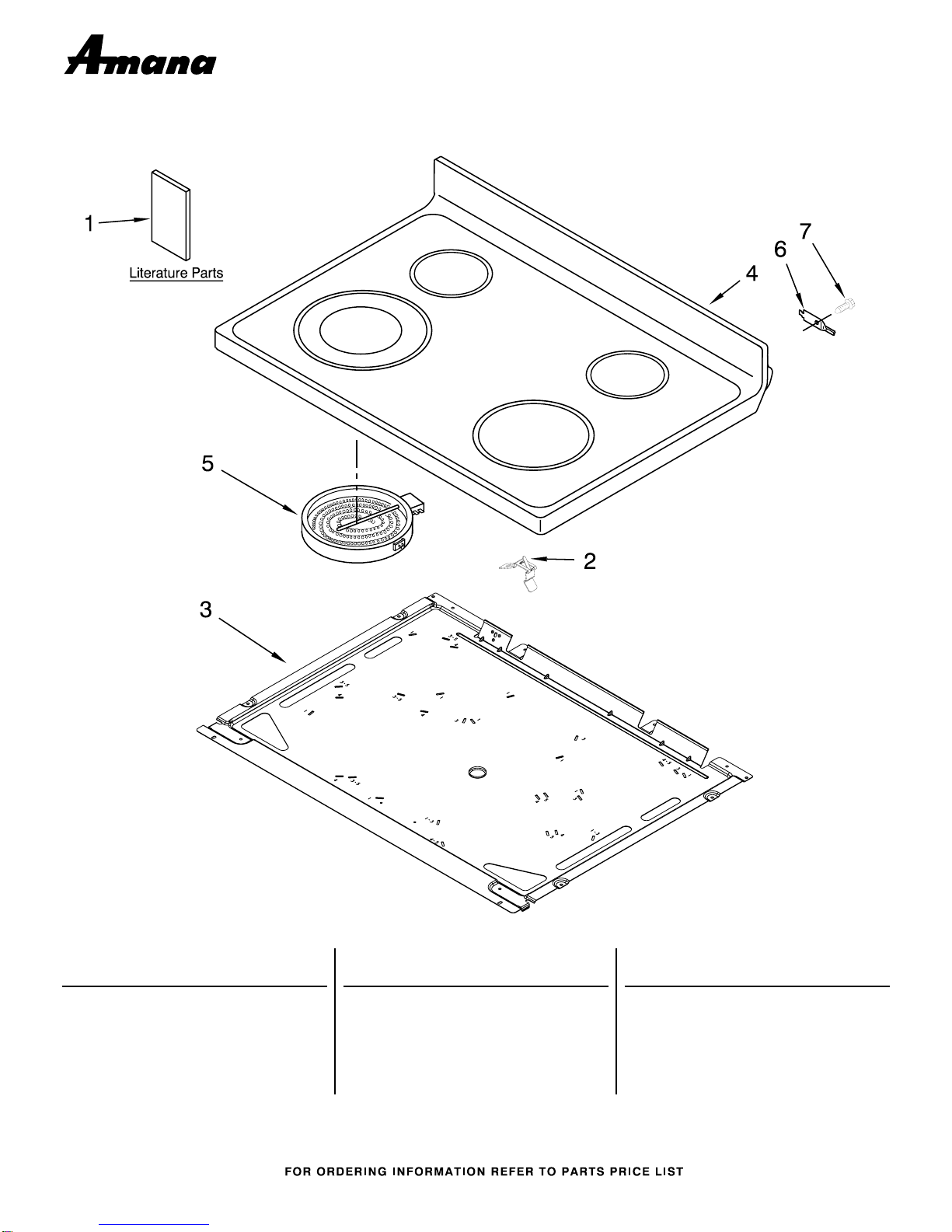

COOKTOP PARTS

For Models: AER6011VAW0, AER6011VAB0, AER6011VAS0

(White) (Black) (Stainless Steel)

6−12 Litho in U.S.A. (AR) (psw) Part No. W10213979 Rev. E

30" ELECTRIC CERAN

FREESTANDING RANGE

SELF CLEAN OVEN

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature

W10252706

Instructions,

Installation

W10196164

Owners Manual

W10384451

Tech Sheet

9762761 Safer Cooking Tips

W10225448

Spring, Locator

W10170526

Pan, Radiant

4 Cooktop

W10176729

White

W10176730

Black/Stainless

5 Element, Surface

W10275049

2500/1200W − RF

8273992 2500 W − LF

8523698 1200 W − LR,RR

6 3195060 Hinge, Pin/Cooktop

7 3196169 Screw

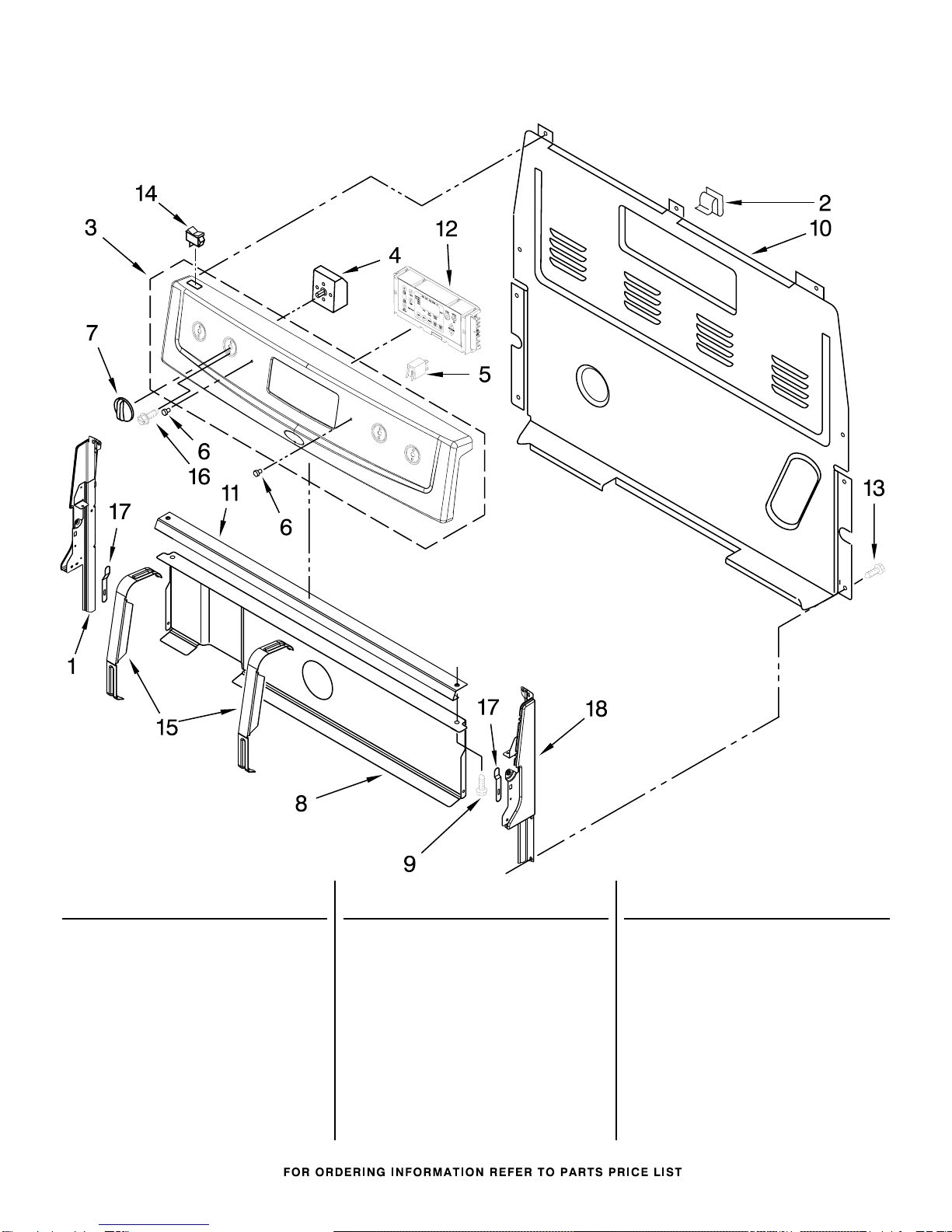

CONTROL PANEL PARTS

For Models: AER6011VAW0, AER6011VAB0, AER6011VAS0

(White) (Black) (Stainless Steel)

W10213979

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Endcap Left

W10184433

White

W10184437

Black

2 8273564 Clip

3 Panel, Control

W10170019

White

W10170020

Black

W10170021

Stainless Steel

4 Switch, Infinite

W10149355

LF,RF

W10295576

LR,RR

5 8523265 Light, Ind.

6 3196068 Lens, Light

7 Knob, Infinite

W10119705

White

W10119706

Black

W10134247

Shield, Heat

9 Screw

3196166 White

3196168 Black

10 8272473 Cover, Upper

W10182322

Brkt−Mntg, Console

12 Control, Range

W10271721

White

W10271722

Black

13 3196178 Screw

14 Switch, Rocker

3149360 White

3148564 Black

W10138683

Brkt−Mntg, EOC

16 3400882 Screw

17 3196200 Clip, Spring

18 Endcap, Right

W10184434

White

W10184438

Black

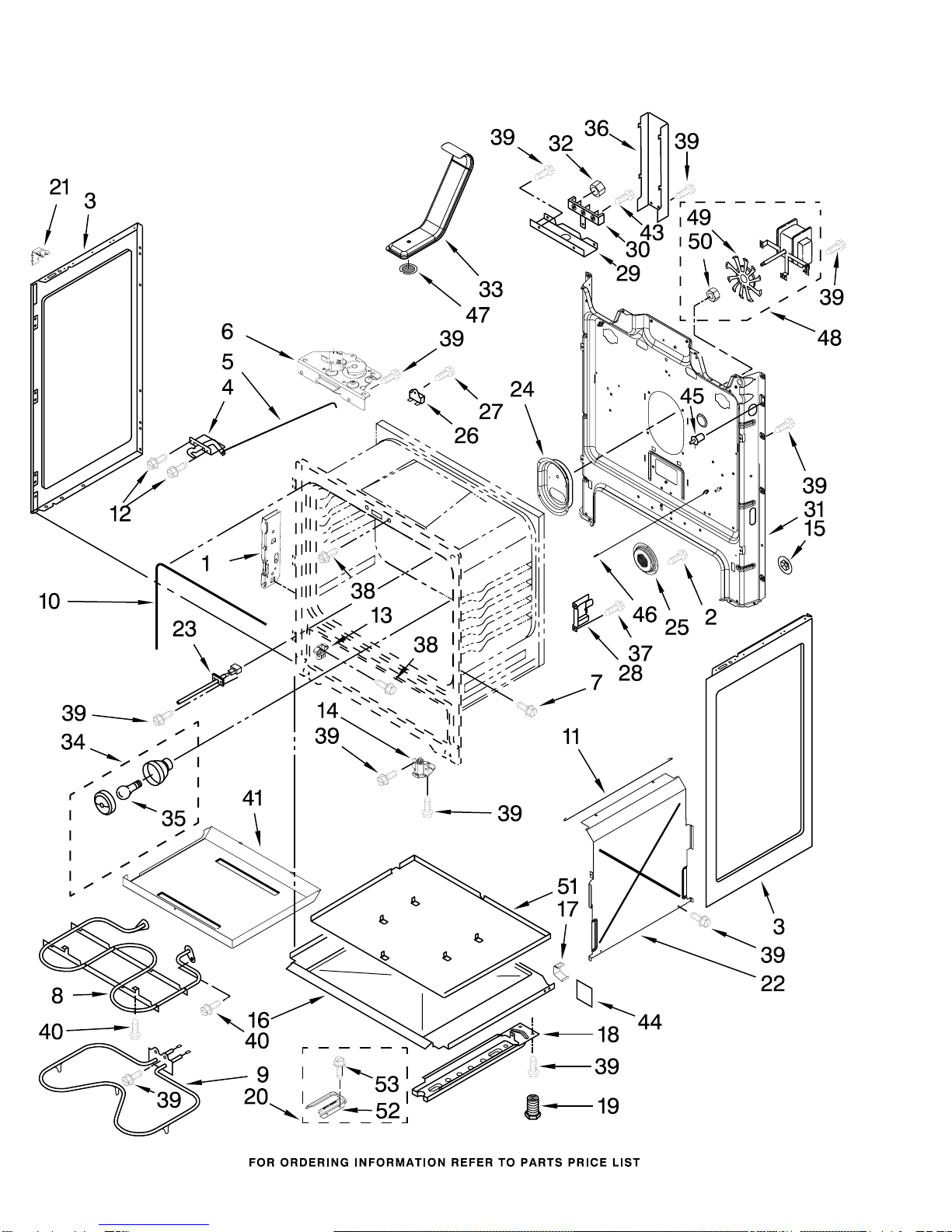

CHASSIS PARTS

For Models: AER6011VAW0, AER6011VAB0, AER6011VAS0

(White) (Black) (Stainless Steel)

W10213979

CHASSIS PARTS

For Models: AER6011VAW0, AER6011VAB0, AER6011VAS0

(White) (Black) (Stainless Steel)

W10213979

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10289077

Brkt−Mntg,Dr Hnge

2 4449809 Screw

3 Panel, Side

W10322769

White−Textured

W10322770

Black/Stainless

4 9761013 Latch, Door

W10078380

Rod, Latch

W10107830

Latch Asy, Rear

W10067840

Screw

W10308476

Element, Broil

W10308474

Element, Bake

10 8522416 Seal, Oven Door

W10196451

Rod, Insl Retainer

12 3196560 Screw

W10114344

Glide, Drawer

W10341186

Foot, Front

15 3400968 Nut, Push On

W10134121

Tray, Insulation

W10137382

Clip, Panel

18 Rail, Base

9761368 Left Hand

9761367 Right Hand

W10058460

Foot, Rear

W10017440

Kit, Anti−Tip

W10183541

Clip− Mounting

22 9758238 Retainer, Side

W10181986

Sensor, Oven

W10134126

Bracket, Fan

W10134124

Cover, Fan

26 3196548 Fuse, Thermal

27 3196172 Screw

W10355173

Support, Oven

29 3186034 Bracket, Service

W10245259

Block, Terminal

W10273169

Back, Main

7103P027−60

Nut

W10134285

Vent Tube Asm

34 3196701 Light Socket Assy

35 311255 Bulb, Oven Light

W10326122

Cover, Box

37 3196165 Screw

38 3196168 Screw

39 3196178 Screw

40 3196174 Screw

W10183712

Tray, Hidden, Bake

43 3400016 Screw

44 9759689 Card, Insulator

45 9757238 Switch − Door

46 9757239 Rod − Door Switch

Rear Mount

47 9761301 Screen − Catalyst

W10167917

Fan, Motor Cnvctn

W10116351

Blade, Fan

W10213748

Nut

W10134125

Heat Shield

Retainer, Insul

52 3192830 Anti tip Bracket

53 3148604 Screw (Anti− Tip)

INSULATION

W10208653

Insulation, Wrap

W10326347

Insulation, Back

W10333344

Insulation, Vent

W10281322

Kit, Bare Wire

Adaptor Block

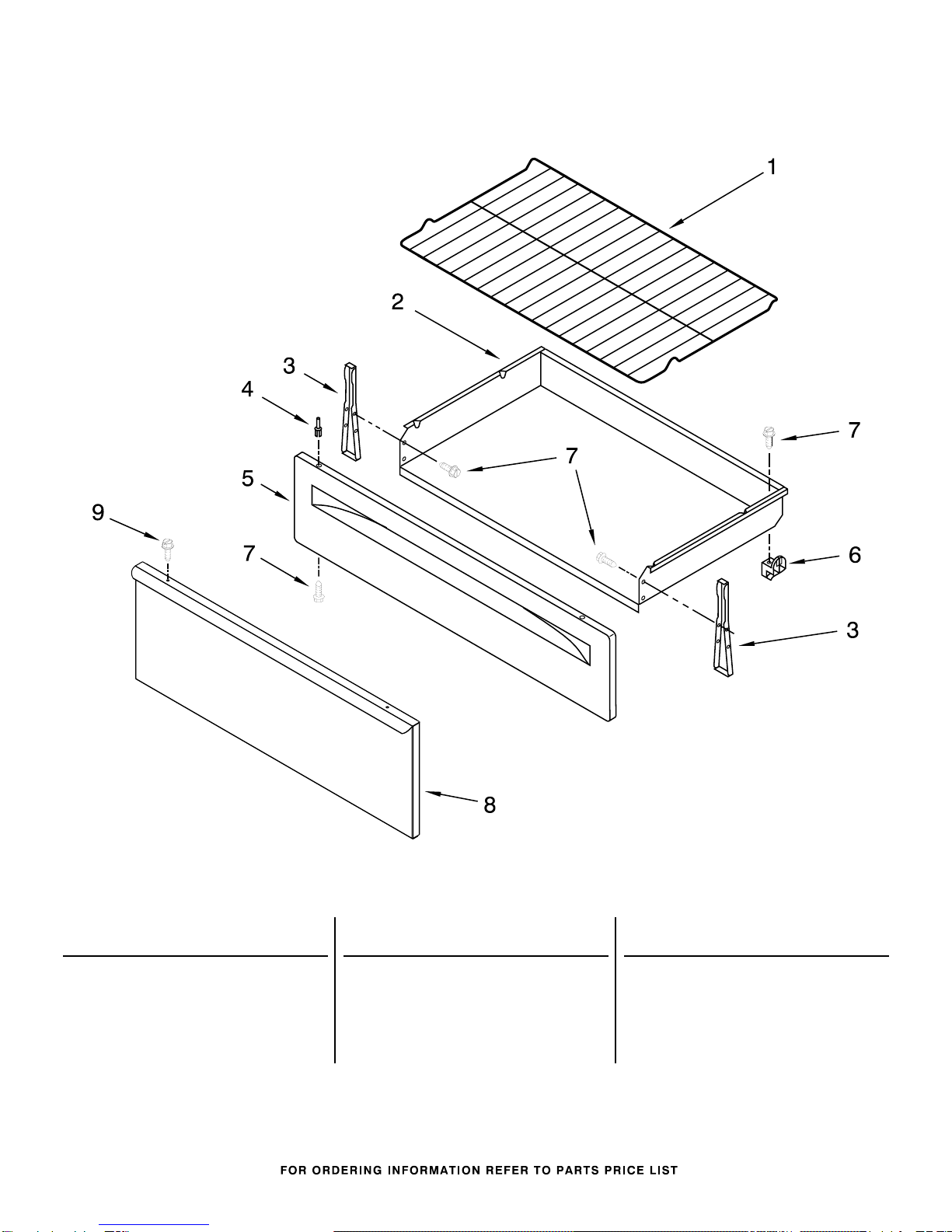

DRAWER & BROILER PARTS

For Models: AER6011VAW0, AER6011VAB0, AER6011VAS0

(White) (Black) (Stainless Steel)

W10213979

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10268578

Rack, Oven

W10296838

Drawer, Storage

3 Bracket, Drawer

W10174396

White/Black

9758200 Stainless

4 Rivet, Push

3196814 White

3196813 Black

5 Drawer Front

8053339 White

8053341 Black

6 8053334 Glide, Drawer

7 3196168 Screw

W10237657

Panel, Drawer Frnt

(Stainless Only)

7101P364−60

Screw(Stls.Model)

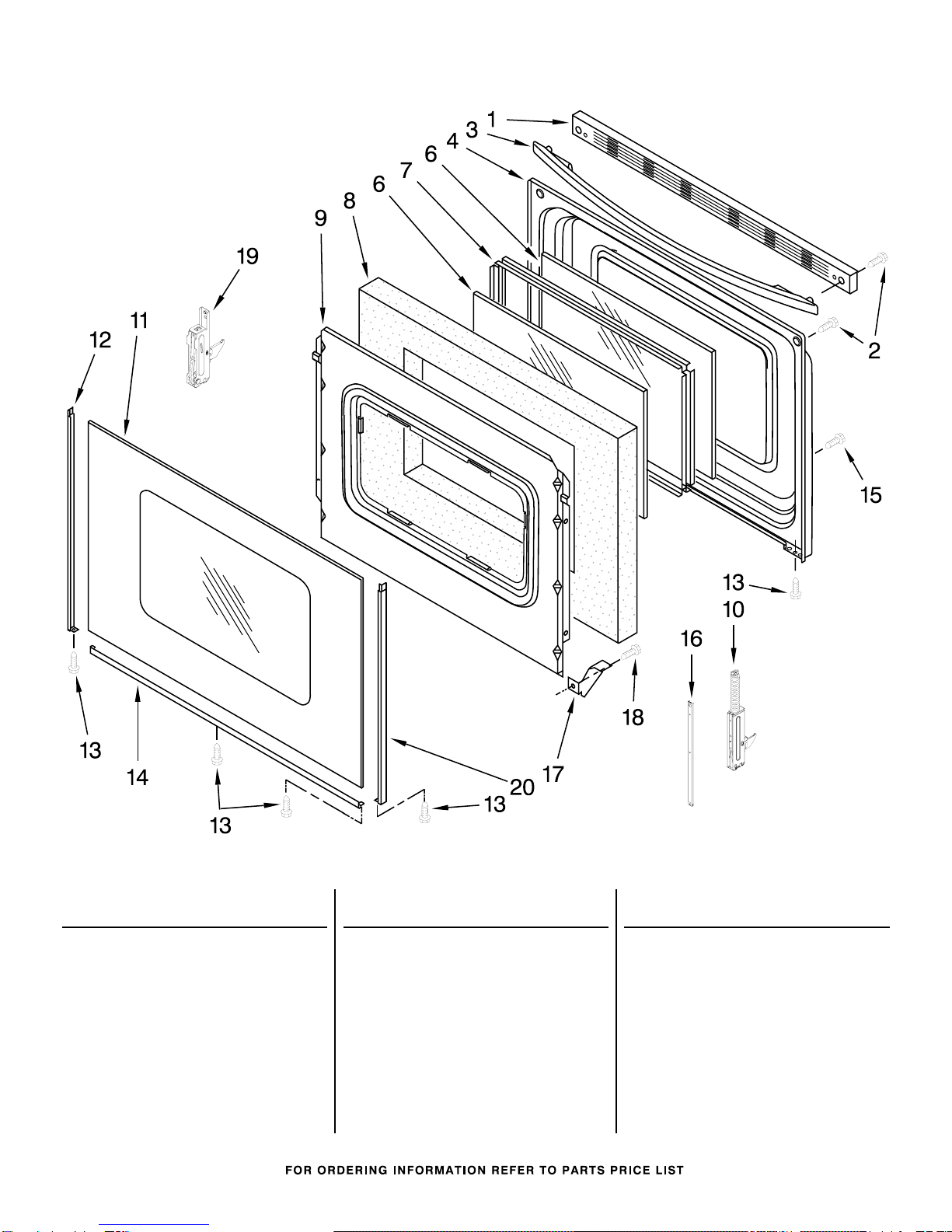

DOOR PARTS

For Models: AER6011VAW0, AER6011VAB0, AER6011VAS0

(White) (Black) (Stainless Steel)

W10213979

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Trim, Top

W10310920

White

W10310922

Black

W10031780

Screw

3 Handle, Door

W10144888

White

W10144889

Black

W10144890

Stainless Steel

4 9761344 Liner, Door

6 9758162 Glass, Inner

W10316950

Frame, Glass

8 Insulation, Door

8272618 White/Black

W10278991

Stainless

9 9761357 Retainer, Insltn

10 Hinge, Door

W10299224

Active

11 Glass, Outer Door

W10118454

White

W10118455

Black

12 Trim, Left

8523172 White

8523171 Black

13 3196160 Screw

14 Trim, Lower

8523175 White

8523177 Black

W10200660

Screw

W10113759

Strap, Door

W10137382

Clip, Panel

18 3196165 Screw

W10299227

Passive, Hinge

20 Trim, Right

8523166 White

8523165 Black

OPTIONAL PARTS

For Models: AER6011VAW0, AER6011VAB0, AER6011VAS0

(White) (Black) (Stainless Steel)

W10213979

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

REFINISHING MATERIAL

242756 Touch−Up

Self−Clean(1/2 Pt)

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

350942 White Primer

72017 White

511873 White Porcelain

72032 Black

4392899 Biscuit

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

285006 Black

350938 Gray Primer

PAINT, BULK (1 qt.)

799344 White (Uncut)

ACCESSORIES

242905 Kit, Canning

Element

31605 Kit, Cooktop Care

31463 Protectant,

Cooktop

W10355049

Wipes, SS Cleaning

241430 Foil, Aluminum

(18" x 25’)

4396096RB

Griddle, Gourmet

W10355051

Cleaner, Cooktop

WA906B Scraper, Cooktop

W10275756

Cleaner & Polish

(Granite)

W10355016

Cleaner, Stainless

W10355010

Cleaner, Kitchen

& Appliance

4396927 Rack, Split Oven

4396923 Broiler Pan & Grid

(Porcelain)

31617A Cleaner, Gas Grate

& Drip Pan

W10123240

Broil Pan &

Roasting Rack

(Premium)

WIRING HARNESS PARTS

W10322364

Harness, Wire

(Cooktop Left)

W10322356

Harness, Wire

(Cooktop Right)

W10174428

Harness, Wire

(Sensor/Dr Switch)

W10256891

Harness, Main

(W/Terminal Block)

9757339 Harness, Wire

(Bake, Hidden)

3196173 Screw

3196154 Screw, Ground
