Amana AGR6011VDW1 Manuale utente

COOKTOP PARTS

For Models: AGR6011VDW1, AGR6011VDB1, AGR6011VDS1

(White) (Black) (Stainless Steel)

01−09 Litho in U.S.A. (JMJ) (eeb) Part No. W10245773 Rev. A

30" GAS FREESTANDING

SELF CLEAN RANGE

SEALED BURNER

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10196154

Use & Care Guide

W10198636

Tech Sheet

W10196161

Installation

Instructions

Anti−Tip Template

9757142 English/Spanish

9757143 English/French

9762761 Safer Cooking Tips

2 Cap, Burner

LF & RF

W10169974

Grey

W10169984

Black

W10173832

Grey

W10173833

Black

W10169975

Grey

W10169985

Black

3 3196557 Screw

4 Burner

8286182 LF & RF (12K)

W10194076

LR − RF(9K)

8286181 RR(6K)

5 Cooktop

8272251 White

8272253 Black

6 Panel, Manifold

8523854 White

8523855 Black

7 Knob, Control (2)

W10163287

White

W10163288

Black

8 3400701 Screw

9 Grate, Burner (4)

W10165803

Grey

8522851 Black

10 Grate, Center

W10165811

Grey

8522846 Black

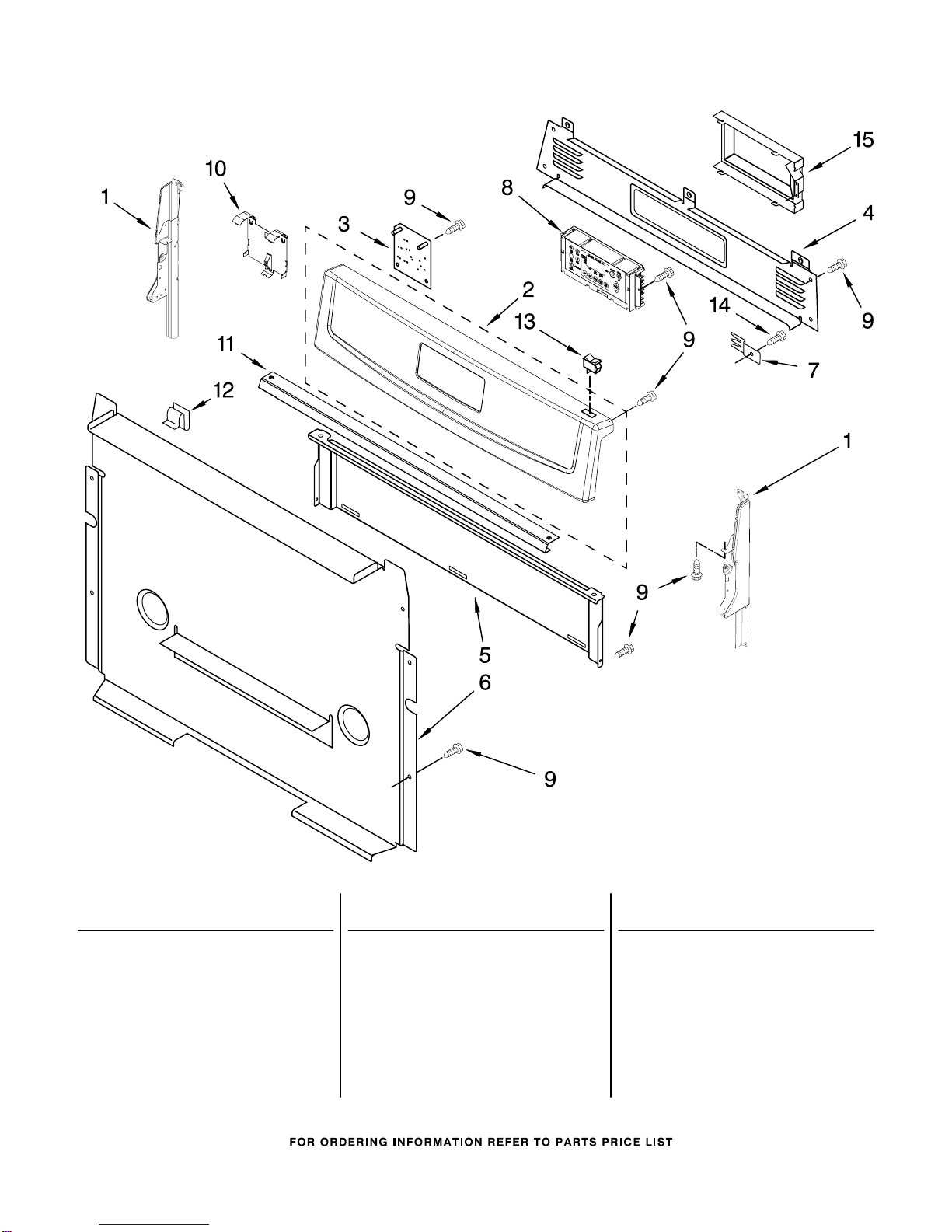

CONTROL PANEL PARTS

For Models: AGR6011VDW1, AGR6011VDB1, AGR6011VDS1

(White) (Black) (Stainless Steel)

W10245773

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Endcap, Left Hand

W10184433

White

W10184437

Black

Endcap, Right Hand

W10184434

White

W10184438

Black

2 Panel, Control

W10170026

White

W10170027

Black

W10170028

Stainless Model

3 9758080 Module, Spark

W10198745

Cover, Upper

W10192841

Shield, Heat

W10184251

Cover, Back

7 8523412 Bracket, Support

8 Control, Range

W10173502

White

W10173503

Black

9 3196178 Screw

W10137524

Brkt−Mntg, DSI

W10211996

Brkt−Mntg,Console

12 8273564 Clip

13 Switch−Rocker

3149360 White

3148564 Black

14 3196169 Screw

W10158780

Cover

MANIFOLD PARTS

For Models: AGR6011VDW1, AGR6011VDB1, AGR6011VDS1

(White) (Black) (Stainless Steel)

W10245773

MANIFOLD PARTS

For Models: AGR6011VDW1, AGR6011VDB1, AGR6011VDS1

(White) (Black) (Stainless Steel)

W10245773

Illus. Part

No. No. DESCRIPTION

1 8273096 Screw, Valve

3 Tubing, Burner

W/Orifice

W10175219

Left Front

W10175220

Left Rear

W10201350

Right Front

W10175217

Right Rear

W10169490

Tubing (Manifold

to Regulator)

5 8523406 Harness, Igniter

(W/Switches)

W10216419

Electrode (4)

W10169928

Pipe, Manifold

8 Valve

9757218 LF − RF − LR

8273004 Right Rear

10 8273062 Screw (4)

11 3400228 Bolt

12 8054078 Burner, Broiler

W10184491

Spreader, Flame

(Oven)

14 9758078 Burner, Bake

15 9761959 Valve/Regulator

16 Igniter

8054129 Broil

9758079 Bake

17 8272222 Tubing (Broiler

Fitting To Valve)

18 3186489 Fitting, Broiler

19 Orifice, Burner

W10170508

LR & RF

W10178934

W10170506

W10137062

Spreader, Flame

(Broiler)

21 3400016 Screw

22 3196265 Screw

23 3196176 Screw

24 3196385 Screw

Following Parts Not Illustrated

8523420 Spuds, LP Gas

(Kit of 4)

CHASSIS PARTS

For Models: AGR6011VDW1, AGR6011VDB1, AGR6011VDS1

(White) (Black) (Stainless Steel)

W10245773

CHASSIS PARTS

For Models: AGR6011VDW1, AGR6011VDB1, AGR6011VDS1

(White) (Black) (Stainless Steel)

W10245773

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10153186

Flue Box

2 8272747 Shield, Flue

3 8273036 Burner Box

4 Panel, Side (2)

8053830 White−Textured

8053832 Black

W10182346

Insulation

6 8523249 Brkt, Manifold Mtg

W10137382

Clip, Mounting

8 Frame, Front

(Not Serviced)

9 3196037 Foot, Front (2)

W10058460

Foot, Rear (2)

11 3195097 Bottom, Oven

W10181986

Sensor, Oven

13 8053967 Baffle, Burner

14 8053969 Shield, Heat

15 8053505 Shield, Lower

16 9760314 Rail, Base (2)

17 9760407 Brkt − Mounting

W10008830

Seal, Oven Flange

19 9758701 Spacer, Door

W10134118

Back, Main

21 8522416 Seal, Oven

22 8053971 Brace, Main Back

23 Retainer, Insul.

9761449 Left Hand

9761448 Right Hand

W10137382

Clip, Panel (6)

25 9757891 Cord, Power

26 9757239 Rod − Dr Switch

27 9757238 Switch, Door

28 3196701 Light Socket Assy

29 311255 Bulb, Oven Light

30 9761013 Latch, Door

W10078370

Rod, Latch

W10107830

Latch−Mtr

W10114344

Glide, Drawer

W10031780

Screw

W10167915

Fan Motor, Conv

36 4449809 Screw

37 3196178 Screw

38 3196152 Screw

39 Screw

3196166 White

3196168 Black

40 3196176 Screw

W10116351

Fan Blade

42 3196179 Screw

W10116349

Nut

44 3196177 Screw

45 3196168 Screw

46 3196560 Screw

47 3196160 Screw

W10134124

Cover, Fan

W10134126

Bracket, Fan

INSULATION

8524099 Insulation, Wrap

8272613 Insulation, Vent

W10180437

Insulation, Back

DRAWER & BROILER PARTS

For Models: AGR6011VDW1, AGR6011VDB1, AGR6011VDS1

(White) (Black) (Stainless Steel)

W10245773

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10179196

Rack, Oven (2)

2 9761031 Drawer, Storage

W10174397

Bracket, Drawer(2)

4 Rivet, Push (2)

3196814 White

3196813 Black

5 Panel, Drawer Frnt

W10022090

White

W10022100

Black

6 3196168 Screw

7 9761033 Liner, Drawer

8 8053334 Spacer, Glide

W10133364

Panel, Stainless

W10197980

Handle, Stainless

11 9781235 Clip

DOOR PARTS

For Models: AGR6011VDW1, AGR6011VDB1, AGR6011VDS1

(White) (Black) (Stainless Steel)

W10245773

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Trim, Top

W10144869

White

W10144870

Black

9762394 Stainless Model

2 3196164 Screw

3 Handle, Door

W10144888

White

W10144889

Black

W10144890

Stainless Model

4 9761344 Liner, Door

W10031790

Screw

6 9758162 Glass, Inner (2)

7 3186289 Frame, Glass

W10113759

Strap Door (2)

9 8272618 Insulation, Door

10 9761493 Hinge, Door

9761496 Stainless Model

11 9761357 Retainer, Insul.

12 Trim, Door Side

Left Hand

8523172 White

8523171 Black

W10113926

Stainless Model

Right Hand

8523166 White

8523165 Black

W10113925

Stainless Model

13 Glass, Outer Door

W10118454

White

W10118455

Black

14 3196160 Screw

15 3196025 Clip, Door Glass

W10031780

Screw

16 Trim, Bottom

8523175 White

8523177 Black

18 3196165 Screw

19 9761517 Clip, Door Mntg(2)

OPTIONAL PARTS (NOT INCLUDED)

For Models: AGR6011VDW1, AGR6011VDB1, AGR6011VDS1

(White) (Black) (Stainless Steel)

W10245773

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

REFINISHING MATERIAL

799832 Kit, Porcelain

Repair (White)

242756 Touch−Up

Self−Clean(1/2 Pt)

261582 Grease

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White

511873 White Porcelain

(2 Oz.)

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

285006 Superior Black

206922 Primer (White)

PAINT, BULK (1 qt.)

799344 White (Uncut)

ACCESSORY PARTS

241430 Foil, Aluminum

Oven (18" x 25’)

4396923 Pan − Broiler

ANTI−TIP KIT

W10017440

Anti−Tip Kit

WIRING HARNESS PARTS

W10174441

Harness, Main

W10170250

Harness, Bake &

Broil Ignitor

8523599 Harness, Wire

(Cooktop Spark)

W10174458

Harness, Grnd DSI

3400964 Screw, Ground

3196520 Clip, Wire

3196896 Clip, Wire

313438 Clip, Harness

3196173 Screw

3195927 Wire, Tie

3196696 Clip, Harness
