Amazfit A2029 Manuale utente
Amazfit falcon
Product Manual
A2029
1
01 Package Contents
Smartwatch with band × 1 Charging cable × 1 Instruction Manual × 1
2
02 About the Watch
Note: Press and hold the power button to turn on the watch. If the watch cannot
be turned on, please charge it and then try again.
Power/Select button
Back button
Upper button
Lower button Heart rate sensor
Charging contacts
3
03 Pairing the Watch
1.
2.
3.
4.
Scan the QR code on the Instruction Manual with your
mobile phone to download the app to your mobile
phone. You can also download the latest version of
app from the Google Play Store or Apple App Store.
Open the app, register an account and log in.
Follow the steps in the app to pair your watch correctly.
Once pairing is complete, the watch will display the
correct time.
You can set other watch features as needed. Download Zepp App
4
Note:
1.
2.
3.
For better user experience, please use the most recent version of the app.
The operating system needs to be Android 7.0, iOS 12.0, or above.
Do not pair the watch directly using your mobile phone’s Bluetooth. Follow the
steps in the app to pair your watch correctly.
5
04 Charging the Watch
Note:
1.
2.
Use the charging cable provided with the watch, and ensure
that the charging port is dry before charging.
Please use a 1A or above power adapter.
1.
2.
3.
Connect the watch's charging cable to a power adapter or a computer's USB port.
Tightly align the charging port with the charging contacts on the rear of
the watch.
When charging starts, the watch screen displays the
charging progress.
6

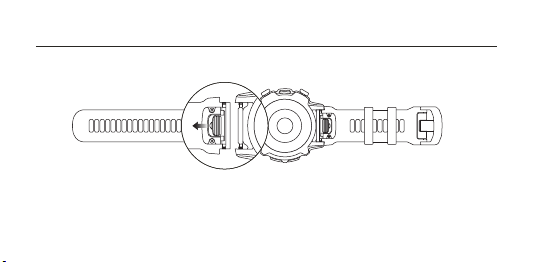

Please refer to the illustrations to disassemble or assemble the watch strap.
Note: Once the strap is assembled, pull the strap properly to ensure it is installed
successfully.
05 Disassembling and Assembling the Watch Strap
7
1.
2.
3.
Wear the watch strap neither too tight nor too loose, and leave enough space for the
skin to breathe. This makes you feel comfortable and allows the sensor to function.
When measuring blood oxygen saturation, wear the watch correctly. Avoid wearing
the watch on the wrist joint, keep your arm flat, maintain comfortable (appropriately
tight) fitting between the watch and the skin of your wrist, and keep your arm still
throughout the measurement process. When affected by external factors (arm sag,
arm sway, arm hair, tattoo, etc.), the measurement result may be inaccurate or the
measurement may fail and provide no output.
We recommend that you tighten the watch strap during workout and loosen it
afterwards.
06 Wearing the Watch
8
Product Name: MULTI-SPORT WATCH
Product model: A2029
Input: DC 5 V 550 mA
Bluetooth version: V5.0
WLAN: 2.4 GHz 802.11 b/g/n
Bluetooth output power: <18 dBm
View product certification information on the watch's Settings > System >
Regulation page.
Device requirements: Devices installed with Android 7.0 or iOS 12.0 or above OS versions
BLE output power: <5 dBm
Operating temperature: 0°C to 45°C
Water resistance rating: 20 ATM
Bluetooth frequency: 2402–2480 MHz
Wi-Fi frequency: 2402–2480 MHz
Wi-Fi output power: <20 dBm
The Bluetooth® word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by Anhui Huami Information
Technology Co., Ltd. is under license. Other trademarks and trade names are
those of their respective owners.
07 Basic Parameters
This device is equipped with a built-in battery that cannot be removed or replaced.
Do not disassemble or modify the battery by yourself.
Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting
of a battery, can result in an explosion.
Leaving a battery in an extremely high temperature surrounding environment can
result in an explosion or the leakage of flammable liquid or gas.
A battery subjected to extremely low air pressure may result in an explosion or the
leakage of flammable liquid or gas.
9
1.
2.
3.
4.
08 Battery Safety
