Amazon B07GDXCX87 Manuale utente
B07GDXCX87
Barn Door Hardware 8 ft - J Shape - Black
Herraje para Puertas de Granero de 2,44m (8 pies) - Forma en J -Negro
Ferrure de Porte de Grange 2,44 m (8 pieds) - en Forme de J - Noire
8 ft (2.4 m)
English ..................................... 3
Español.................................. 14
Français ................................. 25
3
Welcome Guide •English
Contents:
Before getting started, ensure the package contains the following components:
Ax1 E4 x4
Bx6 Fx1
C1 x1 F1 x2
C2 x1 F2 x2
C3 x1 Gx6
Dx2 G1 x6
E1 x4 H1 x2
E2 x4 H2 x2
E3 x8
4

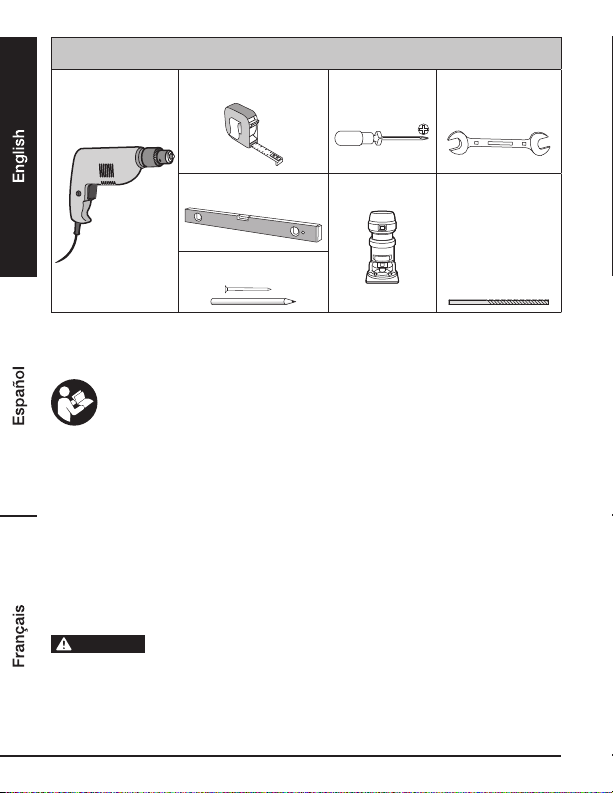

Tools you will need
Electric drill
Tape measure
Screwdriver Wrench and
socket set
Level Router
Drill bit
7/64” (2.8 mm),
1/8” (3 mm),
1/4” (6.5 mm),
5/16” (8 mm),
7/16” (11 mm)
Marking tools
IMPORTANT SAFEGUARDS
Read these instructions carefully and retain them for future use. If this product is passed
to a third party, then these instructions must be included.
When using the product, basic safety precautions should always be followed to reduce the risk of
injury including the following:
• If your door opening has trim around it, it is recommended that you install the track onto a
header board above the door opening.
• If your door opening does not have trim around it, the track can be installed directly into the
drywall provided you find the studs in your walls.
• The track CANNOT be mounted directly into the drywall.
Before First Use
• Check for transport damage.
Risk of suffocation! Keep any packaging materials away from children – these
materials are a potential source of danger, e.g. suffocation.
DANGER
5
Installation
Step 1: Track Preparation
Door height +
1.75" (44 mm)
Keep level
Door opening
Floor
Door
2” (51 mm) minimum
on one side of
the door
Header board
(1 x 6 recommended)
Floor clearance:
Using the dimensions
shown will allow for a
3/8” (9.5 mm) space
between the door
and floor.
If your door opening DOES NOT have trim going around it, follow the below
steps.
1. Using the layout above as reference, position the track where you would like it.
2. Using a stud finder, locate the studs where you want to attach the track.
3. Using a small nail, tap it into the drywall and make sure you have located the stud.
4. Using a pencil, mark the location of the stud.
5. Repeat steps 2 and 3 until you have six marks indicating you have found six wall studs.
6. Place the track on the wall and make sure the six pencil marks on the wall match up with the
six holes in the track.
7. If the holes in the track DO ALIGN with the marks on the wall, proceed to Track Installation.
8. If the holes in the track DO NOT ALIGN with the marks on the wall, then a header board will
need to be used.
NOTICE
6
Installation
Step 2: Header Board Installation
Door height + 1.75” (44 mm)
Keep level
Door opening
Floor
2” (51 mm) minimum
on one side of the
door
Header board
(1 x 6 recommended)
Floor clearance:
Using the dimensions
shown will allow for a
3/8”(9.5 mm) space
between the door
and floor.
Draw a straight vertical line of at least 3.5” (89 mm), going through the mark that
you made for the stud location.
1. Locate and mark the center of the 1 x 6.
2. Using the center line of the header board, line it up to the stud marks.
3. Using interior screws, mount the header board to the wall.
Use a level to ensure the header board is level when installing it to the studs.
NOTICE
NOTICE
7
Installation

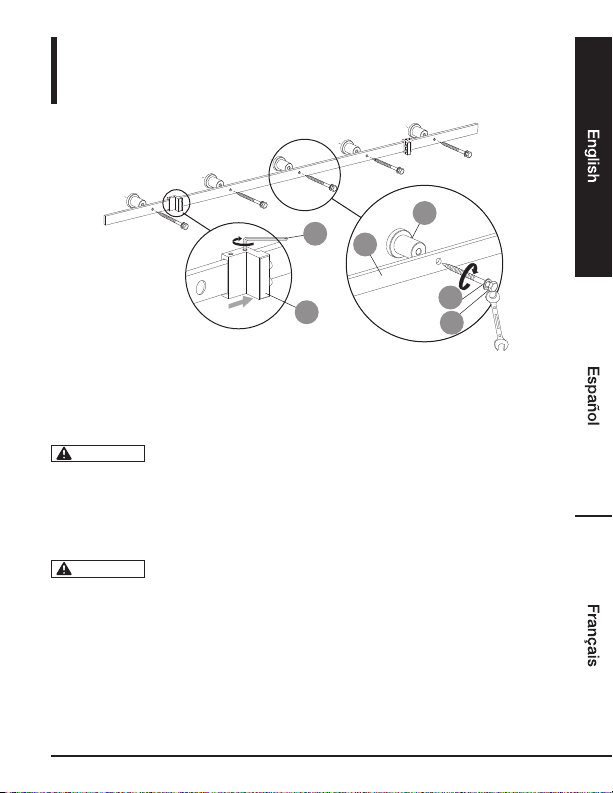

Step 3: Track Installation
C3
C1
A
B
G1
G
Attaching the track directly to the studs:
1. Using the 6 marks you made, drill a 1/4” (6 mm) pilot hole 1” - 3” (25 - 76 mm) deep on each
mark.
2. Slide the washer (G1) over the screw (G) and repeat for all 6 screws.
If the door is going to stop before the last hole (8-11/16” / 22 cm) on either
end, then the door stop C1 or C2 will need to be installed onto the rail first.
3. Position the track over the drilled holes.
4. Starting at one end of the track, insert the screw (G) through the track and then through the
spacer (B) and into the pilot hole.
5. Use a wrench to tighten the screw.
Do not tighten the screw completely until all screws are installed and the track
is level.
6. Repeat steps 4 and 5 for the remaining holes (checking with a level for each screw installed).
NOTICE
NOTICE
8
Attaching the track to the header board:
1. Place the track in the center of the header board and determine where you want it to be
installed.
Make sure the track is level before making your hole marks.
2. Mark locations for all 6 holes.
3. Using the 6 marks you made, drill a 1/4” (6 mm) pilot hole 1” - 3” (25 - 76 mm) deep on each
mark.
4. Follow steps 2 through 6 under “Attaching the track directly to the studs”.
Installing door stops
5. Slide one door stop (C1, C2) on each end of the tack, making sure the hex screws are facing
up and the actual stops are facing the door.
6. Determine where you want the door to stop in both directions, then move the door stop to that
location and tighten down the hex screws with the hex wrench.
Step 4: Installing Hangers and Anti-Jump Disc
2 - 7/16” (62 mm)
2 - 7/16” (62 mm)
1 - 1/2” (38 mm) 1 - 1/2” (38 mm)
3 - 9/16” (90 mm) 3 - 9/16” (90 mm)
Ø7/16”(11mm)
2” (51 mm)
2” (51 mm)
NOTICE
Ø7/16”(11mm)
9
D
H1
E4
E3
E2
H2
/
E1
Installing hanger brackets
1. Starting from the left side of the door, measure in 2” (5.1cm) and make a mark.
2. Measure down 1-1/2” (38 cm) and make a mark.
3. Take the hanger bracket and center the top hole over the line intersection.
4. Mark the bottom hole (making sure the center of the bottom hole is 2” (5.1cm) away from the
door edge).
5. Remove the bracket and drill a 7/16” (1.1 cm) hole through the door for each bracket hole.
Door thickness will determine which bolt size to use.
6. Slide the washer (E3) over the screw (E1 or E2) and insert through the back of the door.
7. Slide the washer (E3) over the screw and screw on nut (E4), then hand-tighten.
8. Repeat steps 6 and 7 for the bottom hole.
9. Tighten down nuts.
10.Repeat for other side.
Installing anti-jump disk
1. Measure 2-7/16” (6.2cm) from the inside of the hanger and make a mark in the center of the
door edge.
2. Screw the anti-jumper disc into the door top.
3. Do not tighten the anti-jumper disc all the way.
Prior to hanging the door, the anti-jump discs must be hanging over the front
edge of the door.
4. Repeat for other side.
NOTICE
NOTICE
10
Installation

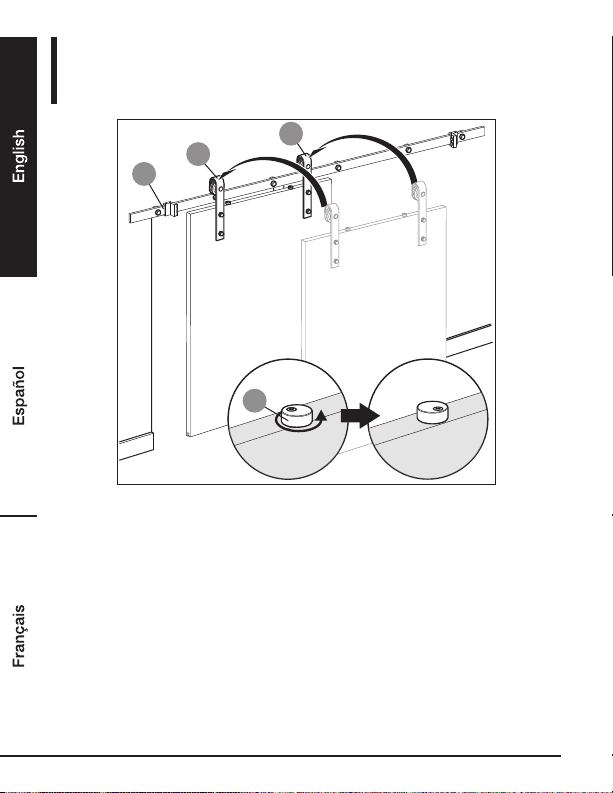

Step 5: Hanging Door
1
2
H1
A
D
D
1. Lift the door onto the track.
2. Turn the anti-jumper discs to where they are now centered on the door edge.
3. Tighten.
