Amazon Kindle Fire HD 7.0 Manuale utente

•

http://www.fixez.com/ Page 1 of 6

TTT-9004 T5 Torx Screwdriver

TTT-9007 Small Phillips Screwdriver

TTT-9010 Plastic Opening Tools

TTT-9013 Spudger

TTT-9021 Fine Tip Curved Tweezers

Amazon Kindle Fire HD 7.0 - Disassemble Guide

commended

This guide will show you how to disassemble the Amazon Kindle Fire HD 7.0” tablet,

assisting in making the repair of the device both simple and inexpensive. Following the

steps we have provided will help you quickly, and safely, replace not only a broken display,

but also any other internal components that may have become damaged.

You can find a full archive of fixez.com disassemble guides and videos, for numerous makes

and models of phones and tablets, by visiting http://www.fixez.com.

•

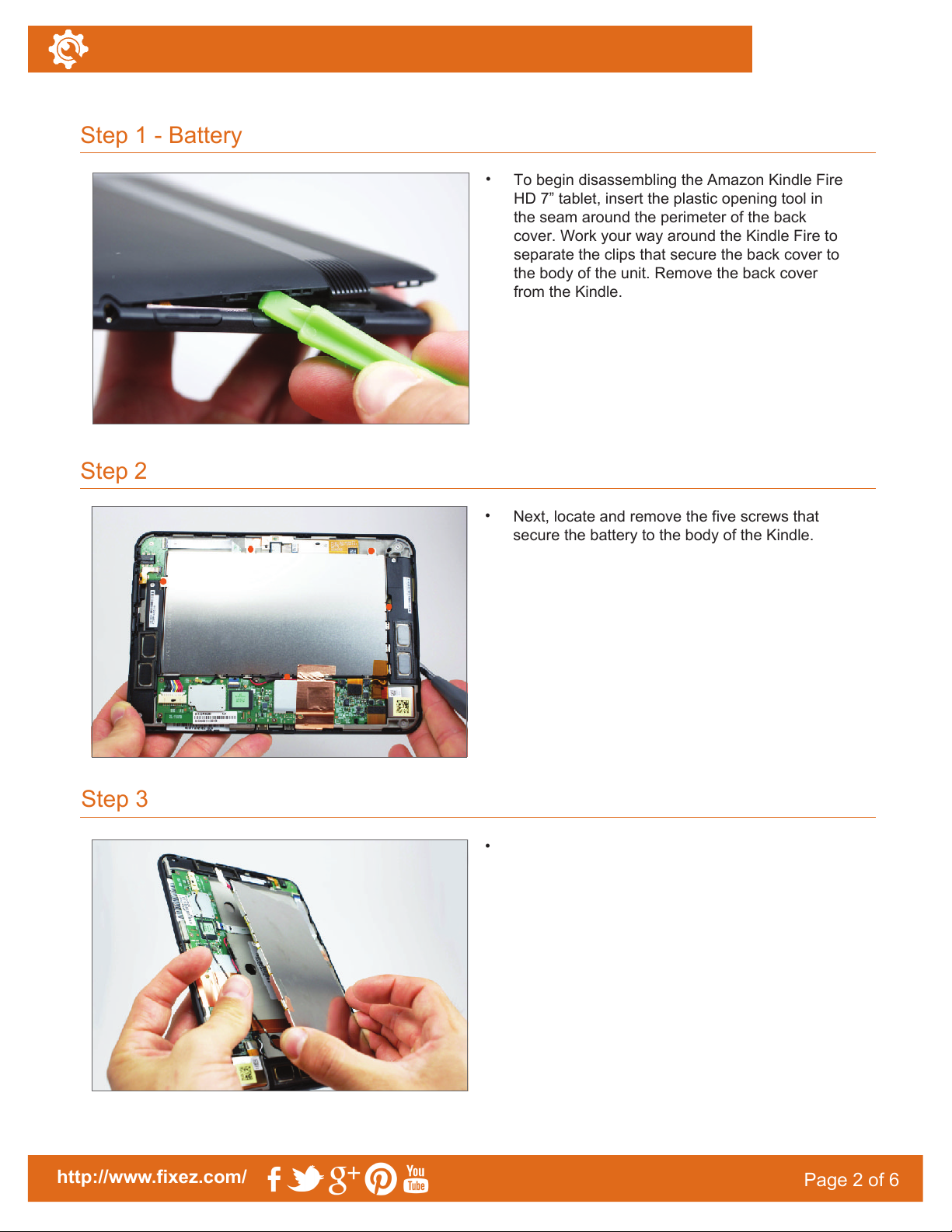

•To begin disassembling the Amazon Kindle Fire

HD 7” tablet, insert the plastic opening tool in

the seam around the perimeter of the back

cover. Work your way around the Kindle Fire to

separate the clips that secure the back cover to

the body of the unit. Remove the back cover

from the Kindle.

•Next, locate and remove the five screws that

secure the battery to the body of the Kindle.

Step 3

•

Step 1 - Battery

Step 2

http://www.fixez.com/ Page 2 of 6

Amazon Kindle Fire HD 7.0–Disassemble Guide

Unplug the connection for the battery from the

motherboard with the spudger.

•Use the small Phillips screwdriver to remove the

four Phillips screws (#00).

•Use the T5 torx screwdriver to remove the one

T5 torx screw.

•There is a black antenna wire that runs the

length of the battery cover. Pry up the plug‘s

connection and peel the wire out of the channel.

Remove the black antenna wire from the battery

cover.

•You can now remove the battery from the Kindle

Fire HD.

Step 4 – Headphone Jack Assembly

•The headphone jack assembly has two locking

sockets. Flip the tab on the locks to release the

connections, and then remove the ribbon

cables from their sockets.

•

Step 5

Step 6 – Front-Facing Camera

http://www.fixez.com/ Page 3 of 6

Amazon Kindle Fire HD 7.0–Disassemble Guide

•Locate and remove the two Phillips (#00) screws

with the appropriate screwdriver. This will release

the headphone jack assembly from the tablet.

A single connection secures the front-facing

camera into the Kindle. Use the plastic opening

tool to pry up the connection and release the

camera.

•Remove the front-facing camera from the 7”

Kindle.

•There are seven connections on the motherboard

that need to be disconnected. The first is the

antenna plug’s connection. It is located in the

lower left corner of the motherboard. Gently lift up

and pry the connection to remove it from the

Kindle Fire.

Step 8

•Locate and remove the six Phillips screws (#00)

that secure the motherboard into the Kindle Fire

HD.

Step 7

http://www.fixez.com/ Page 4 of 6

Amazon Kindle Fire HD 7.0–Disassemble Guide

•You can now remove the motherboard from the

Kindle.

•The next two connections are the speaker

connections. There are two wires going to both

connections. These connections have delicate

sockets. Be cautious as you lift up and pry the

connections from their sockets. Remove the

speaker connections from the Kindle.

•The next connection contains a locking socket.

Flip the lock to release and remove the cable from

its socket.

•The last three connections are easily removed.

Pry the connections to release and remove the

cables from the motherboard.

•Locate and remove the single Phillips screw

(#00) that secures the first of two speakers into

the Kindle.

Step 11

Step 9 – Speaker Assembly

Step 10

http://www.fixez.com/ Page 5 of 6

•Locate and remove the two Phillips screws

(#00) that secure the second speaker assembly

into the Kindle.

•Next, locate and remove the two Phillips

screws (#00) that secure the metal frame to the

body of the Kindle.

Amazon Kindle Fire HD 7.0–Disassemble Guide

•Peel back the Wi-Fi antenna to fully release the

framework from the Kindle.

•Remove this speaker assembly from the tablet.

•Remove the second speaker assembly from the

Kindle Fire HD.

•With the securing screws removed and the Wi-Fi

antenna peeled back, the metal frame is free to be

lifted and removed from the Amazon Kindle Fire

HD.

Step 12

http://www.fixez.com/ Page 6 of 6

Amazon Kindle Fire HD 7.0–Disassemble Guide

Final Layout

Notice/Warning:

FIXEZ.COM DOES NOT ACCEPT ANY LIABILITY FOR DAMAGE, OR INJURY CAUSED, WHILE YOU ARE

FOLLOWING OUR DISASSEMBLE GUIDES. WE MAKE NO REPRESENTATIONS, WARRANTIES, OR

CONDITIONS OF ANY KIND, EXPRESS OR IMPLIED. UTILIZING THESE GUIDES TO HELP ASSIST YOU IN

REPAIRING YOUR MOBILE DEVICES WILL VOID YOUR WARRANTY. FIXEZ.COM STRICTLY PROHIBITS

ALTERING OR MODIFYING OUR DISASSEMBLE GUIDES FOR COMMERCIAL USE, REPRODUCTION, OR

PUBLICATION.

To reassemble your device, follow these instructions in reverse order.
