Amazon B081236VRD Manuale utente

24"Wall-Mount Electric LED Curve 3D Heating Fireplace ........................Page 3

This product is only suitable for well insulated spaces or occasional use.

Cheminée Électrique Chauffante Incurvée 3D à LED pour Montage Mural, 24Pouces .Page 11

Ce produit ne convient qu’aux locaux bien isolés ou à une utilisation ponctuelle.

Elektrischer, Geschwungener 3D-LED-Heizkamin zur Wandmontage, 24Zoll ........Seite 19

Dieses Produkt ist nur für gut isolierte Räume oder für den gelegentlichen Gebrauch geeignet.

Camino Riscaldante Elettrico LED Curvo 3D da 24Pollici Montaggio a Parete .....Pagina 28

Questo prodotto è adatto solo a spazi ben isolati o per un uso occasionale.

Chimenea con Calefacción Eléctrica, 3D Curva con LED, Montaje Mural,

24Pulgadas...........................................................Página 36

Este producto solo es adecuado para espacios bien aislados o para uso ocasional.

24Inch Elektrische Gebogen 3D LED-Sfeerhaard voor Muurmontage ............Pagina 44

Het product is alleen geschikt voor een goed geïsoleerde ruimte of occasioneel gebruik.

....................................................................... 52

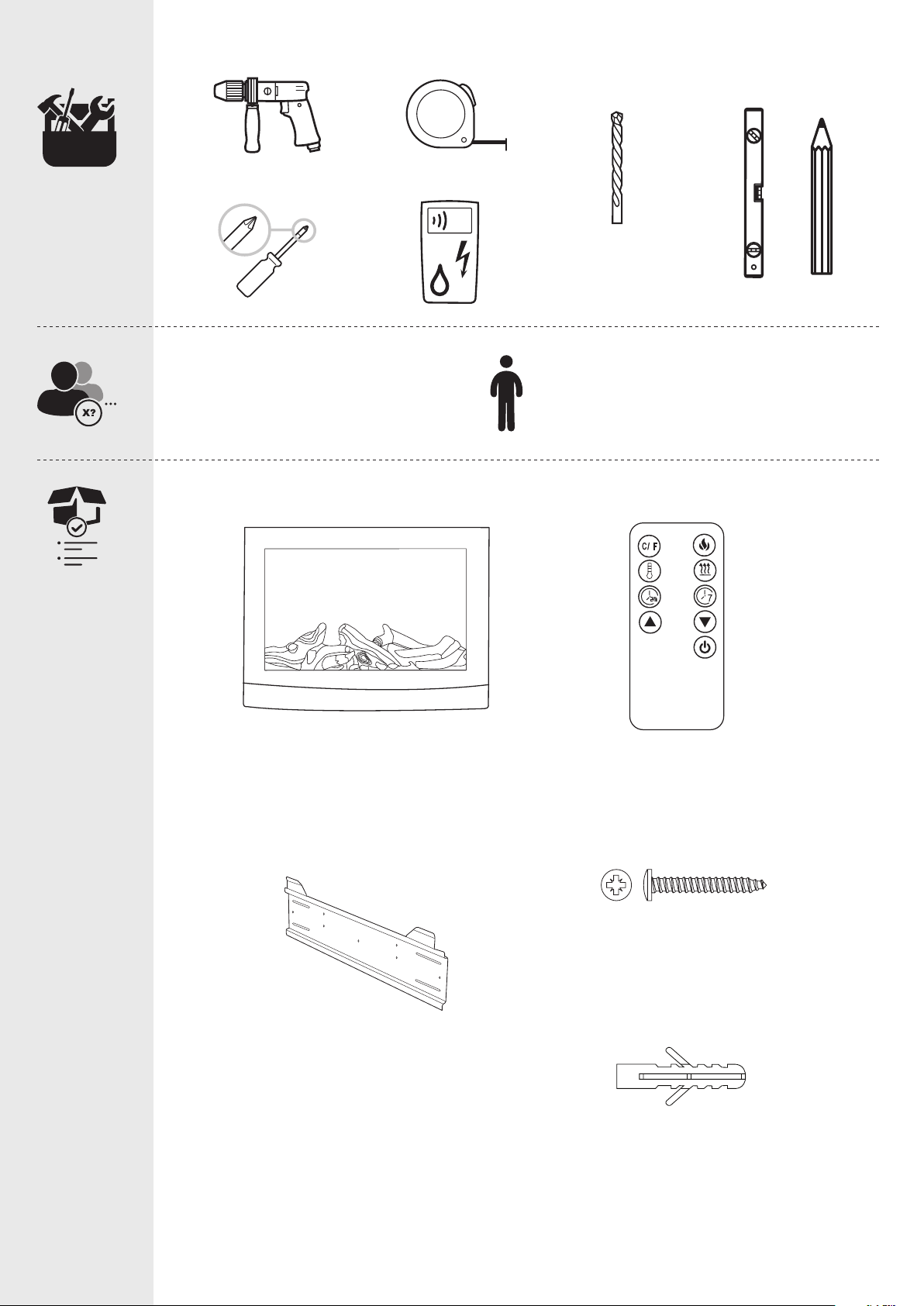

B081236VRD, B08299RPWK

2

x 2

Ø 9/64"

(3.6mm)

A(x 1) B(x 1)

D(x 8)

Ø 4 mm x 40 mm

E(x 8)

C(x 1)

EN

3

Table of Contents

1. Important Safety Instructions �� 4

2. Battery Warnings �� 5

3. Symbols Explanation �� 6

4. Intended Use �� 6

5. Product Description �� 6

6. Before First Use �� 7

7. Installation Tips �� 7

8. Operation �� 7

8�1 Switching on/off �� 7

8�2 Setting day and time �� 7

8�3 Setting temperature �� 7

8�4 Changing power level �� 7

8�5 Changing ﬂame brightness �� 8

8�6 Setting open window detection function �� 8

8�7 Setting timer �� 8

8�8 Changing between Fahrenheit and Celsius �� 8

9. Changing the Battery �� 8

10. Cleaning and Maintenance �� 8

10�1 Cleaning �� 8

10�2 Plug fuse replacement (for UK only) �� 8

10�3 Maintenance �� 8

11. Troubleshooting �� 9

12. Disposal �� 9

13. Battery Disposal �� 9

14. Speciﬁcations �� 9

14�1 Importer Information �� 9

15. Feedback and Help �� 10

16. Energy Efﬁciency Information �� 10

EN

4

1. IMPORTANT SAFETY

INSTRUCTIONS

Read these instructions carefully and retain

them for future use� If this product is passed

to a third party, then these instructions must

be included�

When using electrical appliances, basic safety

precautions should always be followed to reduce

the risk of ﬁre, electric shock, and/or injury to

persons including the following:

WARNING Risk of ﬁre!

»Keep power cords, drapery, furnishings or other

combustibles at least 1 meter from the front of

the appliance, and away from the sides or rear�

»In order to avoid overheating, do not cover the

heater� Do not place objects in contact with the

heater�

WARNING Risk of injury!

»The appliance must not be used if the glass

panel is damaged�

CAUTION Risk of ﬁre!

»In order to avoid a hazard due to the

inadvertent resetting of the thermal cut-out,

this appliance must not be supplied through an

external switching device, such as a timer, or

connected to a circuit that is regularly switched

on and off by the utility�

CAUTION Risk of burns!

»Some parts of this product can become very

hot and cause burns� Particular attention has to

be given where children and vulnerable peoples

are present�

This symbol indicates that in order to

avoid overheating, the appliance should

not be covered with clothing or other

material�

• This appliance can be used by children aged

from 8 years and above and persons with

reduced physical, sensory or mental capabilities

or lack of experience and knowledge if they

have been given supervision or instruction

concerning use of the appliance in a safe way

and understand the hazards involved� Children

shall not play with the appliance� Cleaning and

user maintenance shall not be made by children

without supervision�

• Children of less than 3 years should be kept

away unless continuously supervised� Children

aged from 3 years and less than 8 years shall

only switch on/off the appliance provided that

it has been placed or installed in its intended

normal operating position and they have been

given supervision or instruction concerning use

of the appliance in a safe way and understand

the hazards involved� Children aged from 3

years and less than 8 years shall not plug in,

regulate and clean the appliance or perform user

maintenance�

• The installation of the heater should be carried

out by trained personnel� If, during reassembly of

the heater, a part of the thermal insulation shows

damage or deterioration, it should be replaced by

an identical part�

• Extreme caution is necessary when the appliance

is used by or near children or invalids and

whenever the appliance is left operating and

unattended�

• Do not operate the appliance with a damaged

cord or plug, after the appliance malfunctions,

has been dropped or damaged by any manner�

Discard the appliance or return to qualiﬁed

service facility for examination and/or repair�

• Do not use outdoors�

• This appliance is not intended for use in

bathrooms, laundry areas and similar indoor

locations� Never locate the appliance where it

may fall into a bathtub or other water container�

• The appliance must not be located immediately

below a socket outlet�

EN

5

• Do not run cord under carpeting� Do not

cover cord with throw rugs, runners or similar

coverings� Do not route cord under furniture or

appliances� Arrange cord away from trafﬁc area

and where it will not be tripped over�

• Never use with an extension cord� Connect the

appliance to a dedicated socket outlet�

• Do not insert or allow foreign objects to enter

any ventilation or exhaust opening as this may

cause an electric shock or ﬁre, or damage the

appliance�

• This appliance has hot and arcing or sparking

parts inside� Do not use it in areas where

gasoline, paint or ﬂammable liquids are used or

stored�

• Install and use this appliance only as described in

this manual� Any other use not recommended by

the manufacturer may cause ﬁre, electric shock

or injury to persons�

• If the supply cord is damaged, it must be

replaced by the manufacturer, its service agent

or similarly qualiﬁed persons in order to avoid a

hazard�

• Connect to properly grounded outlets only�

• This product contains no user serviceable parts

and requires little maintenance� Leave any

servicing or repairs to qualiﬁed personnel only�

• The LEDs contained in this product are non-

replaceable�

• For UK only: All the electrical installations must

be done according to BS 7671�

For wall installation:

• Always unplug the appliance when not in use�

• To disconnect the appliance, switch controls to

off, then remove plug from outlet�

• Connect the power plug to an easily reachable

socket outlet so that in case of an emergency,

the appliance can be unplugged immediately�

Pull the power plug out of the socket outlet to

disconnect the appliance from the voltage�

2. Battery Warnings

WARNING

KEEP OUT OF REACH OF CHILDREN

Swallowing can lead to chemical burns,

perforation of soft tissue, and death� Severe

burns can occur within 2hours of ingestion�

Seek medical attention promptly�

WARNING

This product contains a coin /

button cell battery�

DANGER Risk of explosion!

Risk of explosion if the battery is replaced by an incorrect type�

»Keep batteries out of the reach of children. In particular,

keep batteries which are considered swallowable out of the

reach of children. In case of ingestion of a coin cell seek

medical assistance promptly.

»Do not allow children to replace batteries without adult

supervision.

»Always insert batteries correctly with regard to polarity (+

and -) marked on the battery and the equipment. When

batteries are inserted in reverse they might be short-circuited

or charged. This can cause overheating, leakage, venting,

rupture, explosion, ﬁre and personal injury.

»Do not short-circuit batteries. When the positive (+) and

negative (-) terminals of a battery are in electrical contact with

each other, the battery becomes short-circuited. For example

loose batteries in a pocket with keys or coins, can be short-

circuited. This can result in venting, leakage, explosion, ﬁre

and personal injury.

»Do not charge batteries. Attempting to charge a non-

rechargeable (primary) battery can cause internal gas and/or

heat generation resulting in leakage, venting, explosion, ﬁre

and personal injury.

»Do not force discharge batteries. When batteries are force

discharged by means of an external power source the voltage

of the battery will be forced below its design capability and

gases will be generated inside the battery. This can result in

leakage, venting, explosion, ﬁre and personal injury.

»Exhausted batteries should be immediately removed from

equipment and properly disposed of. When discharged

batteries are kept in the equipment for a long time electrolyte

leakage can occur causing damage to the equipment and/or

personal injury.

»Do not heat batteries. When a battery is exposed to heat,

leakage, venting, explosion or ﬁre can occur and cause

personal injury.

»Do not weld or solder directly to batteries. The heat from

welding or soldering directly to a battery can cause leakage,

venting, explosion or ﬁre, and can cause personal injury.

»Do not dismantle batteries. When a battery is dismantled or

taken apart, contact with the components can be harmful and

can cause personal injury or ﬁre.

»Do not deform batteries. Batteries should not be crushed,

punctured, or otherwise mutilated. Such abuse can cause

leakage, venting, explosion or ﬁre and can cause personal

injury.

EN

6

»Do not dispose of batteries in ﬁre. When batteries are

disposed of in ﬁre, the heat build-up can cause explosion and/

or ﬁre and personal injury. Do not incinerate batteries except

for approved disposal in a controlled incinerator.

»A lithium battery with a damaged container should not be

exposed to water. Lithium metal in contact with water can

produce hydrogen gas, ﬁre, explosion and/or cause personal

injury.

»Do not encapsulate and/or modify batteries. Encapsulation

of any other modiﬁcation to a battery can result in blockage

of the pressure relief mechanism(s) and subsequent explosion

and personal injury. Advice from the battery manufacturer

should be sought if it is considered necessary to make any

modiﬁcation.

»Keep new and used batteries away from children� If the battery

compartment does not close securely, stop using the product

and keep it away from children�

»If you think batteries might have been swallowed or placed

inside any part of the body, seek immediate medical attention�

3. Symbols Explanation

This symbol stands for “Conformité Européenne”,

which declares “Conformity with EU directives,

regulations and appplicable standards”� With the CE-

marking, the manufacturer conﬁrms that this product

complies with applicable European directives and

regulation�

This symbol stands for “United Kingdom Conformity

Assessed”� With the UKCA-marking, the manufacturer

conﬁrms that this product complies with applicable

regulations and standards within Great Britain�

4. Intended Use

»This product is suitable for providing instant heat to warm up

a room and for visual ambiance� It is not intended for use as a

primary heat source�

»This product is intended for household use only� It is not

intended for commercial use�

»This product must be wall mounted� IT IS NOT SUITABLE

FOR USE AS A FREE STANDING APPLIANCE� Operating the

product in any other position could cause a hazard�

»No liability will be accepted for damages resulting from improper

use or non-compliance with these instructions�

5. Product Description

Front View

A

B

C

D

Back View

E

F

Top View

G

Control Panel

Mon

HEAT1 HEAT2 TIMER SET

°C

°F

Tue Wed Thu Fri Sat Sun

H

I J K

L M N

Remote Control

K

IL

N

O

J

P

QM

ADisplay panel

BLogs

COn/off switch

DControl panel

EWall mounting bracket

FPower cord with plug

GHeating vents

HDisplay

IIncrease button

JPower level button

KStandby button

EN

7

LDecrease button

MTimer button

NFlame brightness button

OCelsius/Fahrenheit button

PTemperature button

QSet day/time button

6. Before First Use

DANGER Risk of suffocation!

»Keep any packaging materials away from children – these

materials are a potential source of danger, e�g� suffocation�

»Remove all the packing materials�

»Remove and review all components before use�

»Remove the protective strip on the remote controls battery

compartment�

»Check the product for transport damages�

»Before connecting the product to the power supply, check that

the power supply voltage and current rating corresponds with

the power supply details shown on the product rating label�

7. Installation Tips

WARNING

»Failure to install the product as instructed may result in damage

to the product and or may expose the user to the risk of ﬁre,

electric shock, serious injury or death�

»This product should be installed, maintained by an experienced

adult� If in doubt, consult a professional�

»Before mounting, determine the suitable mounting location� The

product must be ﬁxed to a wooden or masonry/concrete wall

using fasteners that are appropriate for the mounting surface�

»Do not install on drywalls, wall boards or thin plywood� The

mounting surface must be capable of supporting the weight of

the product�

»The product must be installed between 0�5 and 2�5 meters

above the ground�

»For best results, install the product out of direct sunlight�

»To avoid reconstruction, install the product in a proximity of

properly grounded socket outlet�

»Do not drill into any pipes or power lines beneath the surface

during mounting holes preparation� Use voltage/metal detector

before drilling any holes to eliminate any such potential risks�

»The wall mounting bracket (E) is attached to the product when

delivered� Remove the wall mounting bracket (E) before starting

to install�

8. Operation

8.1 Switching on/off

1� Connect the power cord with plug (F) to a suitable socket outlet�

2� Set the on/off switch (C) to ‘I’ (product in standby)� The product

beeps and the standby indicator stays lit� The product is now in

a standby mode�

3� Press the standby button (K) to switch on the product�

4� To switch off the product, press the standby button (K) again�

NOTICE

»In order to protect the product from overheating, there is a 10

second delay when switching the heater on and off� This does

not indicate malfunction�

»There may be a trace of odor during the ﬁrst few minutes of

use, or after a period of storage� This is normal and quickly

disappears�

»If the product is not in use for a long period, set the on/off

switch (C) to ‘0’ and remove the plug (F) from the socket outlet�

8.2 Setting day and time

1� Press the set date/time button (Q), the corresponding day and

SET indicator starts ﬂashing�

2� Quickly press the increase button (I) or decrease button (L) to

select the day, then press the set date/time (Q) to conﬁrm� The

hours indicator starts ﬂashing�

3� Quickly press the increase button (I) or decrease button (L) to

select the hours, then press the set date/time (Q) to conﬁrm�

The minutes indicator starts ﬂashing�

4� Quickly press the increase button (I) or decrease button (L) to

select the minutes, then press the set date/time (Q) to conﬁrm�

The day and time is now set�

NOTICE The day and time can be also set by pressing and

holding the timer button (M) on the control panel�

8.3 Setting temperature

NOTICE The product must be set to HEAT 1 or HEAT 2 for

the heating function to work�

»Press the temperature button (P) repeatedly until the desired

temperature has been selected� Alternately, use buttons (I) and

(L) to increases or decrease the temperature�

»The temperature range is between 17 - 30 °C (62 - 86 °F)�

»When the room reaches the set temperature, the heating

function stops automatically�

»If the product detects a drop in temperature, the heating

function resumes automatically�

8.4 Changing power level

»Press the power level button (J) to toggle between 2 heating

modes (low and high)�

»The corresponding heat indicator (HEAT 1 or HEAT 2) lights up

on the control panel�

Low level - HEAT 1 700 W

High level - HEAT 2 1300 W

»The approximate coverage with each heating mode:

Low level - HEAT 1 8 - 10 m²

High level - HEAT 2 10 - 20 m²

NOTICE This product is ﬁtted with a temperature limiting

control� If the product reaches an unsafe internal temperature of

115 °C, the product automatically switches off� To reset, unplug

the product from the socket outlet and wait 10 minutes before

plugging it back in and switching on�

EN

8

8.5 Changing ﬂame brightness

»Press the ﬂame brightness button (N) repeatedly until the desired

brightness level is selected�

»The display (H) shows the code F1 - F5 to indicate the

brightness level selected�

8.6 Setting open window detection function

The product monitors the temperature of the room once it reaches

the set temperature� When in open window detection mode, and if

the room temperature drops by 5°C or more within 10 minutes, the

product automatically stops heating to conserve energy�

1� Press and hold the ﬂame brightness button (N) on the control

panel to activate this feature�

2� Quickly press the increase button (I) or decrease button (L) to

change the setting� The display shows E1 to indicate function is

on�

3� To deactivate this feature, repeat previous step until the display

shows E0 to indicate function is off�

E0: Open window detection function off

E1: Open window detection function on

8.7 Setting timer

1� Press the timer button (M) to activate timer function� The

TIMER/SET indicator starts ﬂashing�

2� Press the timer button (M) to skip through the days until you

reach the desired day for setting� Each day which does not

require timer function should be programmed as 00.00 for ON

and OFF time�

3� Once the desired day has been selected, press the increase

button (I) or decrease button (L) to set the ON hours� Press the

timer button (M) to continue�

4� Press the increase button (I) or decrease button (L) to set the

ON minutes� Press the timer button (M) to continue�

5� Press the increase button (I) or decrease button (L) to set the

OFF hours� Press the timer button (M) to continue�

6� Press the increase button (I) or decrease button (L) to set the

OFF minutes� Press the timer button (M) to continue�

7� Press the standby button (K) to exit timer setting function� The

TIMER indicator stays lit to indicate the timer is active�

NOTICE To turn off timer function, press the timer button (M)

once, the TIMER/SET indicator ﬂashes� Press the increase

button (I) or decrease button (L), until only SET indicator ﬂashes,

then press the standby button (K)� The timer is now off�

8.8 Changing between Fahrenheit and Celsius

Press the Celsius/Fahrenheit button (O) to toggle between

temperature in Fahrenheit or Celsius�

9. Changing the Battery

NOTICE

»Ensure that the batteries are installed correctly with regard to polarity (+ and -)�

»Clean the battery contacts and also those of the equipment prior to battery installation�

»Remove exhausted batteries promptly�

1� Remove the battery holder from the remote control�

2� Replace the used battery with a new CR2025 3 V battery� The positive pole (+) must be pointing upwards�

1

234

5

10. Cleaning and Maintenance

WARNING Risk of electric shock!

»To prevent electric shock, set the on/off switch (C) to ‘0’ and remove the plug (F) from the socket outlet�

10.1 Cleaning

NOTICE Clean the product regularly to prevent the build-up of hairs dust or lint around the heating vents (G), as this may cause the

outlet to become blocked�

»To clean the product, wipe with a soft, slightly moist cloth�

»Never use corrosive detergents, wire brushes, abrasive scourers, metal or sharp utensils to clean the product�

»Do not spray liquids directly onto any surfaces of the product�

10.2 Plug fuse replacement (for UK only)

»Use a ﬂat screwdriver to open the fuse compartment cover�

»Remove the fuse and replace with the same type (13 A, BS1362)� Reﬁt the cover�

10.3 Maintenance

»Any other servicing than mentioned in this manual should be performed by a qualiﬁed service personnel�

EN

9

11. Troubleshooting

Problem Solution

The product does not switch

on�

»Check if the plug is connected to the socket outlet� Use voltage tester to verify if the socket outlet is

powered�

»The product has overheated and the thermal safety device has activated� Switch off the product and

switch back on after 10 minutes�

For UK only: Fuse in the plug

is blown�

»Use a ﬂat screwdriver to open the fuse compartment cover� Remove the fuse and replace with the

same type (13 A, BS1362)� Reﬁt the cover�

The product switches off

automatically�

»The product has overheated and the thermal safety device has activated� Switch off the product and

switch back on after 10 minutes�

Flame on display panel does

not move�

»Flame motor faulty� Contact a qualiﬁed service personnel�

Remote control does not

work�

»Low battery� Change the battery�

»Standing too far from the product or an object is blocking the path� Move closer or to a clearer path�

»The product has not been switched on� Set the on/off switch (C) to ‘I’�

Dim or poor visible ﬂame or

crystals are not glowing�

»The products LED lights are burnt out or wiring is loose� Contact a qualiﬁed service personnel�

12. Disposal

The Waste Electrical and Electronic Equipment (WEEE) Directive aims to minimise the impact of electrical and electronic goods on

the environment and human health, by increasing re-use and recycling and by reducing the amount of WEEE going to landﬁll� The

symbol on this product or its packaging signiﬁes that this product must be disposed separately from ordinary household wastes at

its end of life� Be aware that this is your responsibility to dispose of electronic equipment at recycling centers in order to conserve natural

resources� Each country should have its collection centers for electrical and electronic equipment recycling� For information about your

recycling drop off area, please contact your related electrical and electronic equipment waste management authority, your local city ofﬁce,

or your household waste disposal service�

13. Battery Disposal

Do not dispose of used batteries with your household waste� Take them to an appropriate disposal/collection site�

14. Speciﬁcations

Model number BLT-999W-3-S

Rated voltage 220-240V~, 50Hz

Power consumption 1300W

Approximate heat coverage area HEAT 1: 8 - 10 m² HEAT 2: 10 - 20 m²

Protection class Class I

Net weight approx� 23�15 lbs (10�5 kg)

Dimensions (W x H x D) approx� 23�5 x 17�6 x 5�76" (59�8 x 44�8 x 14�4cm)

Remote Control

Voltage/battery type 3 V , 1x CR2025

Range 13�12 ft (4 meters)

14.1 Importer Information

For EU

Postal: Amazon EU S�à r�l�, 38 avenue John F� Kennedy, L-1855 Luxembourg

Business Reg�: 134248

For UK

Postal: Amazon EU SARL, UK Branch,

1 Principal Place, Worship St,

London EC2A 2FA, United Kingdom

Business Reg�: BR017427

EN

10

15. Feedback and Help

Love it? Hate it? Let us know with a customer review�

AmazonBasics is committed to delivering customer-driven products that live up to your high standards� We encourage you to write a review

sharing your experiences with the product�

amazon.co.uk/review/review‑your‑purchases#

amazon.co.uk/gp/help/customer/contact‑us

16. Energy Efﬁciency Information

Description Symbol Value Unit

Heat output

Nominal heat output Pnom 1�2 kW

Minimum heat output (indicative) Pmin N/A kW

Maximum continuous heat output Pmax,c N/A kW

Auxiliary electricity consumption

At nominal heat output elmax N/A kW

At minimum heat output elmin N/A kW

In standby mode elSB N/A kW

Type of heat input, for electric storage local space heaters only (select one)

manual heat charge control, with integrated thermostat No

manual heat charge control with room and/or outdoor temperature feedback No

electronic heat charge control with room and/ or outdoor temperature feedback No

fan assisted heat output No

Type of heat output/room temperature control (select one)

single stage heat output and no room temperature control No

Two or more manual stages, no room temperature control No

with mechanic thermostat room temperature control No

with electronic room temperature control No

electronic room temperature control plus day timer No

electronic room temperature control plus week timer Yes

Other control options (multiple selections possible)

room temperature control, with presence detection No

room temperature control, with open window detection Yes

with distance control option No

with adaptive start control No

with working time limitation No

with black bulb sensor No

Contact details: Amazon EU S�à�r�l�, 5 Rue Plaetis, L - 2338 Luxembourg

Amazon EU SARL, UK Branch, 1 Principal Place, Worship St, London EC2A 2FA, United Kingdom

Amazon B081236VRD Manuale utente

Manuali Camino da interno popolari di altre marche
