Amazon B0749TX4YP Manuale utente
B0749TX4YP, B0749V8TC7, B0749W93V4,
B0749VF4LM, B0749V17QP, B0749RNYJ6,
B0749TX66N, B0749TX66P, B0749TX66Q,
B0749TT9GX, B0749RNHRY, B0749V8TCB,
B0749TX4YS, B0749W93VC, B0749RNXJ5
Thermal Roller Blind
Rideau Thermique Déroulant
Thermal-Rollo
Tenda Termica a Rullo
Persiana Enrollable Térmica
English ..................................... 3
Français ................................. 14
Deutsch.................................. 25
Italiano................................... 36
Español.................................. 47
3
Welcome Guide •English
Thermal Roller Blind
Contents:
Before getting started, ensure the package contains the following components:
Part Qty
1
2
2
2
2
4
Thermal Roller Blind
Contents:
Before getting started, ensure the package contains the following components:
Part Qty
1
1
1
5
Assembly / Installation
Step 1:
• Connect part (B) with part (C).
• Slowly slide part (D) into part (C) until you hear a click.
1.
2.
1.
6
Assembly / Installation

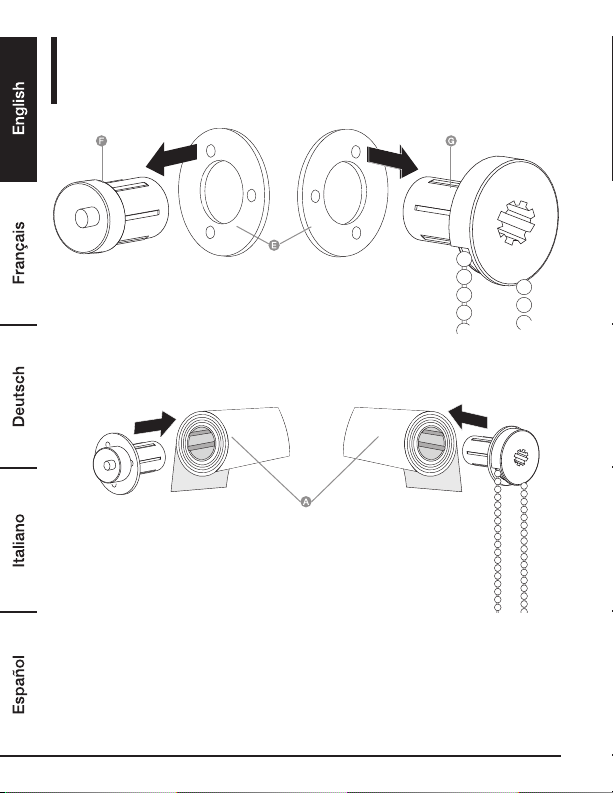

Step 2:
• Connect one part (E) with part (F) and the other part (E) with part (G).
• Connect parts (F) and (G) with the tube (A).
Hint: This example shows the mounting arrangement for the pull cord on the right side. When
needed, the pull cord can be also mounted on the left side in the same way.
1.
2.
7
Assembly / Installation
Step 3:
2 x
• Connect the bracket assembly with the tube.
• Repeat on the other end.
8
Assembly / Installation

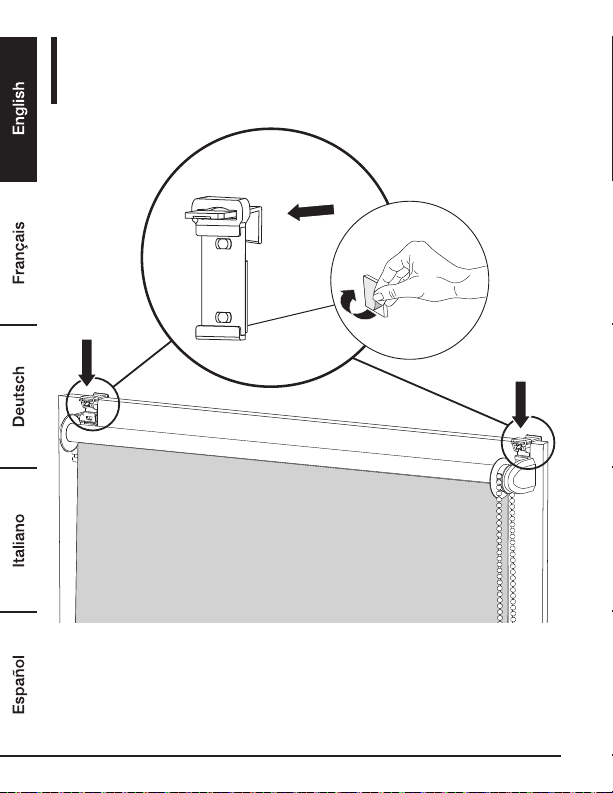

Step 4:
• Remove the protective foil from the double-sided adhesive tape.
• Attach the brackets to the window frame.
• To fix the product, press the upper parts of the brackets towards the window frame.
Warning! Do not remove the brackets after installation as this may damage the adhesive tape. The
brackets cannot guarantee a sure hold without the adhesive and lose their functionality.
1.
2.
2.
3.
9
Assembly / Installation

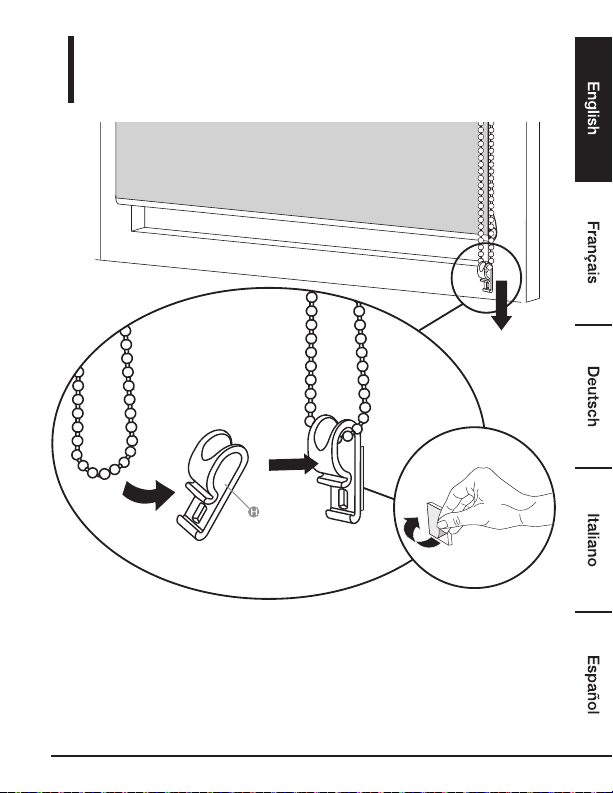

Step 5:
• Connect the cord with the tension bracket (H).
• Gently pull down the cord until it is tense.
• Remove the protective foil from the double-sided adhesive tape.
• Make sure the cord is fully taut. Attach the cord tension bracket to the wall. Press it firmly to
against the wall.
WARNING! Children can strangle, if this safety device is not installed. Always use this device to
keep cords or chains out of the reach of children.
1.
2.
3.
4.
10
Operation
• Pull the cord to raise or lower the blind.
Attention! Do not pull the cord in the reverse direction.
Cleaning
• To clean, wipe with a soft, slightly moist cloth.
• Never use corrosive detergents or abrasive scourers to clean the blind.
Disposal
Dispose of the product according to your local regulations.
