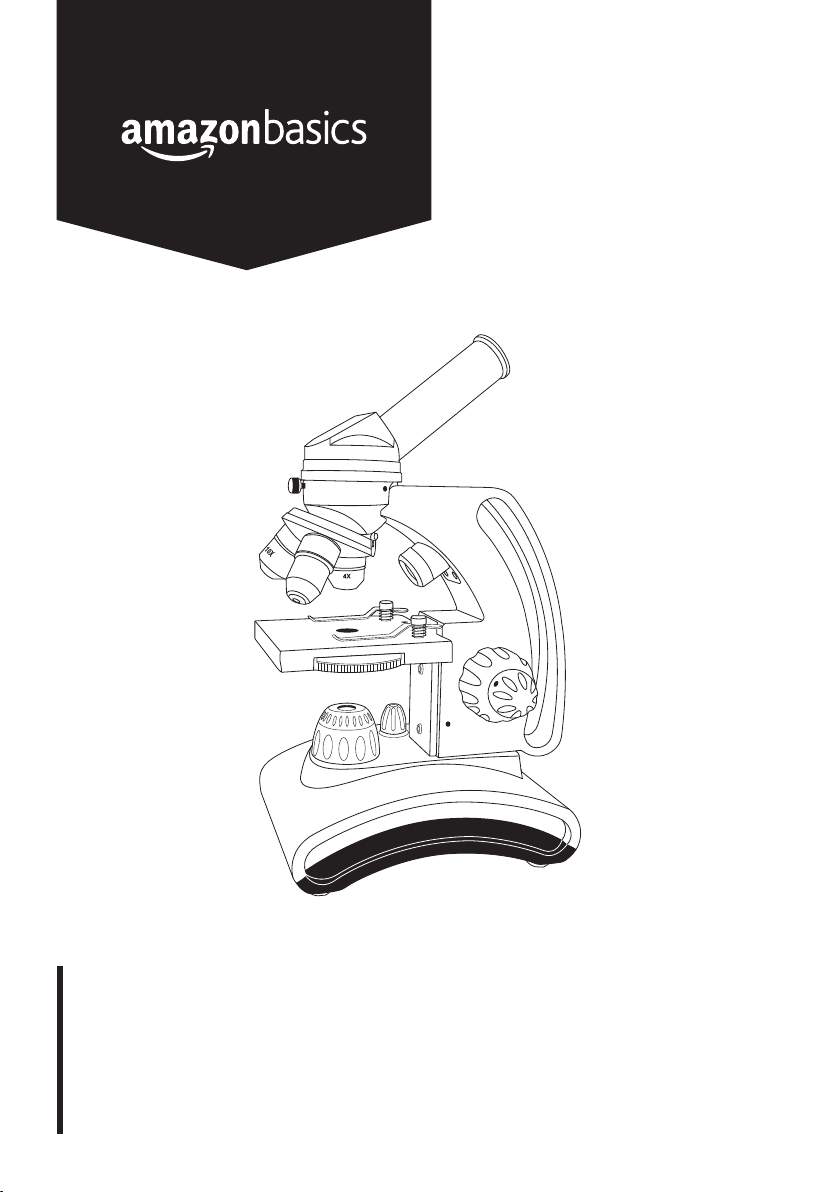

AmazonBasics B07TZPQ35P Manuale utente

Dual Light Glass Lens Metal Frame Student Microscope and Slides

Microscopio de Estudio con Marco Metálico, Lente de Vidrio con Luz Doble

y Portaobjetos

Microscope à Structure Métallique pour Étudiants avec Lentilles en Verre à

Double Éclairage et Lamelles

B07TZPQ35P

English . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Español . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Français . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

+ AA -

Parts Description

ANose piece LStage clips

B10x objective lens MCoarse adjustment knob

C40x objective lens NFine adjustment knob

D4x objective lens OPower socket

EStage PPower switch

FDiaphragm QBattery compartment

GTransmitted light lamp R25x eyepiece

HBrightness adjustment knob S10x eyepiece

IBase T1.5 V AA batteries x3

JEyepiece cover UDust cover

KIncident light lamp VAdapter

IMPORTANT SAFEGUARDS

Read these instructions carefully and retain them for future use.

If this product is passed to a third party, then these instructions

must be included.

When using electrical appliances, basic safety precautions should always

be followed to reduce the risk of ﬁre, electric shock, and/or injury to

persons including the following:

WARNING Risk of serious injury! This product should only be

used by children over 8 years old, and under the supervision of an adult.

Keep out of the reach of children younger than 8 years old. Keep out of

the reach of animals.

WARNING It is prohibited to disassemble the machine.

WARNING Risk of serious injury! Dyes are harmful by inhalation,

harmful in contact with skin, harmful if swallowed.

Methylene Blue Dye: Avoid eye and skin contact. Causes serious eye

irritation. Do not swallow. Do not inhale.

First aid in case of eye contact: Immediately ﬂush eyes with

excess water for 15 minutes, lifting lower and upper eyelids

occasionally. Get medical attention if irritation develops.

First aid in case of skin contact: Immediately ﬂush skin with

excess water for 15 minutes while removing contaminated

clothing. Get medical attention if irritation develops.

First aid in case of ingestion: Do not induce vomiting

without medical advice. Consult a physician if necessary.

NOTICE Methylene Blue dye has been classiﬁed by the International

Agency for Research on Cancer (IARC) as Group 3: Not classiﬁable as

carcinogenic to humans.

NOTICE Use the product within the correct ambient conditions to

avoid mildewing and damage.

• Supervising adults should discuss the warnings and safety

information with the child before the preparation of slides. Pay

particular attention to the safe handling of dyes (if used).

• Because children’s abilities vary, even within speciﬁc age groups,

supervising adults should exercise discretion regarding which slide

preparations are suitable and safe for children. The instructions

should aid adults in assessing slide preparations to discern its

suitability for each child.

• Keep the work area clean, clear and away from any food storage.

Prepare the slides in a well-lit area and close to a water supply. Use a

solid table with a heat-resistant top.

• Do not allow dyes to come into contact with any part of the body

particularly mouth and eyes.

Keep children younger than 8 years old and animals away

from experiments.

• Do not eat, drink or smoke in the work area.

• Clean all the accessories and the work area after each use.

Wash hands thoroughly after handling and carrying out

experiments.

• A separate tin or bucket should be used for the disposal of specimen

samples and dyes. Any wasted solution should be poured directly

down a drain, but never into a sink basin.

• Dispose of used specimen samples in a household trash immediately

after use.

• Do not discard any equipment into the ﬁre to avoid violent

combustion or explosion.

• If the product has to be moved, carry with one hand holding the

product at the arm and another hand supporting it at the base.

• Examine the set regularly for potentially unsafe conditions, such as

damaged housing, or parts. In the event of such damage, the set

should not be used until it is properly repaired.

• Store the set in its original packaging out of reach of children and

animals.

Battery Warnings

• Do not mix old and new batteries or batteries of different types or

brands.

• Exhausted batteries should be immediately removed from product

and properly disposed.

• Keep batteries out of the reach of children.

• Do not dispose of batteries in ﬁre.

• Remove batteries from product if it is not to be used for an extended

period of time unless it is for emergency purposes.

• If the battery leaks avoid contact with skin and eyes. Rinse affected

areas immediately with plenty of clean water, then consult a doctor.

• Always insert batteries correctly with regard to polarity (+ and –)

marked on the battery and the product.

Symbols Explanation

This product is classiﬁed as protection class II. This

means the product is equipped with reinforced or double

insulation between the mains supply circuit and the output

voltage or the casing. Therefore it does not require a safety

connection to an electrical earth (ground).

This product is for indoor use only.

Direct current (DC).

~Alternating current (AC).

Health advice for emergencies.

The product is only for children aged 8 and up.

Wash hands before and after experiments.

Safety warning. Improper use of the product could result

in injury or death.

Intended Use

• This product is an educational equipment for students, adult

supervision is needed.

• This product is intended to be used in dry indoor areas only.

• No liability will be accepted for damages resulting from improper use

or non-compliance with these instructions.

Before First Use

• Check the product for transport damages.

DANGER Risk of suffocation! Keep any packaging materials away

from children – these materials are a potential source of danger, e.g.

suffocation.

Operation

The product can be powered by connecting to a socket outlet via

adapter (V) or by 3 x 1.5 V AA batteries in (Q).

Connecting to a power source

• Connect the adapter (V) to a power source and the other end to the

power socket (P).

Installing batteries

1.5V-AA

• Open the battery compartment (Q).

• Insert 3x 1.5 V AA batteries (T).

• Close the battery compartment.

NOTICE Incorrect battery polarities will damage the LED bulb.

Switching on/off

NOTICE To prevent the bulb in the lamps (G, K) from burning, turn

the brightness adjustment knob (H) counter-clockwise to the lowest

brightness.

• To observe slides, ﬂip the power switch (P) to “I” to turn on the

transmitted light lamp (G).

• To observe solid objects, ﬂip the power switch (P) to “II” to turn on

the incident light lamp (K).

• After use, ﬂip the power switch (P) to “O” to turn off the product.

Calculating magniﬁcation power

Total magniﬁcation power is calculated by multiplying the magniﬁcation

power of the eyepiece and the objective lens.

Eyepiece

magniﬁcation power

Objective lens

magniﬁcation power

Total magniﬁcation

power

10x (S)

4x (D) 40x

10x (B) 100x

40x (C) 400x

25x (R)

4x (D) 100x

10x (B) 250x

40x (C) 1000x

Observing through the microscope

• Remove the eyepiece cover (J) from the body tube.

• Place an eyepiece (R/S) into the body tube.

• Turn the coarse focus knob (M) to adjust the height of the stage (E) to

the lowest position.

• Look into the eyepiece (R/S), adjust the brightness of the lamps (G/K)

using the brightness adjustment knob (H).

• Rotate the nose piece (A) to the lowest magniﬁcation power setting.

NOTICE Start with the lowest magniﬁcation power every time a

new slide is placed on the stage (E). Most observations are made at low

magniﬁcation power.

• Clip a slide (not included) or place an object (e.g. a coin) onto the

stage (E), securing with the stage clips (L).

• Without looking into the eyepiece (R/S), turn the coarse focus knob

(M) until the objective lens is close to the slide. The objective lens

should not touch the slide.

• Look into the eyepiece (R/S), rotate the ﬁne focus knob (N) slowly

until the image is clear. Adjust the position of the slide or object if

needed.

NOTICE During slide observations, there is an option to rotate the

diaphragm (F) to enhance the image using color ﬁlters.

• Rotate the nose piece (A) to ﬁnd the correct magniﬁcation power.

Re-adjust the focus using the ﬁne focus knob (N) if needed.

• After using the microscope, remove the slide or object from the stage (E),

take off the eyepiece (R/S) and place the eyepiece cover (J) back on.

Cleaning and Maintenance

CAUTION Risk of damage! During cleaning do not immerse the

product in water or other liquids. Never hold the product under running

water.

Cleaning

• To clean the lenses (R, S, B, C, D), only use lens cleaning tissues. Do

not use cloth, paper or hands. Rotate the objective lenses (B, C, D)

counter-clockwise to remove them from the nose piece (A).

• To clean the product, wipe with a soft, slightly moist cloth.

• Never use corrosive detergents, wire brushes, abrasive scourers,

metal or sharp utensils to clean the product.
