AmazonBasics B07MNBYN11 Manuale utente
created by: Impala Services Ltd.Page size: A4
B07MNBYN11, B07MND862G, B07MGL8651
Classic Kitchen Cart with Cabinet
Charriot de Cuisine Classique avec Armoire
Klassischer Küchenwagen mit Schrank
Carrello da Cucina Classico con Mobile
Carrito de Cocina Clásico con Armario
クラシックキッチンカートキャビネット付
English ��������������������������������������������������� 3
Français ����������������������������������������������� 11
Deutsch������������������������������������������������ 19
Italiano������������������������������������������������� 27
Español������������������������������������������������ 35
日本語 ��������������������������������������������������� 43
3
Welcome Guide • English
Contents:

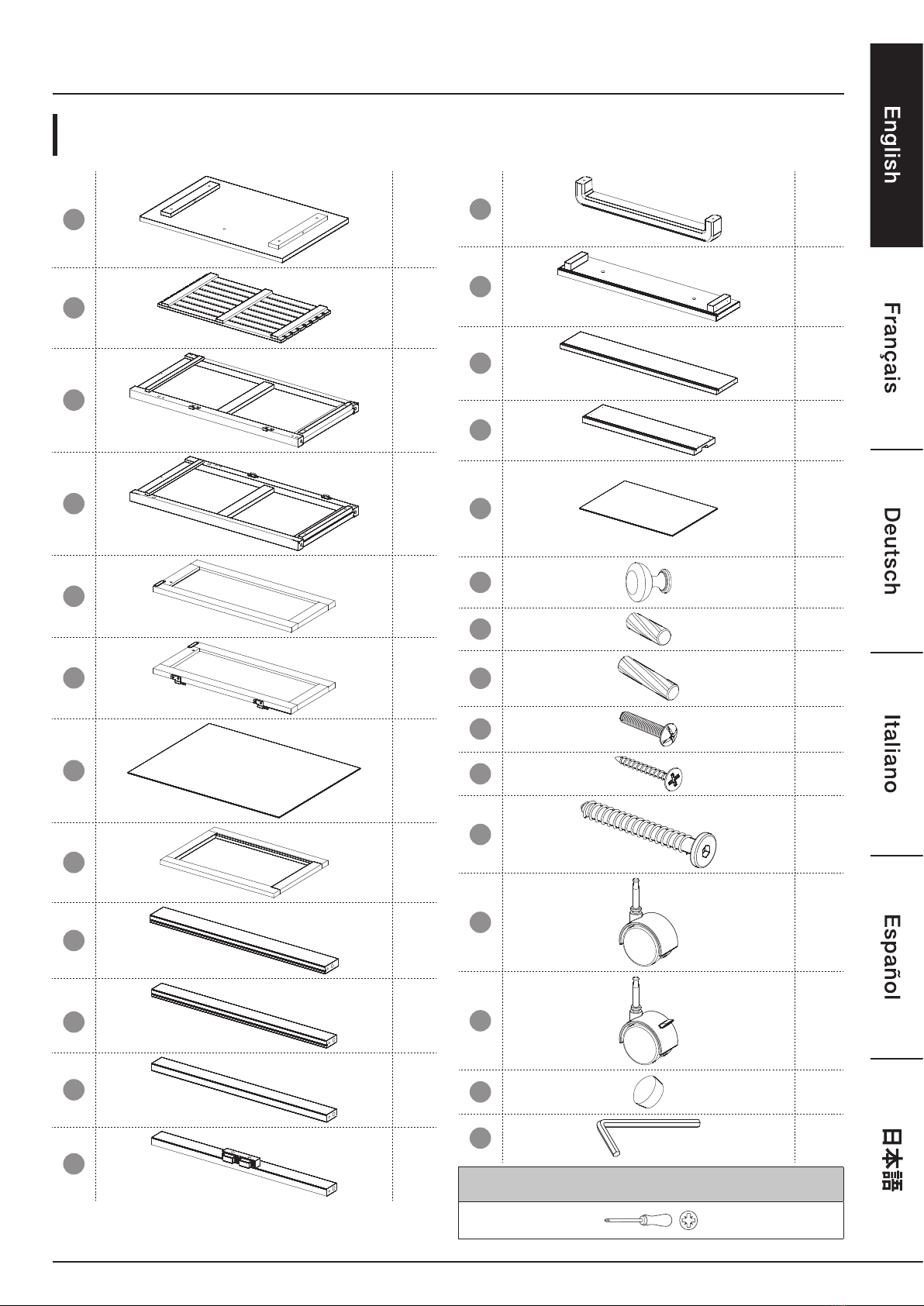

Before getting started, ensure the package contains the following components:
Lx1
Mx1
Nx1
Ox2
Px1
Qx4
Rx8
Sx1
Tx4
Ux8
Vx12
Wx2
Xx2
Yx8
Zx1
You will need
Ax1
Bx1
Cx1
Dx1
Ex1
Fx1
Gx1
Hx1
I1 x1
I1
I2 x1
Jx1
Kx1
4
IMPORTANT SAFEGUARDS
Read these instructions carefully and retain them for future use. If this product is passed to a third party, then
these instructions must be included.
When using the product, basic safety precautions should always be followed to reduce the risk of injury including the
following:
• Do not let children climb on or play with the product.
• Always use on a firm, level ground.
• Do not sit on the product.
• Check to ensure that all components and fixings of this product are secure, do not use if you have any doubts about
its fitness for purpose.
• To avoid scratching the floor, assemble the product on a soft surface such as a carpet.
Before First Use
• Check for transport damages.
Risk of suffocation! Keep any packaging materials away from children – these materials are a
potential source of danger, e.g. suffocation.
Assembly
Step 1:
D
L
V
A
Z

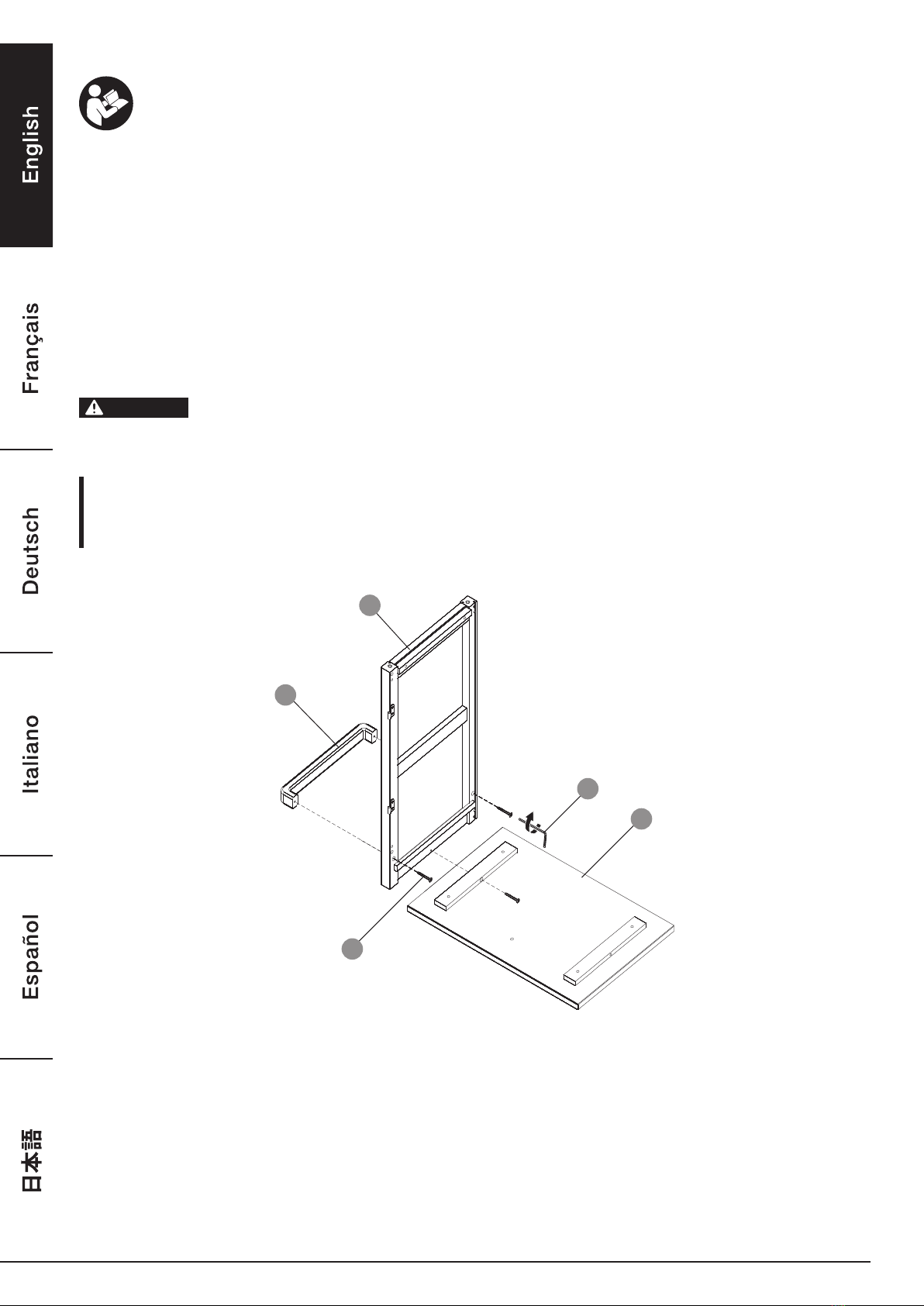

• Attach the towel bar (L) to the right panel (D). Secure the connection with 2 screws (V). Rotate the hex key (Z)
clockwise.
• Attach the right panel (D) to the top panel (A). Secure the connection with 1 screw (V).
DANGER
5

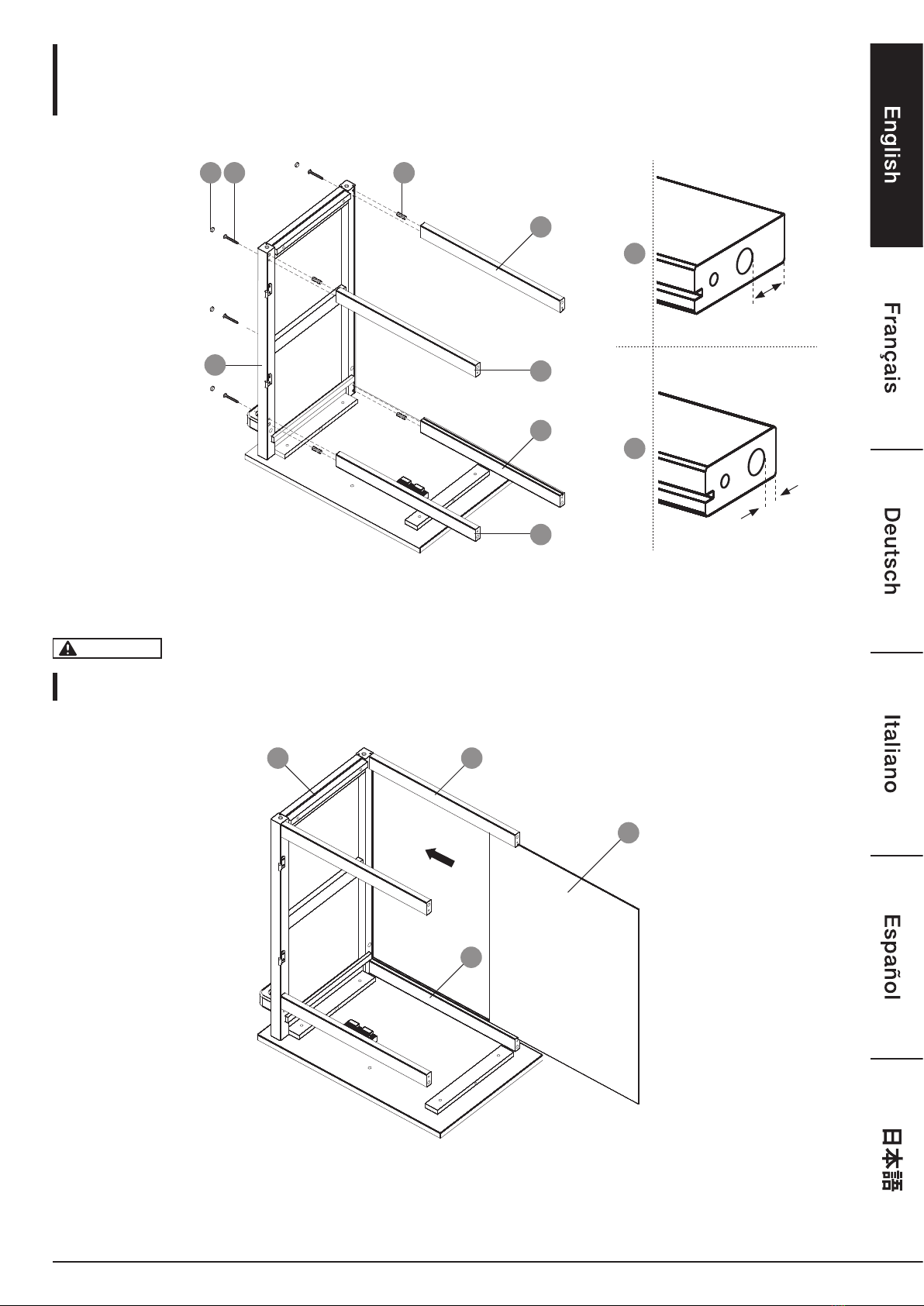

Assembly
Step 2:
RY V
DJ
I2
I1
K
• Attach the lower back cross bar (I1), the lower front cross bar (J), the upper back cross bar (I2) and the upper front
cross bar (K) to the right panel (D). Secure each connection with 1 screw (V) and 1 short wood dowel (R).
Insert the screw covers (Y) after assembly step 4.
Step 3:
G
I1D
I2
• Slide the back panel (G) into the grooves of the lower back cross bar (I1), upper back cross bar (I2) and the right
panel(D).
NOTICE
I1
I2
6
Assembly
Step 4:
V
VC
A
K
J
I1
I2
R
Y

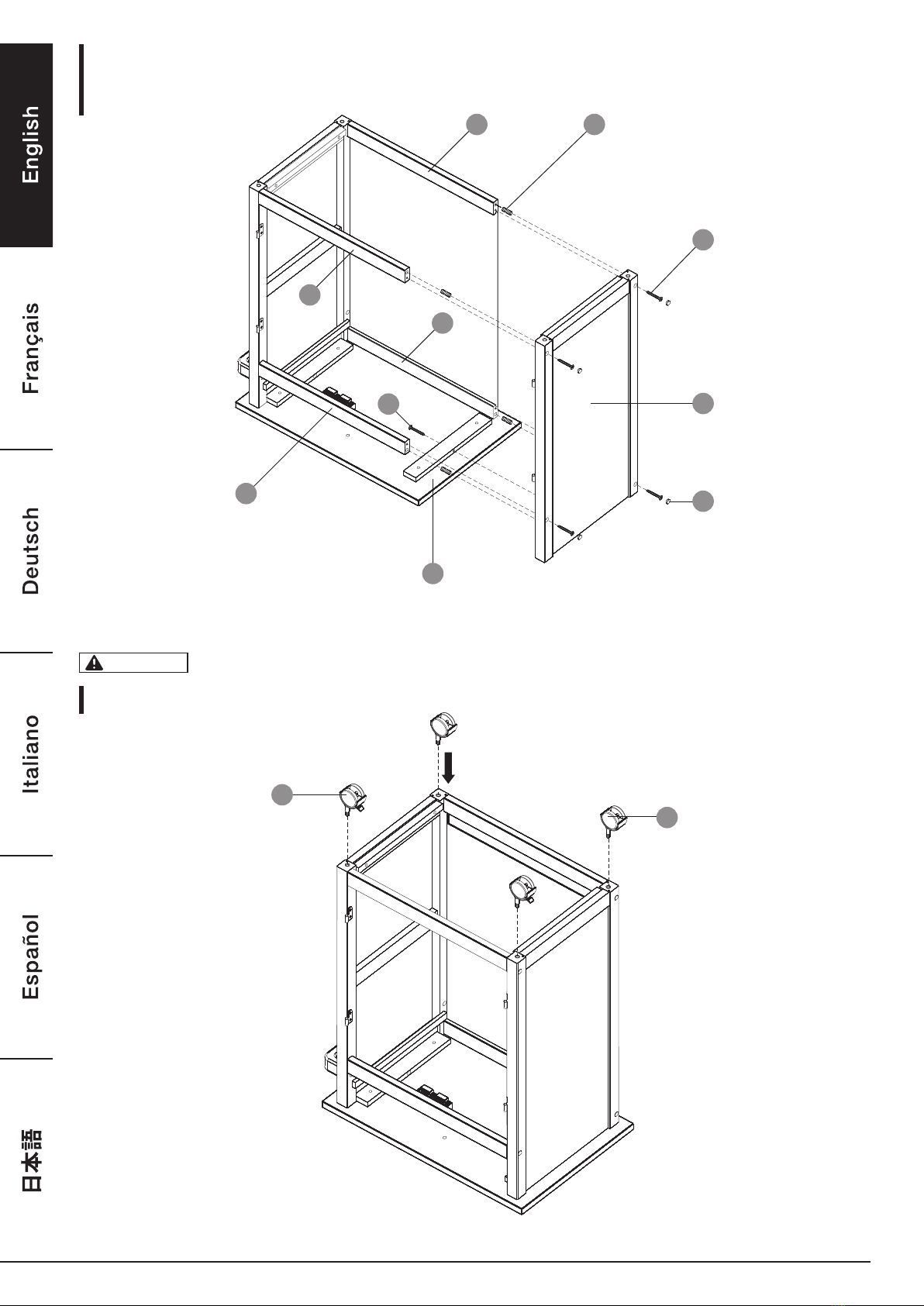

• Attach the left panel (C) to the top panel (A), the lower back cross bar (I1), upper back cross bar (I2), upper front
cross bar (K) and the lower front cross bar (J). Secure the connection with 4 short wood dowels (R) and 5 screws(V).
Tighten all the screws after assembly step 4. Insert the screw covers (Y) on both side panels.
Step 5:
W
X
• Insert the 2 castors (W) and the 2 locking castors (X) into the holes at the bottom of the side panels (C/D).
NOTICE
7
Assembly
Step 6:
B
H

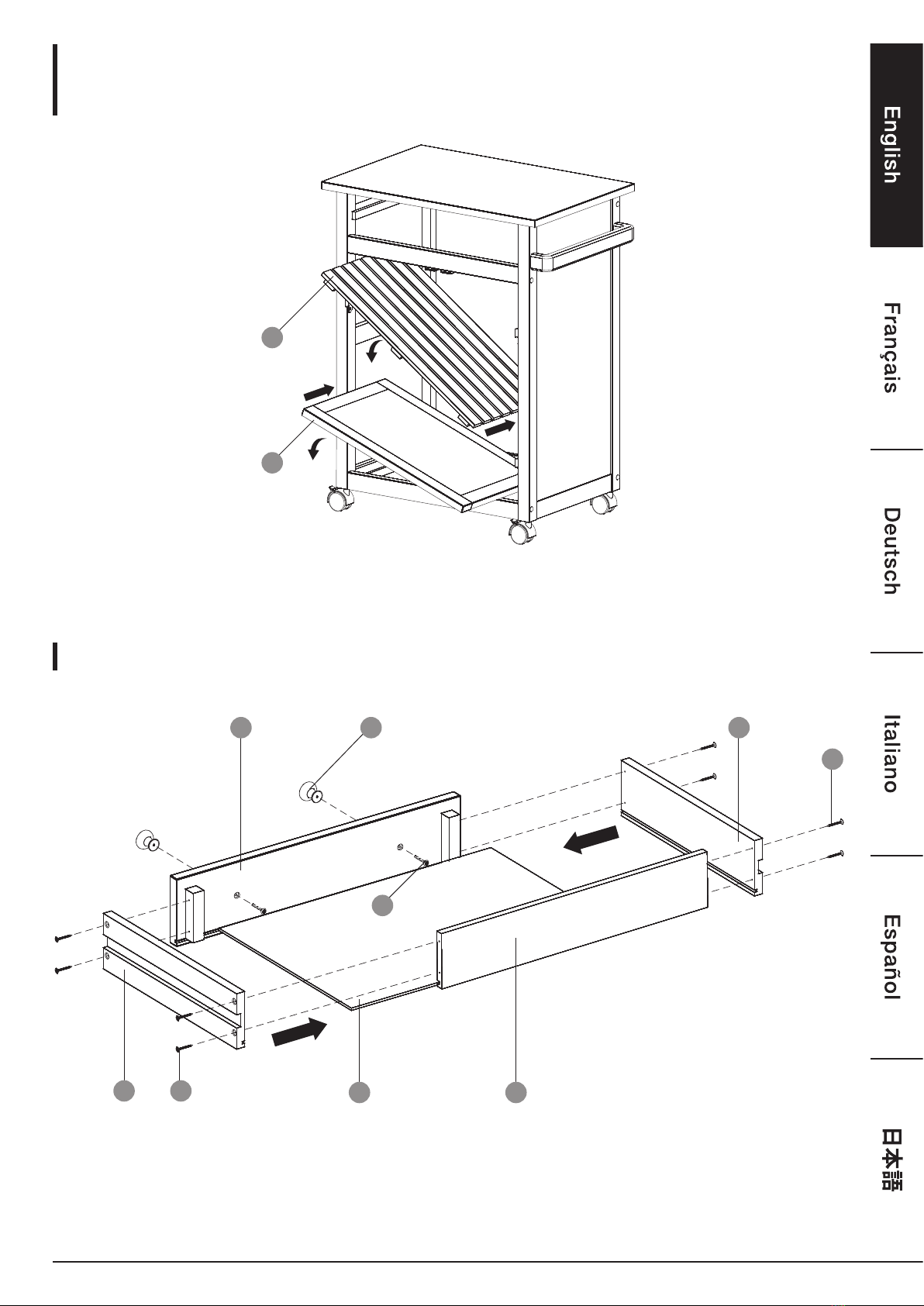

• Lift the product carefully and place it on its wheels.
• Fit the bottom panel (H) into the bottom frame of the product.
• Fit the shelf (B) into the corresponding supports on the inside of the side panels.
Step 7:
M
O U P N
T
Q O
U
• Assemble the drawer by combining the front panel (M), the 2 side panels (O), the back panel (N) and the bottom
board (P). Secure the connection with 8 screws (U).
• Attach 2 knobs (Q) to the front panel (M). Secure the connection with 2 screws (T).
8
Assembly
Step 8:
S
• Slide the drawer into the drawer compartment.

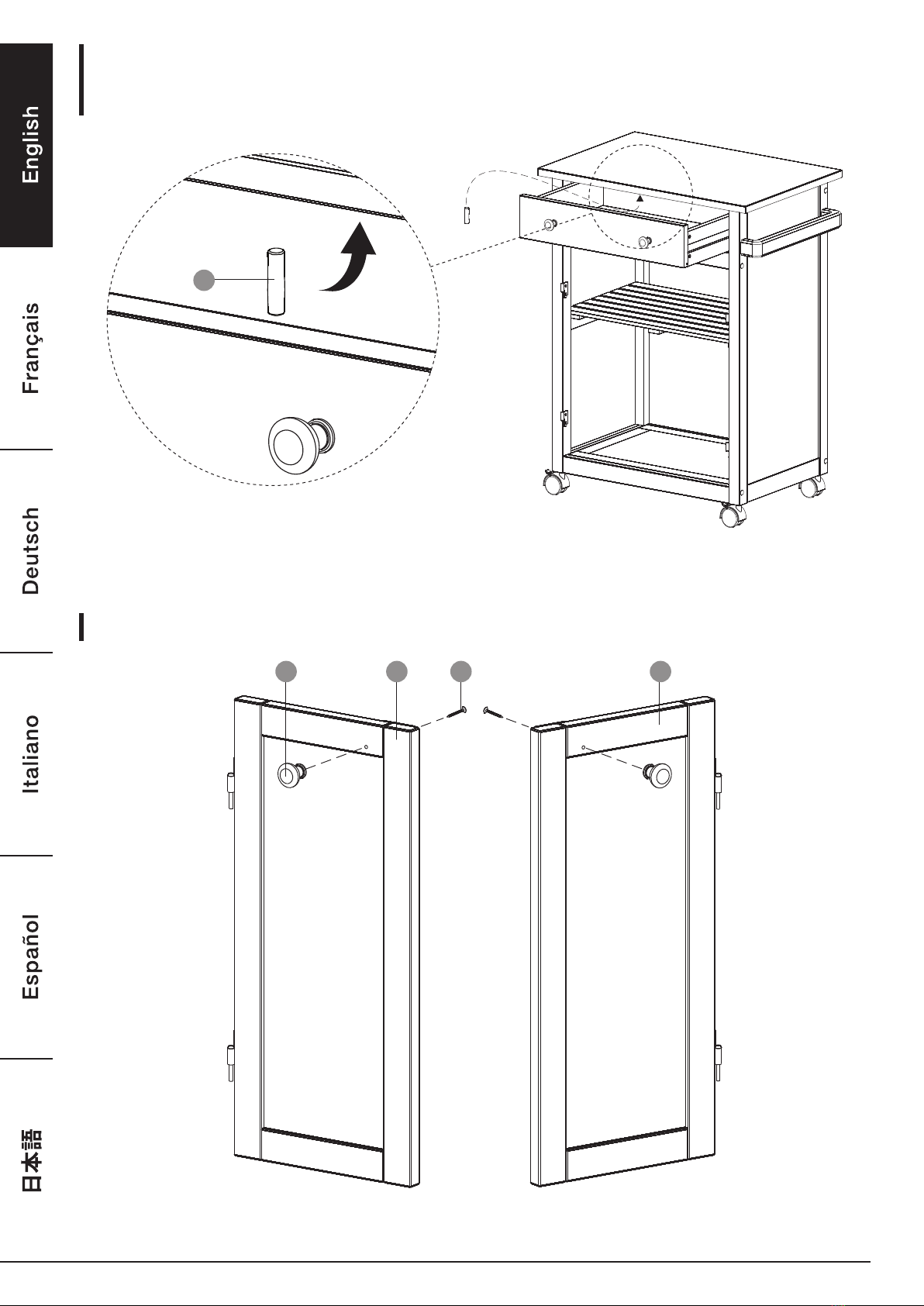

• Insert the long wood dowel (S) into the corresponding hole at the bottom of the top panel (A).
Step 9:
Q F T E
• Attach 1 knob (Q) to the left door (F) and to the right door (E). Secure each connection with 1 screw (T).
9
Assembly

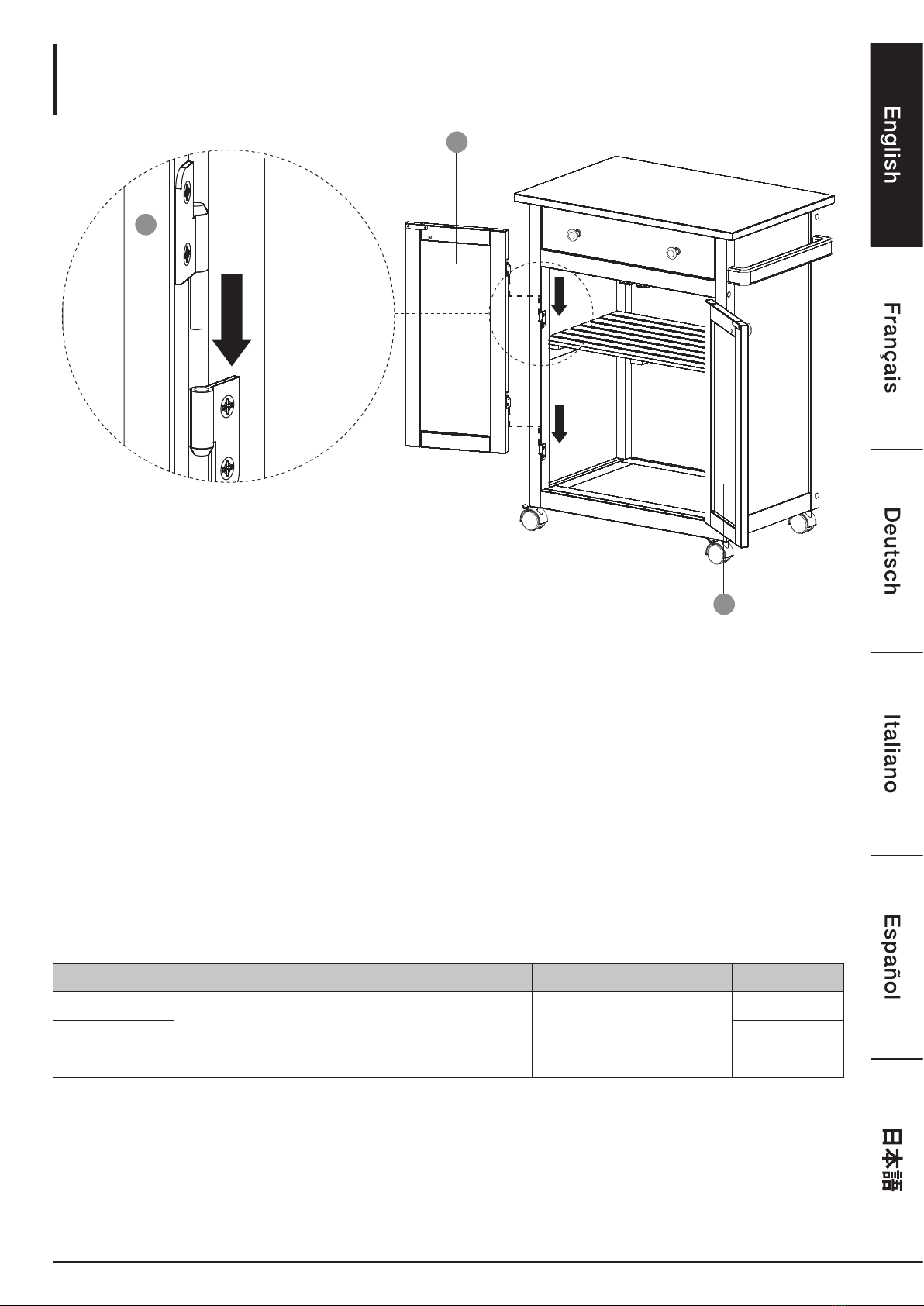

Step 10:
E
F
F
• Attach the left door (F) and the right door (E) to the corresponding door hinges.
Cleaning and Maintenance
Cleaning
• To clean, wipe with a soft, slightly moist cloth.
• Never use corrosive detergents, wire brushes, abrasive scourers, metal or sharp utensils to clean the product.
Maintenance
• Check the components regularly to make sure all screws and bolts are tightened.
• Store in a cool and dry place away from children and pets, ideally in original packaging.
• Avoid any vibrations and shocks.
Specifications
Item number Dimensions (W x H x D) Weight Color
B07MNBYN11
approx. 68.3 x 86.4 x 44.1 cm (26.9 x 34 x 17.4in) approx. 19.8 kg (43.6 lbs)
Espresso
B07MND862G Rustic White
B07MGL8651 Rustic Gray
10
Warranty Information
To obtain a copy of the warranty for this product:
For US - Visit amazon.com/AmazonBasics/Warranty
For UK - Visit amazon.co.uk/basics-warranty
— or —
Contact Customer Service at 1-866-216-1072
Feedback
Love it? Hate it?
Let us know with a customer review.
AmazonBasics is committed to delivering customer-driven products that live up to your high standards. We encourage
you to write a review sharing your experiences with the product.
Please visit: amazon.com/review/review-your-purchases#
For further services:
Visit amazon.com/gp/help/customer/contact-us
— or —
Contact Customer Service at 1-866-216-1072
