Amber connect C420 Manuale utente

Quick Start Guide

ACC420

Amber Covert C420

Advanced UBI LTE Device

Download

Amber Connect

App

Install

Your Device

Activate

The Device

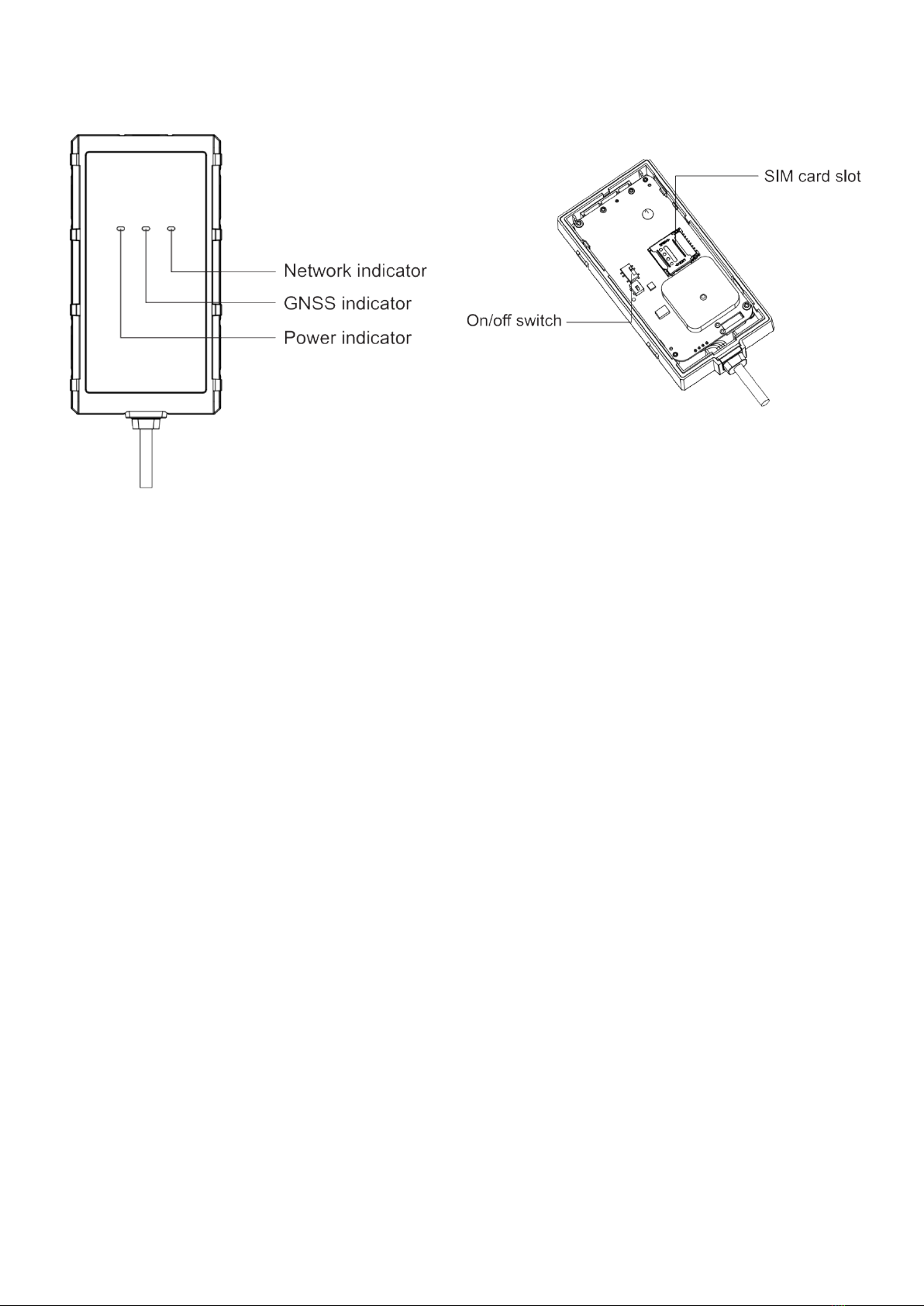

Product overview

Features

INS(Inertial Navigation System)

INS can be used as a fallback in weak or unavailable GPS signal area, e.g.

underpass, tunnel, downtown.

Driver behavior monitoring

•Harsh acceleration alert

•Harsh brake alert

•Sharp turn alert

•Harsh lane change alert

•Crash alert

•Drifting alert

•Rolling alert

•Vehicle angle abnormality

•Real-time tracking

•Over-speed alert

•SOS alert

•Tamper alert

•Removal alert

•Power-supply-cut alert

•Low power alert

•Vibration alert

•Geo-fence

Standard Parts List

Item

Quantity

Amber Covert C420 device 1

Power cable (Length: 1 m) 1

Relay Optional

Panic button Optional

Specification

Network

4G&2G

Frequency

ACC420-E:

FDD: B1/B3/B7/B8/B20/B28

TDD: B34/B38/B39/B40/B41

GSM: 850/900/1800/1900 MHz

ACC420-L:

LTE: B1/B2/B3/B4/B5/B7/B8/B28

GSM: 850/900/1800/1900 MHz

Positioning system

GPS/BDS/GLONASS/Galileo+INS

Location accuracy

<2.0 meters CEP

Relay

Optional

TTFF (open sky}

Avg. hot starts 1 sec

Avg. cold starts 25 sec

Indication

GPS (Blue), Cellular (Green), Power (Red)

Battery

100mAh, 3. 7V Li-Polymer battery

Operating voltage

9-36VDC

Operating temperature

-20'C to + 70'C

Device weight

69 g

Device dimension

94.3mm*50.4mm*15.0mm

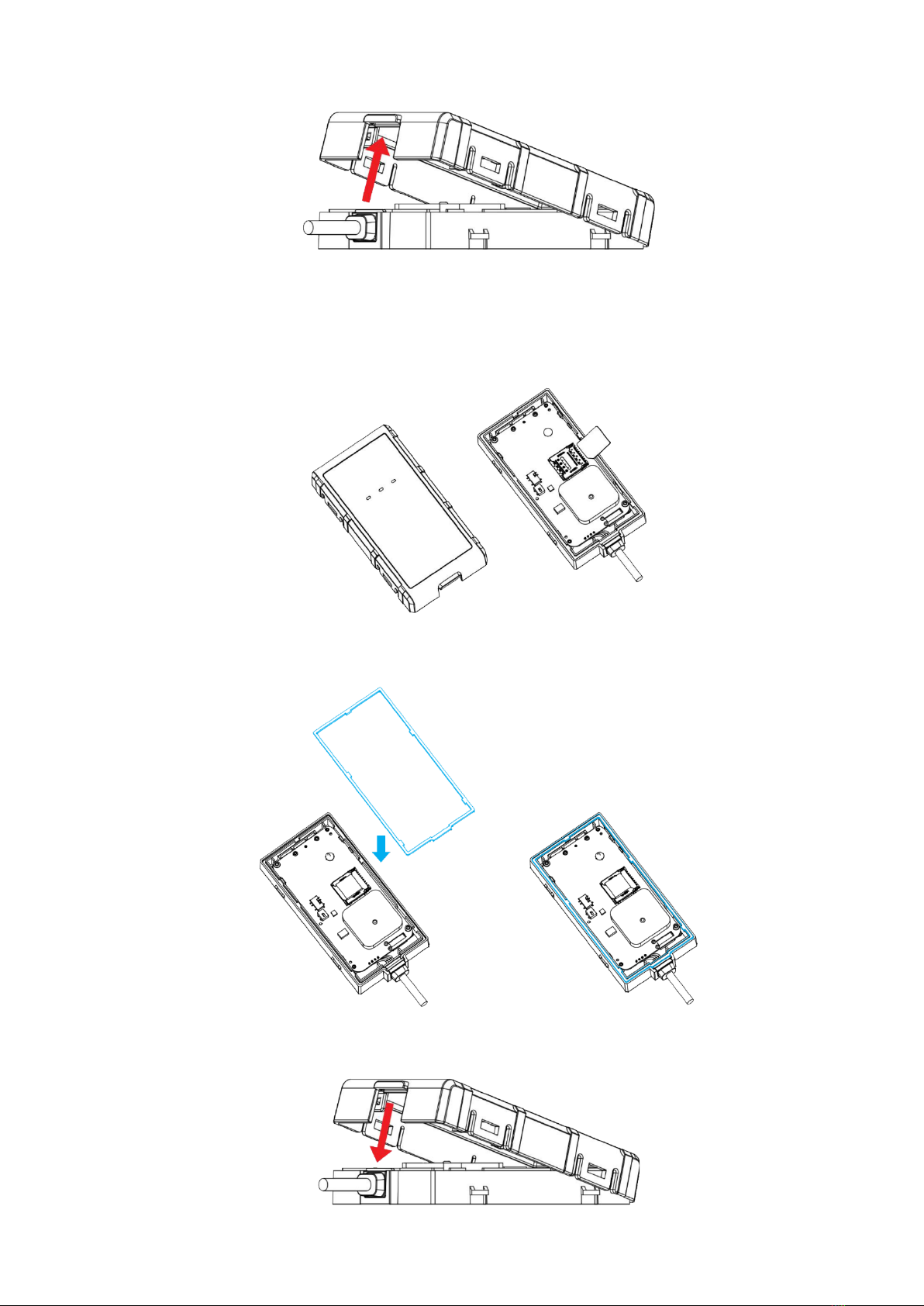

Product setup

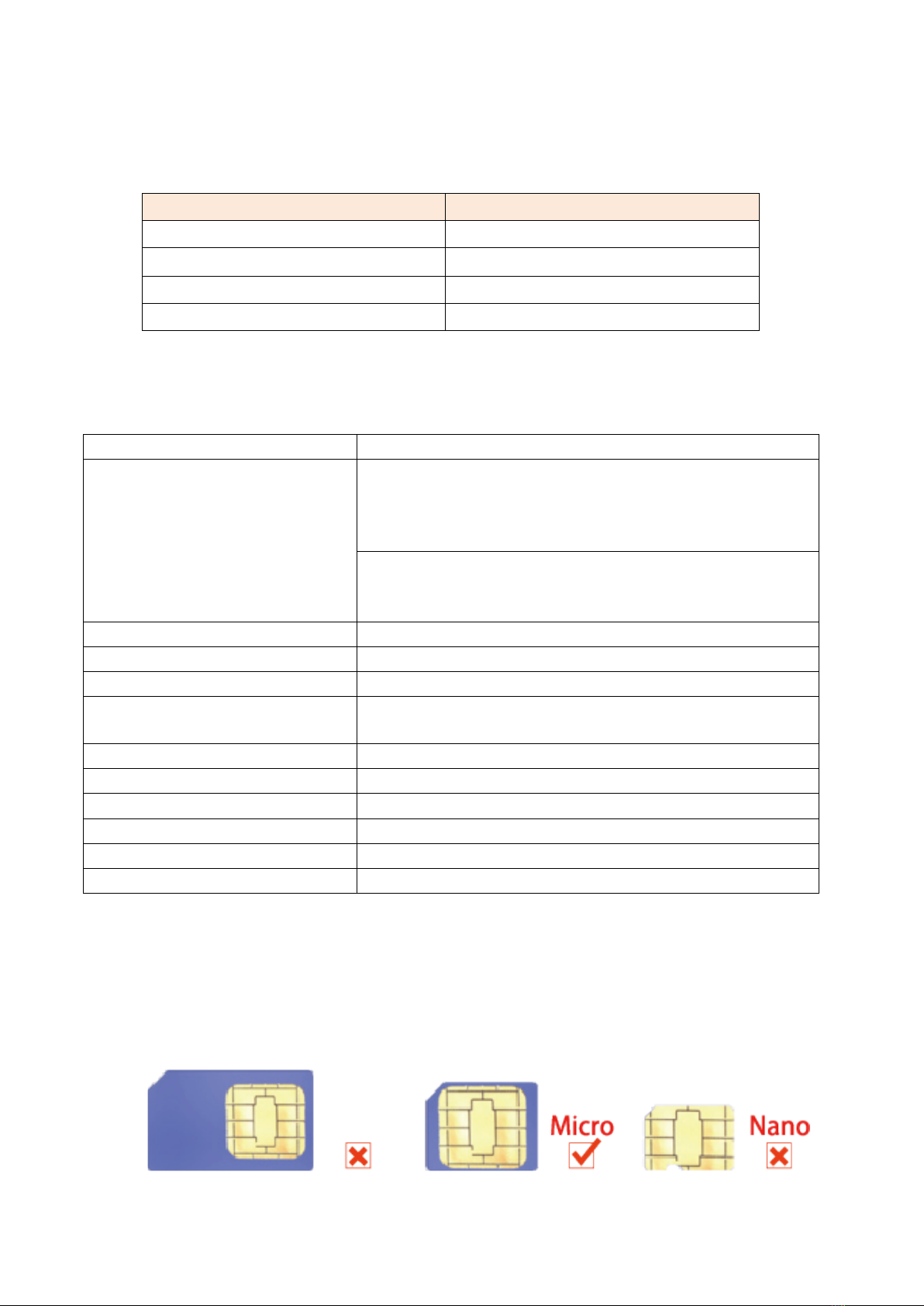

1. Prepare a micro SIM card that supports the same network with this device

2. Remove the upper cover of device.

3. Insert SIM card into the slot and toggle the switch to ON

4. To ensure waterproof take effect, make sure the silicon rubber ring is installed in place.

5. Press the upper case down and make sure all 5 clips are completely in Place

LED indications

Power Status (Red)

On for 0.3s and off for 0.3s

Low power

On for 1s and off for 3s

Fully charged

On for 0.1 s and off for 3s

Working normally

Solid on

Charging (Higher priority than the status of

low power)

Off

Battery is exhausted/Internal failure

GNSS Status (Blue)

On for 0.3s and off for 0.3s

Searching GNSS signal

Solid on

Positioned successfully

Off

GNSS module is in sleep mode or not

working

Cellular Status (Green)

On for 0.3s and off for 0.3s

Network initializing

On for 1 s and off for 3s

Receiving signal normally

On for 0.1 s and off for 3s

Network connected

Solid on

Network online

Off

No signal received/No SIM card detected

Interfaces

6 Pin Standard Version

Interface

Color

Description

V+

Red

Power + (9-36V)

V-

Black

Power - Ground pin

ACC

Orange

Vehicle ignition detection

Relay

Yellow

Cut-off vehicle fuel supply

SOS+

Purple

SOS trigger pin

SOS-

White

SOS Ground Pin

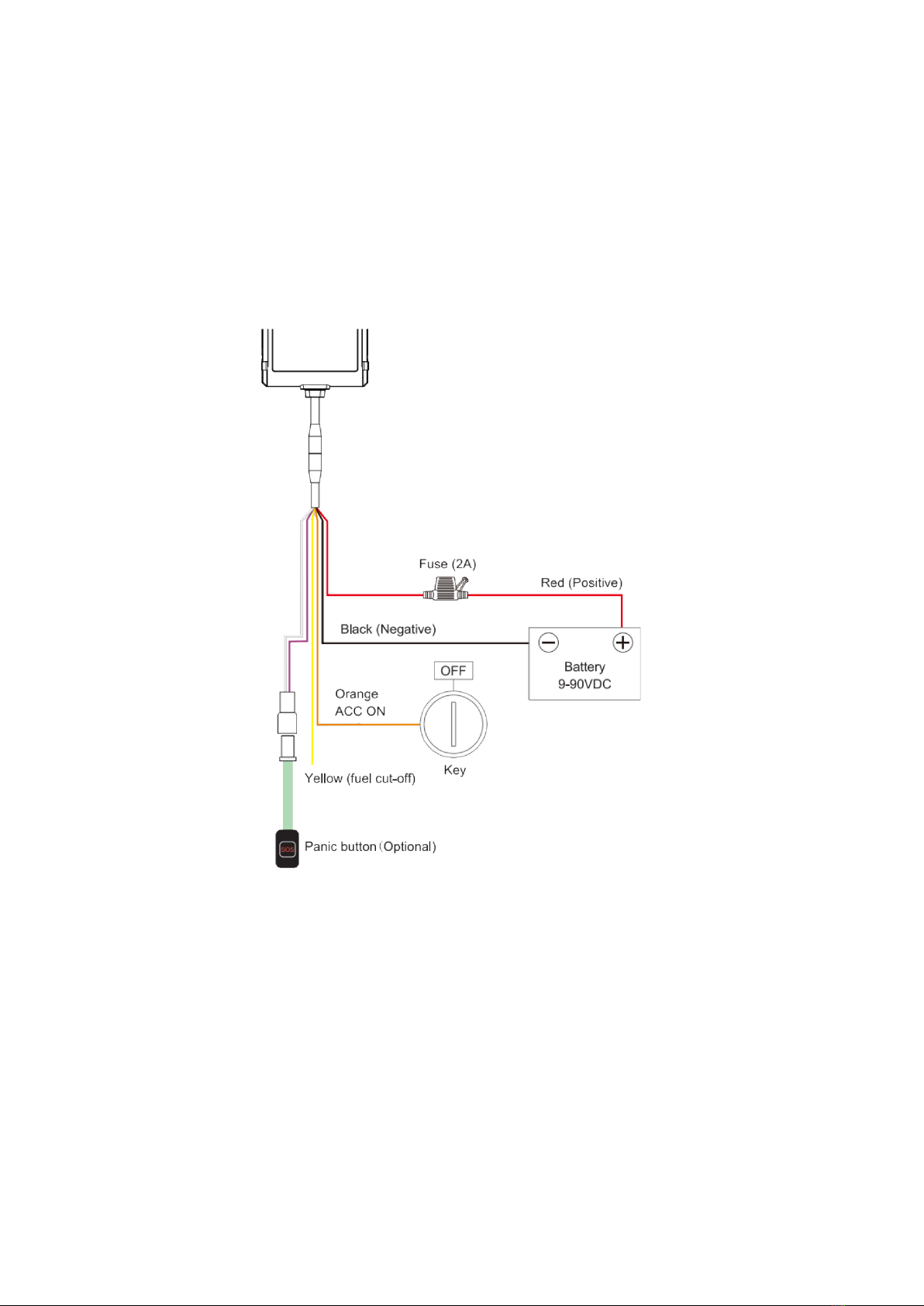

Wiring of Standard Version

Tips for finding right wires:

1. Use multi meter to find out the positive and negative sides of vehicle battery.

Note: No matter the ignition key is switched to ON or OFF, current battery voltage can be shown in

the multi meter.

2. The way to find ACC wire: Connect multi meter's black probe to negative side, and connect red probe

to a random wire, at this moment, the voltage shown in multi meter is 0V; turn the key to ON, if the

supply voltage is shown, that's the correct ACC wire.

3. Connect the two connectors together, if the vehicle has no connector, please connect device's wires

to corresponding vehicle wires.

Power connection

The standard power supply ranges from 9V to 36VDC.

During installation, negative side should connect to the ground.

Do not connect with other ground wires simultaneously.

lgnition wire

ACC line(orange) connects to vehicle's ACC, detecting ignition.

Be sure to check if it's a real ignition wire i.e. power does not disappear after starting the engine.

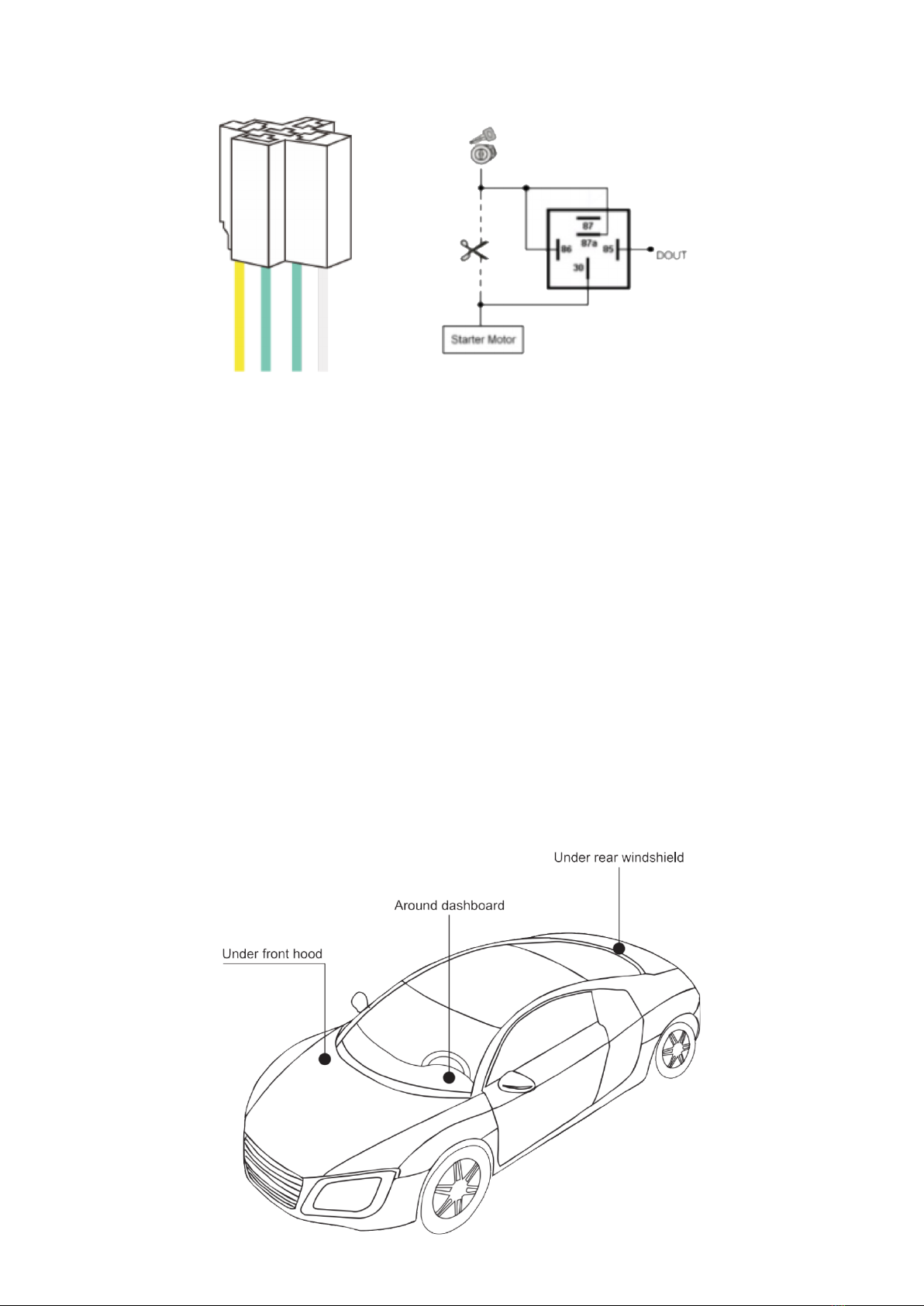

Relay wiring

Relay's white line connects to the positive side of battery(12V)

while the yellow line connects to the device's relay control

(yellow line on power cord).

Find the fuel pump of the vehicle and cut off its positive power line. The positive side of fuel pump

connects to the green line(87a) while the side closing to starter motor connects to green line(30), as the

below chart. Switch of the two green lines have the same effect.

12V relay is standard. The device is suitable for vehicles with 12V supply. If the vehicle power supply is

24V, use 24V relay.

Device installation

Important notes:

•The GPS tracker is equipped with the inertial navigation system (INS) , which can be used as a

short-term fallback while GPS signals are unavailable, for example when a vehicle passes

through a tunnel. To ensure GPS & INS tracking and driver behaviour monitoring and to avoid

GPS drift, please fix the device with the Velcro provided.

•You can install the device at any direction as the relative installation angle will be automatically

calculated after the vehicle moves for a while.

•The device should face up to sky.

•Metal thermal barrier or heating layer, which are always installed on windshield, may affect the

signal, please avoid installing the device under these objects.

Installation recommendation

Please install the device under the guidance of professional personnel.

Platform & APP

1. Login service platform Please login the designated service platform to set and operate the

device.

2. Download APP Please download and install the APP in designated website, APP store or

Google Play store.

Driver behaviour monitoring

Harsh acceleration alert

The device defines harsh acceleration as occurring when the vehicle’s speed increases sharply.

And alert will be sent to the platform.

E.g: The vehicle’s speed increase from 0KM/H to 50KM/H after 2 seconds of engine start.

Harsh brake alert

The device defines harsh braking as occurring when the vehicle’s speed decreases sharply. And

alert will be sent to the platform.

E.g: The vehicle’s speed drops from 50KM/H to 10KM/H after 2 seconds of emergency braking.

Sharp turn alert

The device defines sharp turn as occurring when the vehicle makes high-speed turn. And alert

will be sent to the platform.

E.g: The driving speed is greater than 30KM/H, and the angle change is greater than 90 degrees.

Harsh lane change alert

The device defines harsh lane change as occurring when the vehicle suddenly change lanes at

high speed. And alert will be sent to the platform.

E.g: The driving speed is greater than 60KM/H, and the angle change is less than 20 degrees.

Crash alert

If collision occurs, the device will send alert to the platform.

Slight impact and scratch will not trigger the alert.

Rolling alert

When the vehicle-rolling angle exceeds 70°, the device will send alert to the platform.

Vehicle drift alert

When the vehicle changes the course angle for more than 3 seconds at an angular velocity

Greater than 20° / s, the device will sent a alert to the platform.

Vehicle angle abnormality

When the vehicle rolling angle is greater than 20° and less than 70°, the device will send alert to

the platform.

Collision alarm uploading IMU data

Setting the BEFORUBI switch to OFF, when a collision alarm occurs, the device will package and

upload 20Hz IMU data to the platform, 10 seconds before the collision and 10 seconds after the

collision, which users can use to reconstruct the accident process.

Troubleshooting

Type Use

Unable to connect to Amber connect

Check the APN and IP settings.

Check whether the data service of SIM card is

enabled. Check the balance of SIM card.

Tracker shows offline

Check whether external power is still

connected. Check if the vehicle entered network

blind area. Check the balance of SIM card.

Unable to connect locate

Make sure the top side facing upward without

metallic things shielded.

Make sure it's not in area with no satellite

coverage.

Location drift

In area with poor GNSS signal (tall building

around or basement), drifting may happen.

Check whether vibration happens around to

trigger the accelerator.

No command reply

Make sure command format is correct.

Vehicle may be in network blind area. Make

sure SIM card is well inserted and has SMS

service.

Warranty instructions

1. The warranty is valid only when the warranty card is property completed, and upon presentation

of the proof of purchase consisting of original invoice indicating the date of purchase, model and

serial No. of the product. We reserve the right to refuse warranty if this information has been

removed or changed after the original purchase of the product from the dealer.

2. Our obligations are limited to repair of the defect or replacement the defective part or at its

discretion replacement of the product itself.

3. Warranty repairs must be carried out by our Authorized Service Centre. Warranty cover will be

void, even if a repair has been attempted by any unauthorized service centre.

4. Repair or replacement under the terms of this warranty does not provide right to extension or

renewal of the warranty period.

5. The warranty is not applicable to cases other than defects in material, design and workmanship
