Ambir DS485 Manuale utente

- 1 -

CE Conformity and FCC Statement ………………………………….

This equipment has been tested and found to comply with the limits of the European Council Directive on the

approximation of the member states relating to electromagnetic compatibility according to EN

55022/55024 Part 15 B

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15

of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a

residential energy and, if not installed and used in accordance with the instructions, may cause harmful interference

to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient the receiving antenna

Increase the separation between the equipment and receiver

Move the computer away from the receiver

Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected

Trademarks

Windows, Windows Me, 2000, XP and Vista and Microsoft are the registered trademarks of Microsoft Corporation. Adobe

ACROBAT and Adobe PDF Signature are either registered trademarks or trademarks of Adobe Systems Incorporated in the

United States and/or other countries.

- 2 -

Contents………………………………….

CE conformity and FCC Statement…………………………1

Introduction to your Ambir Scanner ………………………2

Installation of Software & Hardware ………………………3

Initial Calibration with DocketSCAN……..…………….…. 7

Using Your Scanner……….……..…………………..…….. 8

Tips & Cautions ……………………………………………10

Technical Support & Product Warranty Information ……....11

Welcome………………………………….

Thank you for purchasing an Ambir document scanner!

We have designed this product to provide you with a simple but effective

tool to capture, manage and archive documents of many types. We

encourage you to read this short, but important, User Guide carefully.

YourAmbir scanner has the latest technology and compatible drivers.

These drivers have been certified by Microsoft and tested to be in

compliance with their Windows 2000 (SP4), Windows XP (SP2) and Vista

operating systems. We also feature a TWAIN 1.9 compatible driver that

will work with thousands of imaging applications. If you experience any

difficulty with these drivers, please check our website

www.ambir.com/drivers to verify that you are using the latest version.

- 3 -

Installation of Software & Hardware ……………………….

FOR BEST RESULTS PLEASE INSTALLTHE SOFTWARE FROM THE

CD PROVIDED BEFORE PLUGGING IN YOUR SCANNER.

Note:As a caution, a RED warning label has been placed over the large end of the USB plug

to remind you to install the software CD first. Please remove this warning label prior to

plugging in the scanner cable after you have installed the software.

STEP 1 - Install Software

a) Insert the installation CD that came with yourAmbir scanner.

The installation program should begin automatically.

b) If your CD does not start automatically, please double-click the MY COMPUTER icon

on your Windows desktop, then double-click the CD icon.

If this installation program does not begin, then double-click the SETUP icon.

c) Follow the on screen step-by-step InstallShield Wizard instruction to install the

COMPLETE scanner drivers and DocketSCAN®software featuring the

ADOBE®PDF Scan Technology on your computer.

- 4 -

d) At the end of the installation process, you will be given the option of either installing the

ADOBEAcrobat Reader 7.0 or printing the user guide.

e) If you do not already haveADOBE Reader 7.0 installed, you should select the “Install

Adobe Reader 7.0” button before you click FINISH. You may also print out the User

Guide after installing theAdobe Reader for your future reference.

If you choose to install ADOBE Reader 7.0 you will see the screen below shortly; please

follow the instructions to install the software.

Note:

After you have completed all software installations, we strongly recommend that you

restart your computer even though you are not requested by Windows to do so.

- 5 -

f) If you should need to un-install the software, you may simply insert the

original installation CD and run the setup again. At this time you will be given three

options. Select the REMOVE option and all previously installed Scanner software will

be removed from your computer with the exception of theAdobe Reader 7.0.

STEP 2 - Install Hardware

After you have installed the software and restarted your computer:

a) Connect the USB cable from the scanner to your USB port on your computer

as shown below. If necessary, please check your computer’s user guide to identify

the available USB ports and their locations.

- 6 -

b) Under Windows 2000, XPand Vista operating systems,

the computer will automatically detect the new

hardware device and advise you to follow the

Hardware Wizard installation (see below).

c) Follow the step-by-step Wizard installation and finish your hardware installation.

d) When you finish your Hardware Wizard installation, the computer will automatically detect

the new hardware device installed and it will be ready for use.

Note:Under Windows Me, you may be required to browse to the installation CD where

Windows will retrieve additional driver components to complete the installation.

- 7 -

Initial Calibration with DocketSCAN®

………………………

NOTE: Calibration is a critical step in setting up your scanner. It allows the image quality to

be optimally balanced for your computer and scanner combination. If at any time you switch

the computer that you use with your scanner, or change scanners, you will be required to

recalibrate your scanner.

STEP 1 - Launch DocketSCAN®

To open the DocketSCAN®application you can either double-click the Adobe PDF

short cut icon on your desktop or the “Taskbar tray” icon (usually in the lower

right-hand corner of the Windows Desktop).

Once you have launched DocketSCAN®, you should select the SCAN button and the

step-by-step calibration instructions will appear in a succession of prompts.

This calibration process will require the special black and white calibration sheet that

was included with your scanner. When calibrating, make sure the page with the black

bars are facing down and note the direction of the arrows for proper insertion. When

the calibration process has been completed successfully, you will see the message above; if

you do not see this message you will need to recalibrate.

If you switch scanners or your image quality has become unsatisfactory, you can

recalibrate your scanner by choosing the CUSTOM button in the DocketSCAN® window

and select the Calibrate button.

Should you lose the black and white calibration paper that was included with your

Ambir scanner, you can simply use any plain white (the brighter the white the better)

piece of letter size (orA4) printer paper to perform the calibration. Simply fold the

paper in half and insert the folded end into the scanner first when calibrating.

The following message will be displayed (see below).

- 8 -

Using your Scanner ……………………………………

There are two easy ways for you to scan and manage your documents and images with

your Ambir scanner.

1) The first is by utilizing the document manager control panel. (shown

below) that allows you to select from the most common paper sizes, image

settings and basic file output information (location & name of your document).

These files are always saved as ADOBE ACROBAT (PDF) format files.

2) The second way is through the TWAIN control panel, which you can find by pressing

the Custom button on the DocketSCAN control panel. The TWAIN control panel

(shown below) allows you to control all details and settings of the scanner. This type

of fine-tuning of your scans may be required for some of your document needs.

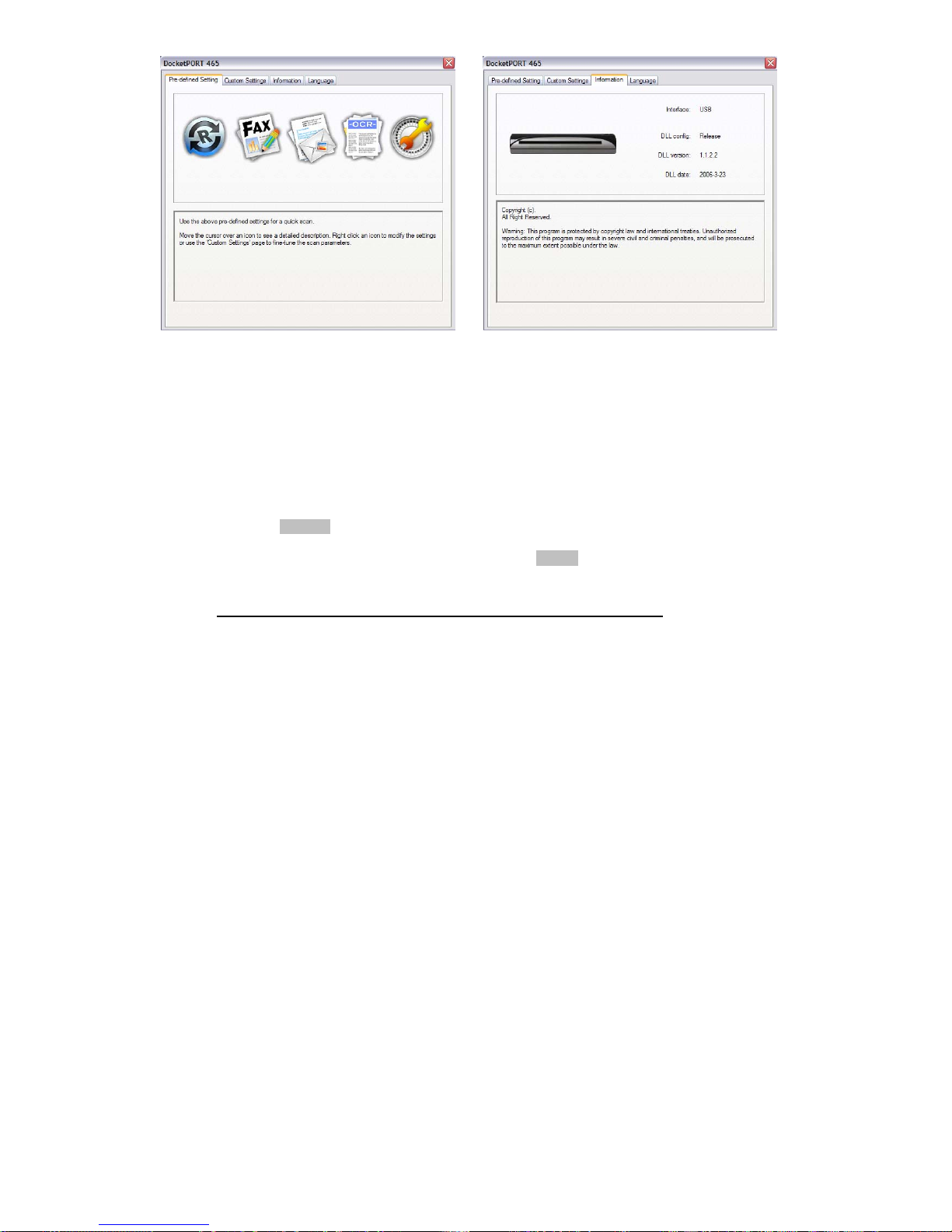

3) Please notice the Page Tabs at the top of the TWAIN control panel; they are:

Pre-defined Setting, Custom Settings, Information, and Language. Take a

moment to explore these tabs and their function. The Information tab provides

important information regarding the software driver version. This may be

required if you want to determine if the software you are using is the latest version.

- 9 -

The Pre-defined Setting tab allows you to quickly choose the most frequent and

Commonly used scan setting. These are designed for your convenience. The

settings are viewed once you click “Acquire” and can be easily launched by selecting

their respective user interface.

The Custom Settings control panel allows you to change the settings to the detailed

specifications that you feel are required. You can adjust the Mode, Resolution, Filter

(None or De-screen) together with scanning size. In addition, you can also adjust the

Brightness, Contrast, Color (Gamma), Highlight and Shadow of the image with the 5

slide-bar controls. If you want to return to the original slide-bar control settings,

press the RESET button, which restores these to the scanner default settings. Once

your settings are defined, select either “Preview” to take a quick look at how your

image will look in the scanning window or ress “SCAN” to initiate the final scanning.

Using the Ambir Scanner with other application programs

Your Ambir scanner is fully TWAIN compliant, so you can use it with literally

thousands of applications that use TWAIN device input. From desktop publishing to

games, and from faxing to business card scanning, you will discover many useful

applications for your scanner. Simply select the scanner source from your program’s

“source” options and look for yourAmbir scanner in the list. Sometimes these

“source” scanner options may be found under TWAIN devices available.
