Portable Air Conditioner

Model PVMB-12000E

Owner’s

Manual

Innovative AutoDrain NanoMist Technology™

Patent Pending

Table of Contents

THANK YOU ………………………………………………………………………2

Energy Saving Tips ……………………………………………………………2

SPECIFICATIONS …………………………………………………………………3

BEFORE USE ………………………………………………………………………4

THE PVMB UNIT / PARTS …………………………………………………………5

AUTODRAIN NANOMIST TECHNOLOGY™ ASSEMBLY ………………………6

INSTALLATION OF THE WINDOW KIT …………………………………………7

Window Kit Installation ………………………………………………………7

INSTALLATION ……………………………………………………………………8

OPERATION ………………………………………………………………………9

Turning the Unit On …………………………………………………………9

Setting the Clock ………………………………………………………………9

Setting the Temperature ………………………………………………………9

Mode Button …………………………………………………………………9

Fan Speed ……………………………………………………………………9

To Set the Timer ………………………………………………………………9

Canceling the Timer Function …………………………………………………11

Sleep Mode ……………………………………………………………………11

REMOTE CONTROL ………………………………………………………………12

EMPTYING THE INTERNAL WATER CONTAINER ………………………………13

MAINTENANCE ……………………………………………………………………14

Cleaning the Unit………………………………………………………………14

Cleaning the Filter ……………………………………………………………14

End of Season Storage…………………………………………………………14

TROUBLESHOOTING ……………………………………………………………15

WARRANTY ………………………………………………………………………18

Thank you for purchasing an AMCOR Portable Air Conditioner. AMCOR is a leading brand in indoor air

treatment. We would like you to enjoy the many beneﬁts this unit offers, so please read this

manual carefully and take full advantage of the many advanced features that your AMCOR Portable Air

Conditioner offers you.

AMCOR has specialized in complete indoor environment control, manufacturing world-class air

conditioners, dehumidiﬁers and air puriﬁers with innovative technology.

In designing these advanced products, we have listened carefully to our customers and have passed

their views on to our research and development laboratories.

We wish you many years of enjoyable use.

After reading this manual, please keep it in a safe place for future reference.

Energy Saving Tips

• Do not locate the air conditioner where furniture or other objects can obstruct the airﬂow.

• Keep doors closed so cool air does not escape.

• Keep the ﬁlters clean.

Set the unit to maximum cooling and high speed fan initially, then adjust the unit to a comfortable setting.

NOTE: Use the Temperature Control (UP/DOWN) to adjust Air Conditioner

cooling to a desired level.

Thank You!

Speciﬁcations

Model PVMB-12000E

Cooling Capacity 12,000 BTU/h

Cooling Power Consumption 1,100 W / 9.8 A

Power Supply 115V / 60Hz / 1 Phase

Dehumidification 80 pints / Day

Recommended room size Up to 400 sq. ft.

Refrigerant R-22

Compressor Rotary

Fan Speeds 3 (2 + 1 Turbo)

Thermostat 64º - 90º F

Timer 0-24 hours

Dimensions 20”W x 16”D x 33”H

Weight 75 lbs.

REMARKS:

The cooling capacity of the unit may be affected by the

height of the ceiling, quality of insulation, number of windows, etc.

Subject to modifications without prior notice.

Please refer to the rating label for greater precision.

Before Use

IMPORTANT!

• Leave the unit in an upright position for at least 2 hours before use.

• Always place the unit on an even surface.

• The power cord has a built-in L.C.D.I. (Leakage Current Detection and Interruption)

circuit breaker for added safety. If the power supply is interrupted, please press the reset

button to reconnect the unit to the power source. The green light should be on.

• Make sure the unit is connected to a correctly grounded power supply.

• For proper operation, the unit must be vented to the outside.

• Do not cover or obstruct the appliance inlet or outlet grilles.

• To avoid the risk of shock, the product should never be used in bathrooms, shower rooms

or in any other steamy or wet areas.

• Always transport the unit in an upright position.

• Do not sit or stand on the unit.

• Do not place objects on the unit.

• Do not touch the unit with wet/damp hands or when standing barefoot.

• Drainage of the water container is required before moving the unit or

putting it into storage.

• If the electric socket is different from the plug provided, have a professionally qualiﬁed

electrician replace the outlet with a suitable one. Avoid the use of adaptor plugs, multiple

sockets and/or extension cords; if their use is necessary, ensure that they conform to the

current safety regulations.

• Do not pull the power cord or place it near a source of heat; always unroll it completely

to avoid the possibility of dangerous overheating.

• If the power cord is damaged, it must be replaced by a qualiﬁed person.

THE MANUFACTURER DISCLAIMS ANY RESPONSIBILITY IF THE ABOVE

INSTRUCTIONS ARE NOT FOLLOWED.

lortnoCeto

lSel

lus

NAF

yalp

80 SETUNIM:SR

7 Fº E

teltuO

riA

ort

niy

raC

eldna

saC

ehW

ria

teln

eppo

Spiral Water Pipe

with Connector

Air Filter (Pre-installed)

The PVMB Unit

Parts

Put spiral water

pipe into hot air

ﬂexible hose.

Connect the

female half of the

quick connector

at the end of the

spiral water pipe

to the male part

in the hot air

outlet pipe.

Turn the

connector

90 degrees

clockwise until it

is locked in place.

Assemble the

hot air hose on

the unit.

Clip on the

water atomizer

at the end of

the spiral pipe

to the holder.

Unfold ﬂexible

hose with attached

hose adapter

connector, and

snap into

Window Slide Bar.

Only

Required For

Disassembly.

In order to

unlock the quick

connector, push

the tab and turn

the connector

90 degrees

counter-

clockwise.

AutoDrain NanoMist TechnologyTM Assembly

1Attach Window

Slide Bar

Connector to

Exhaust Hose by

twisting as shown.

AutoDrain NanoMist TechnologyTM AssemblyInstallation of the Window Kit

In order for this unit to function properly, it must be vented to the outside.

Fitting the Exhaust Hose through a window is easy. Please see below.

tce

Window Kit Installation:

1. Extend Exhaust Hose at least 6" and insert it into back of the unit, tightening

into place by turning it clockwise.

2. Attach Slide Bar Connector to the other end of the Hose by extending hose at

least 6". Then tighten Hose by turning the Slide Bar Connector clockwise.

3. Place Adjustable Slide Bar in the window and expand so it ﬁts tightly.

4. Mark Slide Bar to record width of the window.

5. Apply Insulation Strips on top and bottom of Slide Bar.

6. Reposition Slide Bar Connector in the window. Expand the Slide Bar to ﬁt tight.

Tighten the screws.

7. Lower the window.

8. Make sure Hose has no kinks.

Slide Bar has 3 sections which allows installation in windows up

to 48" in width.

Installation

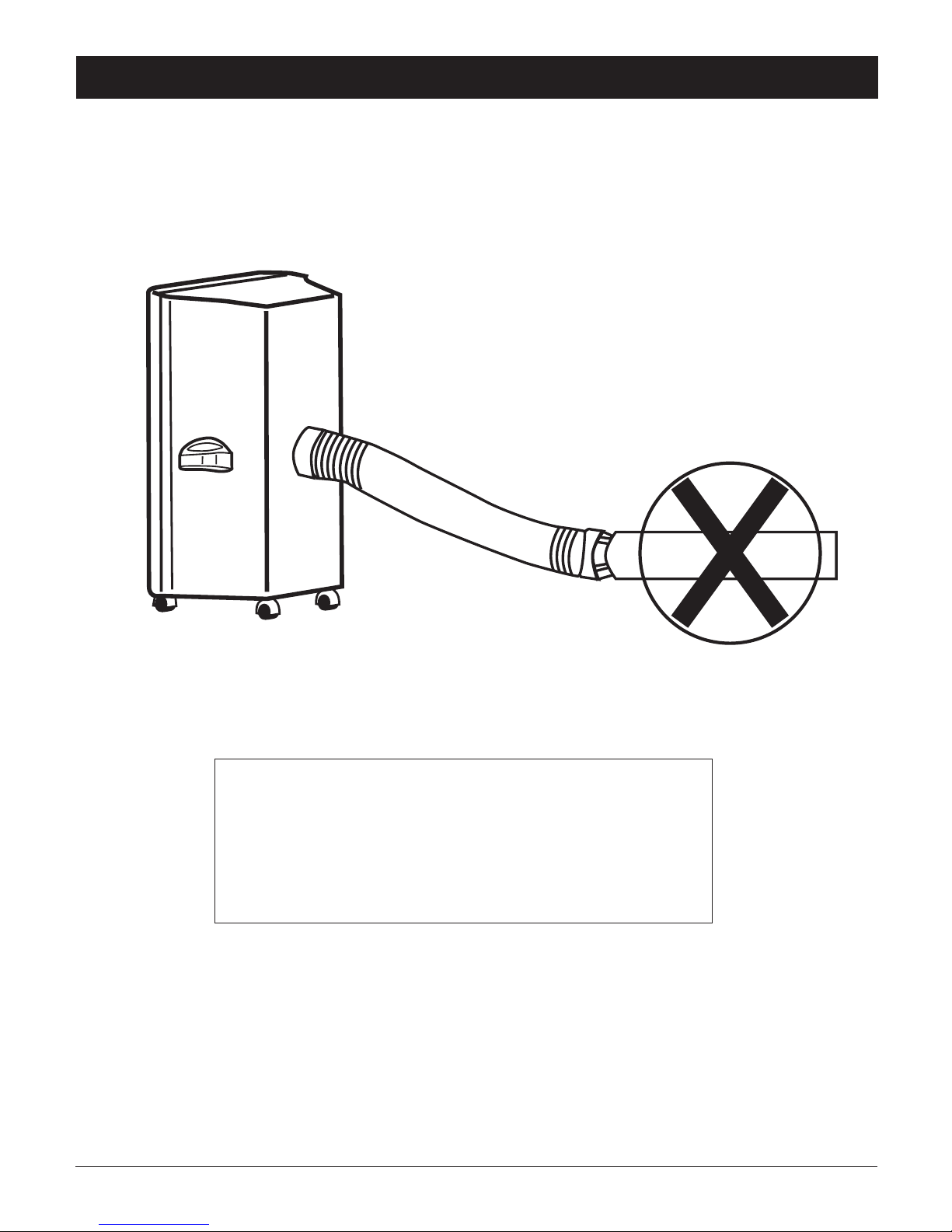

WARNING!

The length of the exhaust pipe is specially designed according

to the speciﬁcation of this product.

Do not extend it with your own hose, as this

could cause the unit to malfunction

Indice
