Welcome
Thank you for purchasing an Amcrest Speed Dome PTZ camera!
This user manual is designed to be a reference tool for the installation
and operation of your IP camera.
Here you can find information about the camera’s features and
functions, as well as information to aid in troubleshooting.
Many of the setup and installation sections below have
corresponding videos on YouTube
To access the setup videos, please go to http://amcrest.com/videos
For access to the quick start guide and other support information, go
to http://amcrest.com/support To contact Amcrest support, please
do one of the following:
Visit http://amcrest.com/contacts and use the email form
Call Amcrest Support using one of the following numbers
Toll Free: (888)212-7538
International Callers (Outside of US): +1-713-8938956
USA: +1-713-893-8956
Canada: 437-888-0177
 UK: 203-769-2757
 Email Amcrest Customer Support supp[email protected]

Important Security Warning
To keep your Amcrest camera secure and prevent unauthorized access,
please make sure to follow the steps below:
•Always make sure that your camera has
the latest firmware as listed on
www.amcrest.com/firmware
•Never use the default password for your camera. Always ensure
that your password is at least 8-10 characters long and contains
a combination of lowercase characters, uppercase characters as
well as numbers.

Important Safeguards and Warnings

1．Electrical Safety

All installation and operation should conform to your local

electrical safety codes.

The product must be grounded to reduce the risk of

electric shock. We assume no liability or responsibility

for any fires or electrical shock caused by improper

handling or installation.

2．Transportation Security

Heavy stress, violent vibrations, and excess moisture should not

occur during transportation, storage, and installation of the

device.

3．Installation

Handle the device with care. Do not apply power to the camera

before completing installation. Do not place objects on top of

the camera.

4．Repair Professionals

All the examination and repair work should be done by qualified

service engineers.

We are not liable for any problems caused by unauthorized

modifications or user-attempted repair.

5．Environment

The camera should be kept in a cool, dry place away from direct

sunlight, flammable materials, explosive substances, etc.

This product should be transported, stored, and used only

in the specified environments as stated above. Do not aim

the camera at a strong light source, as it may cause

overexposure of the picture, and may affect the longevity

of the camera’s sensors.

Ensure that the camera is in a well-ventilated area to prevent

overheating.

6. Operation and Maintenance

Do not touch the camera sensor or lens directly.

To clean dust or dirt off the lens, use an air blower or a

microfiber cloth.

7. Accessories

Be sure to use only the accessories recommended by

manufacturer. Before installation, please open the package

and check to ensure that all the components are present.

Contact the retailer that you purchased from, or Amcrest directly

if anything is broken or missing in the package.

1. Features and Specifications

1.1 Overview

The Amcrest Outdoor Speed Dome PTZ camera is an

excellent tool for digital surveillance that can be useful to a

wide variety of users. The camera connects to any router

and uses an internet connection to allow the user to access

all of its functionality from many internet connected

devices. It’s easy to use and can be set up in a relatively

small amount of time. It has various functions such as

recording, playback, and monitoring functionality and it

synchronizes audio and video by default.

This Outdoor Speed Dome PTZ camera adopts a high-quality

design to achieve high levels of reliability and security. It can

be configured to work locally, as well as remotely over the

internet.

1.2 Features

The Amcrest Outdoor Speed Dome PTZ camera has the following

features:

Network Access

The Outdoor Speed Dome PTZ camera connects to a wide

variety of routers to connect to the internet, using a wired

PoE connection. Once setup, the camera can be accessed

remotely from a wide variety of internet connected devices,

including PCs, iPhones, iPads, Android tablets, and Android

phones.

Cloud Storage Functionality

The Outdoor Speed Dome PTZ camera can record video and

audio streams to the Amcrest Cloud service to enable long-

term storage for recordings. Amcrest Cloud also allows the

user to easily find and download recorded video for

playback from any internet connected PC or Mac computer.

Advanced Playback Function

This device supports real-time recording and supports

searching through recorded footage, fast forward playback,

and downloading of videos and screenshots. The Outdoor

Speed Dome PTZ camera can also playback in slow motion,

backwards, and frame by frame as needed. When recording,

the Outdoor Speed Dome PTZ network camera shows a

date/time overlay to ensure accurate viewing of events

when they occurred. Lastly, the Outdoor PTZ camera can

support video enlargement of certain zones within a stream.

Advanced Network Protocol Support

The Outdoor Speed Dome PTZ camera is UPnP compatible,

and includes functionality for use with PPPoE, DDNS, and

other protocols to allow remote and local connection with a

large variety of network hardware. Note: There may be

slight differences in functionality due to the existence of

different product series.

2. Device Overview

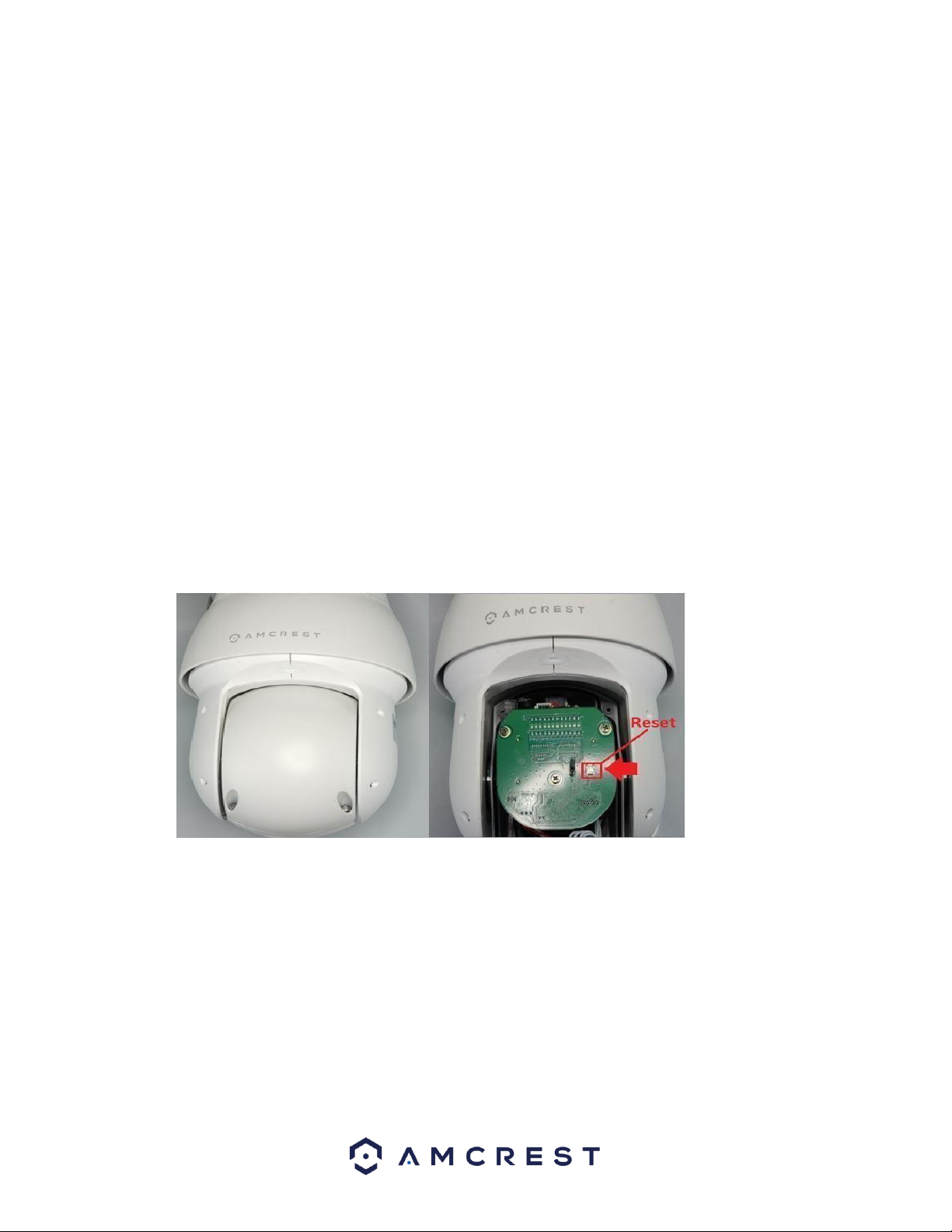

The diagram below shows the camera’s rear panel.

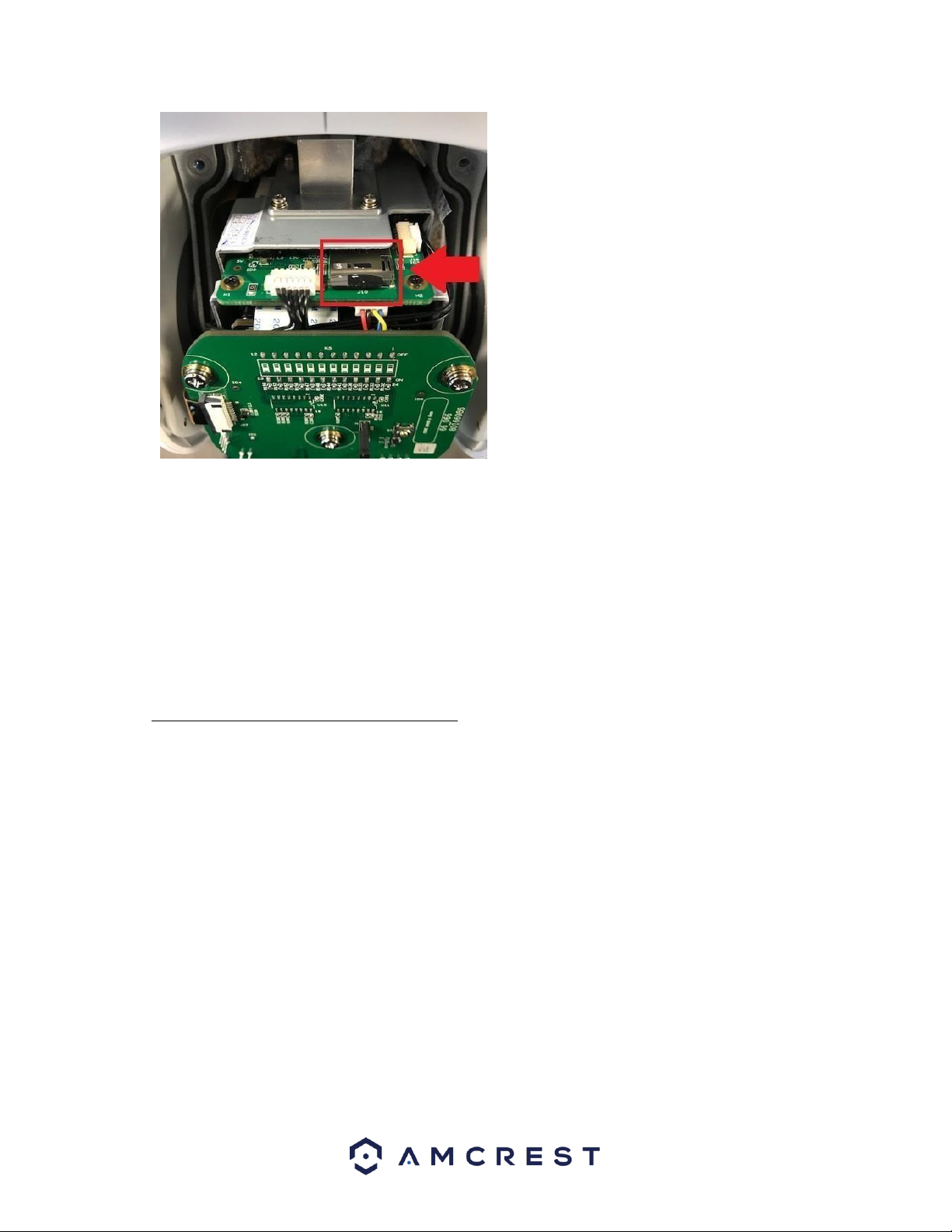

The images below show the microSD card slot for the camera.

The microSD card slot can be found on the board behind the

reset switch:

3. Connection & Installation

This section provides information about the connection and

installation of the Amcrest Outdoor PTZ camera.

Note: This is a POE+ device and requires a POE+ compatible

router/switch to function.

3.1 Connection Guide

The camera initially should be connected via the following

method:

3.2. Installation Guide

Important Notice: Prior to installation ensure that the

installation environment can support at least 3 times the weight

of the camera.

When accessing your camera, you will notice a few additional

wiring connections associated with the device. These

connections contain a power connection and ground, an

Ethernet connection, audio wires, and alarm wiring.

POWER - This connection is optional for this device since the

device will draw power via an Ethernet cable (PoE) however,

the option is there. The camera will require a basic 12V DC

power adapter. This wire also has a optional grounding

(EARTH) wire for additional grounding of the unit.

Ethernet Connection - This connection is used to transmit data and transmit

PoE power to the unit. The unit is PoE + (802.3at) compatible.

AUDIO - This connection provides two-way audio to the unit. The red

wire is for AUDIO OUT, the white wire is for AUDIO IN, and the black

wire is there to ground the audio.

ALARM -This connection provides alarm in and alarm out features to an

external alarm or security system. The basic overview of these wires are

as follows:

Blue

Alarm OUT1

Green

Alarm COM1 (Communication

Port)

Yellow & Green

Alarm Ground

Red

Alarm IN1

Brown

Alarm IN2

3.3 MicroSD card Installation

To install a microSD card into your camera, please refer to the

step by step guide below.

Note: Please refer to section 2, Device Overview, for more

details on how to access the microSD card slot.

1. Locate the microSD card slot can be found on the board

behind the reset switch.

2. Slide the microSD card into the SD card slot, gold pins down.

3. Gently press the card into place within the slot to click and lock the

microSD card into place.

3.4 Physical Installation Guide

This installation guide will highlight how to properly install and mount your camera in several different

environments. These environments included; wood, masonry (brick /block walls), and cement. Prior to installation,

please ensure that the installation environment can support at least three times the weight of the camera and the

installation bracket.

Note: There are 3 carabiners included with the camera. These carabiners will be used to provide additional support

to the camera after installation. To install, link one carabiner to the mounting bracket then link the third carabiner

to the camera.

The camera will come with proper installation materials such as screws and anchors already, however, if

replacements are needed a 9/16 lag bolt, masonry anchor, cement anchor will be required.

Please ensure the following tools are available and ready for use:

oPower Drill/impact Drill

o9/16 Drill Bit (Masonry)

o9/16 Hex Head Drill Bit

oMarker or Sharpie

oHammer/Impact

oSafety Glasses

o3/16 Allen wrench

o1” Paddle Bit (In-wall Installation)

Note: In-wall installation is when the cables run hidden inside the ceiling

or wall.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Amcrest Telecamera di sicurezza

Amcrest

Amcrest IP5M-1173EW-28MM Manuale utente

Amcrest

Amcrest IP8M-2493EB Manuale utente

Amcrest

Amcrest Smarthome ASH21 Manuale utente

Amcrest

Amcrest IP5M-1173E Manuale utente

Amcrest

Amcrest IP4M-SN2110EW-AI Manuale utente

Amcrest

Amcrest IP8M-2696EW-AI Manuale utente

Amcrest

Amcrest IP2M-841EW Manuale utente

Amcrest

Amcrest IP2M-843EB Manuale utente

Amcrest

Amcrest IP5M-T1179EW/ Manuale utente

Amcrest

Amcrest IP2M-851W Manuale utente

Amcrest

Amcrest QCcam IP3M952E Manuale utente

Amcrest

Amcrest IP4M-1055EW Manuale utente

Amcrest

Amcrest AMC4KBC36P-W Manuale utente

Amcrest

Amcrest IP4M-1054E Manuale utente

Amcrest

Amcrest NV2-HS Series Manuale utente

Amcrest

Amcrest IP8M-2496EW Manuale utente

Amcrest

Amcrest IP4M-1028EW Manuale utente

Amcrest

Amcrest IP3M-954EW Manuale utente

Amcrest

Amcrest IP8M-2454EB Manuale utente

Amcrest

Amcrest IP3M-HX2W Manuale utente

Amcrest

Amcrest IP2M-846E Manuale utente

Amcrest

Amcrest IP5M-F1180EW-V2 Manuale utente

Amcrest

Amcrest IP5M-1176EW-36MM Manuale utente

Amcrest

Amcrest IP5M-T1273EW-AI Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
