EFFECTIVE: MARCH 2011
American Dish Service
ADS LOW TEMPERATURE DISHWASHER
MODEL: 5-CD LF/RF
PARTS MANUAL 900 Blake Street
Edwardsville, Kansas 66111
(913)422-3700
C 5/08
2

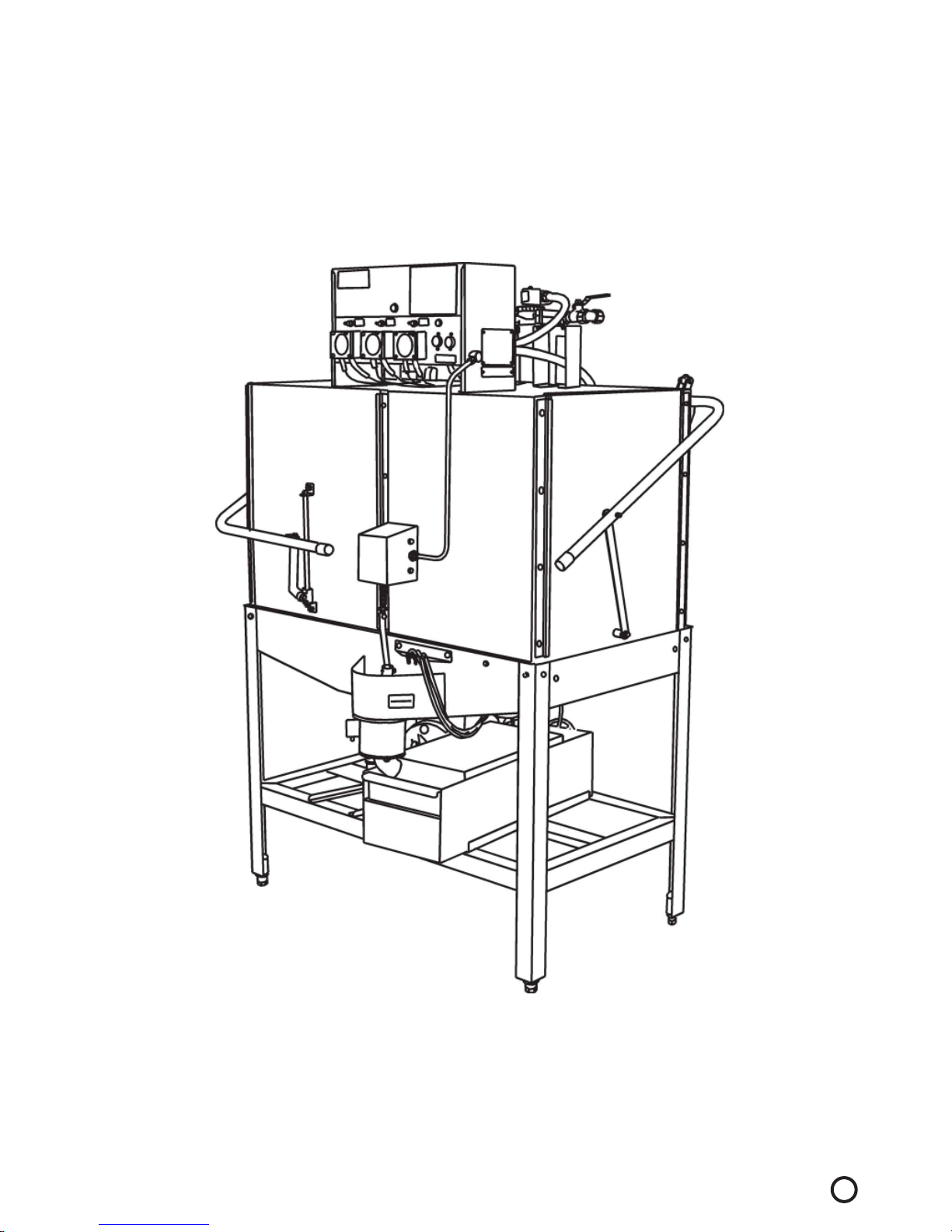

029-0090/030-0090
Model: 5-CD LF/RF
DISHMACHINE American Dish Service
3

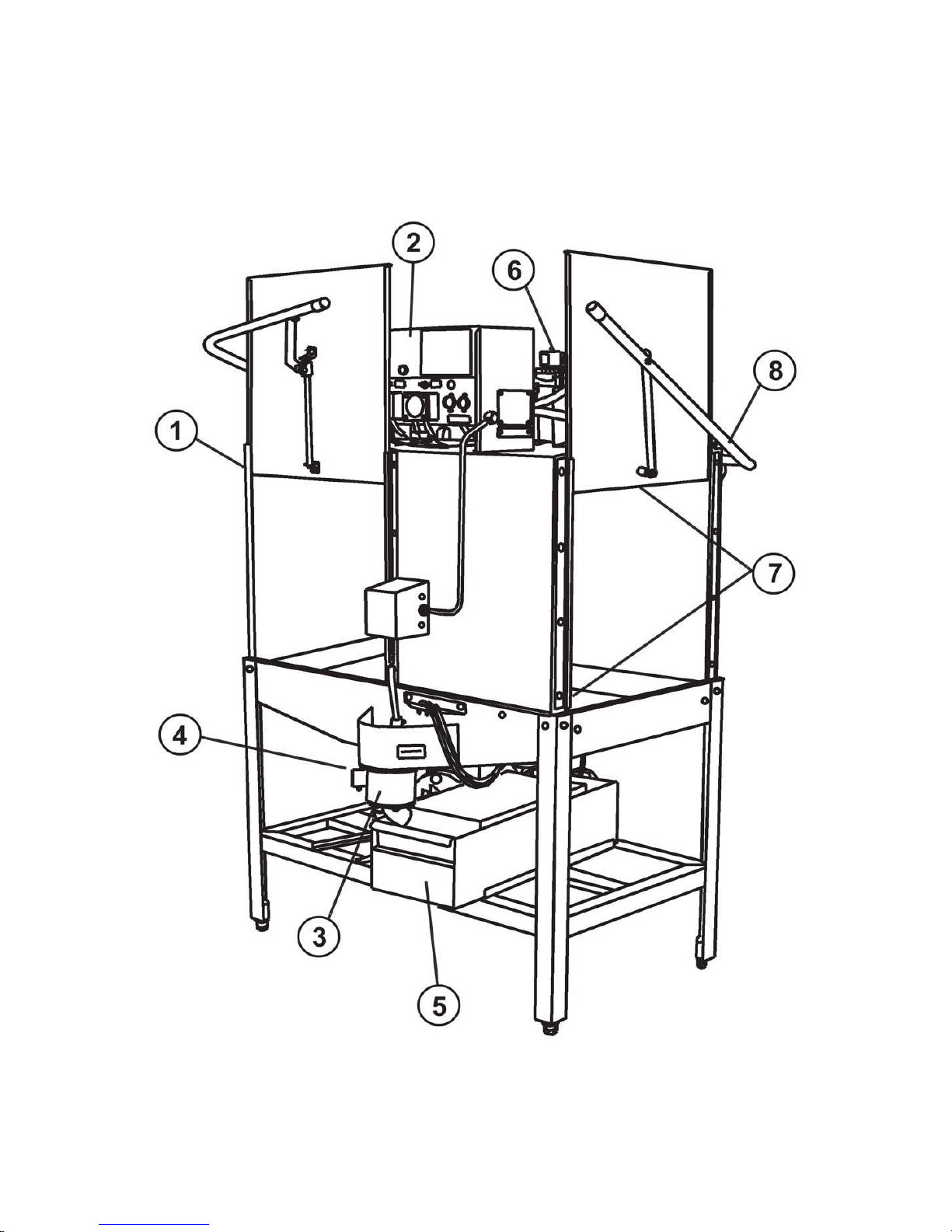

Ref.
No. Part No. No.
Req. Description
1 061-2100 1 Cabinet Assembly, 5-CD LF
061-2200 Cabinet Assembly, 5-CD RF
2 064-2800 1 Control System Assembly, 5-CD LF/RF
3 066-1700 1 Drain System Assembly, 5-CD LF
066-1800 Drain System Assembly, 5-CD RF
4 063-2200 1 Recirculating Pump Assembly, 5-CD LF
063-2300 Recirculating Pump Assembly, 5-CD RF
5 051-9001 1 Scrap Trap Weldment, 5-CD LF/RF
6 065-2100 1 Fresh Water Plumbing Assembly, 5-CD LF/RF
7 062-1800 2 Spray System Assembly, 5-CD LF
062-1900 Spray System Assembly, 5-CD RF
8 067-1400 1 Door Actuator Assembly, 5-CD LF
067-1500 Door Actuator Assembly, 5-CD RF
American Dish Service
029-0090/030-0090
Model: 5-CD LF/RF
4

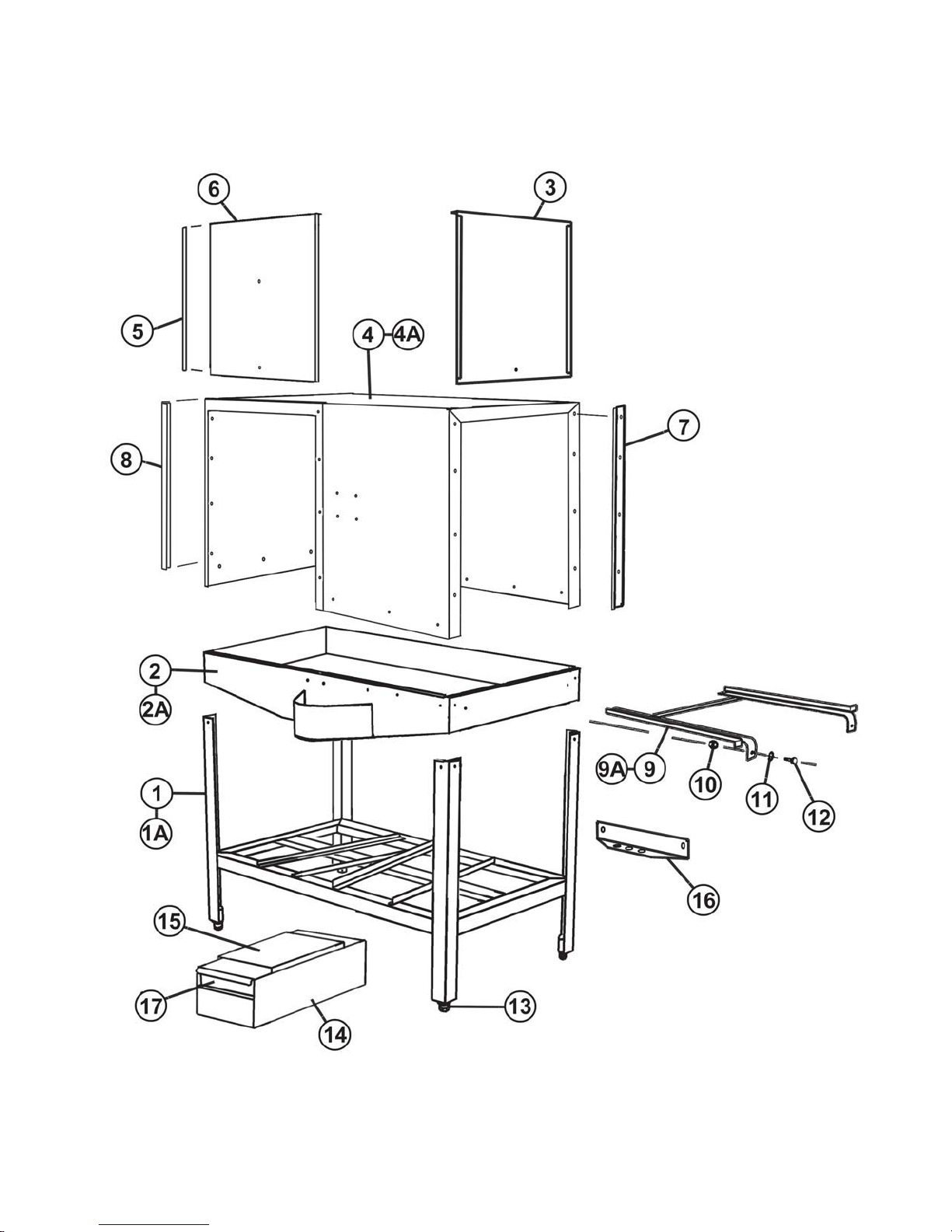

061-2100/061-2200
CABINETASSEMBLY LF/RF
5-CD American Dish Service
5
American Dish Service
061-2100/061-2200
Cabinet Assembly LF/RF
5-CD
Ref.
No. Part No. No.
Req. Description
1 085-6415 1 Frame, LF
085-6416 Frame, RF
2 085-6417 1 Pan, LF
085-6418 Pan, RF
3 087-6116 1 Door
4 085-6419 1 Hood, LF
4A 085-6420 Hood, RF
5 083-6108 4 Doorstrip, Clear
6 087-6124 1 Door, Front
7 087-6114 2 Door Guide
8 087-6118 1 Door Guide, Front Corner
9 085-6421 1 Tray Track Assembly, LF
9A 085-6422 Tray Track Assembly, RF
10 098-2507 40 Locknut, ¼-20, SS
11 098-2404 40 Washer, ¼”, SS
12 098-1423 40 Bolt, ¼-20 x ½”, HH, SS
13 099-1003 4 Bullet Foot
14 089-9055 1 Scrap Trap
15 089-9100 1 Scrap Trap Lid
16 086-6419 1 Chemical Bracket, Top Mount
17 089-9056 1 Scrap Trap Tray
N/S 086-6685 1 Bracket, 5CD Tray Track Support
N/S 087-6389 1 Front Guide, 5CD Tray Track
6

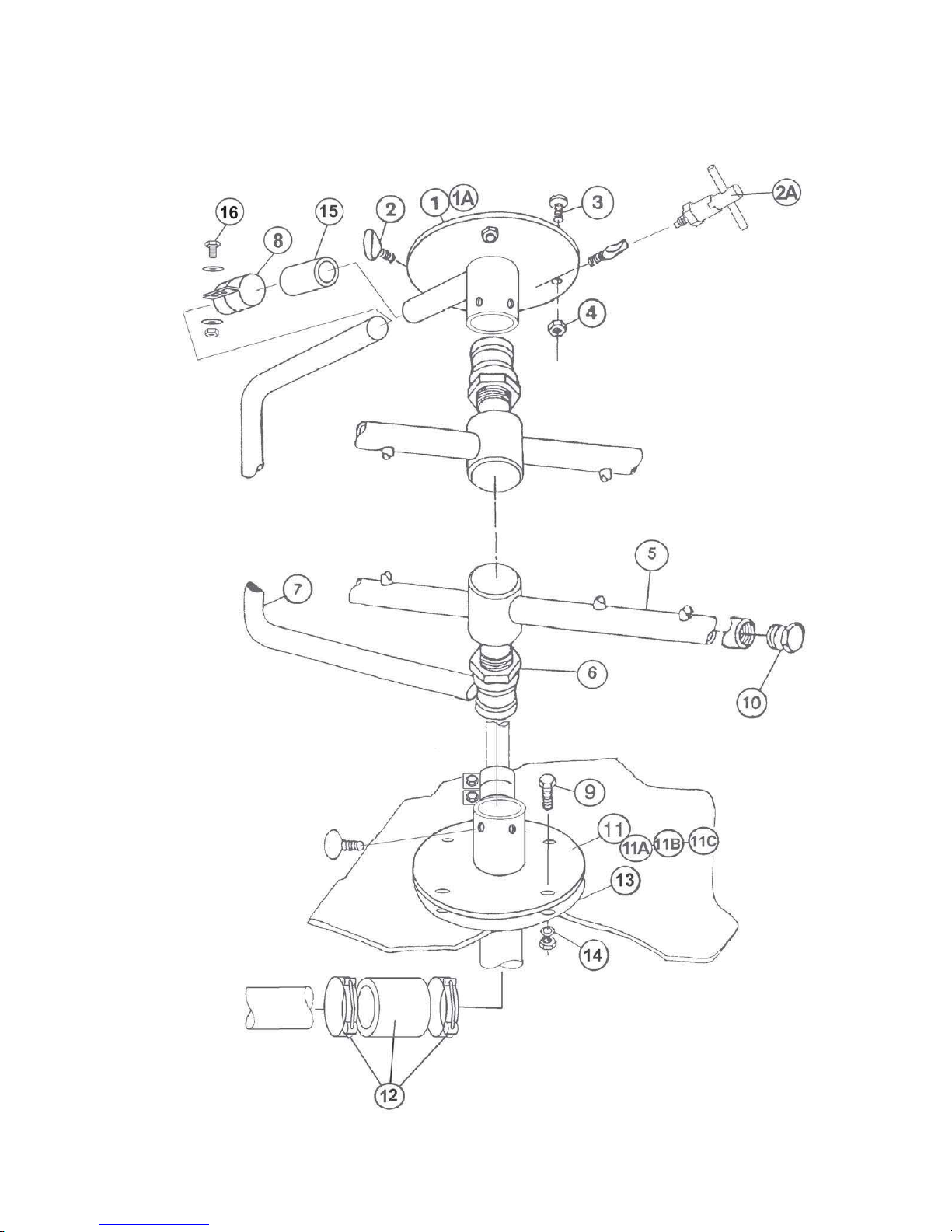

062-1800/062-1900
Spray System Assembly LF/RF
5-CD American Dish Service
7
062-1800/062-1900
Spray System Assembly LF/RF
5-CD American Dish Service
Ref.
No. Part No. No.
Req. Description
1 085-6628 2 Upper Spray Base, SS, Thumbscrew Type
1A 085-6626 Opt. Upper Spray Base, SS, Bayonet Type
2 098-1583 12 Thumb Screws 5/16-18 x 5/8” SS
2A 099-1028 Opt. Bayonet Fitting
3 098-1426 8 Bolt, ¼-20 x ¾” HH SS
4 098-2507 16 Locknut, ¼-20 SS
5 081-6214 4 Spray Arm Assembly
6 081-6210 4 Spray Arm Bearing Assembly, Cleanable
7 087-6233 1 Upper Arm Supply Tube (Manifold)
7A 087-6234 1 Upper Arm Supply Tube (Manifold) LF, LH
8 081-6501 4 Clamp Assembly, Inside Manifold (Incl. Bolts & Nuts)
9 098-1426 8 Bolt, ¼-20 x ¾” HH SS
10 084-6211 8 Spray Arm End Plug, SS
11 085-6633 1 Lower Spray Base, SS, Thumbscrew Type, RH
11A 085-6632 1 Lower Spray Base, SS, Thumbscrew Type, LH
11B 085-6631 Opt. Lower Spray Base, SS, Bayonet Type, RH
11C 085-6630 Opt. Lower Spray Base, SS, Bayonet Type, LH
12 093-1040 2 Kit, Discharge Tube
13 089-6201 2 Gasket, Spray Base
14 098-2404 8 Washer, ¼”, SS
15 093-1041 4 Plastic Sleeve, Inside Manifold Tube
16 098-1445 8 Bolt, ¼-20 x 1” HH SS
8

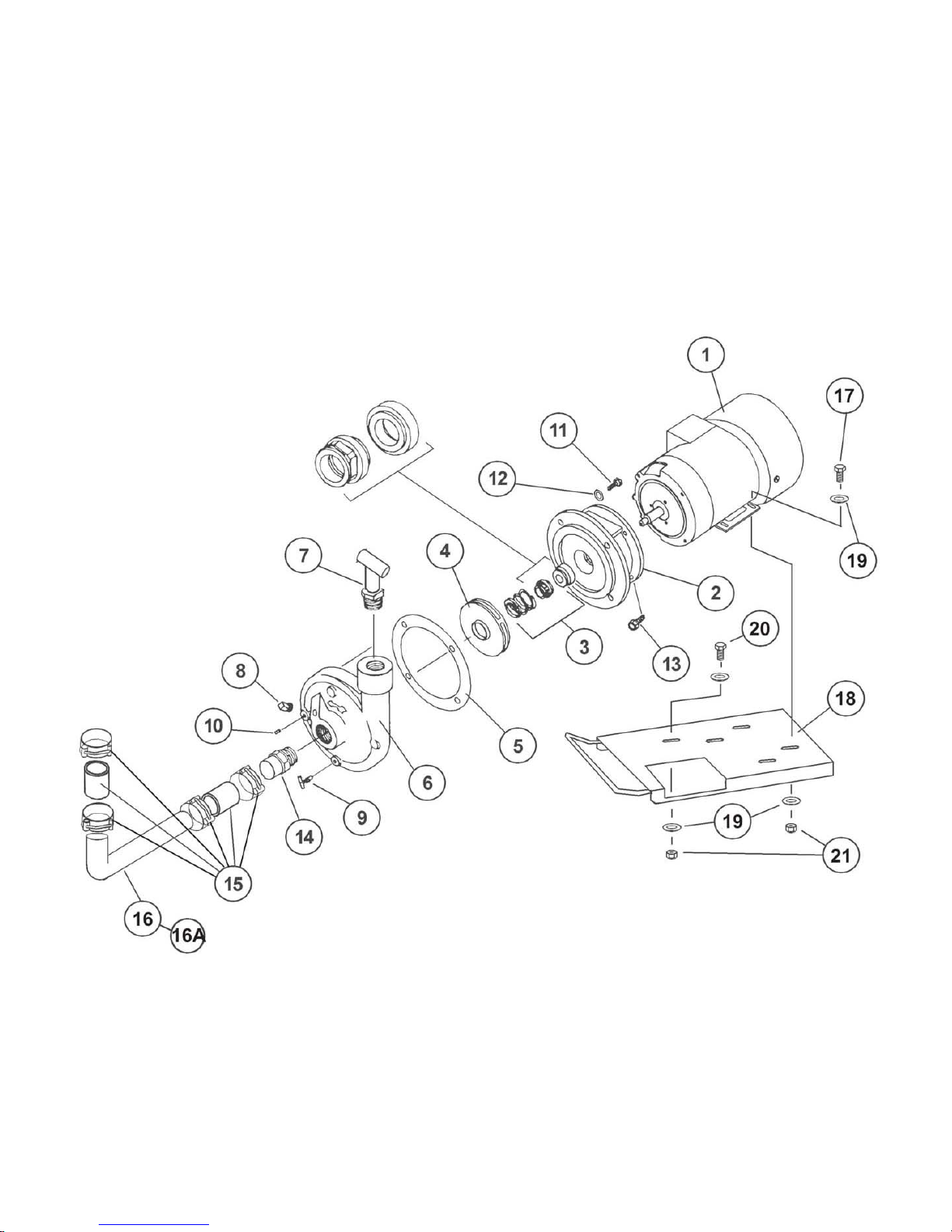

063-2200/063-2300
Recirculating Pump Assembly LF/RF
5-CD American Dish Service
9
063-2200/063-2300
Recirculating Pump Assembly
LF/RF 5-CD American Dish Service
Ref.
No. Part No. No.
Req. Description
1 091-1001 1 Motor
2 082-6301 1 Rear Housing
3 092-2001 1 Seal Assembly
4 082-6305 1 Impeller, 7-vane
5 089-6303 1 Gasket, Pump
6 082-6302 1 Front Housing (Pump Cover)
7 085-6325 1 Discharge Pipe ‘T’ Weldment
8 092-1144 1 Pipe Plug, 3/8”, SS
9 092-1002 1 Petcock 1/8”
10 092-1145 1 Pipe Plug, 1/8”, SS
11 098-1507 2 Bolt, HH, SS, 5/16-18 x 7/8
N/S 098-1510 2 Bolt, 5/16-18 x 1 ¼”, HH, SS
12 098-2503 4 Washer, Copper 5/16
13 098-1607 4 Bolt, 3/8-16 x 7/8” HH SS
14 085-6321 1 Pump Pipe, Suction
15 093-1039 2 Kit, Suction Tube
16 085-6326 1 Suction Tube, LF
16A 085-6327 Suction Tube, RF
17 098-1426 2 Bolt, ¼-20 x ¾”, HH, SS
18 085-6408 1 Motor Plate
19 098-2404 6 Washer, ¼”, SS
20 098-1434 1 Bolt, ¼-20 x 2”, HH, SS
21 098-2507 3 Locknut, ¼-20, SS
Rep. 088-1012 0 Pump assembly Through Impeller
(Needs Gasket 089-6303)
10

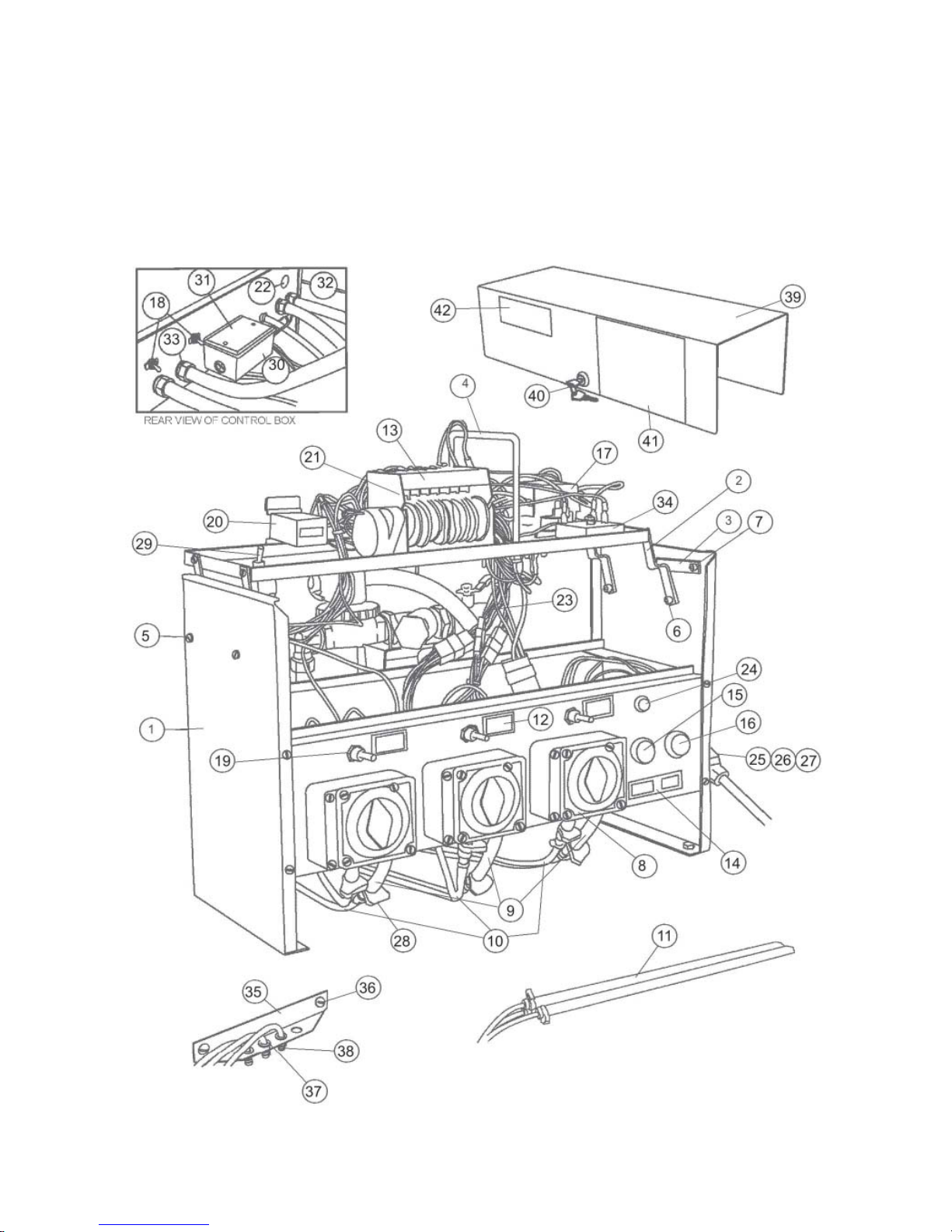

063-0800
Control System Assembly
5-CD American Dish Service
