User Instructions

General instructions:

To optimize the performance of this product,

please read these operating instructions carefully to familiarize yourself

with the basic operations of this unit. These instructions contain impor-

tant safety information regarding the use and maintenance of this unit.

Please keep this manual with the unit, for future reference.

Unpacking:

Thank you for purchasing the XP-3™ by American DJ

Every XP-3™ has been thoroughly tested and has been shipped in

perfect operating condition. Carefully check the shipping carton for

damage that may have occurred during shipping. If the carton appears

to be damaged, carefully inspect your  xture for any damage and be

sure all accessories necessary to operate the unit has arrived intact. In

the case damage has been found or parts are missing, please contact

our toll free customer support number for further instructions. Do not

return this unit to your dealer without  rst contacting customer support.

Introduction:

The XP-3™ is a unique intelligent fixture with a rotat-

ing head unit. This unit may be operated in three modes; DMX-512,

Stand-Alone, or Master/Slave. The XP-3™ comes with several build in

programs and is best used in multiples of four or more. This piece is

best used with a fog or haze machine to enhance the beam output. An

optional

MINI/C

black out controller may be purchased separately.

Customer Support:

American DJ

provides a toll free customer sup-

port line, to provide set up help and to answer any question should you

encounter problems during your set up or initial operation. You may

also visit us on the web at www.americandj.com for any comments or

suggestions. Service Hours are Monday through Friday 9:00 a.m. to

5:00 p.m. Paci c Standard Time.

Voice:

(800) 322-6337

Fax:

(323) 582-2610

E-mail:

[email protected]

Warning!

To prevent or reduce the risk of electrical shock or  re, do

not expose this unit to rain or moisture.

Caution!

There are no user serviceable parts inside this unit. Do not

attempt any repairs yourself, doing so will void your manufactures war-

ranty. In the unlikely event your unit may require service please contact

your nearest American DJ

dealer.

XP-3™ General Information

American DJ Supply

- www.americandj.com - XP-3™ Instruction Manual Page 2

American DJ

- www.americandj.com - XP-3™ Instruction Manual Page 3

•

Micro-Stepping Motors for Smooth Transitions

•

Uses Five DMX Channels

•

DMX-512 Protocol Compatible

•

Full Focusing

•

Fan Cooled.

•

17 Color/Gobo Combinations, Plus Spot

•

Strobes in Every Color

•

Built-In Programs

•

Room Type Function for Built-In Programs

•

355˚ Pan / 240˚ Tilt

•

2 Color Strobe Function

•

Digital Display

•

Master/Slave Operation

•

Linkable up to Four Units

•

Built-In Lamp Shut-Off Protection

•

Internal Microphone

•

Volume Sensitivity Knob

•

Built-In Rigging Point

•

Easy Lamp Replacement

•

Long Life ZB-JCR H5 (15v/150w) Lamp - 500 Hours

•

Optional MINI/C Blackout Controller

XP-3™ Features

The XP-3™ carries a one year (365 days) limited warranty. Please

fill out the enclosed warranty card to validate your purchase. All

returned service items whether under warranty or not, must be freight

pre-paid and accompany a return authorization (R.A.) number. The

R.A. number must be clearly written on the outside of the return

package. A brief description of the problem as well as the R.A. number

must also be written down on a piece of paper and included in the

shipping container. If the unit is under warranty, you must provide a

copy of your proof of purchase invoice. You may obtain a R.A. number

by contacting our customer support team on our toll free customer

support number at (800)

322-6337

. All packages returned to service

not displaying a R.A. number on the outside of the package will be

returned to the shipper.

XP-3™ Product Registration

XP-3™ Safety Precautions

American DJ

- www.americandj.com - XP-3™ Instruction Manual Page 4

Safety Issues:

This unit may blow a fuse if the maximum allotted

load of 5 amps is reached. If the fuse needs replacement, always

replace the fuse with same exact type that was remove, unless other-

wise instructed by an authorized American DJ

service technician. Use

of a different type fuse from that which is recommended may cause fire

or electric shock and will void the manufactures warranty.

•

To reduce the risk of electrical shock or  re, do not expose this unit

rain or moisture

•

Do not spill water or other liquids into or on to your unit

•

Do not attempt to operate this unit if the power cord has been frayed

or broken

•

Do not attempt to remove or break off the ground prong from

the electrical cord. This prong is used to reduce the risk of electrical

shock and  re in case of an internal short

•

Disconnect from main power before making any type of connection

•

Do not remove the cover under any conditions. There are no user

serviceable parts inside

•

Never plug this unit in to a dimmer pack

•

Always be sure to mount this unit in an area that will allow proper

ventilation. Allow about 6” (15cm) between this device and a wall

•

Do not attempt to operate this unit, if it becomes damaged

•

This unit is intended for indoor use only, use of this product outdoors

voids all warranties

•

During long periods of non-use, disconnect the unit’s main power

•

Always mount this unit in safe and stable matter

•

Power cords should be routed so they are not likely to be walked on,

pinched by items placed upon or against them.

• Cleaning -The fixture should be cleaned only as recommended by

the manufacturer. See page 7 for cleaning details

•

Heat -The appliance should be situated away from heat sources

such as radiators, heat registers, stoves, or other appliances

(including amplifiers) that produce heat.

•

The fixture should be serviced by qualified service personnel when:

A. The power-supply cord or the plug has been damaged.

B. Objects have fallen, or liquid has been spilled into the appliance.

C. The appliance has been exposed to rain or water.

D. The fixture does not appear to operate normally or exhibits a

marked change in performance.

ower Supply:

Before plugging your unit in, be sure the source

voltage in your area matches the required voltage for your American

XP-3.™ Because line voltage may vary from venue to venue,

you should be sure your unit voltages matches the wall outlet voltage

before attempting to operate you  xture.

DMX-512:

DMX is short for Digital Multiplex. This is a universal

protocol used as a form of communication between intelligent fixtures

and controllers.

A DMX controller sends DMX data instructions from

the controller to the fixture. DMX data is sent as serial data that

travels from fixture to fixture via the DATA “IN” and DATA “OUT” XLR

terminals located on all DMX fixtures (most controllers only have a

DATA “OUT” terminal).

DMX Linking:

DMX is a language allowing all makes and models of

different manufactures to be linked together and operate from a single

controller, as long as all  xtures and the controller are DMX compliant.

To ensure proper DMX data transmission, when using several DMX

fixtures try to use the shortest cable path possible. The order in which

fixtures are connected in a DMX line does not influence the DMX

addressing. For example; a fixture assigned a DMX address of 1 may

be placed anywhere in a DMX line, at the beginning, at the end, or

anywhere in the middle. When a fixture is assigned a DMX address of

1, the DMX controller knows to send DATA assigned to address 1 to

that unit, no matter where it is located in the DMX chain.

Data Cable (DMX Cable) Requirements (For DMX and Master/

Slave Operation):

The XP-3 can be controlled via DMX-512 proto-

col. The American DJ

XP-3™ is a  ve channel DMX unit. The DMX

address is set on the side panel using the three function buttons

under the LCD. Your unit and your DMX control-

ler require a standard 3-pin XLR connector for

data input and data output (Figure 1). If you are

making your own cables, be sure to use standard

two conductor shielded cable (This cable may be

purchased at almost all pro sound and lighting

stores). Your cables should be made with a male

and female XLR connector on either end of the

cable. Also remember that DMX cable must be

daisy chained and can not be split.

American DJ

- www.americandj.com - XP-3™ Instruction Manual Page 6

American DJ

- www.americandj.com - XP-3™ Instruction Manual Page 5

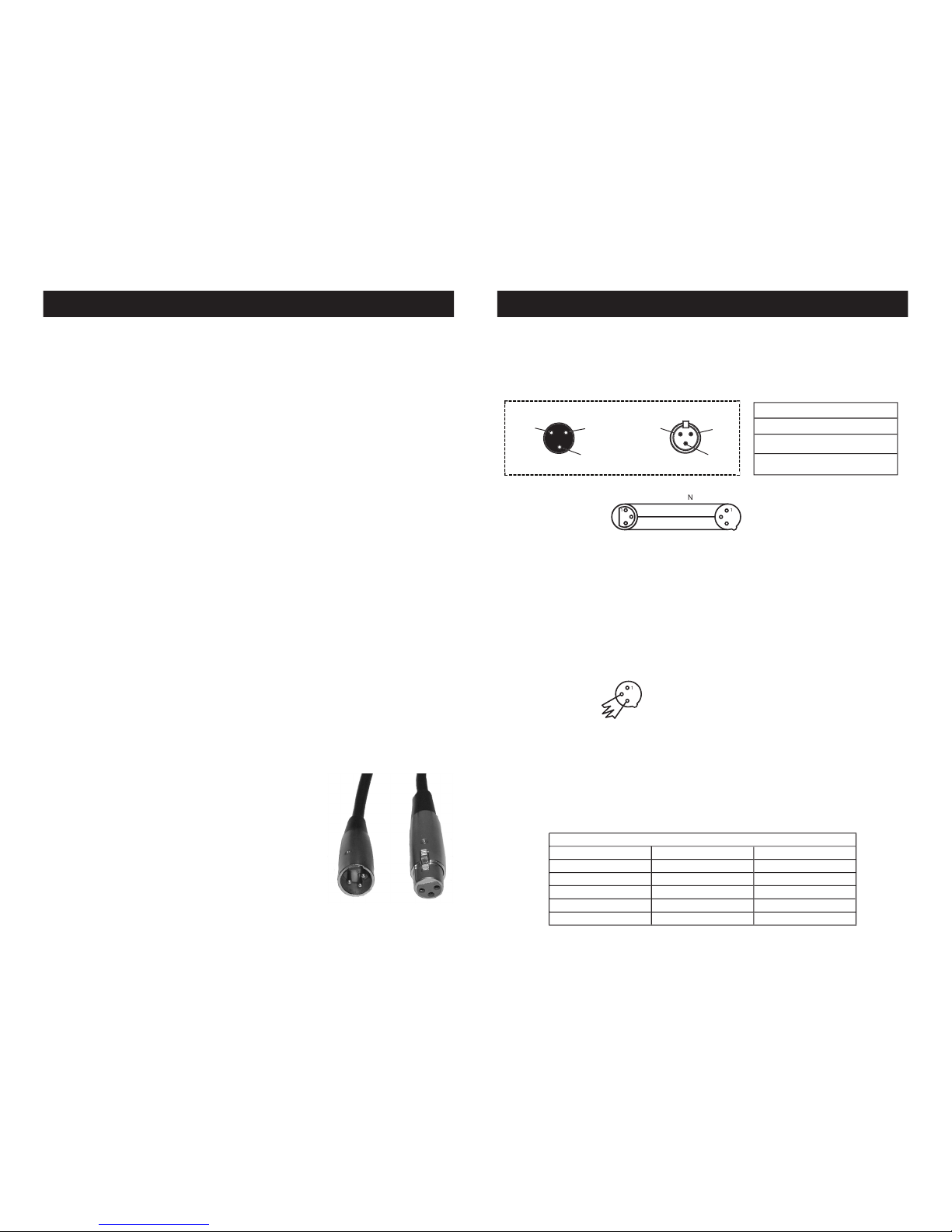

Figure 2

Figure 1

DMX512 IN

3-PIN XLR

DMX +

DMX -

COMMO

DMX512 OUT

3-PIN XLR

Figure 3

XP-3™ Set Up

1 Ground

XLR Male Socket

XLR Pin Con guration

3 Hot

2 Cold

3 Hot

XLR Female Socket

Pin 3 = Data True (positive)

Pin 2 = Data Compliment (negative)

Pin 1 = Ground

Special Note: Line Termination.

When longer runs of cable are

used, you may need to use a terminator on the last unit to avoid erratic

behavior. A terminator is a 90-120 ohm 1/4 watt resistor which is con-

nected between pins 2 and 3 of a male XLR connector (DATA + and

DATA -). This unit is inserted in the female XLR connector of the last

unit in your daisy chain to terminate the line. Using a cable terminator

(ADJ part number ZDMX/T) will decrease the possibilities of erratic

behavior.

XP-3™ Set Up

rmination

educes

signal

rrors

and

avoids

signal

transmission

problem

and

interference.

always

advisable

connect

DMX

terminal,

(Resistance

120

Ohm

1/4

between

(DMX-)

and

(DMX

the

last

fixture.

Figure 4

Notice:

Be sure to follow  gure three when making your own cables.

Do not use the ground lug on the XLR connector. Do not connect the

cable’s shield conductor to the ground lug or allow the shield conductor

to come in contact with the XLR’s outer casing. Grounding the shield

could cause a short circuit and erratic behavior.

5-Pin XLR DMX Connectors.

Some manufactures use 5-pin XLR

connectors for DATA transmission in place of 3-pin. 5-pin XLR  xtures

may be implemented in a 3-pin XLR DMX line. When inserting standard

5-pin XLR connectors in to a 3-pin line a cable adaptor must be used,

these adaptors are readily available at most electric stores. The chart

below details a proper cable conversion.

Conductor

5-Pin XLR Male (In)

3-Pin XLR Female (Out)

Pin 1

Do Not Use

Pin 3

Pin 2

Pin 1

Pin 3

Pin 2

Not Used

Data True (+ signal)

Data Compliment (- signal)

Ground/Shield

3-Pin XLR to 5-Pin XLR Conversion

XP-3™ Linking

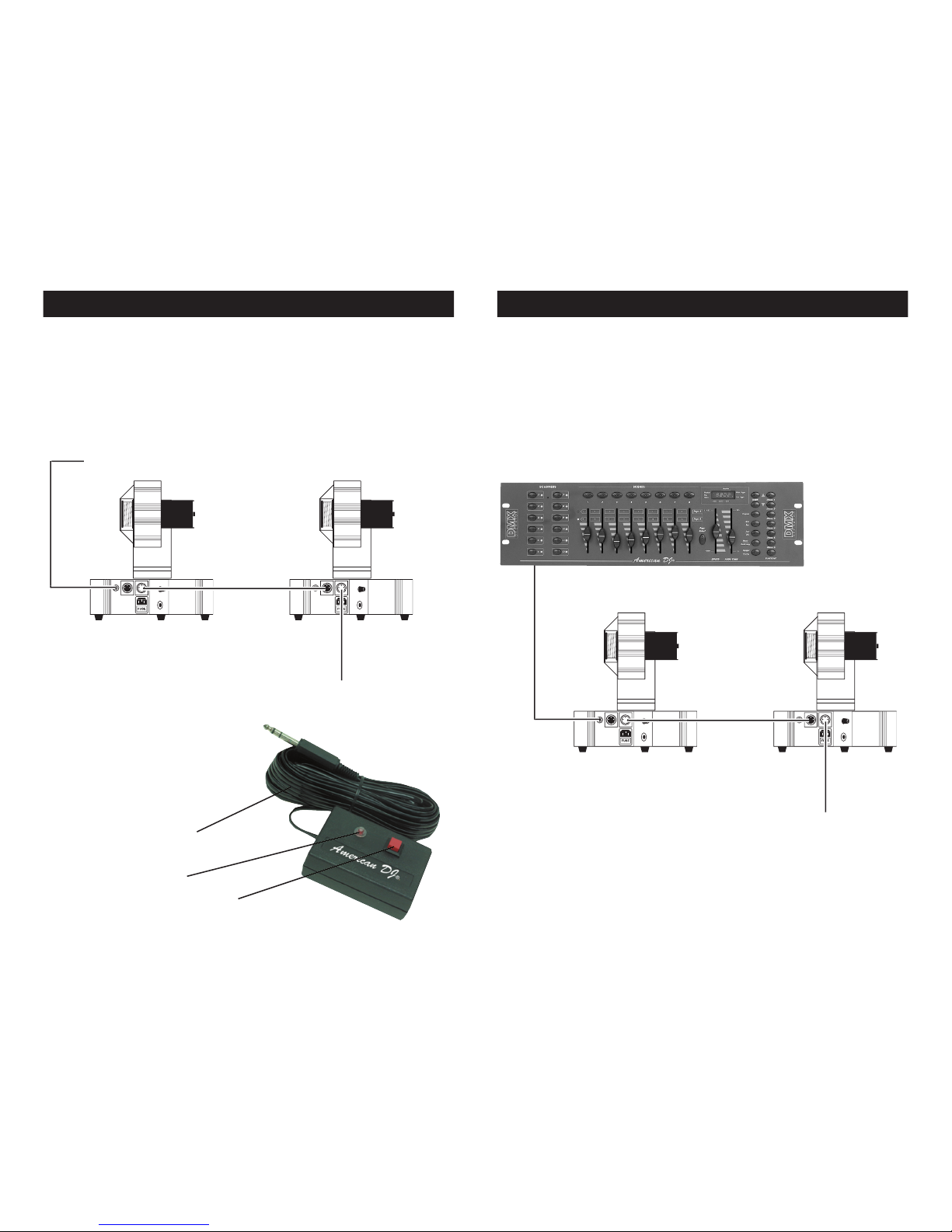

Master/Slave Linking:

For a more dramatic effect, link several XP-3™ together.

Your  xture

comes with built-in programs. These programs are designed to work

with up to 4 units when daisy-chained together in a master-slave con-

 guration. Any unit can function as either a “Master Unit” or a “Slave

Unit.” Link the units together using standard DMX cable as described

on pages 5 and 6.

To next XP-3™ if applicable

Optional MINI/C blackout controller

DMX Linking:

DMX function allows independent control of each  xture. Use any uni-

versal DMX controller to access the different traits associated with the

XP-3. A reference of different DMX traits is printed on page 21 of this

manual. Link the units together using standard DMX cable as described

on pages 5 and 6.

XP-3™ Linking

Optional MINI/C:

The optional MINI/C controller

allows all units linked together

to blackout. This unit will only

blackout the  xtures and will not

change or select different pro-

grams.

Blackout Button

30 Foot Extension Cable

Blackout Indicator

To next DMX unit or terminate.

American DJ

- www.americandj.com - XP-3™ Instruction Manual Page 7

American DJ

- www.americandj.com - XP-3™ Instruction Manual Page 8

American DJ

- www.americandj.com - XP-3™ Instruction Manual Page 10

American DJ

- www.americandj.com - XP-3™ Instruction Manual Page 9

XP-3™ Controls and Functions

TOP

BOTTOM

Lens -

This is a fully focusing high quality lens. Focus the lens by manually

turning the lens in a clockwise or counter-clockwise direction until the

image is in focus.

XLR Output Jack -

This jack is used to transmit the incoming DMX signal to another DMX

 xture, or transmit a Master/Slave signal to the nest XP-3™ in the

chain. For best results in DMX or Master/Slave mode, terminate this

jack if it is the last unit in the chain. See

“Terminator”

on page 7.

“Terminator” on page 7. “Terminator”

XLR Input Jack -

This jack is used to accept an incoming DMX signal (from a universal

DMX controller) or Master/Slave (from the output jack of another

XP-3™) signal.

MINI/C Controller Jack

This jack is for use with the optional

MINI/C Blackout controller only.

See page 7 for details on the MINI/C controller.

Do not attempt to con-

nect an audio signal this jack, this will damage the PC board and void

your manufactures warranty!

Power Cord Connection -

The power connection uses an I.E.C. type connector, use only a power

cord that matches this type of connection. Be sure to only connect

this unit to a power outlet that matches the printed power label on the

unit. Never use a power when the ground prong has been removed or

broken off. The ground prong is used to reduce the risk of electrical

shock in case of an electrical short. .

Fuse Holder -

This housing stores the 5 amp GMA protective fuse. Always

replace with the exact same type fuse, unless other

wise instructed, by

an authorized American DJ

service technician.

Lamp Socket Cover Thumb Screw -

This thumb screw holds the lamp socket assembly cover (16) into

place.

Lamp Socket Cover -

This thumb screw holds the lamp socket cover (16) into place.

XP-3™ Controls and Functions

Audio Sensitivity Knob -

This knob adjust the audio sensitivity of the internal microphone (10).

Turning the sensitivity knob in the clockwise direction will increase the

sensitivity to sound. Turning the knob in the counter clockwise direction

will decrease the  xture’s sensitivity to sound.

10.

Microphone -

This microphone receives external low frequencies to trigger the unit in

Sound-Active and Master/Slave mode..

11.

Cooling Vents -

These vents are used to allow proper cooling. Keep the vents clean.

Never block the vents, improper cooling may result in premature lamp

failure.

12.

Option Switches -

These are used to access two special functions:

Switch 1:

Inverted Pan - When activated this switch will invert the

PAN value. Left will become right and vice versa.

Switch 2:

Inverted Tilt - When activated this switch will invert the

TILT value. Up will become down and vice versa.

13.

Function Buttons -

These buttons serve two functions. When the unit is to be used as the

master unit in master/slave mode these switches are used to assign the

program pattern type, either large or small. In when the used is to be

used as a slave or when in DMX mode these buttons are used to assign

a DMX address to the unit.

XP-3™ Controls and Functions

American DJ

- www.americandj.com - XP-3™ Instruction Manual Page 12

American DJ

- www.americandj.com - XP-3™ Instruction Manual Page 11

Dipswitch Functions

1 2

ON 1 : Pan Inverted

2 : Tilt Inverted

5 1 2

Function Buttons Key

1 2 3

1 Function Key : F01 And F02 And DMX Address Change Key

2 Up Key : DMX Address Up Counter

Down Key : DMX Address Down Counter

Operating Modes:

The XP-3

™

may be operated in three different modes:

•

Stand alone mode -

The unit will react to sound, chasing through

Stand alone mode - The unit will react to sound, chasing through Stand alone mode -

the several built in programs. You can also use the optional MINI/C

remote to control a blackout function.

• Master/Slave mode -

You can daisy chain up to 16 units together

to get a synchronized light show that will react to sound chasing

through several built in programs. You can also use the optional

MINI/C remote to control a blackout function.

•

DMX control mode -

This function will allow you to control each

individual fixtures traits with a standard DMX 512 controller such as

the American DJ® DMX Operator™ or Show Designer.

™

Stand-Alone Operation (Sound Active):

This function allows a

single unit to run to the beat of the music. Only use this function when

running a single unit, or when running several units as individuals.

Please note this function does not allow individual control of the DMX

traits and will only run to the units built-in programs.

To activate the Sound-Active mode, use the function button to

select either a large or small program pattern (

See “Master” on

the function button chart above

). Large or Small is used to refer-

ence the room size the unit will be used in. A large program type will

use programs that cover a wide area and small program type will

use programs that cover a narrow area.

The unit will now react to the low frequencies of music via the inter-

nal microphone.

Adjust the audio sensitivity knob on the side of the unit to make the

unit more or less sensitive to sound.

Turning the sensitivity knob in

the clockwise direction will increase the sensitivity, turning the knob

XP-3™ Operation

Master/Slave Settings

F 0 1

F 0 2

0 0 1

0 0 6

Master

Slave 1

Slave 2

Slave 3

Small Pattern On Sound Active

Big Pattern On Sound Active

Address 01

Address 06

American DJ Supply

- www.americandj.com - XP-3™ Instruction Manual Page 14

American DJ Supply

- www.americandj.com - XP-3™ Instruction Manual Page 13

XP-3™ Operation

in the counter-clockwise direction will decrease the  xture’s sensi-

tivity to sound.

The optional

MINI/C Blackout Controller

may be used in this

mode to control blackout.

Note: Stand-Alone operation require sound to activate! The units will

blackout in this mode to conserve bulb life when there is no sound pres-

ent.

Master-Slave Operation (Sound Active):

This function will

allow you to link up to 4 units together and operate to the built-in pro-

grams without the use of an external controller. The units will all oper-

ate to sound, via the “Master” unit’s internal microphone and sound

sensitivity setting. In Master-Slave operation one unit will act as the

controlling unit and the others will react to the controlling units pro-

grams. Any unit can act as a Master or as a Slave. Please note this

function does not allow individual control of the DMX traits and will only

run to the units built-in programs.

Using standard XLR microphone cables, as described on pages

 ve and six, daisy chain your units together via the XLR connectors

on the rear of the units. Remember the Male XLR connector is the

input and the Female XLR connector is the output. The  rst unit in

the chain (master) will use the female XLR connector only. The last

unit in the chain will use the male XLR connector only. For longer

cable runs we suggest a terminator at the last fixture.

Follow the chart at the end of this section for proper addressing.

Use the chart on the next page to set the program type, either

large or small. Large or Small is used to reference the room size

the unit will be used in. A large program type will use programs

that cover a wide area and small program type will use programs

that cover a narrow area.

Adjust the audio sensitivity knob on the side of the unit to make the

unit more or less sensitive to sound.

Turning the sensitivity knob in

the clockwise direction will increase the sensitivity, turning the

knob in the counter-clockwise direction will decrease the  xture’s

sensitivity to sound.

The optional

MINI/C Blackout Controller

may be used with this

function for blackout.

Note: Master-Slave operation require sound to activate! The units will

blackout in this mode to conserve bulb life when there is no sound pres-

ent.

Universal DMX Control:

This function allows you to use a universal

DMX

512

controller such

as the American DJ

DMX Operator™ or

Show Designer.™ to control head movement, the color/gobo wheel

and other functions. Operating through a DMX controller allows you

the freedom to create unique and customized programs tailored to

your specific individual needs.

The XP-3™ uses five DMX channels. Channel one controls pan,

channel controls tilt, channel three controls the color/gobo wheel,

channel four control a unique 2 Color Strobe function (see page

19 for details on the 2 Color Strobe Function) and channel five

controls the shutter and general strobe function. Page 13 details

the different DMX traits in depth.

To control your fixture in DMX mode, follow the set-up procedures

XP-3™ Operation

Master/Slave Settings

F 0 1

F 0 2

0 0 1

0 0 6

Master

Slave 1

Slave 2

Slave 3

Small Pattern On Sound Active

Big Pattern On Sound Active

Address 01

Address 06

on pages 5 - 7 as well as the set-up specifications that are included

with your DMX controller.

Use the DMX controller’s faders to control the various DMX fixture

traits.

This will allow you to create your own programs.

When using a DMX controller and setting up for DMX operation

follow the DMX addressing procedure in your controller’s manual.

All fixtures must follow a specific DMX addressing protocol for

proper operation in DMX mode.

For help operating in DMX operation consult the manual included

with your DMX controller.

For longer cable runs (more than a 100 feet) use a terminator on

the last fixture.

XP-3™ Operation XP-3™ DMX Traits

The chart below details the DMX traits in depth. The individual trait

can only be accessed by using an universal DMX controller. Note: The

gobo patterns can be found on the next page.

255

335

CHANNEL 1

255

00 00 00

255

TILT

CHANNEL 2

255

GOBO/COLOR

CHANNEL 3

DMX TRAITS

XP-3

PAN

240

240-255

00-15 Large White Spot

16-23

24-31

Gobo 1 - Red

32-39

Gobo 2 - Blue

40-47

Gobo 3 - Green

48-55

Gobo 4 - Yellow

56-63

Gobo 5 - Lt. Blue

64-71

Gobo 6 - Orange

72-79

Gobo 7 - Red / Green

80-87

Gobo 8 - Purple

88-95

Gobo 9 - Red / Green /

Yellow / Lt. Blue

96-103

Gobo10 - White

104-111

Gobo 11 - Lt. Blue

112-119

Gobo 12 - Yellow

120-127

Gobo 13 - Lt. Blue / Yellow

128-135

Gobo 14 - Orange

136-143

Gobo 15 - Pink

Gobo 17 - Dk. Blue144-151

Gobo 16 - Green

Large White Spot

152-239 Rotation

Fast - 239

Slow - 152

STROBE / SHUTTER

255

CHANNEL 5

Strobe

16-239

240-255 Open

239

152

01-15

239

Speed Slow 2 fps -16

Speed Fast 10 fps -239

G2 COLOR / OBO STROBE

Speed Slow 1 fps - 255

CHANNEL 4

255

Any Color/Gobo Up

129-255

Speed Fast 7 fps - 129

Speed Fast 7 fps -128

Any Color/Gobo Down

01-128

Speed Slow 1 fps - 01

Stop

00 Lamp Off

243

American DJ

- www.americandj.com - XP-3™ Instruction Manual Page 16

American DJ

- www.americandj.com - XP-3™ Instruction Manual Page 15

2 Color Strobe Function:

This features allows two adjacent Color/

Gobo combinations on the Color/Gobo wheel to strobe in and out of

each other. For example, Looking at the chart above. Gobo 1 is red

and gobo 2 is blue. Using the 2 Color Strobe function will allow red

and blue strobe. Another example is to take gobos 14 and 15 together,

gobo 14 is orange and gobo 15 is pink, therefore using the 2 Color

Strobe function will give off an orange and pink strobe. This feature

will work with any two color/gobo combination that next to each other

on the gobo wheel

The XP-3 ships with a built-in rigging point and two large holes in the

base of the unit that are to be used for safety cables. The rigging point

is located on the bottom of the unit. This rigging point is secured to the

 xture by two large Phillips screws. When the rigging point is not to be

used and when the  xture is shipped from the manufacture, the point

is shipped inverted. When the  xture is to be hung by truss or other

means, please use the rigging point and secure the  xture with safety

cables. Always be sure to  rmly secure the rigging point to the unit. The

XP-3™ can be mounted to a wall or may hung from truss.

XP-3™ Mounting

American DJ

- www.americandj.com - XP-3™ Instruction Manual Page 18

American DJ

- www.americandj.com - XP-3™ Instruction Manual Page 17

XP-3™ Cleaning

XP-3™ Trouble Shooting

Fixture Cleaning:

Due to fog residue, smoke, and dust cleaning the internal and external

optical lenses and mirror should be carried out periodically to optimize

light output. Cleaning frequency depends on the environment in which

the fixture operates (I.e. smoke, fog residue, dust, dew). In heavy club

use we recommend cleaning on a monthly basis. Periodic cleaning will

ensure longevity, and crisp output.

Use normal glass cleaner and a soft cloth to wipe down the outside

casing.

Use a brush to wipe down the cooling vents and fan grill.

Clean the external optics and mirror with glass cleaner and a soft

cloth every 20 days.

Clean the internal optics with glass cleaner and a soft cloth every

30-60 days.

Always be sure to dry all parts completely before plugging the unit

back in.

Trouble Shooting:

Listed below are a few common problems that you may encounter,

with solutions.

No light output from the unit;

Be sure you have connected your unit into a standard 120V wall

outlet.

Be sure the external fuse has not blown. The fuse is located on the

bottom panel of the unit.

Remove the lamp cover and be sure the lamp is seated in its

socket properly. Occasionally lamps become loose during shipping

be sure the lamp is push in to its socket all the way.

Be sure the fuse holder is completely and properly seated.

Unit does not respond to sound;

Low frequencies (bass) should cause the unit to react to sound.

Tapping on the microphone, quiet or high pitched sounds may not

activate the unit.

Be sure the

SENSITIVITY KNOB (5)

is not set to the minimum

position

XP-3™ Gobo Wheel Layout

This chart details the gobo patterns as well as the gobo placement on

the internal wheel.

Gobo one is the large spot. The arrow indicates

the wheel rotation.

GOBO 1

XP-3™ Fuse & Lamp Replacement

with halogen lamps.

Never touch the new lamp with your bare

fingers.

Remove the thumb screw on the rear of the unit’s head. This screw

hold the lamp socket cover in place.

Pull back the cover once the screw has been removed to access

the socket assembly.

Carefully remove the old lamp and discard it in the trash.

Replace the lamp with an exact match and reassemble.

American DJ

- www.americandj.com - XP-3™ Instruction Manual Page 19

American DJ

- www.americandj.com - XP-3™ Instruction Manual Page 20

XP-3™ Fuse & Lamp Replacement

Caution:

Always replace with the exact same type lamp and fuse,

unless otherwise specified by an authorized American

DJ®DJ

technician.

® technician. ®

Replace with anything other than the specified part can damage your

unit and will void your manufactures warranty.

Warning:

If, after replacing the lamp or fuse either one continues

to blow, STOP using the unit. Contact customer support for further

instructions, you may have to return the unit for servicing. Continuing

to use the unit may cause serious damage.

Fuse Replacement:

Disconnect the unit’s main power supply.

Insert a standard flat head screw driver in to the fuse holder

housing. Turn the screwdriver in counter-clockwise direction to

remove the fuse holder. Remove the fuse holder to expose

the fuse. Remove the old fuse and discard it. Replace the fuse

with the same type. Insert the fuse holder back into it’s housing

and turn it in clockwise direction to lock the holder in place.

Lamp Replacement:

Caution! Never attempt to change the lamp

while the fixture is plugged in. Always disconnect the main power and

allow the unit ample time to cool before attempting to replace the

lamp. Lamp replacement has been made simple by incorporating the

use of a flip-up front cover that is retained by thumb screws.

Be sure to follow the proper handling procedures that deal

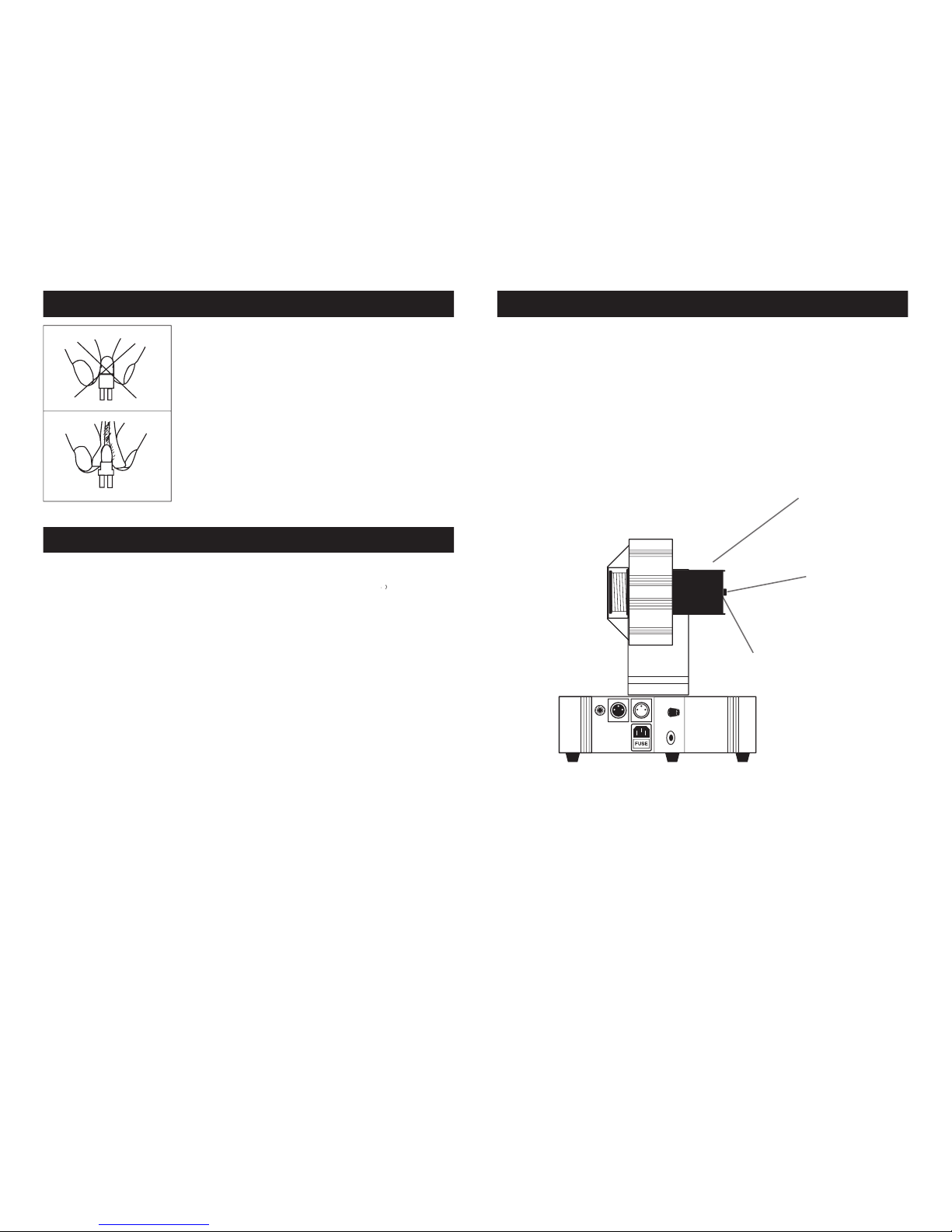

Thumb Screw

Lamp Cover

Lamp Socket

Assembly

XP-3™ Halogen Lamp Warning

This fixture is fitted with halogen lamps which

are highly susceptible to damage if improperly

handled. Never touch the lamps with your

bare fingers as the oil from your hands will

shorten lamp life. Also, never move the fixture

until the lamps have had ample time to cool.

Remember, lamps are not covered under war-

ranty conditions.

Indice

Altri manuali American DJ Apparecchio di illuminazione

American DJ

American DJ ActivePod Manuale utente

American DJ

American DJ ColorPod Manuale utente

American DJ

American DJ Fantasy Scan 250 Manuale utente

American DJ

American DJ Accu LED MH Manuale utente

American DJ

American DJ Color Expander Manuale utente

American DJ

American DJ Accu Scan 250 Manuale utente

American DJ

American DJ Verti Color Manuale utente

American DJ

American DJ Profile Panel RGB Manuale utente

American DJ

American DJ Accu UFO PRO Manuale utente

American DJ

American DJ Vizi Spot LED PRO Manuale utente

American DJ

American DJ Mega Pixel Arch Manuale utente

American DJ

American DJ Globe Color Manuale utente

American DJ

American DJ Revo II Manuale utente

American DJ

American DJ X-Move LED 25R Manuale utente

American DJ

American DJ X-Move LED Plus R Manuale utente

American DJ

American DJ Flat Par QWH12X Manuale utente

American DJ

American DJ X-Treme Manuale utente

American DJ

American DJ Vizi Wash LED 108 Manuale utente

American DJ

American DJ WIFLY BAR RGBA Manuale utente

American DJ

American DJ Colorbar 39 Manuale utente

American DJ

American DJ Reflex 300 Manuale utente

American DJ

American DJ Illusion Dotz 4.4 Manuale utente

American DJ

American DJ Double Roller Manuale utente

American DJ

American DJ Mini Starball II Manuale utente

Manuali Apparecchio di illuminazione popolari di altre marche

Emos

Emos CLASSIC ZY1431T Manuale utente

Westinghouse

Westinghouse Outdoor Lighting Fixture Manuale utente

Hedler

Hedler C 12 silent Manuale utente

Blizzard Lighting

Blizzard Lighting Puck: CSI Manuale utente

Energetic Lighting

Energetic Lighting ELYSL-5004 Series Manuale utente

Lightmaxx

Lightmaxx Shaft 5R Manuale utente

Triarch

Triarch 31083 Manuale utente

Philips

Philips 32614 Series Manuale utente

IKEA

IKEA TIVED Manuale utente

Lightolier

Lightolier LP200 Manuale utente

Chauvet Professional

Chauvet Professional ROGUE R1 BEAM WASH Manuale utente

Martin

Martin MAC 250 Krypton Manuale utente

Cooper Lighting

Cooper Lighting Halo L3232E Manuale utente

Stageline

Stageline ODW-2410RGBW Manuale utente

Light Sky

Light Sky Tornado Series Manuale utente

Lightolier

Lightolier Paralyte 2424 PLA2G9LS26U Manuale utente

Lightolier

Lightolier Lytespan 83ED17S Manuale utente

Lightolier

Lightolier Calculite CS8226 Manuale utente
