American Dynamics ADCPWMCRNR Istruzioni per il montaggio

Locate the corner mount in the required position. Use screws and wall plugs

(as appropriate to the wall surfaces) to fix the corner mount on the wall.

Access to the screw positions is gained through the open front aperture of

the corner mount.

Install the dome camera on the corner mount by first arranging the cables.

Fit and tighten the dome camera on the coner mount by rotating clockwise.

Installation Completed.

Note: The securing hole should be on the bottom side of the corner mount

(as picture shown above).

Cover the dome camera with the corner mount lid. Insert and tighten the securing

screw to fix the lid to the corner mount. Insert the white screw cover to complete the

installation.

Securing Hole

Corner Mount Securing Screws

Securing

Screws

Power Input

Connector

Video Connector

Corner Mount Lid

Securing Screw

Cable Entry

Dome Camera

Packing List

• Corner Mount x 1

• Corner Mount Lid x 1

• Screw Pack x 1

Please visit our website for more information:

www.americandynamics.net

Product specifications subject to change without notice. Certain product

names mentioned herein may be trade names and/or registered trademarks

of other companies.

ADCPWMCRNR

Indoor Mini Dome

Corner Mount Installation Sheet

8200-0865-01 Rev A

The ADCPWMCRNR Corner Mount is designed for use with all Discover

Indoor Mini-Domes.

Note: The lid is designed so that when placed on the base it has some free

movement to try and compensate for un-even walls.

Screw Cover

1.97 inch

(50 mm)

2.76 inch

(70 mm)

1.88 inch

(47.80 mm)

3/4”NPT

1.10 inch

(28mm)

4.72 inch

(120 mm) 6.38 inch

(162 mm)

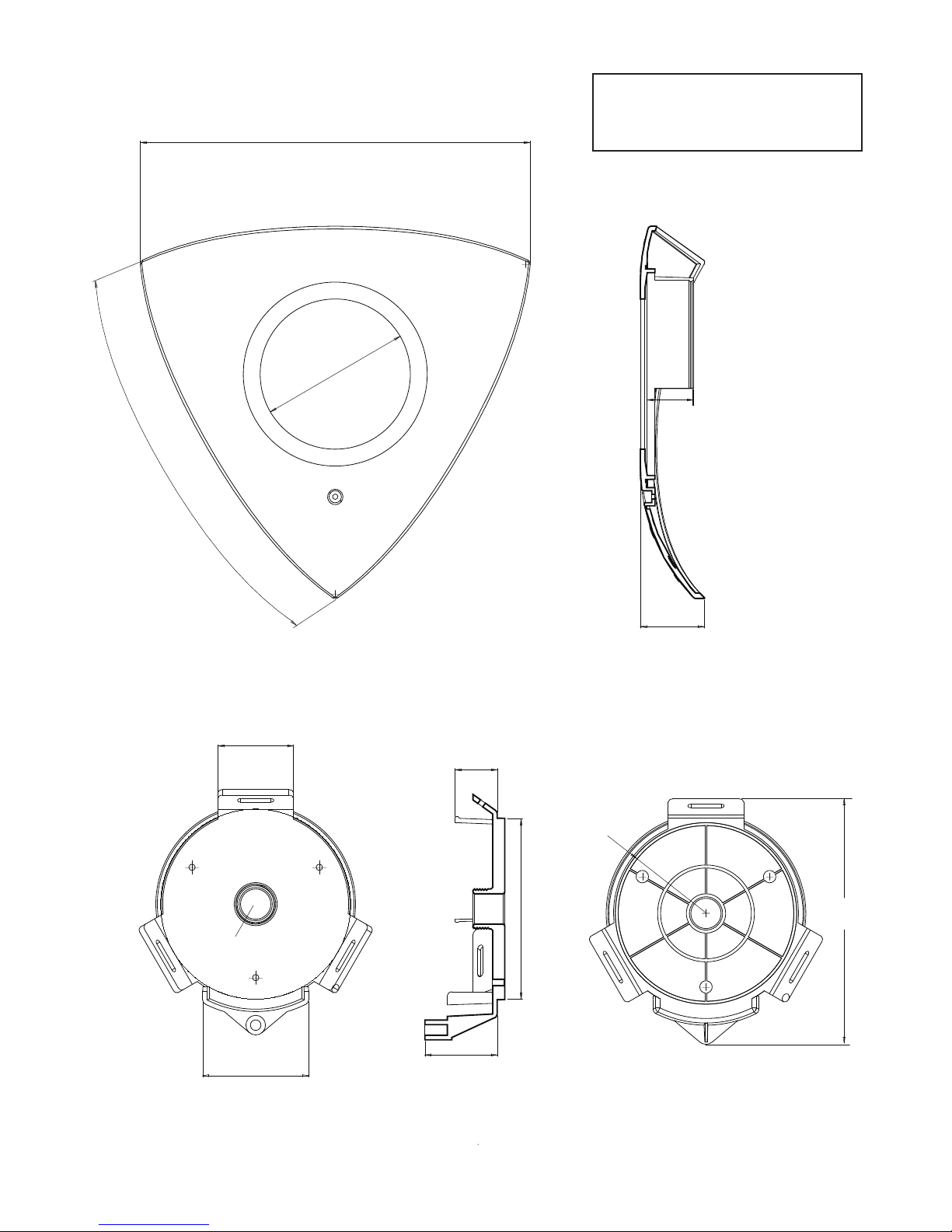

Dimensions of Corner Mount

Corner Mount Lid

Corner Mount Base

TOP SIDE

TOP SIDE Bottom

R 2.28 inch

(58 mm)

Color : RAL 9003

Material: Polycarbonate

Unit Weight : 9.02 oz (255.7g)

Base : 3.39 oz ( 96.2 g) Lid : 5.63 oz (159.5 g)

Shipping Weight (Per Piece) : 17.75 oz (503.2 g)

Ø 3.86 inch (98 mm)

10.02 inch

(254.53 mm)

1.64 inch

(41.62mm)

1.19 inch

(30.14 mm)

10.96 inch

(278.50 mm)
