Intellex®LT Digital Video

Management System

Quick Reference Guide

and Troubleshooting Guide

Part Number 8200-0201-99 A0

Quick Reference Guide and Troubleshooting Guide

Notice

The information in this manual was current when published. The manufacturer

reserves the right to revise and improve its products. All specifications are therefore

subject to change without notice.

Under copyright laws, the contents of this manual may not be copied, photocopied,

reproduced, translated or reduced to any electronic medium or machine-readable

form, in whole or in part, without prior written consent of Sensormatic Electronics

Video Systems Division

6795 Flanders Drive

San Diego, CA 92121-2903 U.S.A.

Customer Service

TEL U.S.A.: 845-624-7640

Tel Europe: (032) 65-765-280

Internet: http://www.TycoVideo.com

Trademarks

Intellex®is a registered trademark of Sensormatic Electronics Corporation.

IntelleCord™and Smart Search™are trademarks of Sensormatic Electronics

Corporation. Windows®is a registered trademark of Microsoft Corporation. PS/2®is

a registered trademark of International Business Machines Corporation. Sony®is a

registered trademark of Sony Corporation.

Trademarked names are used throughout this manual. Rather than place a symbol at

each occurrence, trademarked names are designated with initial capitalization.

Inclusion or exclusion is not a judgment on the validity or legal status of the term.

Quick Reference Guide 1

QUICK REFERENCE GUIDE

INTELLEX MAIN SCREEN

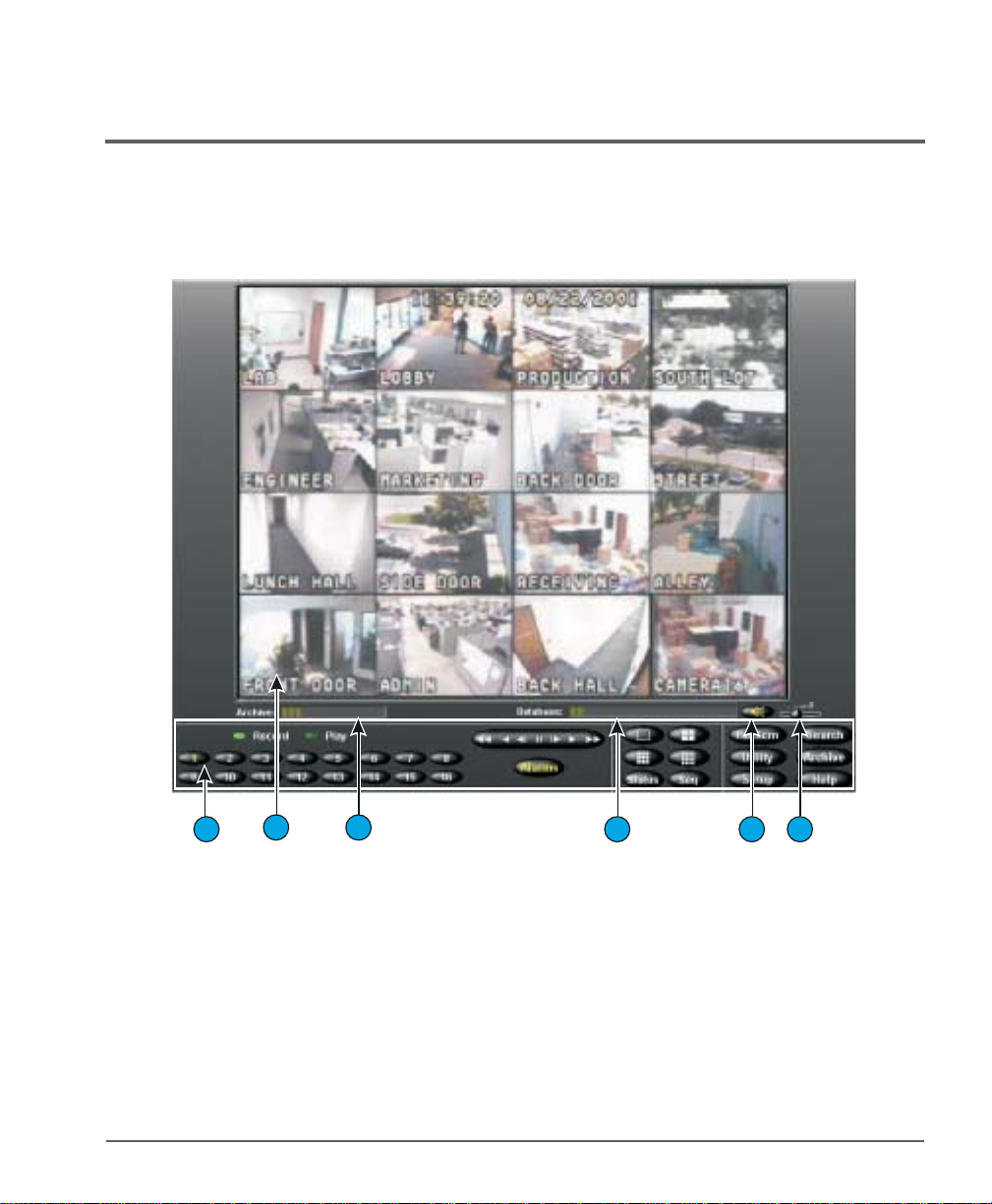

The Intellex main screen is shown below. Most unit functions can be accessed from

this screen.

The main screen controls and indicators are described below:

1. On-screen Controls — Use the mouse pointer to access unit functions. For a

description of these controls, see On-screen Controls and Indicators.

2. Image Area — The Intellex unit displays both live and playback images in this

area of the screen in the selected screen format.

3. Archive — If the external Digital Audio Tape (DAT) option is purchased, this

progress bar indicates how much tape recording space has been used and how

much is available. The bar only appears when archiving in the background.

24 5 6

Quick Reference Guide and Troubleshooting Guide

2Quick Reference Guide

4. Image Database — This progress bar indicates how much recording space in the

image database has been used and how much is available.

5. Mute — Click to mute audio.

6. Volume Slider — Slide the volume slider to adjust the output level of the

playback audio.

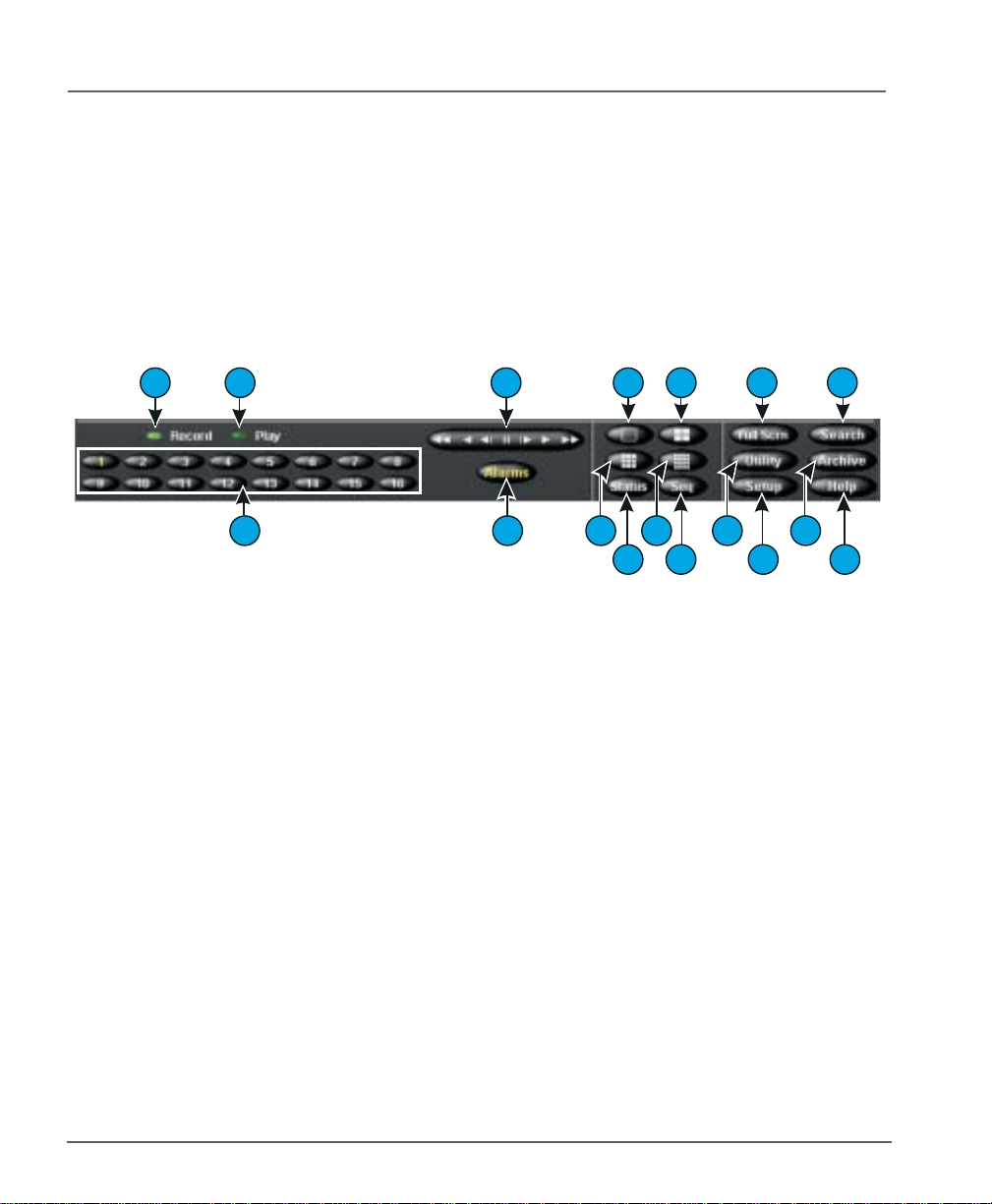

On-screen Controls and Indicators

Operate the unit using the mouse pointer and the following on-screen controls:

7. Record — This indicator is lit when the unit is recording images. On the front

panel, this indicator is labeled REC.

8. Play — This indicator is lit when the unit is playing back images. Play changes to

Pause when playback is paused.

9. 1–16 (Cameras) — Click to display a specific camera in the 1x1 format. The text

on the camera button changes from white to yellow to show that the camera has

been selected. DV8000 units have only 8 cameras.

10. Playback Controls — Controls how images are displayed during image

playback. You can choose between the Jog/Shuttle or VCR type of control during

setup by clicking the Display button on the Setup Options screen.

Jog/Shuttle (Play/Pause button) — You can control play/pause as well as playback

direction and speed by clicking and dragging the on-screen control.

VCR Play/Pause Control — You can control play/pause as well as playback

direction and speed by clicking each of the icons on the on-screen control. The

center icon selects pause mode, controls to the right are forward play then fast

play, the controls to the left are reverse play and fast reverse play. If in pause

mode, play or reverse play will display image by image instead of regular

playback.

7 8 12 13 18 19

14 15 20 21

16 17 22 23

Intellex® LT Digital Video Management System

Quick Reference Guide 3

11. Alarms —

Click to display the alarm review screen. The text on the button

changes to yellow if there are alarms to review. Unless all alarms are reviewed, the

text remains yellow. (The button text is normally white.)

12. 1x1 — Click to select the single window format (1x1). Only one camera can be

displayed at a time unless you start camera sequencing.

13. 2x2 — Click to select the four-window (2x2) format. Up to four cameras can be

displayed at the same time.

14. 3x3 — Click to select the nine-window (3x3) format. Up to nine cameras can be

displayed at the same time.

15. 4x4 — Click to select the 16-window (4x4) format. Up to 16 cameras can be

displayed at the same time.

16. Status — Click to display the unit’s status screen.

17. Seq (Sequence) — Click to display cameras sequentially.

18. Full Scrn —

Click to hide the controls and indicators and to display the current

images full-screen in the selected screen format. To get out of full screen format and

back to the previous screen format, right click anywhere on screen. The menu

displays, select Switch to Menu, then click to return to displaying on-screen

controls and indicators.

19. Search — Click to search the image database for specific video images.

20. Utility — Click to access the Utility Options screen.

21. Archive — Click to access the Archive Options screen.

22. Setup — Click to access the system configuration options.

23. Help — Click to display online help information.

Quick Reference Guide and Troubleshooting Guide

4Quick Reference Guide

MAIN SCREEN OPERATION

NOTE: You must have permission from the system administrator to access items

marked with an ‘*’

TO PERFORM THIS ACTION: DO THIS:

Change the screen format Click a screen format button (1x1, 2x2, 3x3,

4x4). (DV8000 units have only 8 cameras.)

Display system status Click Status.

Display cameras sequentially Click Seq.

Log out Click Utility. Click Log Out. Click Yes.

Shut down the unit* Click Utility. Click Shutdown. Click Yes.

Generate an alarm* Click Utility. Click Generate Alarms. Select the

cameras. Click OK to generate alarms for the

selected cameras.

Clear latched alarm messages* Click Utility. Click Clear Latched. Click Yes.

Back up the image database* Click Archive. Click Back up... Follow the

directions.

Restore archived images* Click Archive. Click Restore... Follow the

directions.

Play archived images* Click Archive. Click Play... Follow the

directions.

Add, change or delete a user* Click Setup. Click Security.

Configure the record schedule* Click Setup. Click Schedule.

Configure other unit settings* Refer to Chapter 3 — System Setup in the Intellex

Installation and Operation Instructions.

Review an alarm* Click Alarms. Select an alarm segment to

review. Click Play.

Search the image database* Click Search. Select the search conditions. Click

Find.

Use the filters to search the

image database* Refer to Chapter 5 — Playback Operation in the

Intellex

Play back images* Click a camera button. Click Play/Pause.

Configure IntelleCord filters* Refer to Chapter 3 — System Setup in the Intellex

Installation and Operation Instructions.

Intellex® LT Digital Video Management System

Quick Reference Guide 5

PLAYBACK SCREEN

To display the playback screen, click the Play/Pause button. The playback screen

appears. The playback screen controls and indicators are described below:

1. Begin flag — In Play mode, first define a video clip by clicking the Begin flag (left

of the Export button) to mark the clip’s start.

2. End flag — In Play mode, first define a video clip by clicking the End flag (left of

the Export button) to mark the clip’s finish.

1236

8 9 10

Quick Reference Guide and Troubleshooting Guide

6Quick Reference Guide

3. Export — Click to export any selected clip(s) to the CD-RW drive. After you click

Export, the Export Directory dialog appears, where Export to CD-R(W) is the

default option.

4. Image Area — The Intellex unit displays playback images in this area of the

screen.

5. Playback Overlay — Displays the name of the displayed camera, the image date

and time and the alarm input or type of alarm event (if any).

6. Slider — Drag to select any starting point in a video segment by moving the

slider control. As you move the slider, the Date and Time at the slider’s location in

the segment is displayed in the main screen. Move the slider to any desired point

in the segment, then click Play to begin or resume playback of the segment at that

point.

7. Text — Click Text button (A) to toggle text display mode on or off.

8. Mute — Click to mute the playback of audio.

9. Volume Slider — Slide the volume slider to adjust the output level of the

playback audio.

10. Text Display — Displays the text stream associated with the video.

Playback Controls and Indicators

Use the mouse pointer and the following on-screen controls to play back images:

11. Record — This indicator is lit when the unit is recording images. On the front

panel, this indicator is labeled REC.

12. Play — This indicator is lit when the unit is playing back images. Play changes to

Pause when playback is paused. When playing back images restored from an

archive tape, the unit displays Play (Archive) or Pause (Archive).

19 20 21 22 23

11 12

Intellex® LT Digital Video Management System

Quick Reference Guide 7

13. Play/Pause knob or VCR Control — Controls the playback speed and direction.

The unit displays the playback speed (1x to 5x) and direction (forward or

reverse).

VCR Control — You can control play/pause as well as playback direction and

speed by clicking each of the icons on the on-screen control. The center icon selects

pause mode, controls to the right are forward play then fast play, the controls to the

leftare reverseplayand fast reverse play.If inpause mode, playor reverse play will

display image by image.

14. Screen Formats — Click to change the live display format. If in playback mode,

the unit changes the live display format, but does not exit playback. If an optional

live monitor is installed, the new format appears immediately.

15. Full Scrn — Click to hide the playback controls and indicators and to display the

image area full-screen. Click the screen to display the playback controls and

indicators again and to display the image area at its normal size.

16. Search — Click to search the image database for specific images.

17. 1–16 (Cameras) — Click to play back images for specific cameras. The camera

button text changes from white to yellow to indicate which camera is being

played back. The message No Video appears on the screen if no images have been

recorded for the selected camera.

NOTE: DV8000 units have only 8 cameras.

18. Alarms — Click to display the alarm review screen.

19. Status — Click to display the status screen.

20. Seq (Sequence) — Click to display cameras sequentially. If in playback mode,

the unit changes the format on the live display, but does not exit playback. If an

optional live monitor is installed, camera sequencing appears immediately.

21. Tools —

Click to enhance the currently displayed image using the image

enhancement tools. You can also print the image or save it to a diskette.

22. Close —

Click to close this screen and return to the main screen.

23. Help — Click to display help information.

Playback Operation

TO PERFORM THIS ACTION: DO THIS:

Display the playback screen From the main screen, click Play/Pause.

Review an alarm Click Alarms. Click the alarm segment to

review. Click Play.

Search the image database ClickSearch.Select thesearchconditions.Click

Find.

Quick Reference Guide and Troubleshooting Guide

8Quick Reference Guide

Play back images Click a camera button. If playback is paused,

click Play/Pause.

Pause image playback Click Play/Pause.

Adjust playback speed and speed

direction (Play or Pause) To play back images at different speeds in

forward direction, turn the knob to the right or

click the Forward or Fast Forward arrows. To

play back images at different speeds in reverse,

turn the knob to the left or click the Reverse or

Fast Reverse arrows. In Pause mode, playback

operates at a slower than in Play mode.

Enhance an image Pause playback at the desired image. Click

Tools. Use the enhancement tools.

Print an image Pause playback at the desired image. Click

Tools. Click Print.

Save an image to a diskette Pause playback at the desired image. Click

Tools. Click Save.

Load an image from a diskette Insert diskette with image to load. Click Tools.

Click Load.

Close the playback screen and

display the main screen Click Close.

TO PERFORM THIS ACTION: DO THIS:

Altri manuali per Intellex Intellex LT

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali American Dynamics Registratore digitale

American Dynamics

American Dynamics TVR Manuale utente

American Dynamics

American Dynamics Intellex Intellex Ultra Manuale utente

American Dynamics

American Dynamics VideoEdge 2U Manuale utente

American Dynamics

American Dynamics Intellex Intellex DVMS Manuale utente

American Dynamics

American Dynamics VideoEdge Manuale utente

American Dynamics

American Dynamics EDVR Istruzioni operative

American Dynamics

American Dynamics AD8025X Manuale utente

American Dynamics

American Dynamics VideoEdge ADNSNVR-CL1 Guida rapida

American Dynamics

American Dynamics EDVR Manuale utente

American Dynamics

American Dynamics Intellex Intellex LT Manuale utente

American Dynamics

American Dynamics Intellex Intellex DVMS Manuale utente

American Dynamics

American Dynamics Intellex Ultra Manuale utente

American Dynamics

American Dynamics Intellex Intellex DVMS Manuale dell'operatore

American Dynamics

American Dynamics Intellex Intellex LT Manuale utente

American Dynamics

American Dynamics HDVR Manuale utente

American Dynamics

American Dynamics Intellex Digital Recorder Manuale utente

American Dynamics

American Dynamics EDVR Manuale utente

American Dynamics

American Dynamics Hybrid Digital Video Recorder Manuale utente

American Dynamics

American Dynamics Intellex Intellex DVMS Manuale utente

American Dynamics

American Dynamics Intellex Intellex Ultra Manuale dell'operatore

American Dynamics

American Dynamics Intellex Intellex DVMS Manuale utente

Manuali Registratore digitale popolari di altre marche

FLIR

FLIR M3100E Series Manuale utente

VTRACKPRO

VTRACKPRO FPRO300 Manuale utente

Swann

Swann NVR-7085 models Manuale utente

XtendLan

XtendLan DVR-1670C Manuale utente

urmet domus

urmet domus 1093/004AHD Manuale utente

Holux

Holux M1 Manuale utente

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Manuale utente

Whistler

Whistler D16VRS Manuale utente

Defender Security

Defender Security 82-20235 Manuale utente

MISUMI

MISUMI MP-WF100M Manuale utente

Speco

Speco D8HU Manuale utente

UST

UST DDR-E04AA Istruzioni per l’uso

Consolidated

Consolidated Digital Video Recorder Manuale utente

Mace

Mace DVR0404RW Guida rapida

RCA

RCA RTD315W Manuale utente

FSM

FSM Colibri Grande PRO Manuale utente

Hauppauge

Hauppauge HD PVR 2 Manuale utente

Identivision

Identivision ICR-PH161i PIONEER Manuale utente
