An American Dynamics Product
Designed and built by
Sensormatic CCTV Systems Division
One Blue Hill Plaza
Pearl River, New York, 10965
(914) 624-7600
OP910RKB Technical Support Center: 1-800-442-2225
JULY 1994 FAX: 914-624-7685 Made in U.S.A.
Information furnished by AMERICAN DYNAMICS is believed to be accurate and reliable. However, no responsibility is assumed by AMERICAN DYNAMICS for
its use; nor for any infringements of other rights of third parties which may result from its use. No license is granted by implications or otherwise under any patent or
patent rights of AMERICAN DYNAMICS.
Copyright 1994 by American Dynamics. All rights reserved.
AD910RK
Rack Mount Kit
INSTALLATION INSTRUCTIONS
for 910 Series 10-Inch B/W Monitors
I. UNPACKING
If the kit appears to have been damaged during shipment, place the kit back into its carton and notify the shipper.
The shipping carton is the safest container in which to transport the kit.
1. Save the shipping carton and the instructions for future reference.
2. Confirm that you have received the following parts:
Part Quantity
Screw, 10-32, 5/8-inch, Panhead 4
10-32 Hex Nuts 10
Rack Mount Ears (1 Left and 1 Right) 2
Chassis Plate 1
Front Cover 1
II. ASSEMBLY and INSTALLATION INSTRUCTIONS
This rack mount kit is designed for compatibility with all EIA Standard RS - 310 equipment (see EIA - 310 - rev C).
1. Place the two AD910 monitors up-side down on a clean, flat surface.
2. Remove the rubber pads from the bottom of the monitor.
3. Set the Chassis Plate (with the screw studs up) on the AD910 Monitors.
4. Attach the Left and Right Rack Mount Ears to the Chassis Plate using six 10-32 Hex nuts (supplied).
5. Center the monitor's pad screw holes over the mounting holes of the Chassis Plate. Secure the monitors to the to the Chassis Plate
using the screws/washers from the rubber pads.
Your are now ready to mount the assembled unit into the rack.
6. Install the Rack/monitor assembly into the console as a unit.
7. Secure the Rack/monitor assembly to the main rack with four panhead screws (use only the very top and bottom holes in the Rack
Mount Ears).
8. Secure the Front Cover to the main rack with four 10-32, 5/8-inch panhead screws (supplied).
9. Make any required electrical connections at this time.
Note: Do not over-tighten the Front Cover screws as this could indent the Cover.
This completes the procedure.

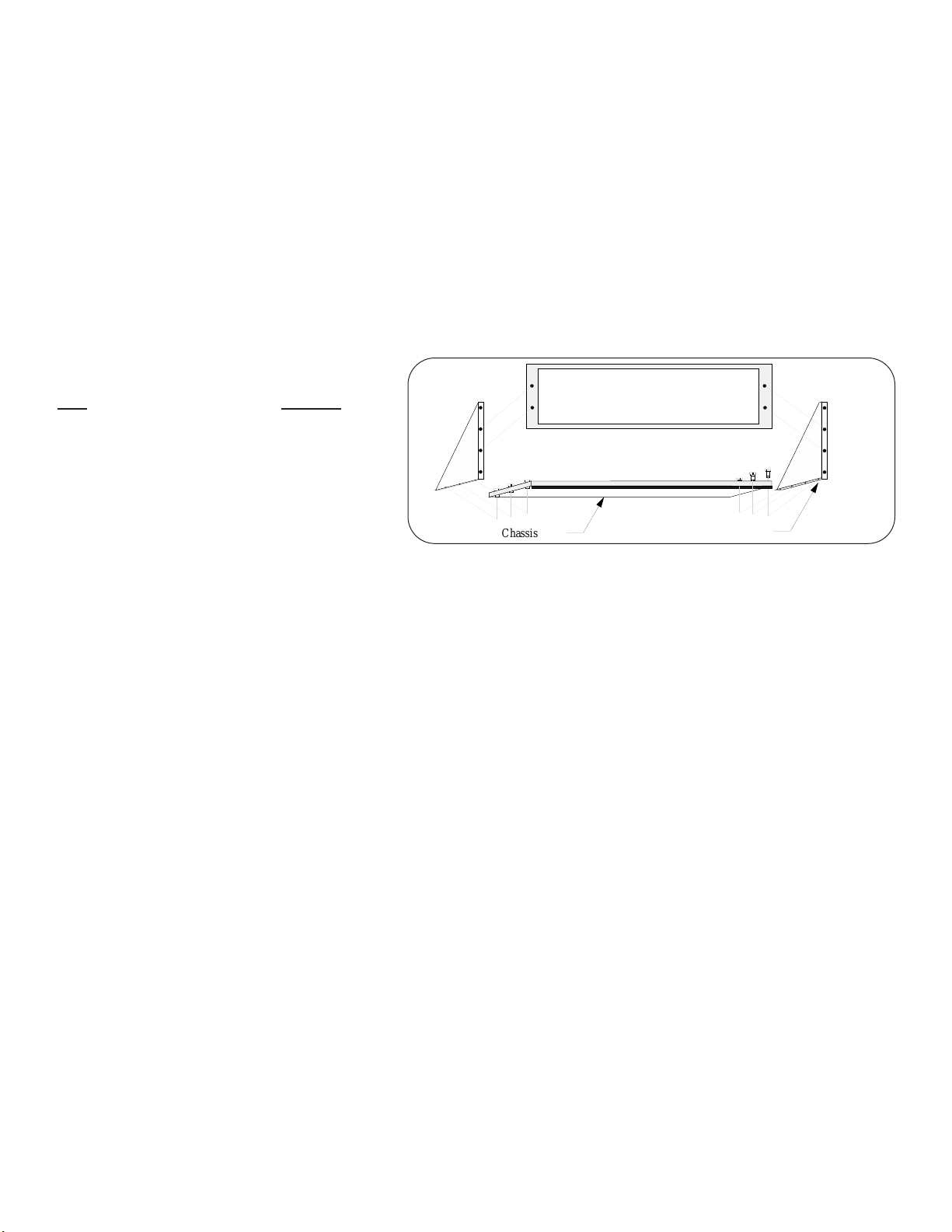

Figure 1 - 910RK Assembly
A
A
A
A
A
A
A
A
Chassis Plate
Front Cover
Rack Mount Ear
A
AA
A
A
A
A
