Application Note

Intellex®Dome Control Methods

AN035

This Application Note provides recommended design practices when implementing Pan, Tilt,

Zoom dome control using the Intellex (software versions 2.3 and higher) Digital Video

Management System. Three configurations are listed below and additional details are provided as

the document progresses.

1. Dome control via ADTT16E and Network Client™ (Software versions 2.3 and higher)

2. Direct Sensormatic RS-422 dome control using serial port or USB connector on the rear

of the Intellex box. (Software versions 2.3 and higher)

3. Intellex-to-Matrix Switcher based Dome Pan, Tilt, Zoom control. (Software versions 3.0

and higher)

Each of the configurations below illustrates the interconnection between system components

including wiring details, software configuration settings/options, and required accessories for

proper installation.

Dome Control via ADTT16E

The ADTT16E SensorNet Dome Controller may be connected to the Intellex RS-232 port, as

shown below, via its’ EIM (Electronic Interconnect Module). Dome control commands are

transmitted from the Network Client software GUI to the Intellex and processed by the Intellex for

transmission to the EIM via its RS-232 port.

RJ45 Cable

Supplied

GND

ADTT16E

Transformer

Supplied

ADTT16E

Must be configured in

Mux Mode to control

Intellex

DB9 Cable

(Supplied Straight-Through Cable)

INTELLEX 3.0

EIM

Figure 1. Dome control via ADTT16E/VM16 and Network Client v3.0

6/30/2003

INSTALLATION AND MINIMUM HARDWARE REQUIREMENTS

The remote dome control software is compatible with Intellex DV8000 and DV16000 series

running v2.3 or higher. The software may be installed via a CD-ROM or diskettes. Once the

software and license key are installed, and version 2.3 upgrade is activated, the software

installation is complete at the Intellex.

The VM16 or ADTT16E Touch Trackeris required at the Intellex site. Note: All dome targets

and patterns must be programmed locally via the VM16 or ADTT16E Touch Tracker.

The Network Client remote dome control software must be installed at the remote site. No

additional software license key is required for the Network Client v2.3 upgrade.

Note: If RS-422 is the preferred protocol, the RCSN422 is available as a SensorNet to RS-422

code translator (visit http://www.americandynamics.net/products_RCSN422.asp for more

information).

American Dynamics domes are interconnected to the EIM module as illustrated above in Figure

1. If more than four domes need to be connected to any of the 4 nodes, the RJ6SN 6-Position J-

Box may be purchased to create a star configuration with additional domes. For further

information please contact our Applications Engineering Dept. at 1-800-507-6268 – option 2.

For proper dome control operation, the Intellex software settings within the SETUP – CAMERAS –

CAMERA CONTROL sub-menu should be set for VM16/ADTT16E as illustrated below in Figure

1a. Note: When using the ADTT16E SensorNet Controller, select Mux 16 under the "Config

Devices" menu. (See Intellex Installation and Operating Instructions manual at

(http://www.americandynamics.net/products_intellex.asp for more detailed information).

6/30/2003

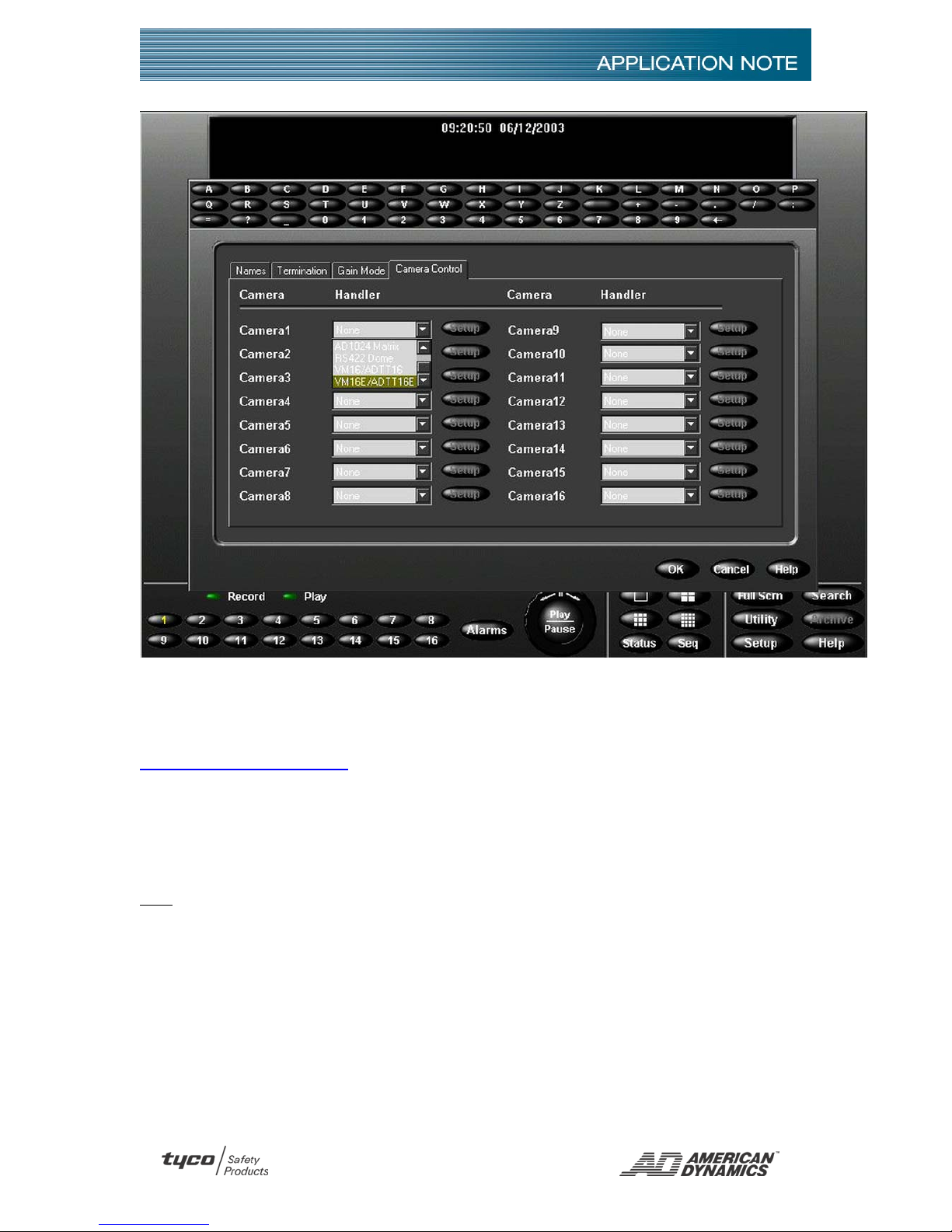

Figure 1a. Intellex Cameras submenu with Touch Tracker Sensornet Controller selected for dome control.

Direct RS-422 Dome Control

Direct Sensormatic RS-422 control may be achieved by connecting the dome to an available

USB connector on the rear of the Intellex unit via a USB-to-RS-232 dongle and RS-232-to-

RS-422 converter device. The telemetry is unidirectional simplex RS-422.

Note: A single USB-to-RS-232 dongle is supplied with the purchase of the Premier Package of

Intellex. If a Standard or Deluxe package is ordered, the dongle may be ordered separately –

Model Number RDVUSB23201. The RS-232-to-RS-422 converter can be purchased through

B&B Electronics – Part#: 422LP9TB.

6/30/2003

For proper dome control operation the Intellex software settings within the SETUP – CAMERAS –

CAMERA CONTROL sub-menu should be set for RS-422 Dome as illustrated in Figure 2a. Our

RJ860AP 10-Position RS-422 J-Box and RJ856UD Single Position RS-422 J-Box may be used to

repeat the data signal, extend the cabling distance, or implement a home run design. The

illustration below in Figure 2 shows the interconnection details between the dome and the

Intellex.

RS-232

+12V

GND

RD(B)

RD(A)

TD(B)

TD(A)

RS-422

R+

R-

T-

T+

RS-232 TO RS-422

CONVERTER

B&B ELECTRONICS

Model#: 422LP9TB

INTELLEX

Model#:RDVUSB23201

USB TO RS232

Figure 2. Direct Sensormatic RS-422 Dome Control. SpeedDome®Ultra series dome illustrated.

6/30/2003

Figure 2a. Intellex Cameras submenu with RS-422 Dome selected for direct dome control.

6/30/2003

Intellex-to-Matrix Switcher Based Dome/Pan, Tilt, Zoom Control

INTELLEX 3.0

VR48 PATCH PANEL

DB9 TO RJ45

USB TO RS232

RS232 PORT

PART # 6003-0198-01

PART # 0351-1315-01

Figure 3. Dome control via American Dynamics MegaPower 48 Matrix Switcher.

The illustration above depicts a serial connection to one of the Com ports on the MegaPower™

48. Note: All current American Dynamics matrix switchers are compatible with Intellex running

software v3.0 and higher. The connection is made using the two cabling assemblies as shown in

Figure 3. The USB-to-RS-232 dongle, as described in the previous section, is mated with the

DB9-to-RJ45 cable assembly.

6/30/2003

Note: The DB9-to-RJ45 cable assembly may be ordered as Part#: 0351-1315-01. It is

recommended that the RS-232 port on the Matrix Switcher be set for Terminal mode in the event

that keyboard pass code security has been programmed.

The Intellex dome control settings may be configured within the following submenu: SETUP –

CAMERAS – CAMERA CONTROL as illustrated in Figure 3a. The recommended software settings

are shown in Table A.

Figure 3a. Intellex Cameras submenu with AD168, MP48 for direct dome control.

6/30/2003

Table A. Software configuration settings for Intellex and Matrix Switcher.

* When using Intellex v.3.0.11, the Video Matrix Switcher baud rate should be set to

1200 Baud and when using Intellex v.3.0.15 set the baud rate to 4800

** The USB Port must be set for communications port 6 or higher

*** Set for logical Monitor from Matrix Switcher

CONTACT INFORMATION

If you have any questions regarding this bulletin, please contact Technical Services by phone at

800-507-6268, Option 2 or via e-mail at [email protected].

Information furnished by American Dynamics is believed to be accurate and reliable. However, no responsibility is

assumed by American Dynamics for its use, nor any infringements of other rights of third parties, which may result

from its use. No license is granted by implications or otherwise under any patent rights of American Dynamics.

Device

Setting

Baud

(data)

Rate Data Bits Parity Stop Bits

Camera

Address Com Port Monitor #

Intellex N/A N/A N/A N/A N/A

**** Set to

matrix

dome

address

** 6 or

higher ***

Matrix

Switcher

Terminal

*4800

None

N/A
