USE AND CARE MANUAL FOR
VILLA WARMING DRAWERS
MODEL NUMBERS: ARR-27WD, ARR-30WD, ARR-36WD,
ARR-27IRWD,ARR-30IRWD,ARR-36IRWD
PROFESSIONAL QUALITY COOKING EQUIPMENT
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
RETAIN THIS MANUAL FOR FUTURE REFERENCE
DESIGN CLASS FUNCTION
© 2015 American Range
All Rights Reserved
ARR-36IRWD
ARR-30IRWD
ARR-27IRWD
ARR-36IRWD
ARR-30IRWD
ARR-27IRWD

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
Warming Drawers
Use & Care Manual
FOR YOUR SAFETY!
Do not store or use gasoline or
other ammable vapors or liquids
in the vicinity of this or any other appliance.
Model Number: __________________________________________
Serial Number: ___________________________________________
Purchase Date: ___________________________________________
Installed By: __________________________ Install Date:__________
Gas Type: _______________________________________________
Electrical Information: ______________________________________
FOR
YOUR
SAFETY
FOR
YOUR
SAFETY
Instruction to be followed in the event the user smells gas appears on Page 1 of this manual and
should be posted in a prominent location. This information should be obtained by
consulting the local gas supplier.
RETAIN THIS MANUAL FOR FUTURE REFERENCE.
WARNING!
Improper installation, adjustment, alteration, service
or maintenance can cause property damage, injury
or death. Read the installation, operating and
maintenance instructions thoroughly before
installing or servicing this equipment.
WARNING
IMPROPER
INSTALLATION
WARNING
IMPROPER
INSTALLATION

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
To Our Most Valued Customer:
Congratulations on your purchase of an American Range product. We hope you will enjoy the
design, manufactured quality, innovative features and cooking performance of this product – it
represents our continuing dedication to satisfying the most demanding needs of customers
like you.
Please read this manual and become familiar with important safety information about how
to install and set-up the unit, basic operating instructions, and how to maintain that just-like-
brand-new appearance and performance - over years of day-to-day and special holiday use.
If you should encounter any sort of problem, turn to the section of the manual entitled,
"Troubleshooting" – for a quick solution or guidance regarding the next step required to get
back to tip-top condition.
Thank you for choosing an American Range product for your home. As you can expect, this
appliance is designed for years of reliable service. If you have any questions or comments,
please contact the dealer from whom you purchased the unit, or contact American Range
Customer Service at www.americanrange.com or 818.897.0808.
PROFESSIONAL QUALITY COOKING EQUIPMENT
Sincerely,
President, American Range Corporation
Shane Demirjian

Warming Drawers
Use & Care Manual
13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
Table of Contents
SAFETY INFORMATION ..............................................................................................................1-5
INSTALLATION INSTRUCTIONS ................................................................................. 6-9, 17-19
Appliance Dimensions.................................................................................................................................... 6
Cut Out Dimensions....................................................................................................................................... 6
Packing Materials................................................................................................................................................7
Old Appliances.................................................................................................................................................... 7
Installing Warming Drawer into a Cabinet or Island .................................................................8-9
Rating Plate............................................................................................................................................................ 8
Integrated Installations ..........................................................................................................................17-18
Wiring Diagram - All Models....................................................................................................................19
WARMING DRAWER KEY PAD ............................................................................................ 10-12
Keypad ...........................................................................................................................................................10-11
Continuous and Sabbath Mode ..............................................................................................................12
Electronic Control Factory Presets.......................................................................................................12
HOW TO LOAD THE WARMING DRAWER ..................................................................... 13-14
Operating Tips...................................................................................................................................................13
Warming Food..................................................................................................................................................13
Warming Dishes...............................................................................................................................................14
CLEANUP ........................................................................................................................................... 14
Cleaning Appliance Front and Control Panel..................................................................................14
Cleaning the Glass Shield............................................................................................................................14
Cleaning the Stainless Steel Surfaces....................................................................................................14
WARMING DRAWER CARE .................................................................................................. 15-16
Removing the Drawer ..................................................................................................................................15
Installing the Drawer......................................................................................................................................15
Troubleshooting...............................................................................................................................................16
WARRANTY ............................................................................................................................... 20-21

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
1
Warming Drawers
Use & Care Manual
WARNING
If the information in this manual is not followed exactly, a re or
explosion may result causing damage, personal injury or death.
• INSTALLATION AND SERVICE MUST BE PERFORMED BY A
CERTIFIED / LICENSED INSTALLER, SERVICE AGENCY OR THE GAS SUPPLIER
• Do not store or use gasoline or other ammable vapors or liquids in the vicinity
of this or any other appliance.
• Please observe all local and national codes and ordinances.
• Do not remove any permanent warning labels or plates from this product.
• Please ensure that this product is electrically grounded.
• Consumers should retain these instructions for local inspectors and for
future use.
WARRANTY REQUIREMENT
For reliable operation and for your own safety, this professional cooking equipment
must be installed by a certied/licensed contractor.
Failure to comply will void any written or implied warranty.
Should the equipment require service during the standard warranty period, the
receipt proving certied installation must be made available to American Range for
verication.
If installation was not performed by a certied/licensed contractor be prepared to
submit a major credit card for payment for proper installation.

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
2
Warming Drawers
Use & Care Manual
The Use and Care Manual is divided into several sections:
The Safety Section informs you about signicant safety precautions when installing and operating your
new warming drawer. This is a must read section of the manual.
Quick Start and Installation Section describes how to unpack the unit, what to save and what to discard,
installation dimensions, electrical connections and how to identify the primary parts of the product so you
can better understand what’s going on "under the hood".
How to Use Your Product shows how to operate the warming drawer.
The Care and Maintenance and Troubleshooting and Service Sections discuss how to keep your product
in good operating condition, how to identify what might be going wrong with the unit, and how to
communicate your observations with authorized eld service technicians.
Before using your appliance, please read this manual paying special attention to the important safety
instructions located in the next several pages.
ABOUT THIS MANUAL
!
DANGER
!
CAUTION
!
This is the SAFETY ALERT SYMBOL. This symbol alerts
you to hazards which will result in severe injury or death.
Hazards or unsafe practices which will result in severe
personal injury or death.
Hazards or unsafe practices which may result in minor
personal injury or property damage.
WARNING
!
Hazards or unsafe practices which may result in severe
personal injury or death.

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
3
Warming Drawers
Use & Care Manual
PRECAUTIONS
For personal safety, this appliance must be connected to a properly grounded and polarized electrical power supply. If only a
two-prong outlet is available, it is the customer’s responsibility to have it replaced with a dedicated, grounded, three-prong
electrical outlet by a licensed technician.
• Do not cut or remove the third (ground) prong from the power cord
• Do not use an adapter plug
• Do not use an extension cord
• Do not use a power cord that is frayed or damaged
CAUTION
!
WARNING
!
The equipment is crafted and inspected carefully by skilled personnel before leaving the factory.
The transportation company assumes full responsibility for safe delivery of this equipment after it leaves our factory.
If you receive a damaged product, immediately contact your delivery company, your dealer, your builder or installer. Do not
install or attempt to operate a damaged appliance.
What to do if shipment arrives damaged:
• Visible loss or damage: Make note on the freight bill or express delivery and have it signed by the delivery person.
File a claim for damages immediately regardless of the extent of the damages.
• Concealed loss or damage: If damage is noticed after unpacking, notify the transportation company immediately and
le a “Concealed Damage” claim with the transportation company. This should be done within fteen (15) days of the
delivery to you.
• Retain container for inspection.
- SHIPPING DAMAGE CLAIM PROCEDURE
Always disconnect the electrical plug from the wall outlet before servicing the unit. It is recommended that a dedicated
electrical circuit be used for this appliance.
WARNING
!
Do not store items of interest to children above or near the appliance. Children, as well as adults, should never be allowed to
sit, stand or climb on any part of the appliance. Serious personal injury may occur.
DANGER
!
To avoid the possibility of explosion or re, do not store or use combustible, ammable or explosive liquids (such
as gasoline) or vapors inside or in the vicinity of this or any other appliance. Keep items that could explode, such as
aerosol cans, away from the product. Do not store explosive or ammable materials in nearby cabinets or areas.
When operating the warming drawer, do not touch the surfaces the walls of the oven or the inside surfaces of the oven
door - interior surfaces become hot enough to cause burns.
DANGER
!

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
5
Warming Drawers
Use & Care Manual
CAUTION
!
Act quickly to prevent the re from getting out of control.
If a re occurs inside an oven, close the oven door and keep it closed – and turn off the oven. The lack of oxygen will help
suffocate the ames.
If the oven continues to smoke as if a re were in process – call the re department.
If there is a re in a pan on a cooktop, turn off the burner and cover the pan with a tight tting lid using a potholder or oven
glove. If you can’t nd a lid, or the ame size appears dangerous, use your kitchen re extinguisher – aiming at the base of the
ames to put out the re.
Do not use water on grease res – turn off the burner, and if you can’t cover the aming pot with a lid, throw lots of baking
soda or salt on it. Never use a kitchen towel or potholder to snuff out ames! Never throw our on a re – as it may
explode!
PRECAUTIONS

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
6
Warming Drawers
Use & Care Manual
INSTALLATION INSTRUCTIONS

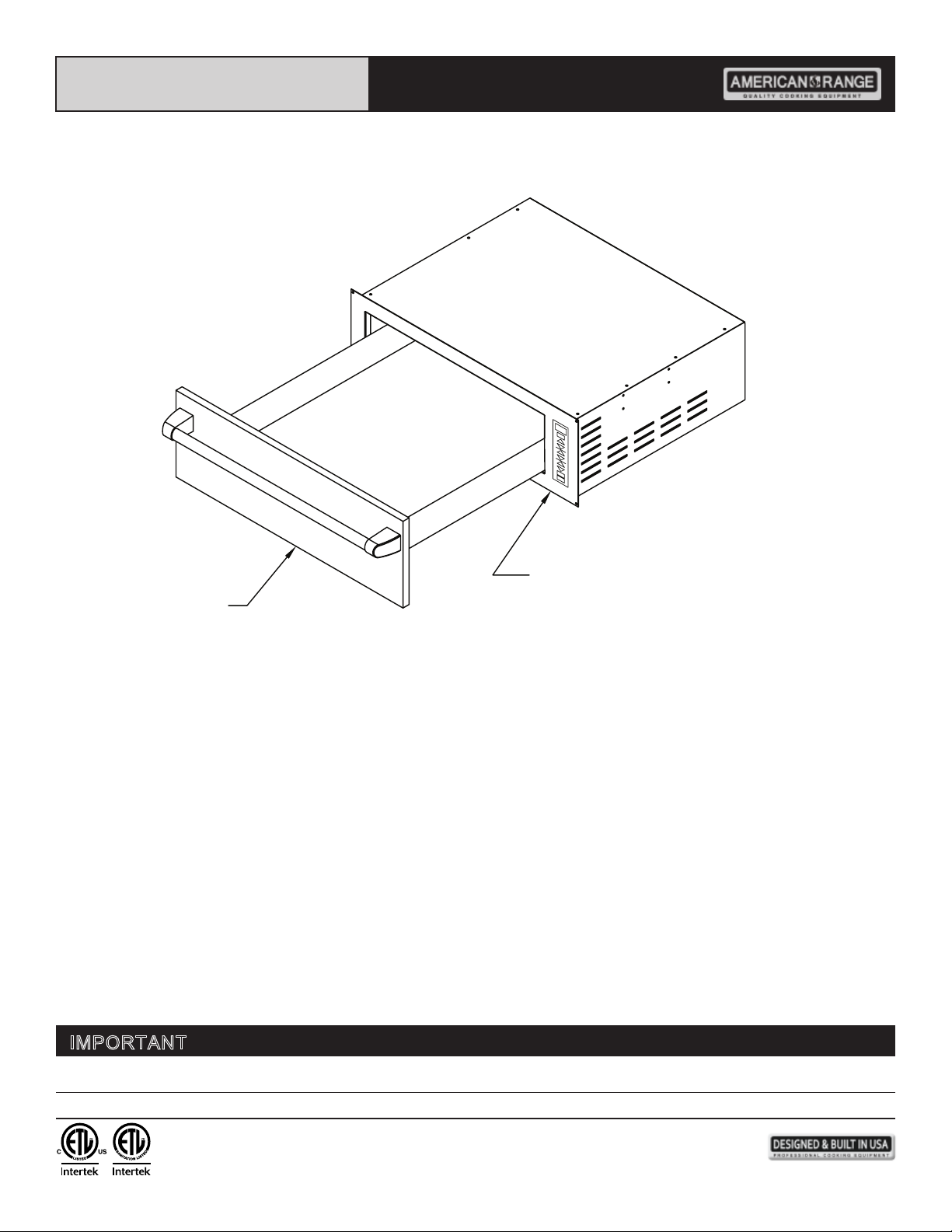

Appliance Dimensions:
ARR-36WD - drawer front 35-7/8” wide by 9-7/8” chasis front ange; 35-7/8” by 9” high by 23-7/8” deep chassis
ARR-30WD - drawer front 29-7/8” wide by 9-7/8” chasis front ange; 29-7/8” by 9” high by 23-7/8” deep chassis
ARR-27WD - drawer front 26-7/8” wide by 9-7/8” chasis front ange; 26-7/8” by 9” high by 23-7/8” deep chassis
ARR-36IRWD - drawer front panel; 35-1/2” wide by 9-7/8” chasis front ange; 35-1/2” by 9” high by 23-7/8” deep chassis
ARR-30IRWD - drawer front panel; 29-1/2” wide by 9-7/8” chasis front ange; 29-1/2” by 9” high by 23-7/8” deep chassis
ARR-27IRWD - drawer front panel; 26-1/2” wide by 9-7/8” chasis front ange; 26-1/2” by 9” high by 23-7/8” deep chassis
Cut-out Dimensions:
ARR-36WD – 34-5/8” wide by 9” high
ARR-30WD – 28-5/8” wide by 9” high
ARR-27WD – 25-5/8” wide by 9” high
ARR-36IRWD – 34-5/8” wide by 9” high
ARR-30IRWD – 28-5/8” wide by 9” high
ARR-27IRWD – 25-5/8” wide by 9” high
Please verify by measuring actual appliance from box. …measure twice, cut once…
CAUTION
!
IMPORTANT
REMOVE
ADD
TIME
ADJUST
TEMPERATURE
ON/OFF
FRONT
CHASIS FRONT FLANGE

13592 Desmond St., Pacoima, CA 91331 818.897.0808 tel 888.753.9898 toll free www.americanrange.com
7
Warming Drawers
Use & Care Manual
INSTALLATION INSTRUCTIONS
Packing Materials
The packing materials that protect the appliance during shipping have been designed to be biodegradable and recyclable. Please be
sure that any plastic wrappings, bags, etc. are disposed of safely and kept out of the reach of children.
Old Appliances
This appliance contains materials that can be recycled. Please contact your local recycling authority about the possibility of recycling
these materials. Please be sure that the appliance presents no danger to children while being stored for disposal. Before discarding
an old appliance, unplug it from the outlet and cut off its power cord. Remove any drawers to prevent trapping hazards.
IMPORTANT SAFETY INSTRUCTIONS
Before connecting the appliance to the power supply, make sure that the voltage and frequency listed on the rating plate correspond
with the household electrical supply. Consult an electrician if in doubt. Only operate the Warming Drawer after it has been installed.
INSTALLER: Please leave these instructions with the consumer.
Electrical Connection
This appliance is equipped with a ve ft. long power cord with a three-prong grounding plug ready for
connection to a standard 120 VAC, 60 Hz, 15 AMP power source.
Installation Tips
• The Warming Drawer should be located in the cabinet at a convenient height for easy access.
• The drawer should be installed clear of drafts caused by open doors and windows.
• Proper clearance must be allowed for the Warming Drawer to open without interference.
• The Warming Drawer must be secured to cabinetry to prevent the drawer from tipping when loading
or unloading.
• The Warming Drawer should be level to prevent the drawer sliding open or closed on its own. The
drawer cannot be leveled after it has been installed. If necessary install a shelf inside the cabinetry to
support the drawer.
CAUTION
!
Before servicing, disconnect the power supply by either removing the fuse, shutting off the power main or manually “tripping”
the circuit breaker. Installation work and repairs should only be performed by a qualied technician in accordance with all
applicable codes and standards. Repairs and service by unqualied persons could be dangerous and the manufacturer will not
be held responsible.
Altri manuali per ARR-27WD
1
Questo manuale è adatto per i seguenti modelli
5
Indice
Altri manuali American Range Cassetto scaldavivande
