American Standard Ariana 6021 Manuale utente

IN WALL PRESSURE BALANCING

BATH AND SHOWER SETS

M968457B

To assure proper positioning in relation to wall,

note roughing-in dimensions.

Thank you for selecting American-Standard...the benchmark of fine

quality for over 100 years.

To ensure that your installation proceeds smoothly--please read these

instructions carefully before you begin.

ROUGHING-IN DIMENSIONS

Certified to comply with ANSI A112.18.1

Installation

Instructions

ARIANA

6021

6022

THREADED INLETS (STOPS)

INLETS

1/2" NPT

5-7/8"

INLETS 1/2" NPT OUTLETS

1/2" NPT

OUTLETS

1/2" NPT

3-3/8"

THREADED INLETS

Required Tools

Flat Blade Screwdriver

Adjustable Wrench

Channel Locks

Plumbers' Putty or Caulking

Phillips Screwdriver

1ROUGHING-IN Turn off water at main supply.

CAUTION

When soldering, remove PLASTER GUARD, CARTRIDGES and CHECK STOPS (IF PRESENT). When finished soldering,

flush valve body, replace cartridges, check stops (if present) and plaster guard to continue installation. Use thread

sealant or Teflon tape on threaded connections.

NOTE

If the valve is installed on a fiberglass

or other thin wall application, the

PLASTER GUARD (4) can be used as a support.

Connect hot and cold water supplies.

Cap off shower pipe (5) and tub filler pipe (6).

For support, use pipe BRACES (7) secured to wooden braces.

With valve turned off, turn on water supplies. Check for leaks.

COLD

HOT

Cut a 3" dia. hole in the shower stall.

Drill two additional 1" holes to allow access

to the stops.

Remove PLASTER GUARD (4), rotate 90˚

so that indicated screw holes fit MANIFOLD (2).

Push CAP on valve, place ESCUTCHEON on and

attach with screws.

See Roughing-in diagram before starting.

Connections are:

1/2" female NPT for threaded inlets

Connect RISER PIPE (1) to MANIFOLD (2)

top outlet marked "SHR".

Connect TUB FILLER PIPE (3) at bottom

outlet marked "TUB".

For proper positioning the finished wall

must be within side wall of PLASTER

GUARD (4).

FINISHED WALL

BOTTOM OF TUB

74" FOR HEAD

CLEARANCE

5-1/8" REF.

7-7/8" REF.

18" OPTIONAL

5" REF.

1/2" NPT

1-5/8"

3-1/4"

1/2" NPT

7-1/8"

4-1/4"

REF.

OPTIONAL TO FINISHED

FLOOR USUALLY

BETWEEN 65'' AND 80''

TOP OF TUB RIM

Off

Hot

3INSTALL HANDLE

ADJUST HOT LIMIT STOP

By restricting HANDLE rotation and limiting the amount of hot

water allowed to mix with the cold, the HOT LIMIT SAFETY

STOP (1) reduces risk of accidental scalding. To set the maximum

hot water temperature of your faucet, all you need to do

is adjust the setting on the HOT LIMIT SAFETY STOP (1).

COLDER

(Larger Numbers)

0 1 3 5 7 9 11 13 15

HOTTER

(Smaller Numbers)

0 1 3 5 7 9 11 13 15

Turn CARTRIDGE STEM (2) to the OFF position (coldest setting)

before making adjustment to HOT LIMIT STOP (1). Use a

flat blade screwdriver to pry free the HOT LIMIT SAFETY STOP (1).

Pull forward and rotate counterclockwise one number to limit hot

water temperature. Use ARROW (3) on CARTRIDGE (4) and

NUMBERS (5) on HOT LIMIT STOP (1) for indication.

Find correct position of HANDLE (1) and push

HANDLE (1) onto VALVE STEM (4).

Install HANDLE SCREW (2) and push in INDEX

CAP (3).

Check proper operation of HANDLE (1).

Turn on water supply on and test installed fitting.

Operate valve and diverter spout.

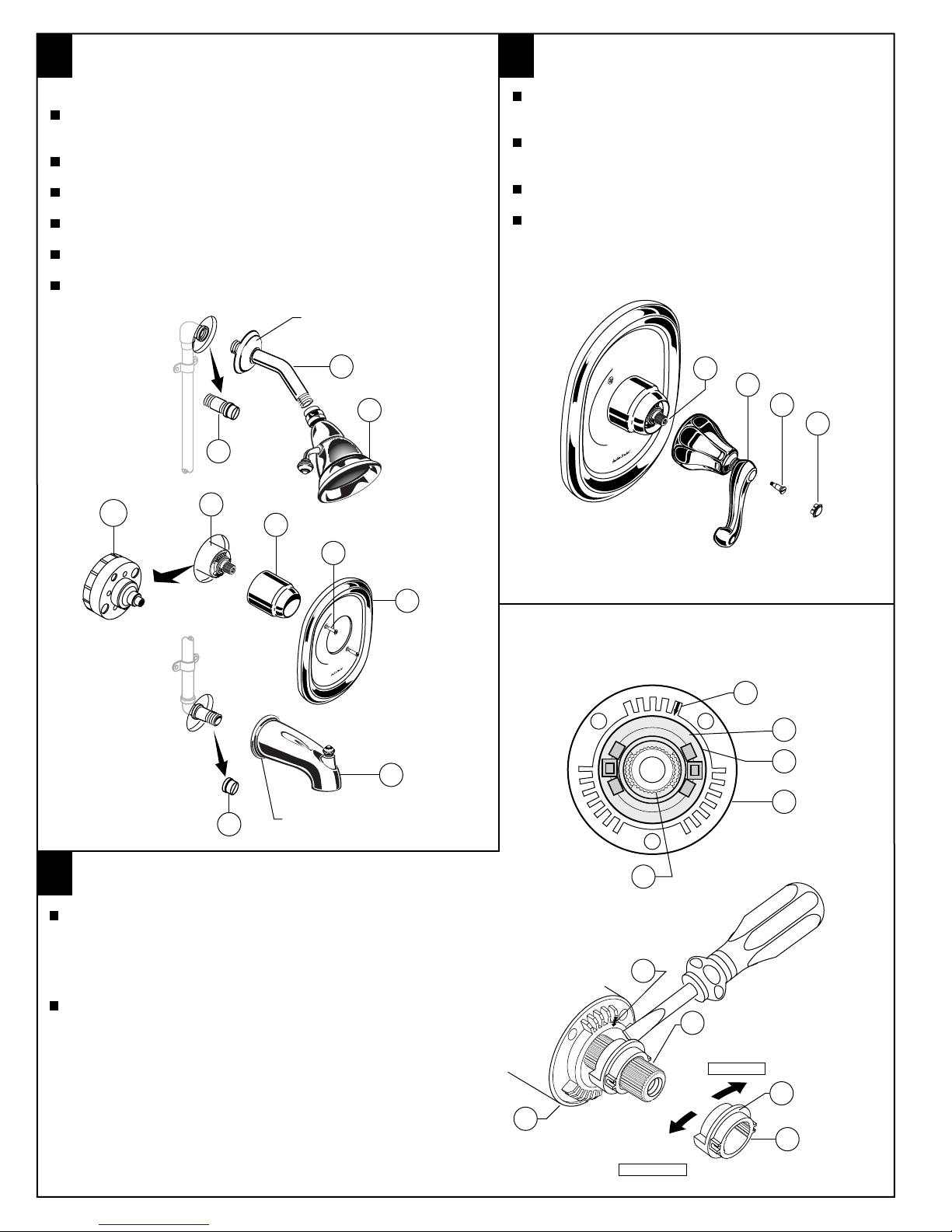

2INSTALL TRIM

When finished tiling the wall, remove PLASTER GUARD (A)

and turn off water supply.

Push CAP (1) over VALVE CARTRIDGE (2).

Mount ESCUTCHEON (3) and gasket to valve body with SCREWS (4).

Remove PIPE CAPS (5) from shower pipe and tub filler pipe.

Install SHOWER ARM with FLANGE (6) and SHOWER HEAD (7).

Install TUB FILLER SPOUT with FLANGE (8).

CAUTION: Protect finish on SHOWER ARM,

SHOWER HEAD and TUB SPOUT when installing.

SHOWER ARM

FLANGE

SPOUT FLANGE

Off

Hot

Off

Hot

M968457B

Pull INDEX CAP, unscrew HANDLE SCREW and pull HANDLE off valve stem.

Remove two SCREWS holding ESCUTCHEON and remove ESCUTCHEON.

Remove COVER by pulling straight out.

Shut off water supply by either closing off main water supply, or closing off the hot and cold CHECK STOPS on valve.

TO GAIN ACCESS TO VALVE FOR SERVICING

Remove CARTRIDGE (1) by removing CARTRIDGE SCREWS (2). Remove three SCREWS (3) from FIXATION RING (4) and

pull out PRESSURE BALANCING (5) unit.

Clean SEALS (9) on base of CARTRIDGE (1). Check base of PRESSURE BALANCING UNIT (5) and clean O-RINGS (6). Remove

CAPS (7) and check O-RINGS on inside of CAPS (7). Clean inside sealing surfaces of VALVE BODY (8).

Re-assemble PRESSURE BALANCING UNIT (5) and CARTRIDGE (1). Tighten all screws.

Turn on water supply and see above for installing TRIM and HANDLE.

VALVE LEAKS WHEN SHUT OFF

BACK TO BACK INSTALLATION

ROTATE 180˚

Remove PRESSURE BALANCE UNIT (5).

Remove CAPS (7) and clean valve thoroughly.

Examine balancing unit and check condition of O-ring on end of piston. Piston should move back and forth. Order Repair

Part M952100-0070A if balancing unit is defective.

Replace CAPS (7) and install PRESSURE BALANCE UNIT (5). Make sure inlets line up with two holes in bottom of casting.

Top flange should butt-up against top of casting.

Remove PRESSURE BALANCE UNIT (5). Rotate PRESSURE BALANCE UNIT (5) 180˚ so that the inlets face up and the

large outlet port faces down.

Push PRESSURE BALANCE UNIT (5) in casting make sure inlets line up with holes in bottom of casting. Top flange should

butt up against top of casting.

Reassemble FIXATION RING (4) and CARTRIDGE (1).

UNABLE TO MAINTAIN CONSTANT TEMPERATURE

3INLETS

LARGE OUTLET

CARE INSTRUCTIONS:

DO: SIMPLY RINSE THE PRODUCT CLEAN WITH CLEAR WATER. DRY WITH A SOFT COTTON FLANNEL CLOTH.

DO NOT: CLEAN THE PRODUCT WITH SOAPS, ACID, POLISH, ABRASIVES, HARSH CLEANERS, OR A CLOTH WITH

A COARSE SURFACE.

M968457B

M953567-YYY0A

SHOWER HEAD

A954440-0070A

CARTRIDGE

023603-0070A

CARTRIDGE SCREWS

A923611-0070A

HOT LIMIT STOP

M961854-0070A

FIXATION RING WITH SCREWS

M952100-0070A

PRESSURE BALANCING UNIT

M962286-YYY0A

SHOWER ARM AND ESCUTCHEON

WITH SEALS

M907051-YYY0A

CARTRIDGE CAP

078016-YYY0A

ESCUTCHEON SCREWS

M962293-YYY0A

ESCUTCHEON KIT

WITH SCREWS

MODEL NUMBER

027816-0070A

1/2" NPT PLUG

ARIANA

PRESSURE BALANCING

BATH AND SHOWER SETS

HOT LINE FOR HELP

For toll-free information and answers to your questions, call:

1 (800) 442-1902

Weekdays 8:00 a.m. to 8:00 p.m. EST

IN CANADA 1-800-387-0369 (TORONTO 1-905-306-1093)

Weekdays 8:00 a.m. to 7:00 p.m. EST

Product names listed herein are trademarks of American Standard Inc.

M909732-YYY0A

SPOUT ESCUTCHEON

M950225-YYY0A

DIVERTER SPOUT (IPS) A918657-0070A

HANDLE SCREW

M916529-YYY0A

LEVER HANDLE

M907024-YYY2A

INDEX BUTTON (ARROW)

6021

6022

Off

Hot

CHROME 002

BRUSHED BRASS 275

SATIN 295

Replace the "YYY" with

appropriate finish code

M968457B
