H65

COLONY™ 5' x 30" w/INTEGRAL APRON

WHIRLPOOL & BATHING POOL

HIGH GLOSS ACRYLIC

Revised 1/07

COLONY™ 5' x 30" WHIRLPOOL AND

BATHING POOL with INTEGRAL APRON

❏2740.118 Whirlpool, Right Hand Outlet

❏2740.218 Whirlpool, Left Hand Outlet

Product Features:

• High Gloss Acrylic with berglass reinforcement

• Integral apron with removable access panel

• Integral three-sided, tiling/water retention ange

• Integral lumbar support

• Molded-in arm rests with elbow supports

• Above oor rough

• 1.25 HP single speed, self-draining pump/motor

• Six multi-direction jets

• One air volume control

• Deck mounted air switch On/Off control

• Factory installed and tested whirlpool system

EverClean™ Whirlpool Massage featuring System I

❏2740.218C Whirlpool featuring System I,

Left Hand Outlet

❏2740.118C Whirlpool featuring System I,

Right Hand Outlet

• Same as above except with the EverClean™

whirlpool system featuring Antimicrobial

AlphaSan®

❏2740.102 Bath only, Right Hand Outlet

❏2740.202 Bath only, Left Hand Outlet

• Same as above without whirlpool system

Nominal Dimensions:

(59-7/8" x 29-7/8" x 19-1/4")

1521 x 759 x 489mm

Compliance Certications -

Meets or Exceeds the Following Specications:

• Underwriters Laboratories - Hydromassage

Bathtubs UL 1795

• ASME A112.19.7M for Whirlpool Appliances

• ANSI Z124.1 for Plastic Bathtubs

• ASTM E162 for Flammability

• NFPA 258 for Smoke Density

SEE REVERSE FOR ROUGHING-IN DIMENSIONS

AND PRODUCT SPECIFICATIONS

To Be Specied - Required:

❏Color:

❏Bath Faucet: (specify nish)

❏Bath Drain: 1583.470 (specify nish)

For color/nish availability and other faucet choices, please

see the Product Selector and Pricing Guide.

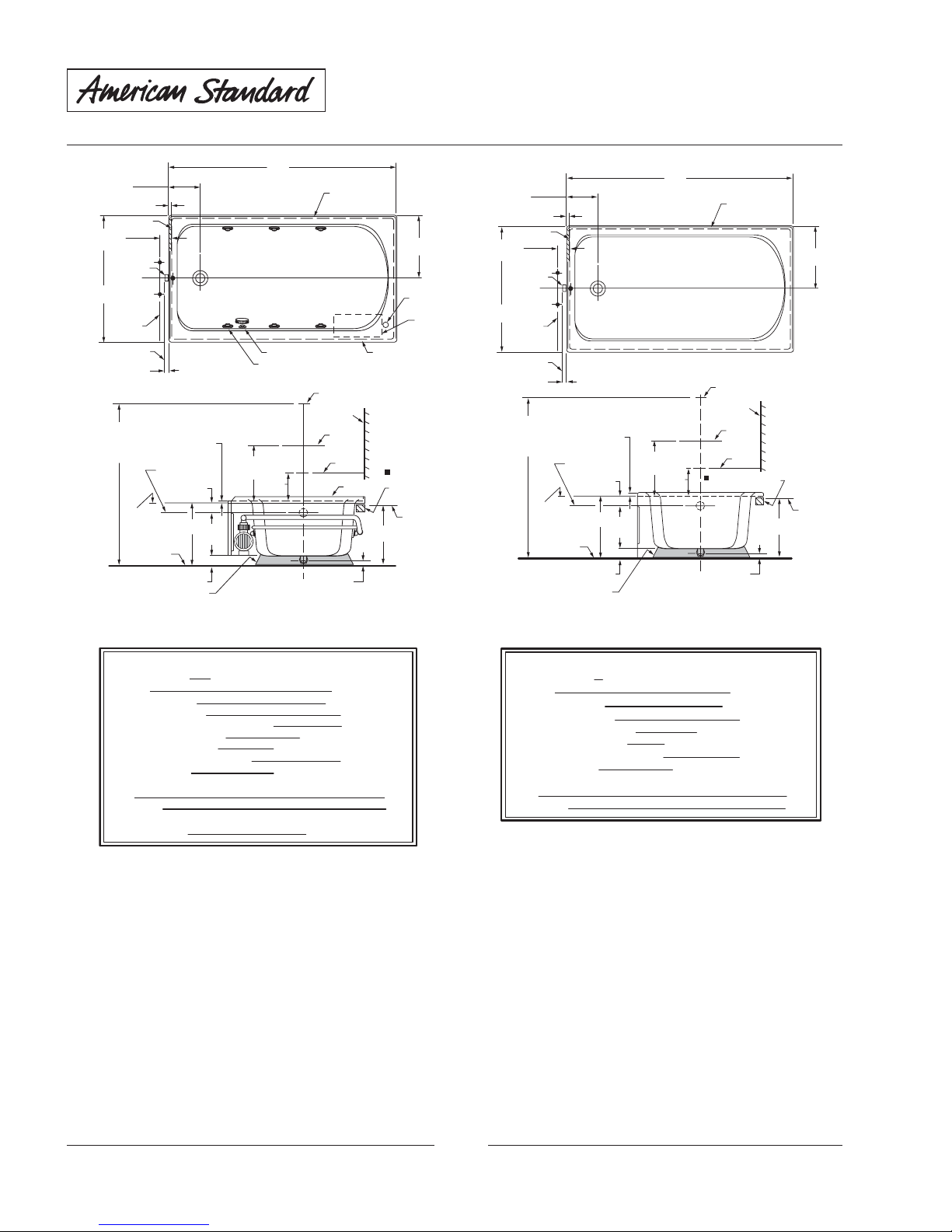

H66

COLONY™ 5' x 30" w/INTEGRAL APRON

WHIRLPOOL & BATHING POOL

HIGH GLOSS ACRYLIC

(1524mm)

(762mm)

WATER

RETENTION

FLANGE

(3 SIDES)

(178mm)

C/L OF DRAIN

1-1/2 (38mm) (6) JETS

PUMP

FINISHED

WALL

3/4

(19mm)

C/L OF

SUPPLIES

HORIZONTAL TAILPIECE

ABOVE FLOOR OUTLET

1-1/2 O.D.

TAILPIECE

SEE FITTING

SPECS FOR

DIMENSIONS

(1) AIR VALVE

ON/OFF

SWITCH

ACCESS TO PUMP/MOT

THROUGH REMOVABLE

FRONT ACCESS PANEL

14-1/8

(359mm)

BATH SUPPORT

MATERIAL

(483mm)

7/8 WATER

RETENTION

FLANGE

(3 SIDES)

19-1/4

(489mm)

ROUGH

FLOOR

FINISHED

WALL

TOP OF

DECK

(76mm)

3-3/4

(95mm)

OPTIONAL TO

FINISHED FLOOR

USUALLY BETWEEN

65 & 78

(1651 & 1981mm)

C/L OF

OVERFLOW

(305mm)

OPT. 4

(102mm)

C/L OF

SPOUT

C/L OF

VALVES

C/L OF

SHOWER ARM

2-1/2

(64mm)

UNDERSIDE

OF DECK

LEVELING

STRINGER

NOT FOR

SUPPORT

TILING

FLANGE

BATH SUPPORT

MATERIAL

(483mm)

7/8 WATER

RETENTION

FLANGE

(3 SIDES)

19-1/4

(489mm)

LEVELING STRINGER

NOT FOR SUPPORT

ROUGH

FLOOR

FINISHED

WALL

TOP OF

DECK

59-7/8

(1521mm)

29-7/8

(759mm)

WATER

RETENTION

FLANGE

(3 SIDES)

6-1/4

(159mm)

C/L OF DRAIN

1-1/2 (38mm)

(76mm)

3-3/4

(95mm)

FINISHED

WALL

(305mm)

OPT.

OPTIONAL TO

FINISHED FLOOR

USUALLY BETWEEN

65 & 78

(1651 & 1981mm)

C/L OF

OVERFLOW

(102mm)

C/L OF

SPOUT

C/L OF

VALVES

C/L OF

SHOWER ARM

2-1/2

(64mm)

3/4

(19mm)

C/L OF

SUPPLIES

HORIZONTAL TAILPIECE

ABOVE FLOOR OUTLET

1-1/2 O.D.

TAILPIECE

SEE FITTING

SPECS FOR

DIMENSIONS

UNDERSIDE

OF DECK

14-1/8

(359mm)

GENERAL SPECIFICATIONS FOR 2740 WHIRLPOOL

WHIRLPOOL ELECTRICAL SPECIFICATIONS

SYSTEM I PUMP 1.1 HP, 9.9 AMPS,120V.

59-7/8 x 29-7/8 x 19-1/4 (1521 x 759 x 489mm)

105 Lbs. (47 Kgs.)

480 Lbs. (216 Kgs.)

45 Gal. (171 L)

38 Gal. (144 L)

20 x 46 (508 x 1168mm )

25-1/2 x 55-1/2(648 x 1410mm )

11-1/2 (292mm)

39 Lbs./Sq.Ft. (188 Kgs./Sq.m)

20.8

35.3

INSTALLED SIZE

WEIGHT

WEIGHT w/WATER

GAL. TO OVERFLOW

WHIRLPOOL MIN. OPERATING VOL.

BATHING WELL AT SUMP

BATHING WELL AT RIM

WATER DEPTH TO OVERFLOW

FLOOR LOADING

(PROJECTED AREA)

PTS.

CUBE (FT3)

GENERAL SPECIFICATIONS FOR 2740 BATHING POOL

59-7/8 x 29-7/8 x 19-1/4 (1521 x 759 x 489mm)

70 Lbs. (32 Kgs.)

462 Lbs. (208 Kgs.)

47 Gal. (178 L)

20 x 46 (508 x 1168mm )

25-1/2 x 55-1/2(648 x 1410mm )

11-1/2 (292mm)

37 Lbs./Sq.Ft. (179 Kgs./Sq.m)

20.8

35.3

INSTALLED SIZE

WEIGHT

WEIGHT w/WATER

GAL. TO OVERFLOW

BATHING WELL AT SUMP

BATHING WELL AT RIM

WATER DEPTH TO OVERFLOW

FLOOR LOADING

(PROJECTED AREA)

PTS.

CUBE (FT3)

NOTES:

BATH TO BE INSTALLED ABOVE FLOOR LINE AS A RECESS INSTALLATION.

■ REFER TO INSTALLATION INSTRUCTIONS SUPPLIED WITH WHIRLPOOL FOR ADDITIONAL INFORMATION.

BATH TO BE INSTALLED ABOVE FLOOR LINE AS A RECESS INSTALLATION.

LEFT HAND OUTLET SHOWN, RIGHT HAND REVERSE DIMENSIONS (2740.118).

FITTINGS NOT INCLUDED AND MUST BE ORDERED SEPARATELY.

PROVIDE SUITABLE REINFORCEMENT FOR ALL SUPPORTS.

IMPORTANT: Dimensions of xtures are nominal and may vary within the range of tolerances established by ANSI Standards Z124.1 and

A112.19.7. These measurements are subject to change or cancellation. No responsibility is assumed for use of superseded or voided pages.

Revised 1/07
