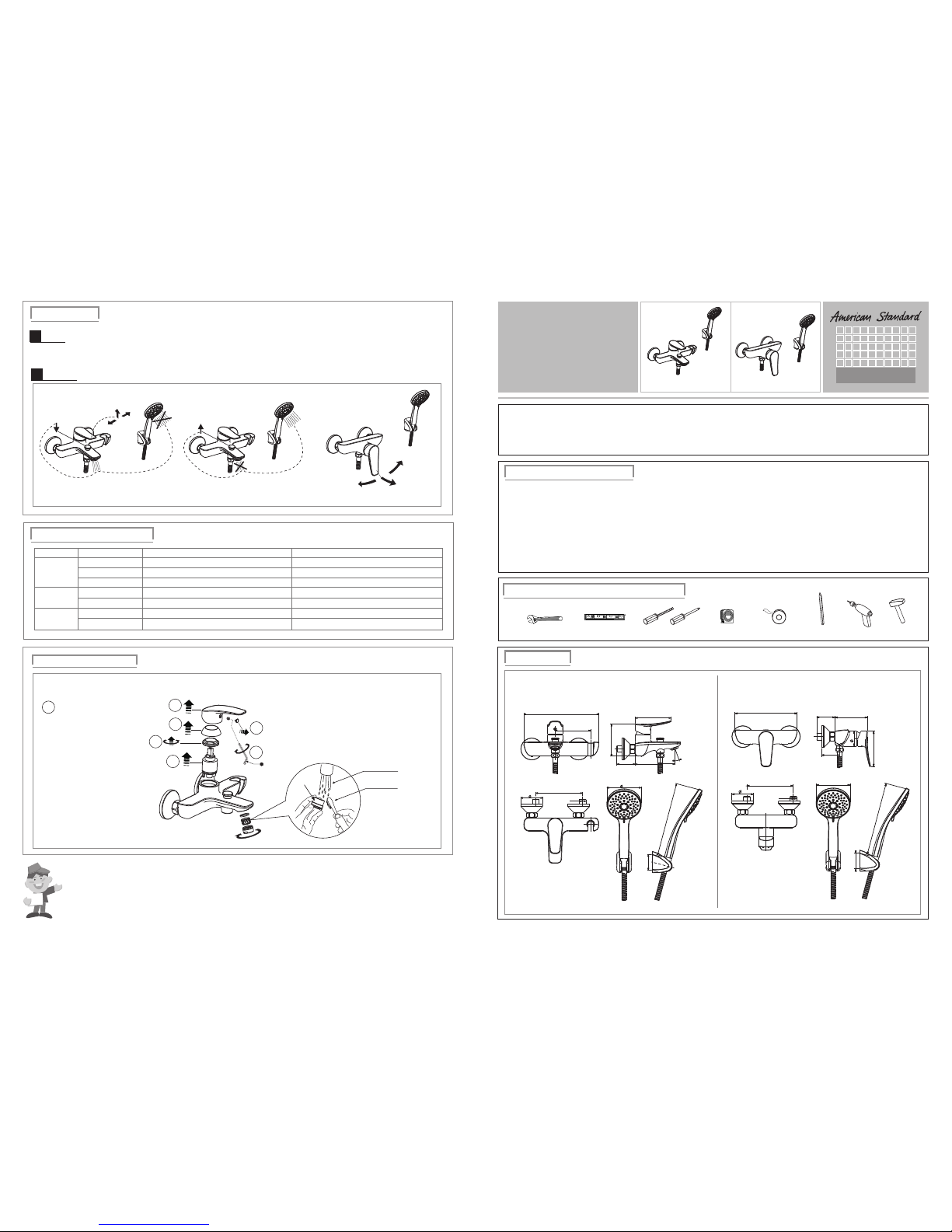

American Standard Milano Guida

Rev. A1 - 1 -

- 4 -

FFAS0911-602500BF0

Single Lever Exposed B&S Mixer

FFAS0912-702500BF0

Single Lever Exposed Shower Only

FFAS0911-602500BF0 FFAS0912-702500BF0

Installation &

Operation Instructions

* Recommended water pressure condition: 0.1~0.5Mpa.

* Environment Temperature:1~55℃

* Steam is not allowed to use.

* The cold and hot water pipes must not be reserved.

Conditions for use

* Remove all impurity in pipes before beginning to avoid clogging. Connect faucet pipes correctly.

* Check installation distances in the Dimension diagram to ensure correct installation.

Make sure the cold water hose is connected to the right side and the hot water hose to the left.

When in the process of installation, grab the whole body. Do not grab handle only.

Pre-Installation Checks

* American Standard always keep raising and improving the product design and performance, and reserve the right to modify

the dimension and spefication. At this case, we will not inform you separately.

* This installation instruction sheet is for your reference only, the dimension and specification is subject to the actual products.

Thank you for selecting American-Standard - the benchmark of fine quality for over 100 years.

To ensure that your installation proceeds smoothly--please read these instructions carefully before you begin.

All instruction procedures must comply in strict accordance with applicable local plumbing and building codes

Recommended Tools and Materials

Electric drill

Pencil

windtight swathe

Adjustable Wrench Level Tape Measure

Screwdriver Sinker

Dimension

Unit: mm

Care & Maintenance

Attention:

Please leave the manual with the customer

after installation is finished.

Trouble Shooting Guide

Untwist the hose.

Cartridge packing

Hose junction Check the connection.

Check cartridge install.

Check valve position.

Check any impurities. Remove all impurities.

Open it to full valve

When packing is damaged, replace the cartridge.

Check the existence of packing and wind it up sufficiently

Poor flow rate

Leakage

Water supply valve

Flexible hose

Aerator

Check if hose is twisted.

Check if the water from Supply valve is enough or not

Check if the supply pipe connected correct or not Connect the hot and cold water pipe correctly

Increase water supply

Deviant

Temperature

Supply Valve

Trouble

Checkpoint

Contents Action

Supply system

Test / Usage

* Move handle down into “OFF”position. Turn on supply angle valve to check all connections for leak.

* Operate handle up and down, left and right to flush water lines thoroughly.

Test

Usage

* If you want to change the parts or clean the inner of faucet,

please follow the steps right to remove the parts.

FFAS0911-602500BF0 FFAS0912-702500BF0

240

114

102

150

70 G1/2

59 79

114

109

236

G1/2”

200 59 104

114

236

109

150 15

Cold

Hot

Clod

Hot

72.5mm

1. Close the Water Supply System

Remove all impurity in Aerator

Aerator Soft Brush

Clean Water

Milano

- 2 - - 3 -

Index Button

Screw

Handle

Cap

Nut

Cartridge

Stop Valve Handle

Body

Screw

O-Ring

Installing the S-Connector

Installation

Installing the Hand Shower

Washer

Nut

Escutcheon

S-Connector

Aerator

Hose

Shower Hanger

Anchor

Shower

Diverter Valve

Screw

(Shower Hanger)

Anchor

Water Supply Pipeline(Hot)

S-C onne ctor

Water Supply Pipeline

(Cold)

FFAS0911 / FFAS0912

Parts List

No. Part Name Q’ty No. Part Name Q’ty

* Consult the dimension drawing and lay the pipes.

* Wash and clean the water supply pipeline.

FFAS0911 / FFAS0912

34~39

150

2lev el

Finished Wall

Escutcheon

Washer

Nut

Fanucet

S-Connector

Water Supply Pipeline(Cold)

Installing the Faucet

（Wall）

Water Supply Pipeline(Hot)
