Set up the Clock

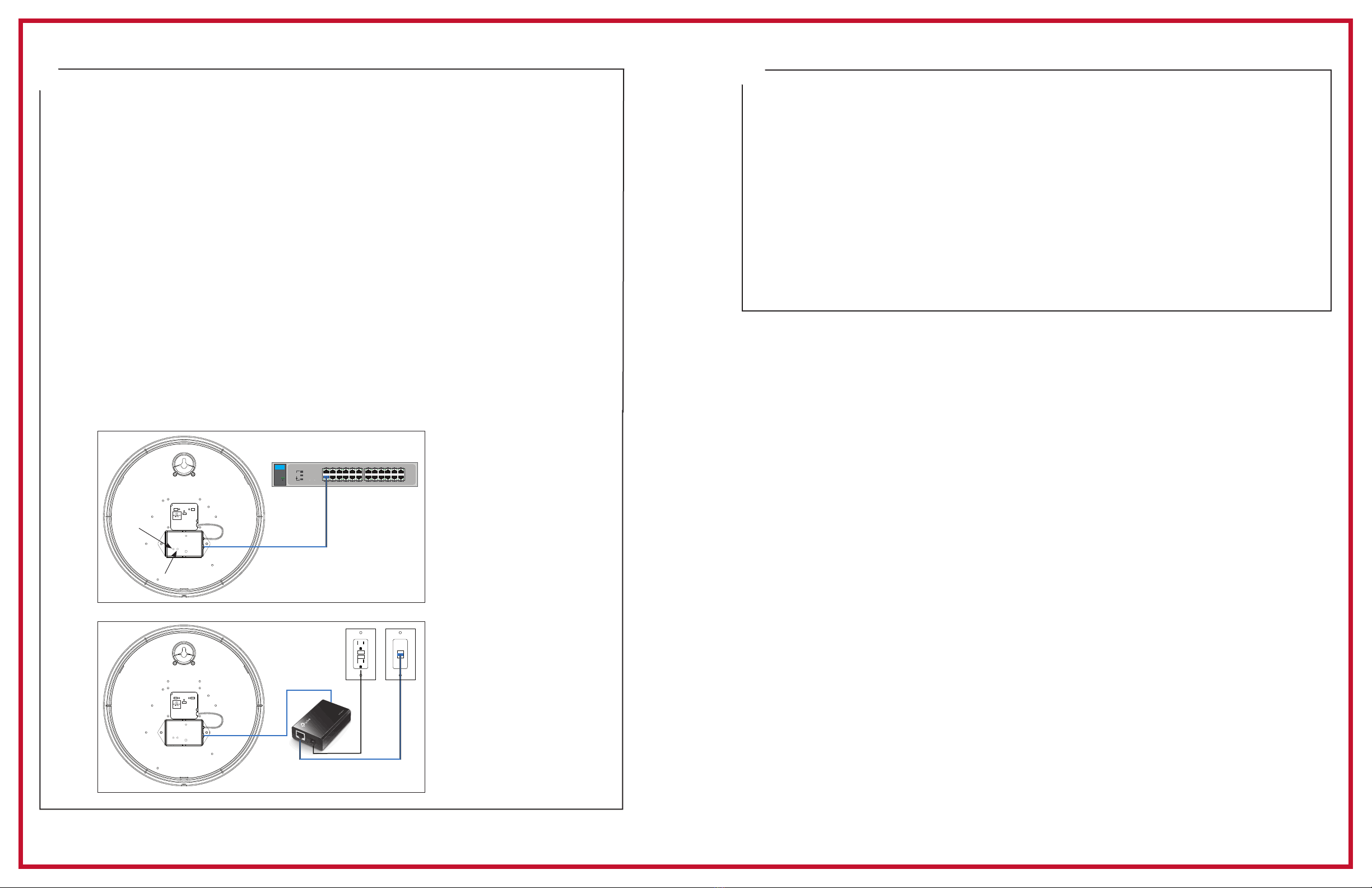

1. Apply power to the clock by connecting a CAT 5 or higher Ethernet patch cable (A) from
a PoE switch (Fig. 1) or single injector (Fig. 2) to the PoE receiver (D).
—PoE Switch (Fig.1) - Check with network administrator for infrastructure needs. This part
is not supplied by American Time.
—PoE Injector (TMA200-6) (Fig. 2) - This is an optional power source that may be
purchased from American Time.
2. The Status LED (B) will indicate the clock's status as follows:
—Flashing Orange: Acquiring an IP address using DHCP
—Flashing Red: Attempting SNTP sync
—Continuous Red: Failed SNTP sync
—Flashing Green: Received SNTP sync
—Continuous Green: Successful SNTP sync
Note: When a DHCP network is not present at initial start up, the PoE clock will default
to a random Static IP in the range of 169.254.1.0 to 169.254.254.255.
For more details reference the PoE Analog and Global Series Digital Manual.
Find it online: american-time.com
Navigate to: SUPPORT > PRODUCT DOCUMENTATION > select MANUAL > type PoE in
searchbox > SEARCH – Click on PoE Analog and Global Series Digital Manual.
3. The Buzzer LED (C) designates if the buzzer is enabled. The buzzer is an optional feature.
A=PoE connection (CAT 5 or higher Ethernet patch cable) B=Status LED C=Buzzer LED D=PoE Receiver
QUICK START INSTALLATION GUIDE POWER OVER ETHERNET ANALOG CLOCKS
5
4
Adjustments via Network Clock Connect
1. Download Network Clock Connect. Find it online: american-time.com
Navigate to: SUPPORT > PRODUCT DOCUMENTATION > select FIRMWARE > SEARCH
Click on Network Clock Connect.
The software will automatically download. It is also available from the optional USB
Drive (H004167B-POE, purchased separately).
2. Install Network Clock Connect application – Password = clock4u (default)
3. Network Clock Connect will allow you to congure:
• Network address settings
• Time Synchronization settings
• Daylight Saving Time settings
• Schedules (Buzzer clocks) - maximum of 100 scheduled events
For more details, reference the PoE Analog and Global Series Digital Manual.
1 3 5 7 9 11
2 4 6 8 10 12
13 15 17 19 21 23
14 16 18 20 22 24
10/100/1000 Base-T Ports (1-24)
Ethernet
Gigabit Switch
Power
Fault
Locator Reset Clear
LED
Mode
Act
Spd
FDx
A
A
A
B
C
Fig. 1
Fig. 2
D
TMA200
PoE switch
