Ameriwood HOME 1277500COM Manuale utente

1277500COM

Fireplace Mantel

B341277500COM0

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Follow Ameriwood Home

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Assembly Difficulty Meter

Easy Tough

Secure Your Furniture

Keep your home and family safe

with the wall anchor kit that is

included with the product.

Serious or fatal crushing injuries can

occur from tipping furniture.

WARNING: Manufacturer assumes no liability

for improper installation or excessive loads

placed on screws or bracket. This wall anchor

is not a substitute for proper adult supervision.

Helpful Hints

ameriwoodhome.com

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a

(right) and

(left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ameriwoodhome.com

Before You Start

Quick

Tip

Assembly

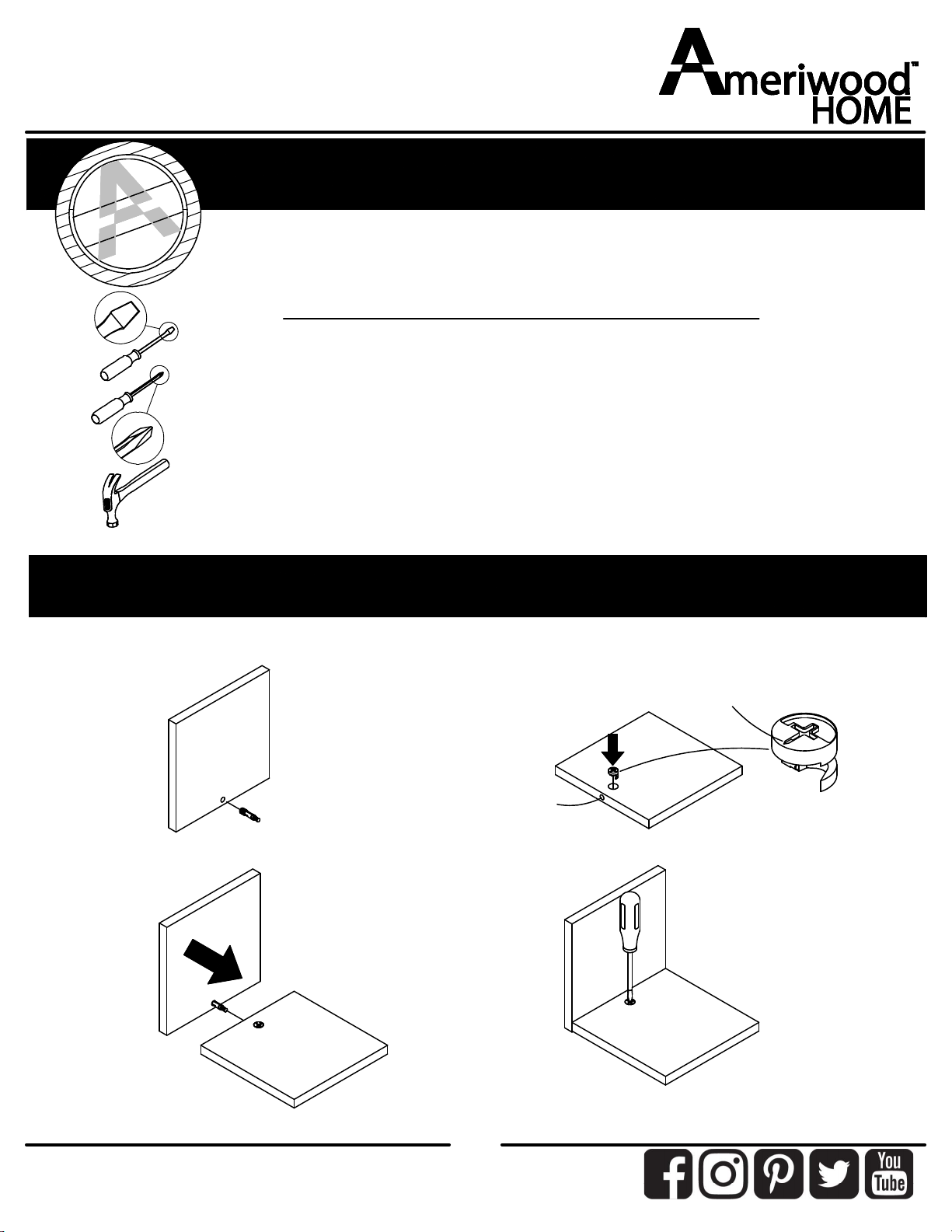

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Parts are labeled on the surface or edge of the part

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

Press parts together so CAM BOLT inserts

into edge hole.

Press CAM BOLT into hole. Press CAM LOCK into hole.

End hole

Using a screwdriver, turn the CAM LOCK clockwise to

lock the CAM LOCK and CAM BOLT into their holes

and fastening parts together.

Arrow to point towards end

hole in edge of part.

ameriwoodhome.com

Before You Start

Quick

Assembly

Tip

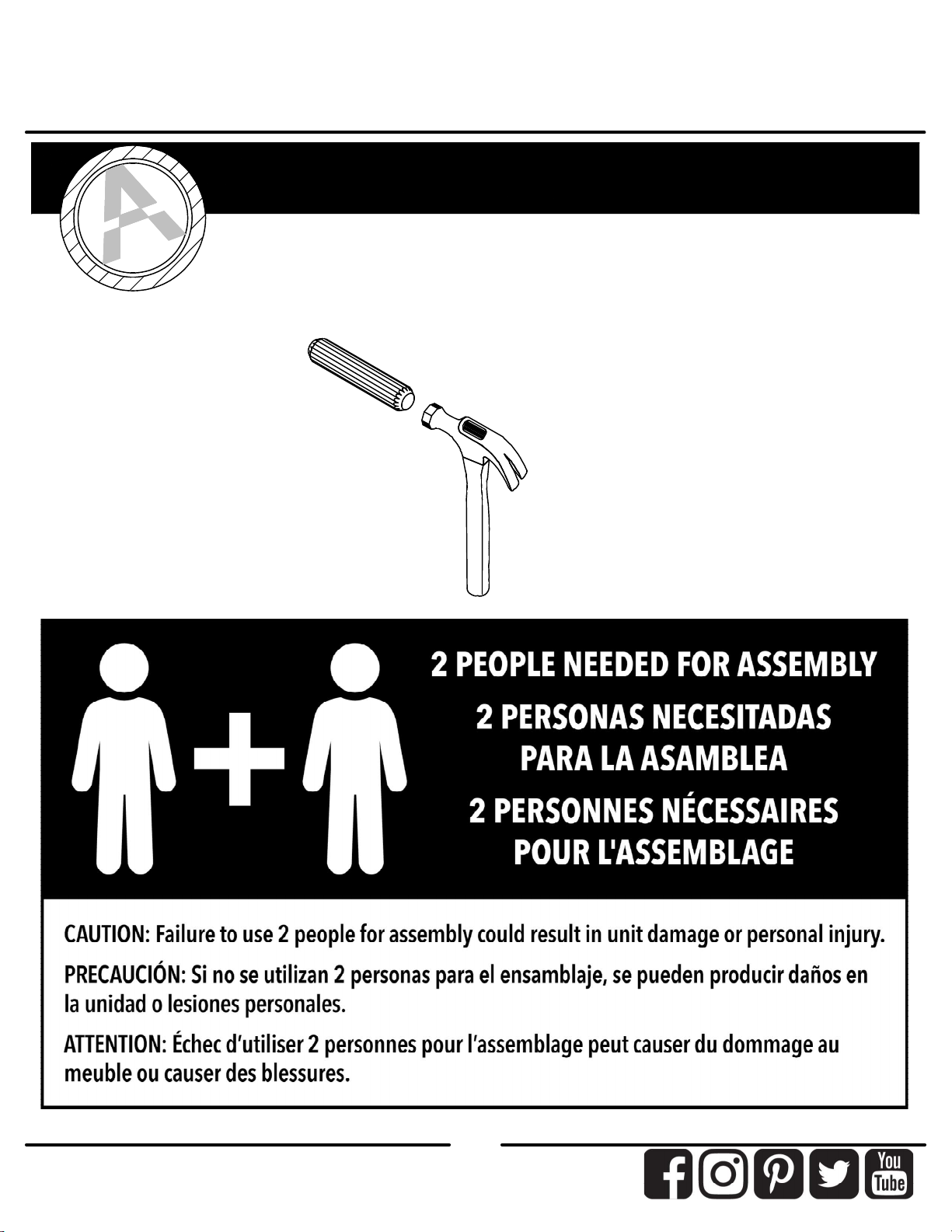

Please Note:

You may need to lightly tap the wood dowels into the holes during

your assembly process.

ameriwoodhome.com

Board Identification

Not actual size

Side Panel (x2)

31277341010 Left Side Rail

31277341020 Right Side Rail

31277341030

Front Panel

31277341040

Upper Base Top

31277215050 Upper Base Shelf

31277215060

Upper Front Rail

31277215070 Upper Side Rail (x2)

31277215080

Lower Base Shelf

31277341090

Lower Base Bottom

31277341100

Lower Front Rail

31277341110

Lower Side Rail (x2)

31277341120

ABCD

EFG

ameriwoodhome.com

Board Identification

Not actual size

ameriwoodhome.com

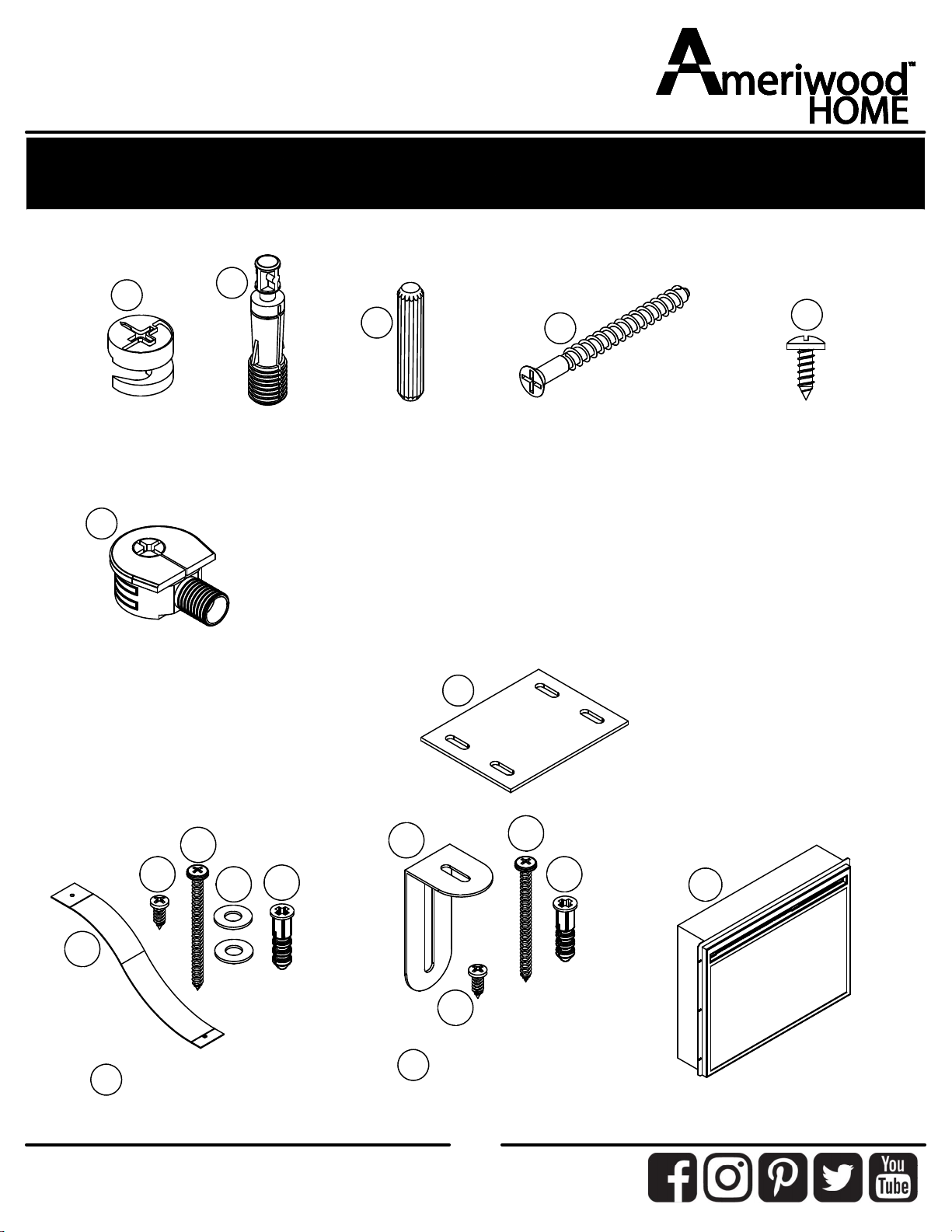

Part List

Actual Size

Not Actual Size

(x8)

#A22710

cam bolt

(x8)

#A22700

cam lock

(x4)

#A21670

wood dowel

(x14)

#A23030

confirmat

(x14)

#A12120

7/16" screw

(x14)

#A22760

quickloc

(x2)

#A54270

connection plate

(x1)

#A84050

bracket kit

(x1)

#A84000

safety strap kit

345

(x1)

#A95010

fireplace insert

7a 7c

6d 6e

ameriwoodhome.com

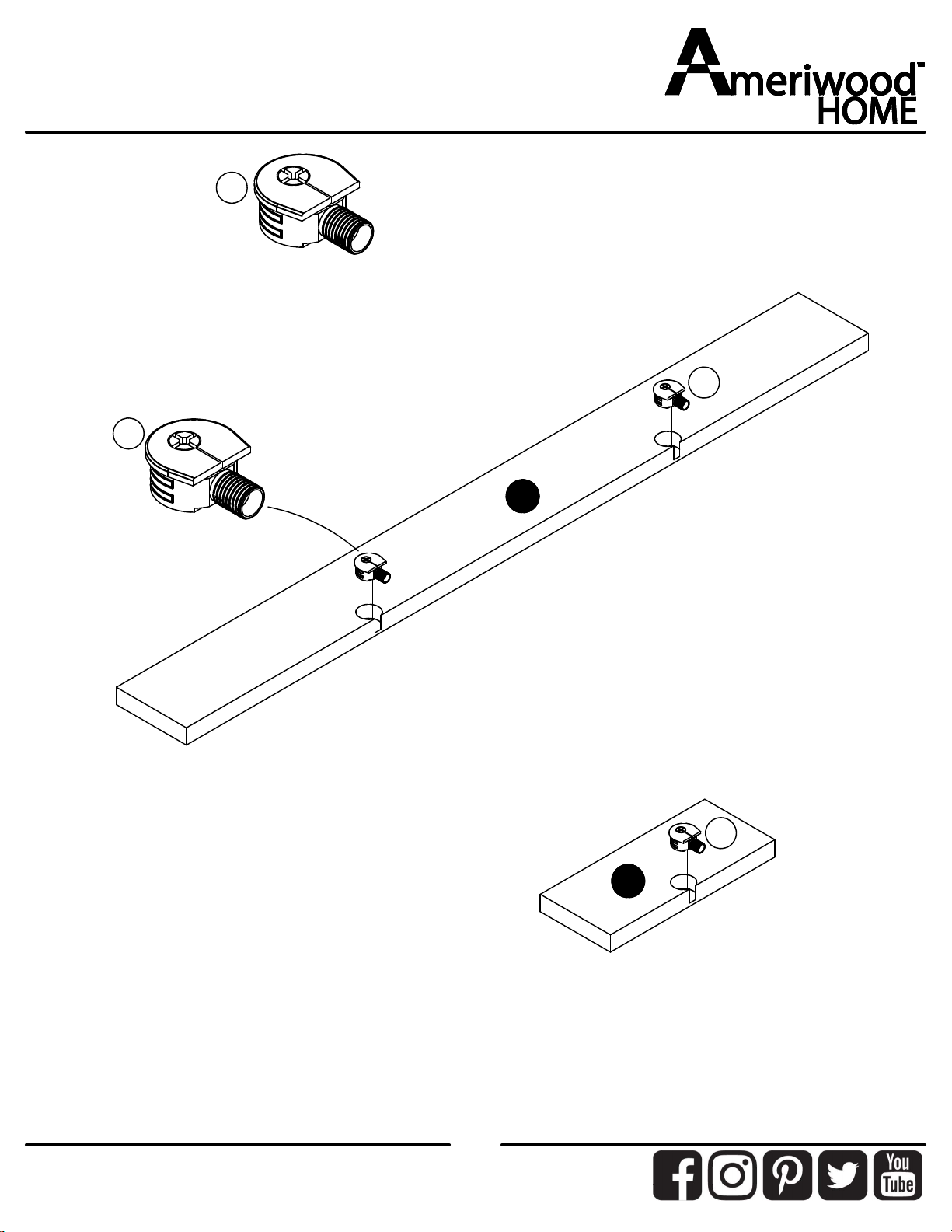

STEP1

(x4)

ameriwoodhome.com

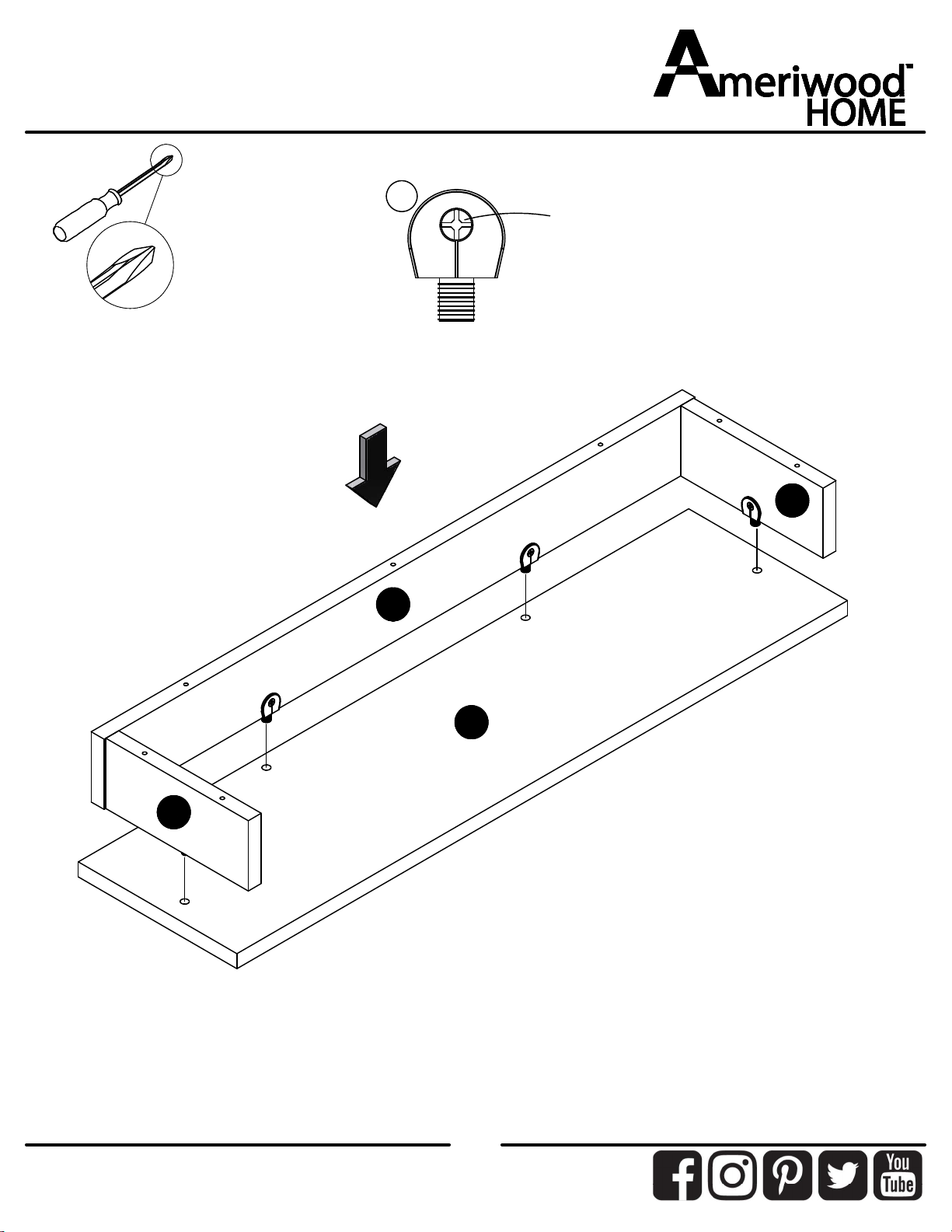

STEP2

Turn screw clockwise

to lock parts together

unfinished

surface

ameriwoodhome.com

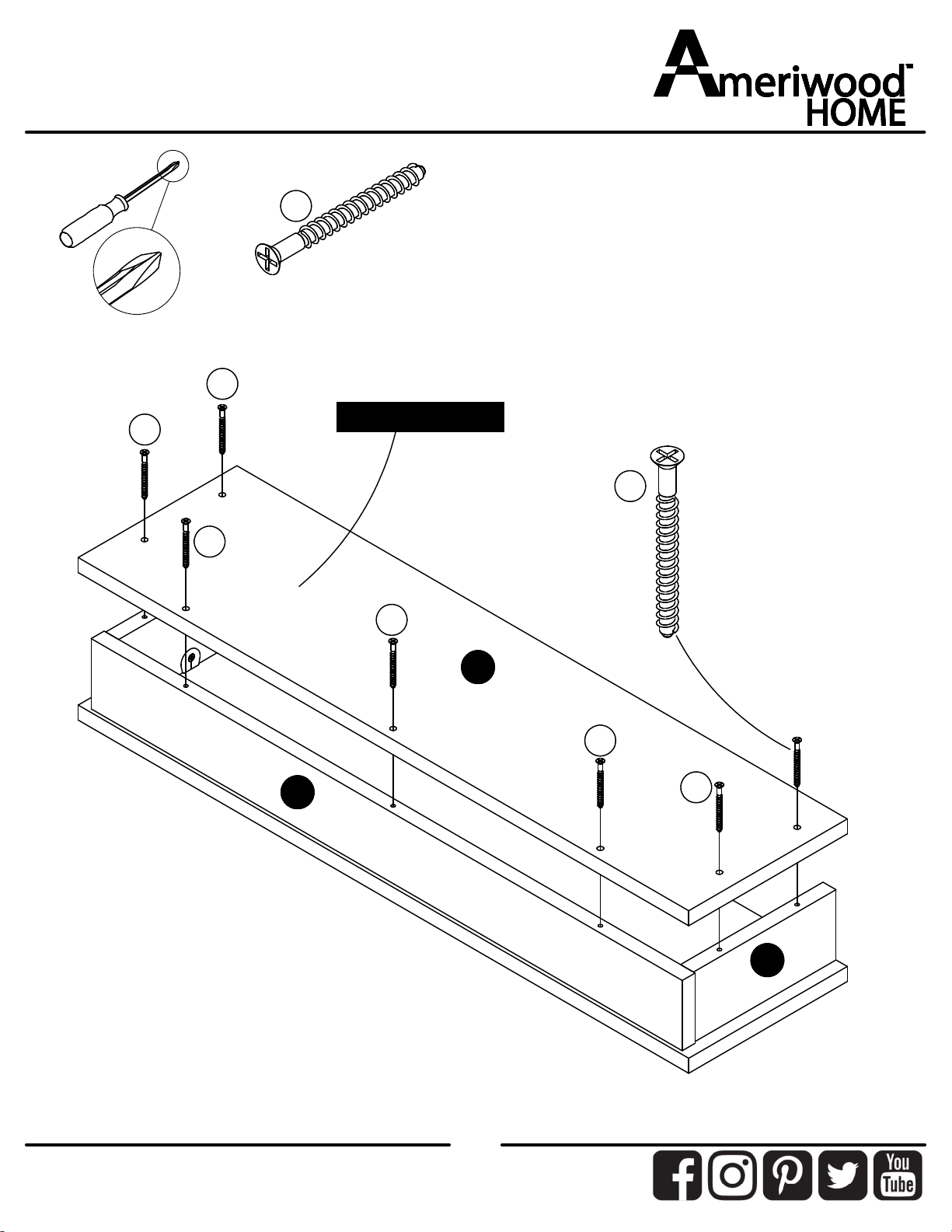

STEP3

(x7)

unfinished surface
