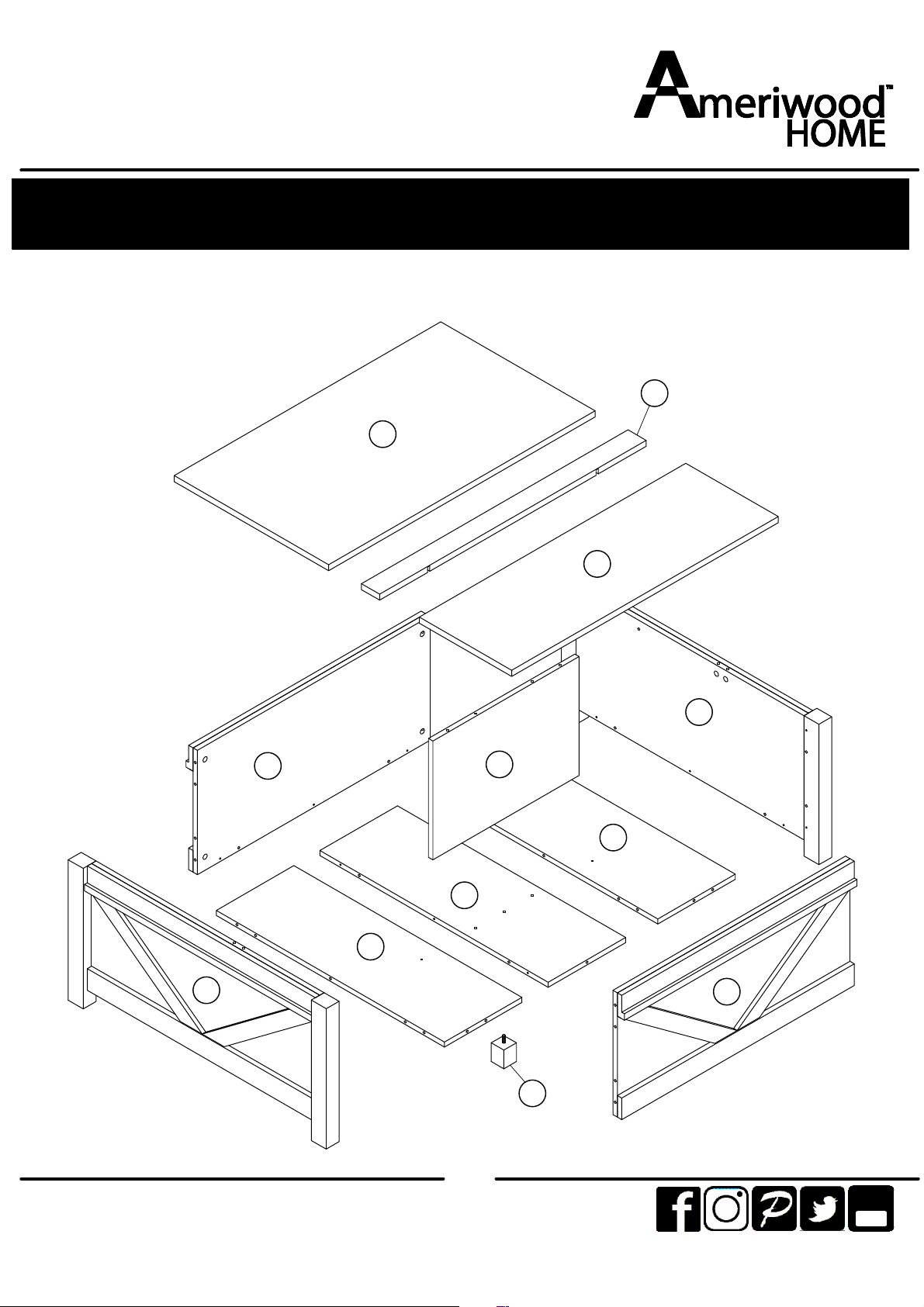

Ameriwood HOME 3321884COM Manuale utente

B343321884COM00GO

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

WARNING

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Follow Ameriwood Home

Date of Purchase ___ / ___ / ___

Lot Number:

3321884COM

Farmington Lift Top Coffee Table

Tube

You

Assembly Difficulty Meter

Easy Tough

Do NOT return this product!

Contact our friendly customer service team first for help.

Visit ameriwoodhome.com

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a R (right) and L (left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

ameriwoodhome.com

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 1.0-1.5 HOUR

Helpful Hints

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Tube

You

Tube

You

Quick

Tip

Assembly

ameriwoodhome.com

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

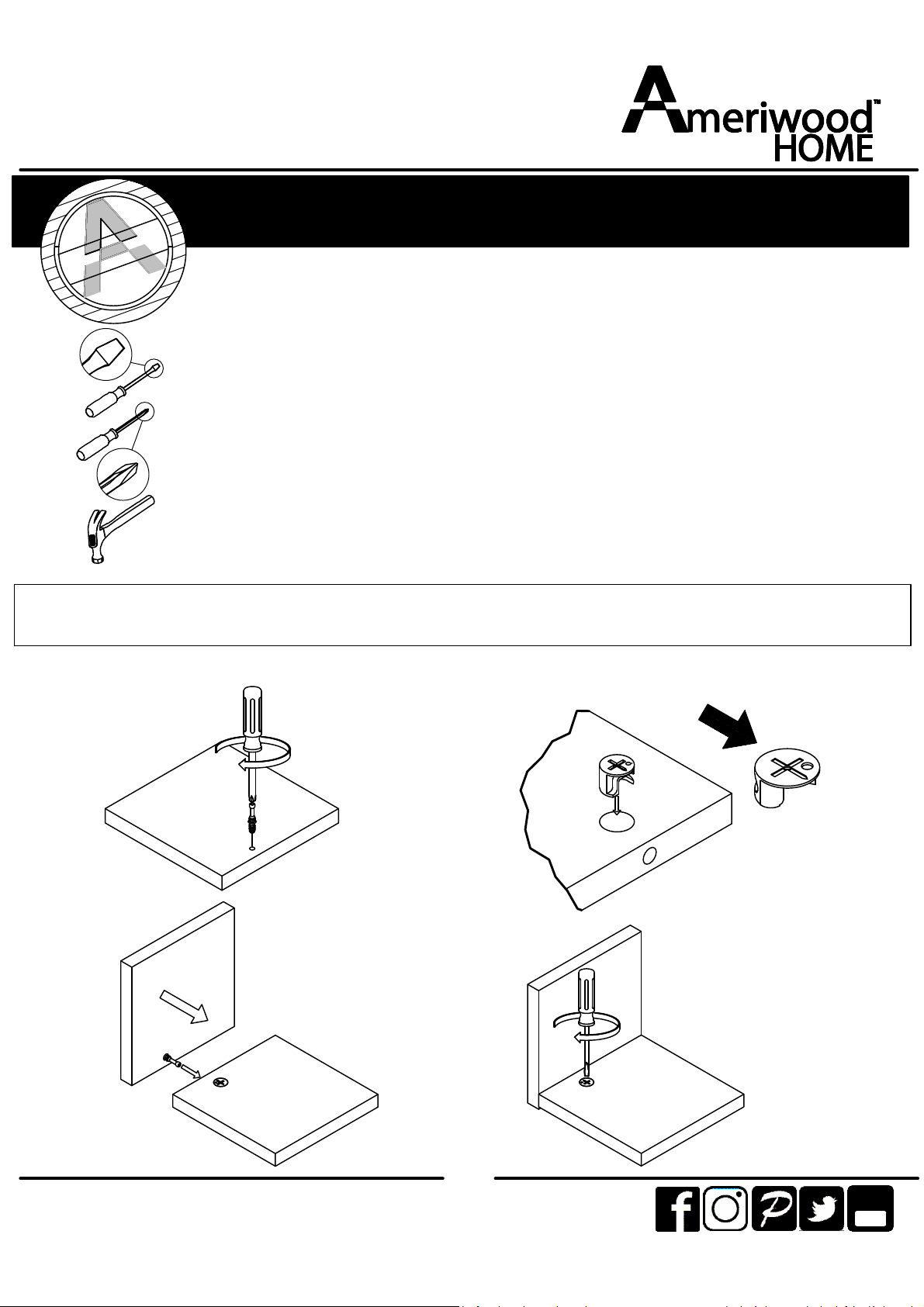

Before You Start

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

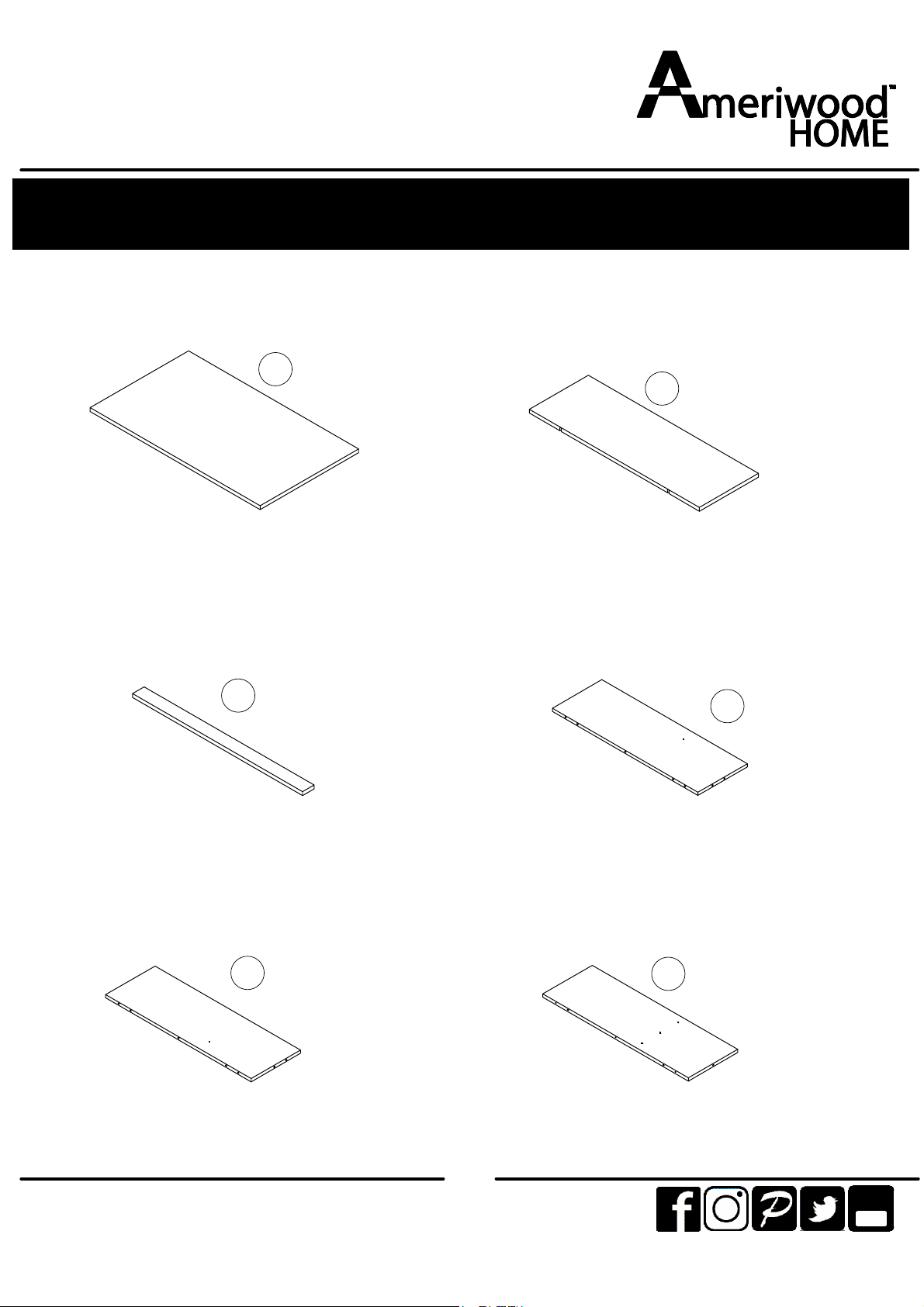

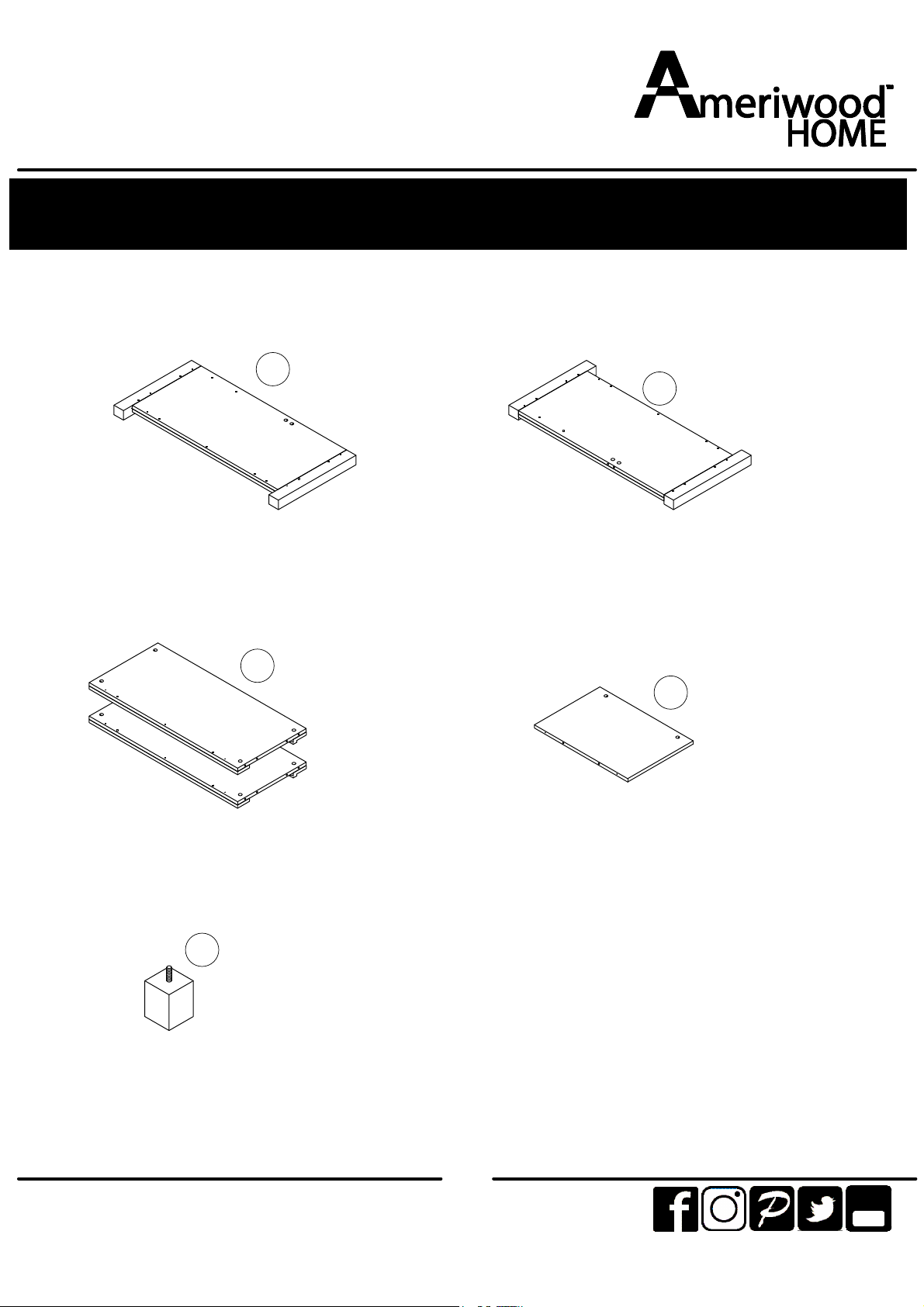

Board Identification

Not actual size

ameriwoodhome.com

LIFT TOP

T3321884010GO

QTY: 1 PC

Tube

You

LIFT TOP

T3321884020GO

QTY: 1 PC

TOP BRACE

T3321884030GO

QTY: 1 PC

RIGHT BOTTOM

T3321884040GO

QTY: 1 PC

LEFT BOTTOM

T3321884050GO

QTY: 1 PC

CENTER BOTTOM

T3321884060GO

QTY: 1 PC

Board Identification

Not actual size

ameriwoodhome.com

Tube

You

RIGHT SIDE FRAME

T3321884070GO

QTY: 1 PC

LEFT SIDE FRAME

T3321884080GO

QTY: 1 PC

FRONT / BACK FRAME

T3321884090GO

QTY: 2 PCS

DIVIDER

T3321884100GO

QTY: 1 PC

LEG

T3321884110GO

QTY: 1 PC

Board Identification

Not actual size

ameriwoodhome.com

Tube

You

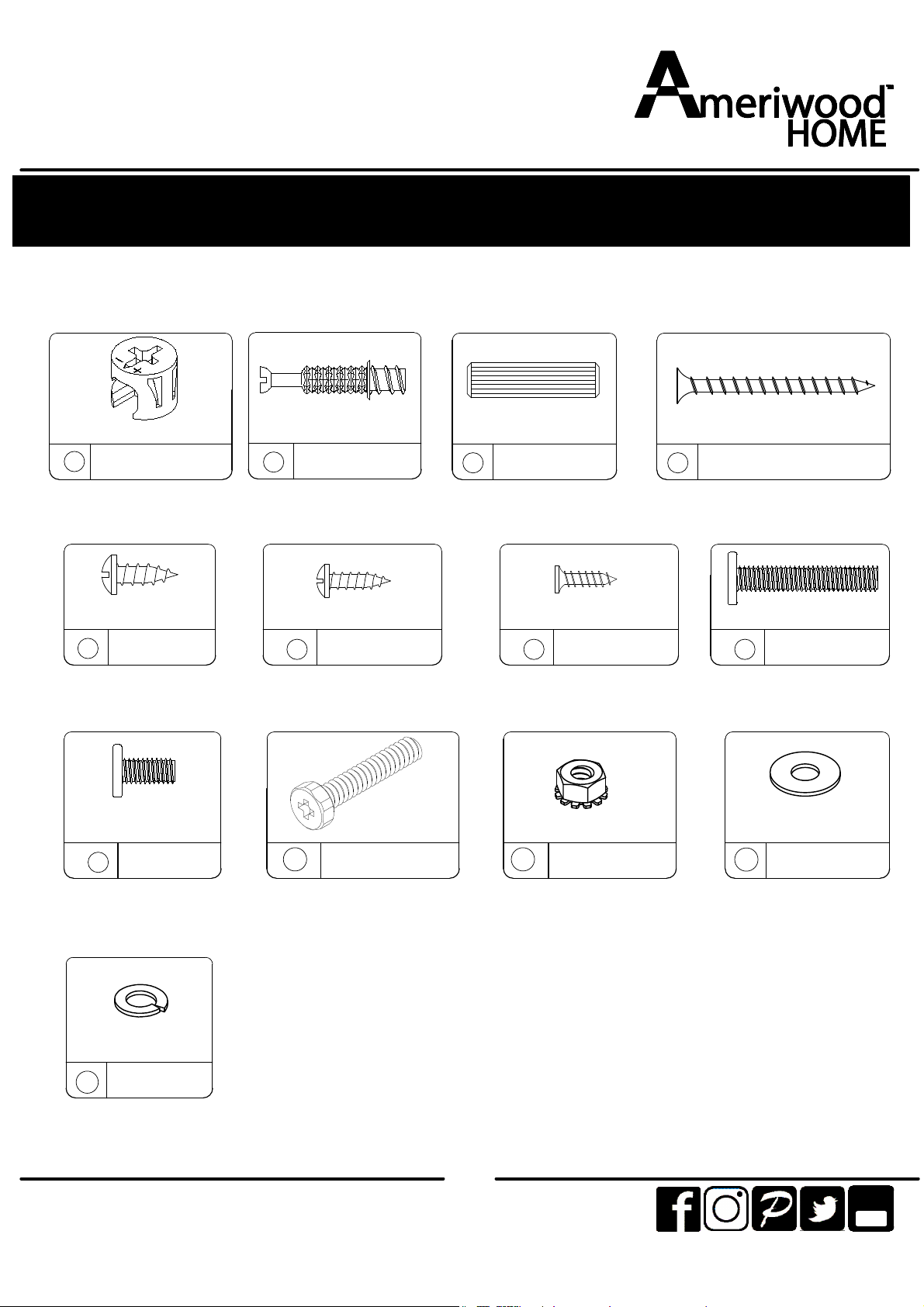

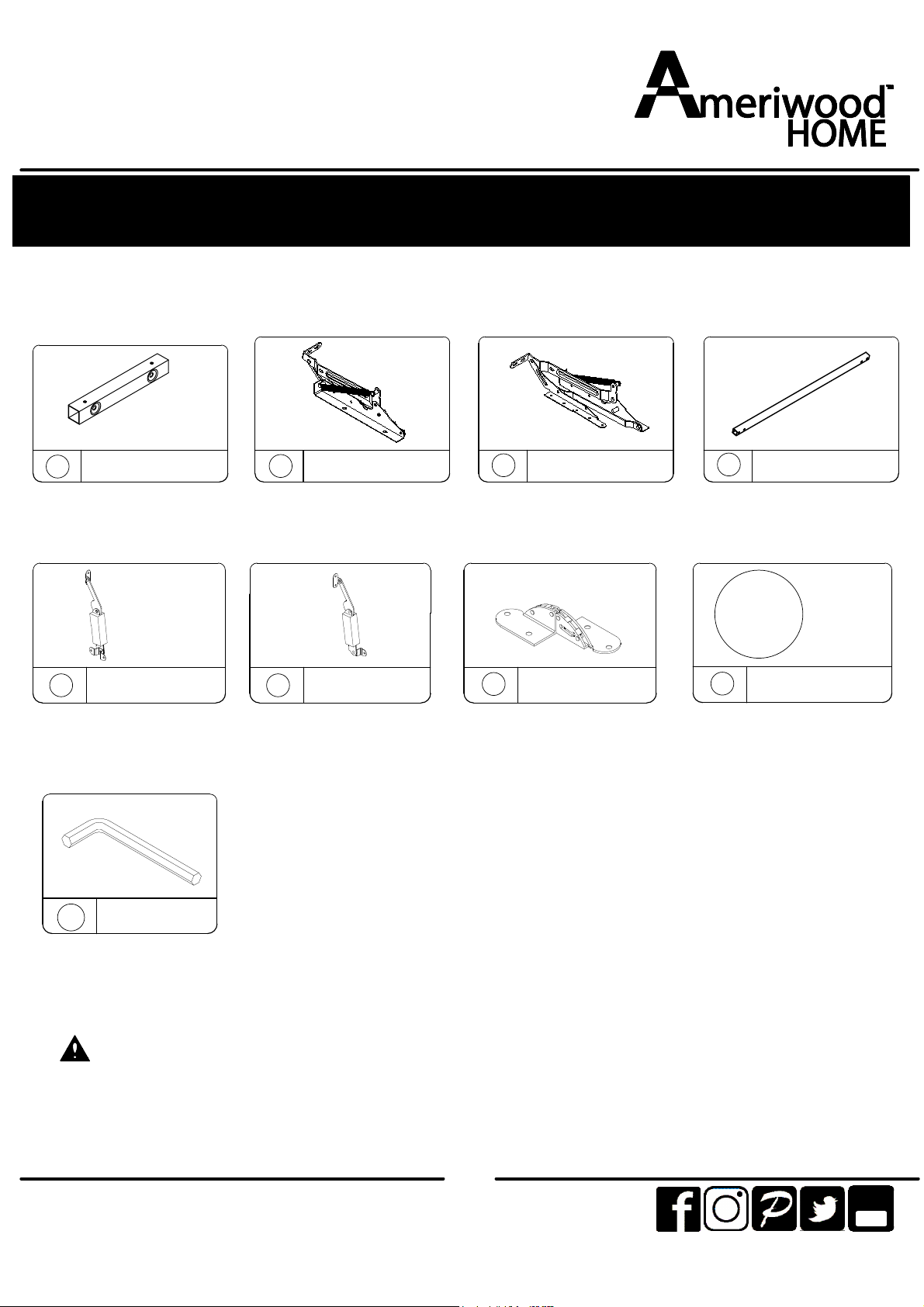

Part List

ameriwoodhome.com

Hardware Bag Reference number:

23321884COM0GO

Actual Size

×32 ×24

WOOD DOWEL

TGO2900

Ø8 x 30mm

Ø6 x 25mm

CAM BOLT

TGO2001

Tube

You

×8

Ø4 x 14mm

SCREW

TGO1306

×2

Ø4.2 x 45mm

SCREW

TGO1008

Ø5 x 14mm

×10

SCREW

TGO1325

5 ×8

Ø3.5 x 14mm

SCREW

TGO1005

7 ×4

1/4" x 32mm

BOLT

TGO1626

1/4" x 12mm

BOLT

TGO1625

×32

CAM LOCK

TGO2101

Ø15 x 12mm

×4 ×4

Ø1/4" x 6mm

NUT

TGO7003

×4

BOLT

TGO1627

Ø1/4"x32mm 1/4"

WASHER

TGO4604

1/4"

SPRING WASHER

TGO4606

×4 10 11 12

Part List

ameriwoodhome.com

Hardware Bag Reference number:

23321884COM0GO

Tube

You

Not Actual Size

×2

BLOCK METAL

TGO3542

×1

LEFT HINGE

TGO3544L

×2

HINGE

TGO3545

200 x 25x 25mm

×1

LEFT LIFT MECHANISM

TGO3543L

×14

COVER

TGO2214

Ø 20mm

×1

ALLEN KEY

TGO7001

×1

RIGHT LIFT MECHANISM

TGO3543R

×1

TENSION BAR

TGO3546

×1

RIGHT HINGE

TGO3544R

14 15 16 17

18 19 20 21

CAUTION: Mechanism spring under tension. Use caution when removing strap.

ameriwoodhome.com

STEP

1.1 Cam bolt (2) into (C), (F), (G), (H) and (J)x2 as illustrated.

×32

Tube

You

J x 2

ameriwoodhome.com

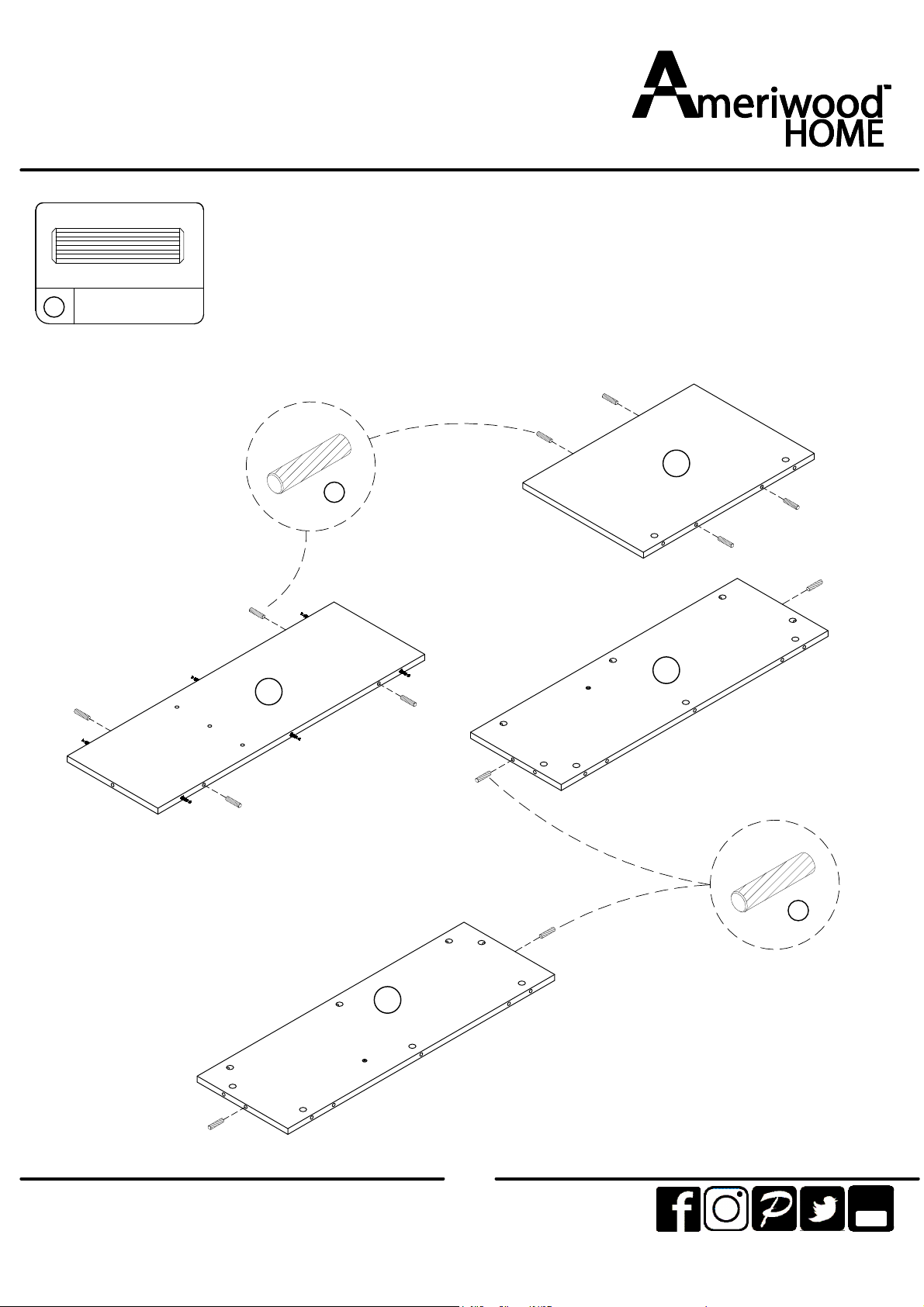

STEP

Tube

You

2.1 Insert (3) into (D), (E), (F) and (K) as illustrated.

3 ×12
