Ameriwood HOME 3919335COM Manuale utente

3919335COM

Fireplace/TVCabinet

B343919335COM0

THISINSTRUCTIONBOOKLETCONTAINS

IMPORTANT

SAFETYINFORMATION.PLEASEREADANDKEEPFORFUTUREREFERENCE.

FollowAmeriwoodHome

Tube

You

DateofPurchase___/___/___

LotNumber:

DoNotReturnThisProduct!

Contactourcustomerserviceteamforhelpfirst.

Call:1‐800‐489‐3351(tollfree)

Monday‐Friday9am‐5pmCST

Visit:www.ameriwoodhome.com

AssemblyDifficultyMeter

Easy Tough

‐Anchorunittostudinwall

‐DoNotallowchildrentoclimbonunit

‐Putheavyitemsonlowershelvesordrawers

‐Twopeoplerequiredforassembly

Unitcantipovercausingsevereinjuryordeath.

WARNING

ContactUs!

HelpfulHints

2

ameriwoodhome.com

DoNOTreturnthisproduct!

Contactourfriendlycustomerserviceteamfirstforhelp.

Callus!

1‐800‐489‐3351

Monday‐Friday

9am‐5pmCST

Visitameriwoodhome.comtoviewthe

limitedwarrantyvalidintheU.S.andCanada.

AssemblyTips

‐Openyouritemintheareayouplantokeepittoavoidexcessiveheavylifting.



‐Identify,sortandcountthepartsbeforeattemptingassembly.



‐Compressiondowelsarelightlytappedinwithahammer.



‐Slidesarelabeledwitha

(right)and

L

(left)forproperplacement.



‐MakesuretoalwaysfacethepointonthetopoftheCamLocktowardsthe

outeredge.



‐Useallthenailsprovidedforthebackpanelandspreadthemoutequally.



‐Backpanelmustbeusedtomakesureyourunitissturdy.



‐DoNOTuseharshchemicalsorabrasivecleanersonthisitem.



‐Neverpush,pull,ordragyourfurniture.

Tube

You

PEOPLENEEDEDFORASSEMBLY:1‐2

3

ameriwoodhome.com

BeforeYouStart



Quick

Tip

Assembly



CamLockFasteningSystem

ThisCamLockFasteningSystemwillbeusedthroughouttheassemblyprocess.

Readthrougheachstepcarefullyandfollowtheproperorder



Separateandcountallyourpartsandhardware

Partsarelabeledonthesurfaceoredgeofthepart



Giveyourselfenoughroomfortheassemblyprocess



Havethefollowingtools:FlatHeadScrewdriver,#2PhillipsHead

ScrewdriverandHammer

Caution:Ifusingapowerdrillorpowerscrewdriverforscrewing,

pleasebeawaretoslowdownandstopwhenscrewistight.

Failuretodosomayresultinstrippingthescrew.



PresspartstogethersoCAMBOLTinserts

intoedgehole.

PressCAMBOLTintohole. PressCAMLOCKintohole.

Endhole

Usingascrewdriver,turntheCAMLOCKclockwiseto

locktheCAMLOCKandCAMBOLTintotheirholes

andfasteningpartstogether.

Arrowtopointtowardsend

holeinedgeofpart.

4

ameriwoodhome.com

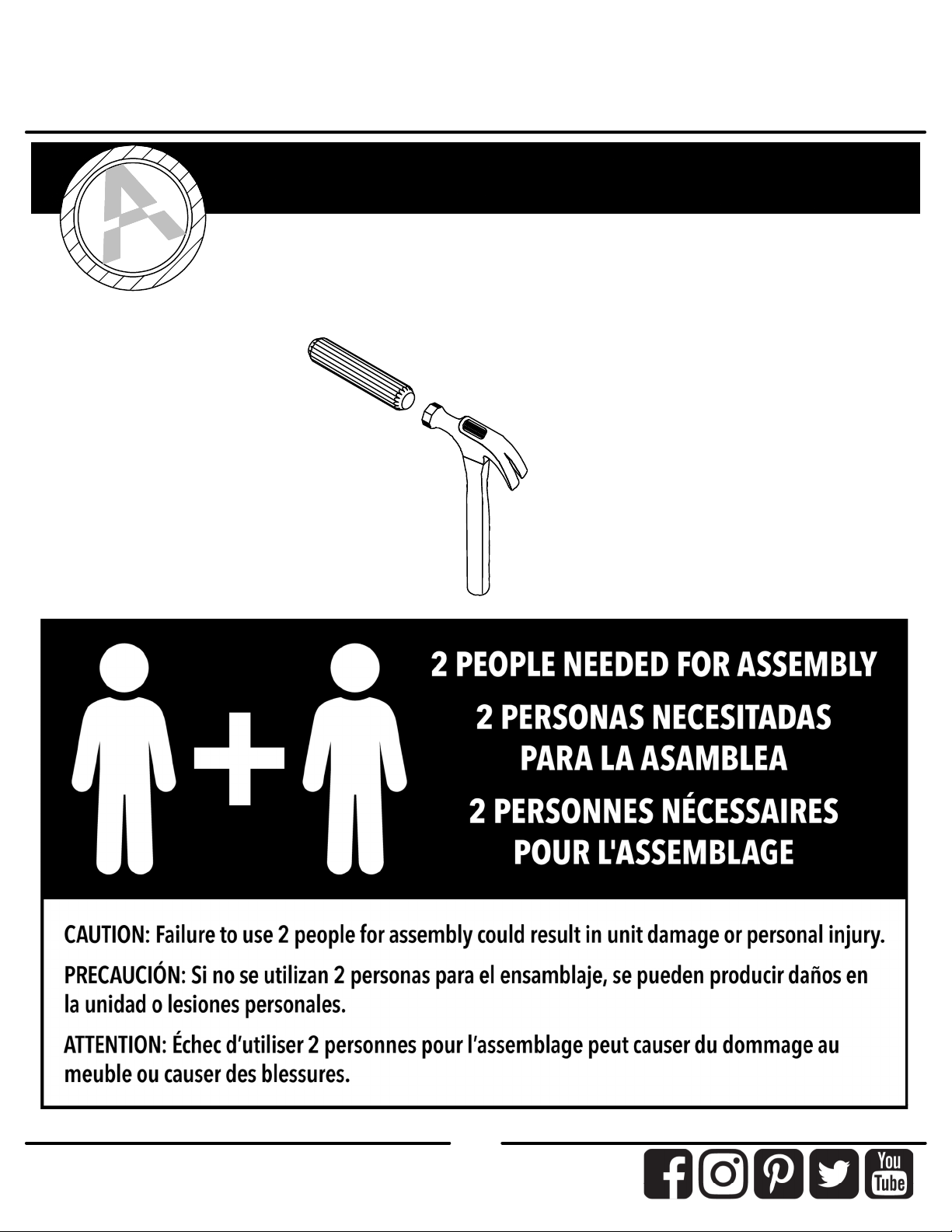

BeforeYouStart

Quick

Assembly

Tip

PleaseNote:

Youmayneedtolightlytapthewooddowelsintotheholesduring

yourassemblyprocess.

5

ameriwoodhome.com

BoardIdentification

Notactualsize

LeftPanel

33919335010

RightPanel

33919335020

LeftPartition

33919335030

RightPartition

33919335040

Top

33919335050 Bottom

33919335060 AdjustableShelf(x2)

33919335070

BCD

TVRail

33919335080 Kick

33919335090

BackPanel(x2)

K391933500

HIBACK

PANEL

6

ameriwoodhome.com

BoardIdentification

Notactualsize

Thesepiecesarepaperboardconstruction.

Theyarenotmadefromwood,butare

requiredfortheassemblyofyourunit.

BACK

PANEL

BACK

PANEL

7

ameriwoodhome.com

PartList

ActualSize

NotActualSize

(x18)

#A22700

cam lock

(x18)

#A22710

cam bolt

(x2)

#A53510

angle bracket

(x7)

#A12120

7/16" screw

(x12)

#A21670

wood dowel

(x8)

#A80250

shelf support

(x36)

#A21110

nail

(x4)

#A23030

confirmat

12345

678

(x1)

#A95060

fireplace insert

#B64358

TV Warning Label

8

ameriwoodhome.com

STEP1

Proper orientation of CAM LOCK

Tip

Assembly

Quick

125

(x2)

(x3)

9

ameriwoodhome.com

STEP2

Proper orientation of CAM LOCK

Tip

Assembly

Quick

125

(x3) (x3) (x2)

10

ameriwoodhome.com

STEP3

Proper orientation of CAM LOCK

Tip

Assembly

Quick

(x3) (x2)
