Ameriwood HOME 5984303WCOM Manuale utente
B345984303WCOM0
5984303WCOM
STOP
1-800-489-3351
Need Parts or Assistance?
WWW.AMERIWOOD.COM/PARTS
If a part is missing or damaged, visit our website or call our toll-free
customer service line. We will gladly ship your replacement parts
FREE of charge.
For prompt, reliable service please have your assembly manual ready.
DO NOT RETURN PRODUCT TO THE STORE
Individual stores do not stock parts.
or call toll free:
Recommended # of people needed for assembly: 2
(however it is always better to have an extra hand.)
Estimated assembly time is 2 hours.
Se localizan las traducciones españolas en el centro de este
manual.

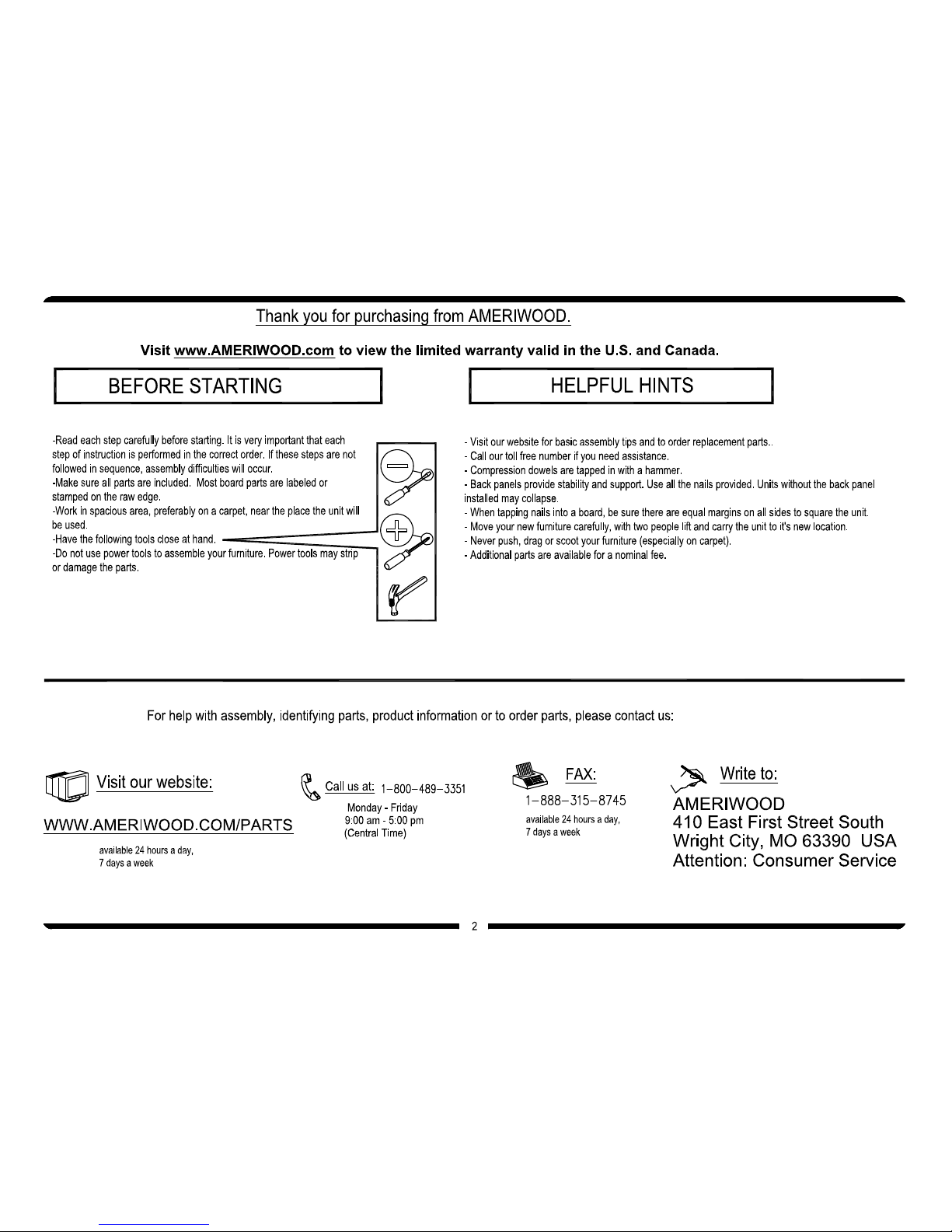

THIS INSTRUCTION BOOKLET CONTAINS
IMPORTANT SAFETY INFORMATION. PLEASE
READ AND KEEP FOR FUTURE REFERENCE.
Date of Purchase
___ / ___ / ___
Please Recycle
Recicle Por Favor
Warning:
WARNING FOR YOUNG CHILDREN - This product contains small
components, please ensure that they are kept away from small
children. Children under the age of 6, small infants and babies must not
sleep on this bed for safety reasons. To prevent injury and damage to
this unit, PROHIBIT jumping on it.
This product is designed for home use and not intended for commercial
use.
0 29986 59844 8
B345984303WCOM0
3 /25

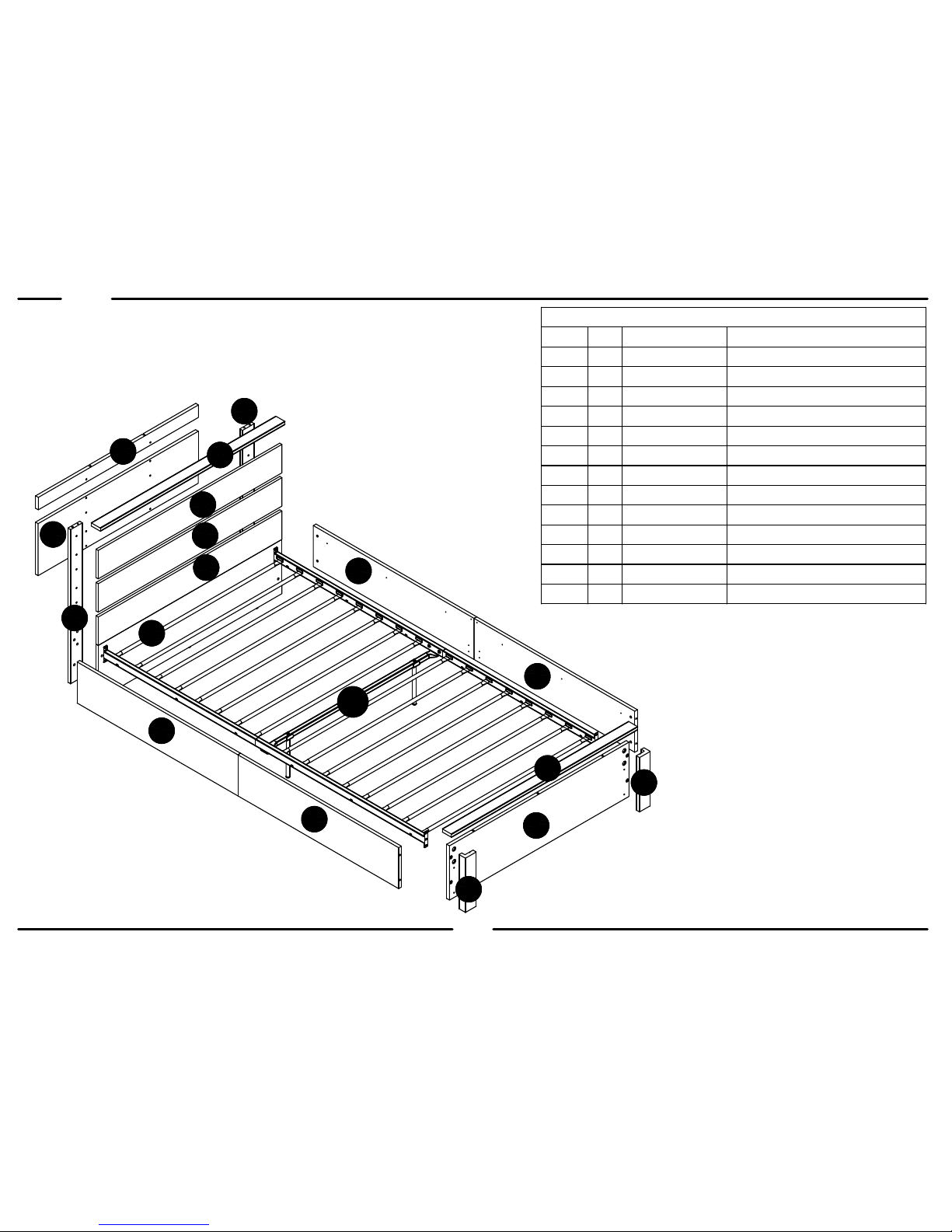

Parts Parts List DESCRIPTION
PART NUMBER
QTY
ITEM SIDE A
359843030102
ASIDE B359843030202
BLEFT HEADBOARD PANEL35984303050
1
ERIGHT HEADBOARD PANEL35984303060
1F HEADBOARD TOP35984303070
1
GHEADBOARD UPPER PANEL35984303080
1H HEADBOARD CENTER PANEL35984303090
1
IHEADBOARD LOWER PANEL35984303100
1J HEADBOARD SLAT359843031103
KFOOTBOARD TOP35984303120
1L FOOTBOARD35984303130
1M FOOTBOARD MOLDING359843031402
NMATTRESS FRAMEA97020
114
Parts shown are the base cabinet of your model. Please note, most parts are
labeled with a sticker or have a letter stamped on a raw edge.
A
B
E
F
G
H
I
J
K
K
K
L
M
N
N
14
B
A
B345984303WCOM0
4 /25
Parts
assembled frame
marco ensamblado
rail A
#A97020-1
Qty: 2
14a
rail B
#A97020-2
Qty: 2
center rail
#A97020-3
Qty: 1
cross bar
#A97020-4
Qty: 16
leg
#A97020-5
Qty: 2
14b
14c
14d
14e
14f
14g
14h
14i
1/4-20 x 1-1/4" bolt
#A97020-6
Qty: 2
hex key
#A97020-9
Qty: 1
locking clip
#A97020-8
Qty: 32
1/4-20 x 5/8" bolt
#A97020-7
Qty: 6
Metal frame parts will be packaged in its own box.
Piezas de marco de metal serán embalados en su propia caja.
19
connecting plate
#A54270
Qty: 2
B345984303WCOM0
5 /25
Parts
HARDWARE COMPARTMENT LAYOUT
cam lock
#A22570
Qty: 2
cam bolt
#A22510
Qty: 2
1
2
wood dowel
#A21660
Qty: 6
3
1-1/8" screw
#A12920
Qty: 4
(black)
1-1/4" screw
#A13010
Qty: 12
(silver)
4
5
straight bracket
#A53820
Qty: 2
1/2" screw
#A12210
Qty: 12
7
1" screw
#A12810
Qty: 22
9
10
connector bolt
#A22910
Qty: 5
connector
#A22920
Qty: 5
1/4-20 x 1/2"
barrel nut
#A20640
Qty: 8
1/4-20 x 3/8" bolt
#A19170
Qty: 4
1/4-20 x 1" bolt
#A19420
Qty: 4
11
12
13
15 2" cross dowel bolt
#A19895
Qty: 4
cross dowel fastener
#A22950
Qty: 8
4mm hex key
#A23100
Qty: 1
5mm hex key
#A23120
Qty: 1
18
tack glide
#A43200
Qty: 6
20 21
2-3/4" cross dowel bolt
#A19690
Qty: 4
17
16
8
6
B345984303WCOM0
6 /25
2
3½ turn to fully
lock.
½ se vuelven a
totalmente
cerradura.
4
Tighten to fully seat. Do not over
tighten.
Apriétese a totalmente asiento. No
haga encima de apriétese.
Proper orientation of cam.
La orientación apropiada de leva.
1
This illustration shows how the cam fastening system works.
Esta ilustración muestra el sistema de fijación de leva y como funciona.
Lock
Apretar
Titus
Titus
Titus
Cross dowel fastening system.
Sistema de fijación de la clavija transversal.
Long slot points toward bolt.
La ranura larga apunta hacia perno.
Caution: If using a power drill or power screwdriver for
screwing, please be aware to slow down and stop when screw
is tight. Failure to do so may result in stripping the screw.
Precaución: Si se utiliza un taladro o destornillador eléctrico
para atornillar, tenga en cuenta para frenar y parar cuando el
tornillo es apretado. El no hacerlo puede resultar en la
extracción del tornillo.
1
B345984303WCOM0
7 /25
x 4 x 2
37
6
x 12 x 2
finished edge
borde acabado
finished edge
borde acabado
3
Insert two wood dowels (3) into the end holes and press
the side (A) and side (B) together.
After pressing the sides (A&B) together, secure
together with connecting plate (19), straight bracket (6)
and screws (7) as shown.
6
7
7
7
A
A
B
B
x2
19
19
2
B345984303WCOM0
8 /25
2x 2
x 2
x 2
You will need to tap the connector (10) with a
hammer to fully insert. Be sure the connector
is positioned as shown before pushing into
holes.
910
2
2
9
10 10
G
H
3
B345984303WCOM0
9 /25
x 10
Position the three headboard slats (K) as shown.
Using screws (8), attach the headboard
upper panel (H) and headboard center panel
(I) as shown.
DO NOT fully tighten the screws in this step.
End View
Vista Lateral
KKK
KKK
KKK
H
H
I
I
raw surface
superficie cruda
raw surface
superficie cruda
8
8
4
B345984303WCOM0
10 /25
???www.ameriwood.com???
x 12 Make sure outer edge of headboard panel (E&F) are flush with the edge of the headboard slats (K).
Attach the left and right headboard panels (E&F) to the
headboard slats (K) with screws (8) as shown. Do not
overtighten screws.
Now tighten the screws that were left loose in the previous
step snug, but DO NOT overtighten.
KKK
E
F
H
I
8
8
8
