Ameriwood HOME 7183341COM Manuale utente

7183341COM

Fireplace / TV Cabinet

B347183341COM0

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Follow Ameriwood Home

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Assembly Difficulty Meter

Easy Tough

- Anchor unit to stud in wall

- Do Not allow children to climb on unit

- Put heavy items on lower shelves or drawers

- Two people required for assembly

Unit can tip over causing severe injury or death.

WARNING

Helpful Hints

ameriwoodhome.com

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a

(right) and

(left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ameriwoodhome.com

Before You Start

Quick

Tip

Assembly

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Parts are labeled on the surface or edge of the part

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

Press parts together so CAM BOLT inserts

into edge hole.

Press CAM BOLT into hole. Press CAM LOCK into hole.

End hole

Using a screwdriver, turn the CAM LOCK clockwise to

lock the CAM LOCK and CAM BOLT into their holes

and fastening parts together.

Arrow to point towards end

hole in edge of part.

ameriwoodhome.com

Before You Start

Quick

Assembly

Tip

Please Note:

You may need to lightly tap the wood dowels into the holes during

your assembly process.

ameriwoodhome.com

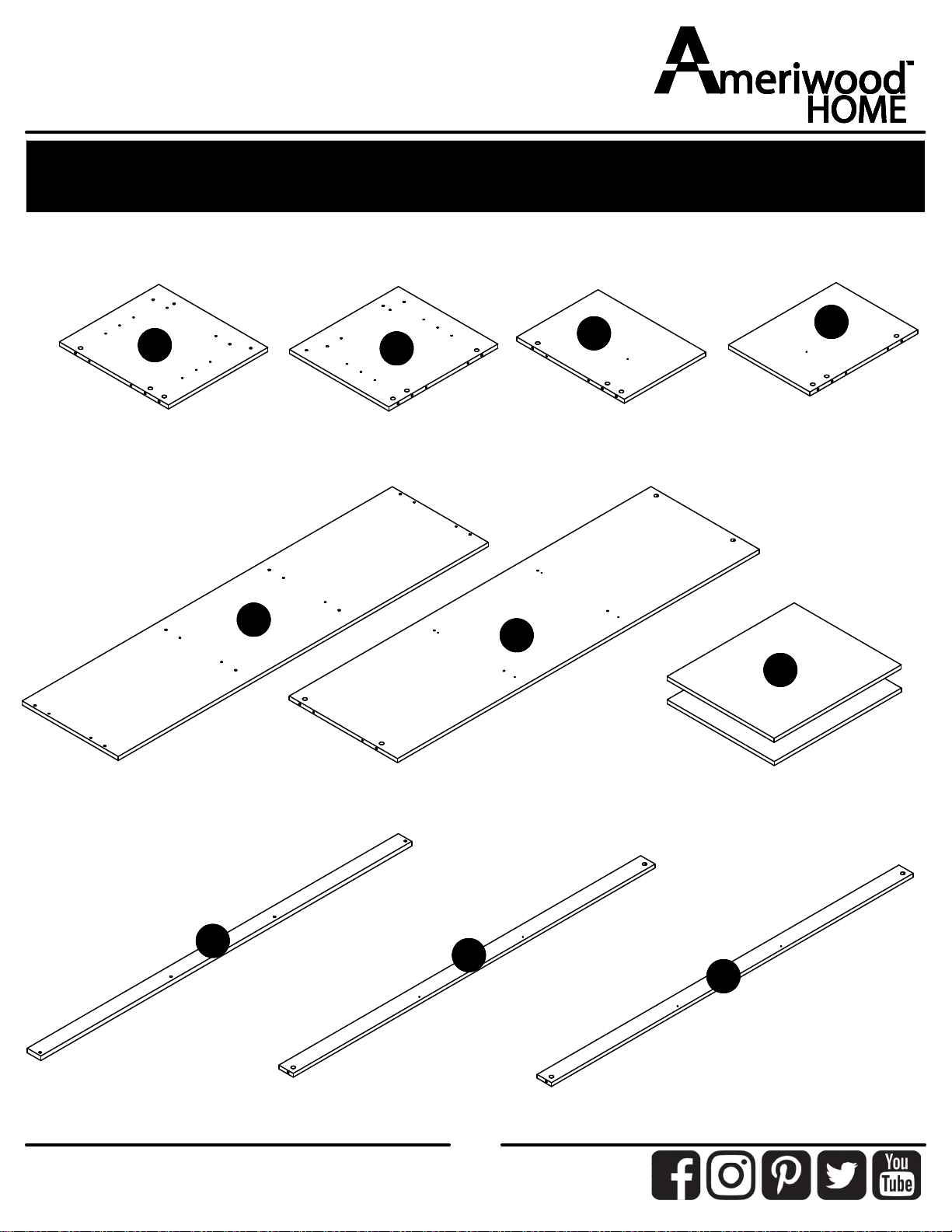

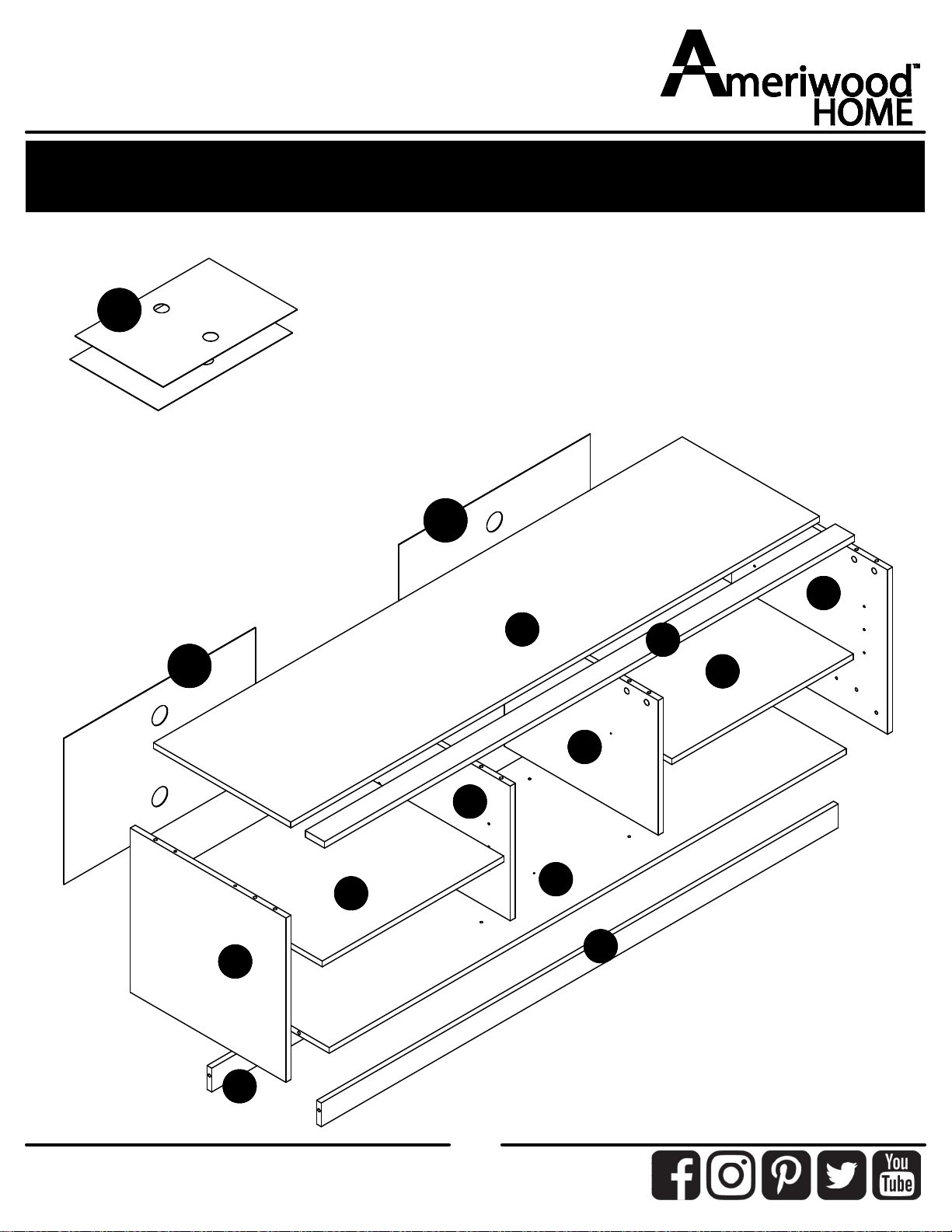

Board Identification

Not actual size

Left Panel

37183341010 Right Panel

37183341020

Left Partition

37183341030

Right Partition

37183341040

Top

37183341050 Bottom

37183341060 Adjustable Shelf (x2)

37183341070

BCD

TV Rail

37183341080 Kick

37183341090

Support

37183000100

ameriwoodhome.com

Board Identification

Not actual size

These pieces are paperboard construction.

They are not made from wood, but are

required for the assembly of your unit.

Back Panel (x2)

K718334100

BACK

PANEL

BACK

PANEL

BACK

PANEL

ameriwoodhome.com

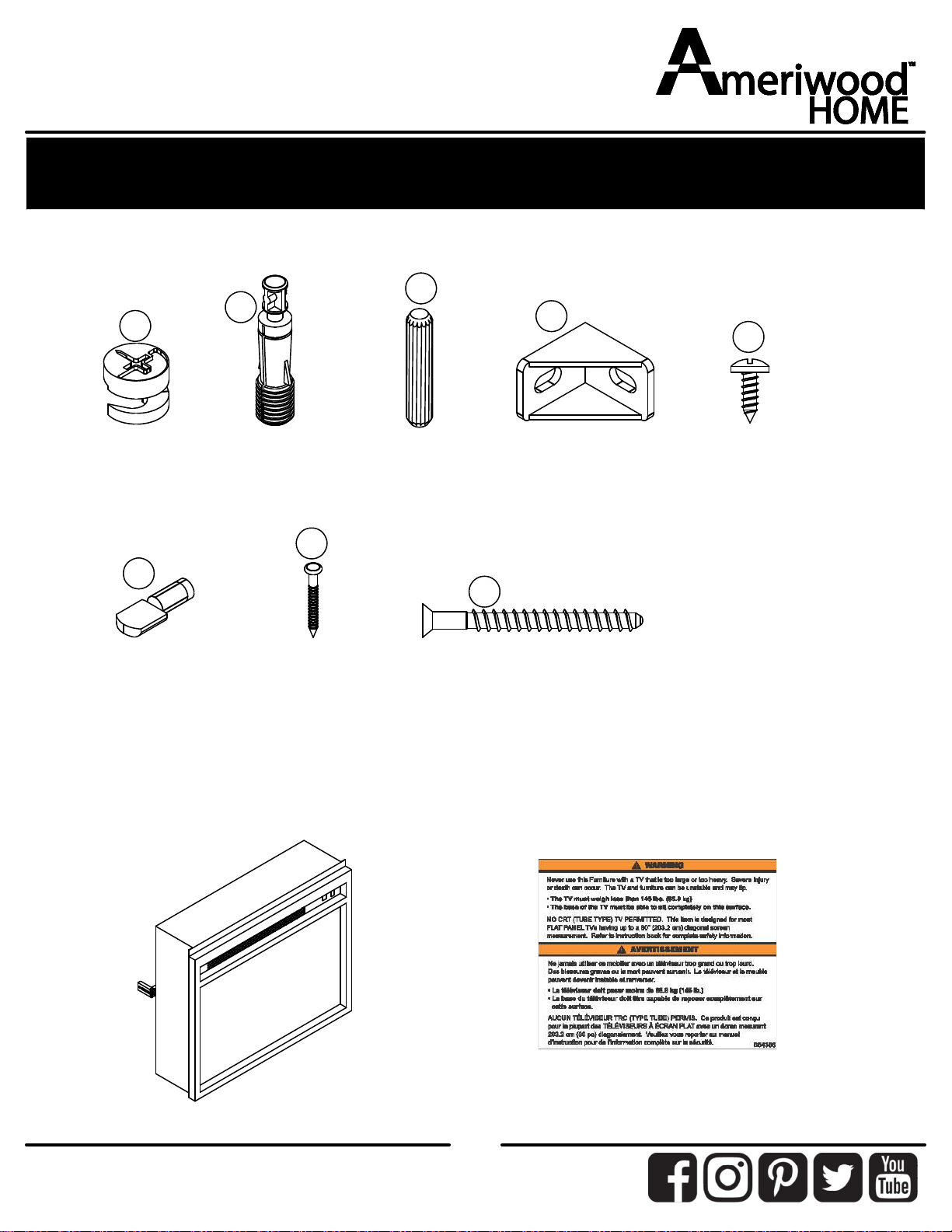

Part List

Actual Size

Not Actual Size

(x20)

#A22700

cam lock

(x20)

#A22710

cam bolt

(x4)

#A53510

angle bracket

(x11)

#A12120

7/16" screw

(x12)

#A21670

wood dowel

(x8)

#A80250

shelf support

(x40)

#A21110

nail

(x4)

#A23030

confirmat

123

(x1)

#A95060

fireplace insert

#B64396

TV Warning Label

ameriwoodhome.com

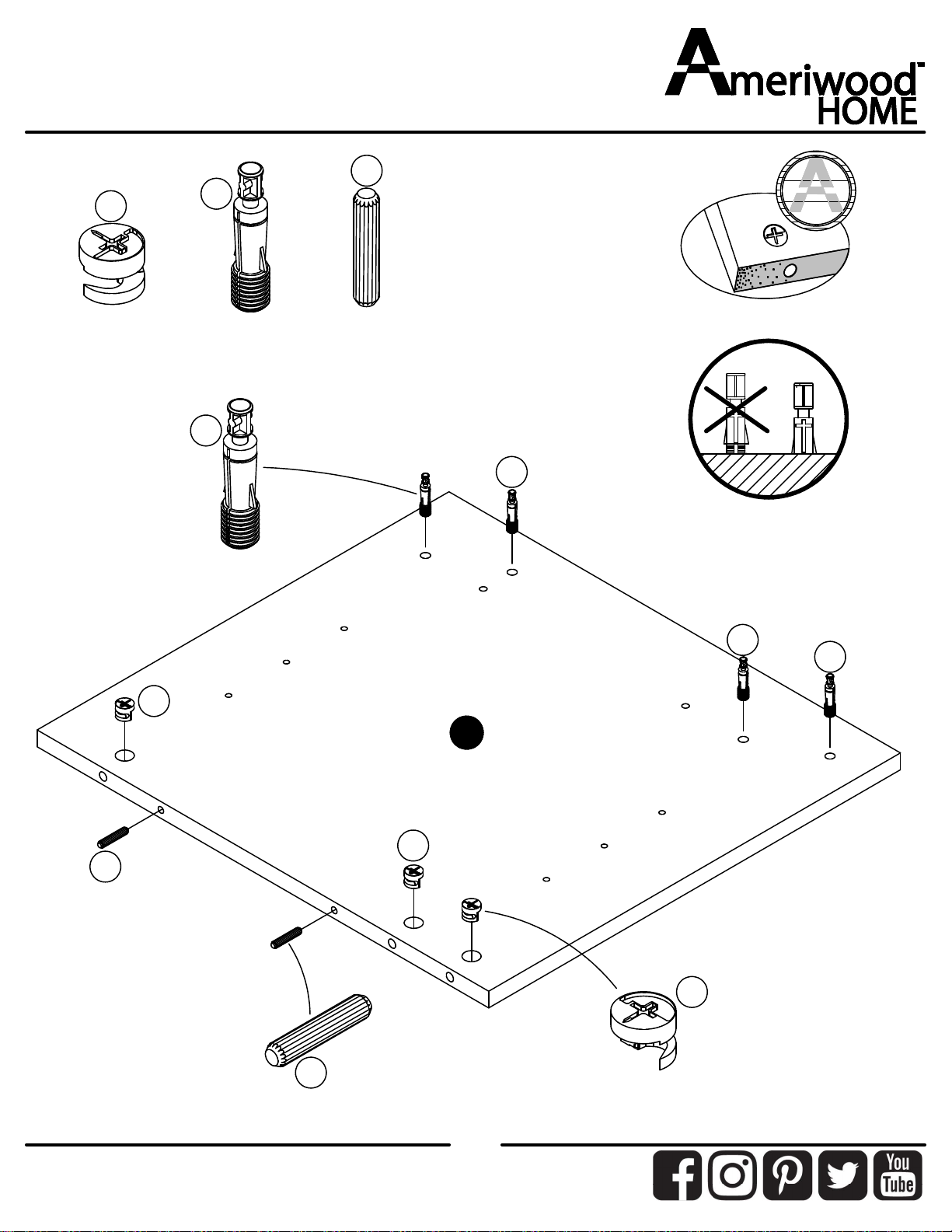

STEP1

Proper orientation of CAM LOCK

Tip

Assembly

Quick

(x2)

(x4)

(x3)

ameriwoodhome.com

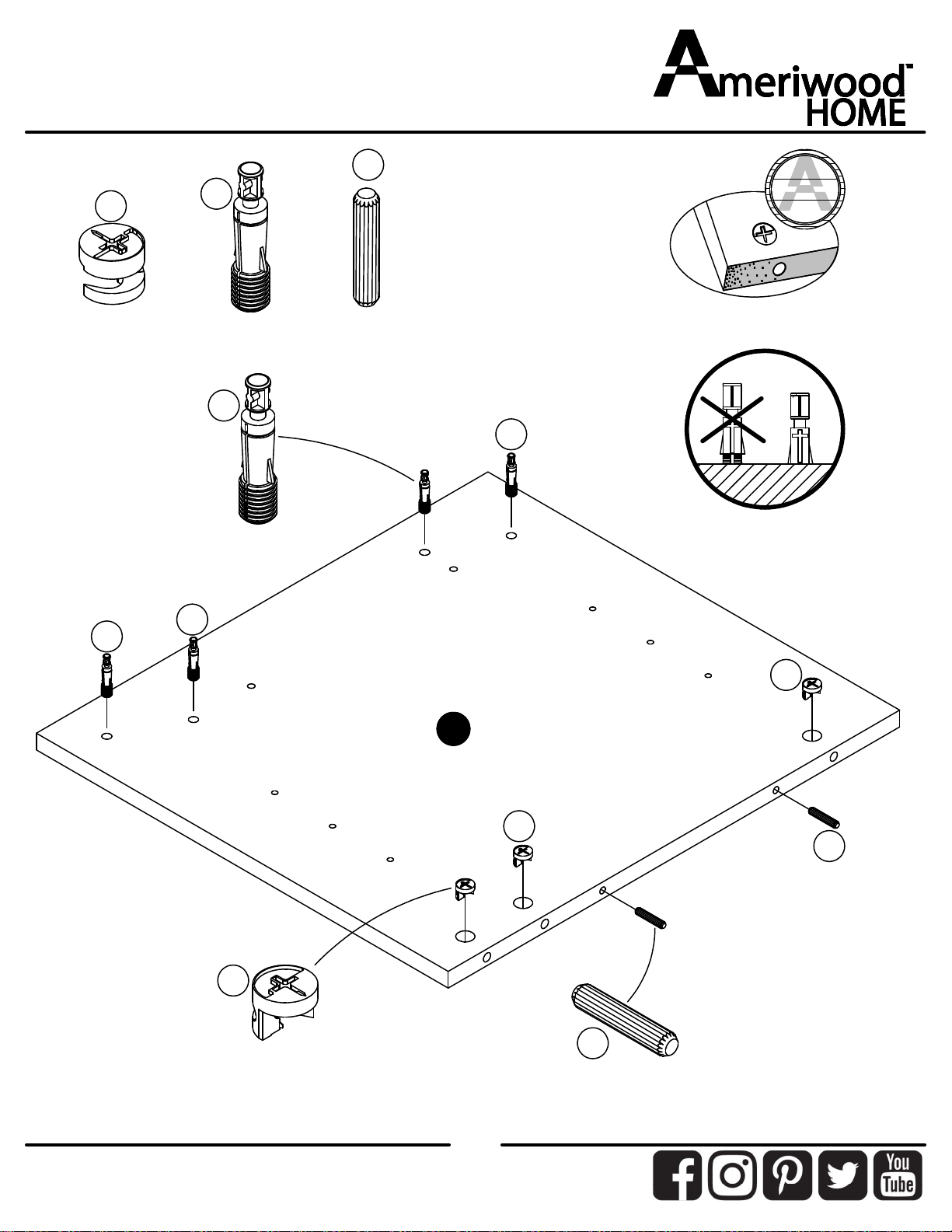

STEP2

Proper orientation of CAM LOCK

Tip

Assembly

Quick

(x3) (x4) (x2)

ameriwoodhome.com

STEP3

Proper orientation of CAM LOCK

Tip

Assembly

Quick

(x3) (x2)
