Ameriwood HOME 8733348COM Manuale utente

8733348COM

4DrawerWideDresser

‐Unitcantipovercausingsevereinjuryordeath.

‐Anchorunittostudinwall(ifinstructedto).

‐DoNotallowchildrentoclimbonunit.

‐Putheavyitemsonlowershelvesordrawers.

B348733348COM

THISINSTRUCTIONBOOKLETCONTAINS

IMPORTANT

SAFETYINFORMATION.PLEASEREADANDKEEPFORFUTUREREFERENCE.

WARNING

FollowAmeriwoodHome

Tube

You

DateofPurchase___/___/___

LotNumber:

DoNotReturnThisProduct!

Contactourcustomerserviceteamforhelpfirst.

Call:1‐800‐489‐3351(tollfree)

Monday‐Friday9am‐5pmCST

Visit:www.ameriwoodhome.com AssemblyDifficultyMeter

Easy Tough

ContactUs!

HelpfulHints

2

ameriwoodhome.com

DoNOTreturnthisproduct!

Contactourfriendlycustomerserviceteamfirstforhelp.

Callus!

1‐800‐489‐3351

Monday‐Friday

9am‐5pmCST

Visitameriwoodhome.comtoviewthe

limitedwarrantyvalidintheU.S.andCanada.

AssemblyTips

‐Openyouritemintheareayouplantokeepittoavoidexcessiveheavylifting.



‐Identify,sortandcountthepartsbeforeattemptingassembly.



‐Compressiondowelsarelightlytappedinwithahammer.



‐Slidesarelabeledwitha

(right)and

L

(left)forproperplacement.



‐MakesuretoalwaysfacethepointonthetopoftheCamLocktowardsthe

outeredge.



‐Useallthenailsprovidedforthebackpanelandspreadthemoutequally.



‐Backpanelmustbeusedtomakesureyourunitissturdy.



‐DoNOTuseharshchemicalsorabrasivecleanersonthisitem.



‐Neverpush,pull,ordragyourfurniture.

Tube

You

Tube

You

PEOPLENEEDEDFORASSEMBLY:2

ESTIMATEDASSEMBLYTIME:1HOUR

3

ameriwoodhome.com

BeforeYouStart



Quick

Tip

Assembly



CamLockFasteningSystem

ThisCamLockFasteningSystemwillbeusedthroughouttheassemblyprocess.

Tube

You

Readthrougheachstepcarefullyandfollowtheproperorder



Separateandcountallyourpartsandhardware



Giveyourselfenoughroomfortheassemblyprocess



Havethefollowingtools:FlatHeadScrewdriver,#2PhillipsHead

ScrewdriverandHammer

Caution:Ifusingapowerdrillorpowerscrewdriverforscrewing,

pleasebeawaretoslowdownandstopwhenscrewistight.

Failuretodosomayresultinstrippingthescrew.



4

ameriwoodhome.com

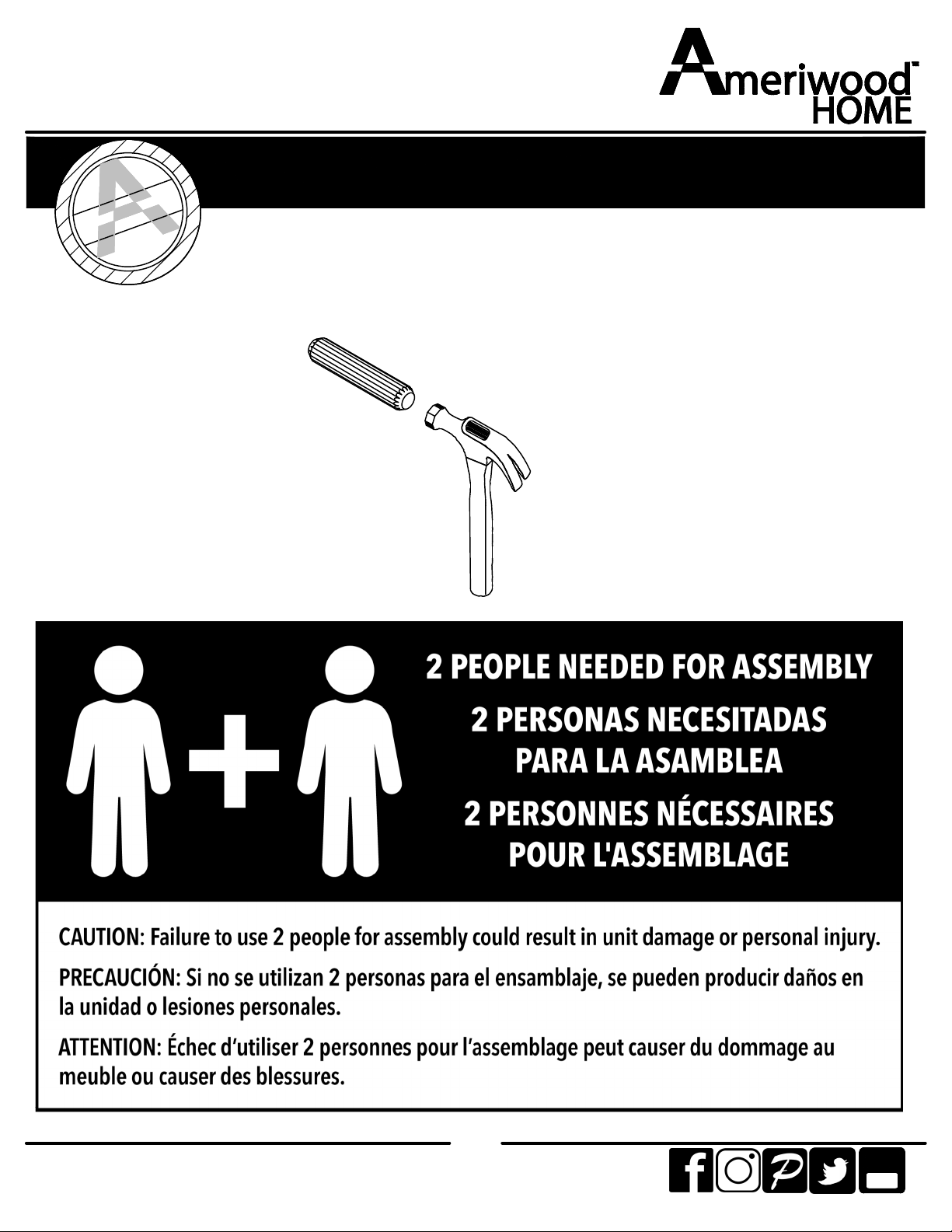

BeforeYouStart

Quick

Tip

Assembly

Tube

You

PleaseNote:

Youmayneedtolightlytapthewooddowelsintotheholesduring

yourassemblyprocess.

5

ameriwoodhome.com

BoardIdentification

Notactualsize

Tube

You

LeftPanel

38733348010

RightPanel

38733348020

Top

38733348030

Bottom

38733348040

Shelf

38733348060

TopRail

38733348070

Kick

38733348080

SideKick(x2)

38733348090

LeftFrontLeg

38733348100

RightFrontLeg

38733348110

LeftRearLeg

38733348120

RightRearLeg

38733348130

IJKLM

Partition

38733348050

SolidBack(x2)

38733000140

CenterSupport

38733348150

LeftDrawerFront(x2)

38733348160

RightDrawerFront(x2)

38733348170

6

ameriwoodhome.com

BoardIdentification

Tube

You

LeftDrawerSide(x4)

39991167346410L

RightDrawerSide(x4)

39991167346410R

DrawerBottom

39991338066210D

DrawerBack(x4)

39991167065118B

LFT

DRW

SIDE

DWR

BACK

RGT

DRW

SIDE

DWR

BTM

LFT

DRW

SIDE

DWR

BACK

RGT

DRW

SIDE

DWR

BTM

LFT

DRW

SIDE DWR

BACK

RGT

DRW

SIDE

DWR

BTM

Notactualsize

x2 x2

7

ameriwoodhome.com

BoardIdentification

8

ameriwoodhome.com

PartList

ActualSize

Tube

You

345

(x18)

#A22610

cam bolt

(x18)

#A22620

cam lock

(x10)

#A21670

wood dowel

(x18)

#A22920

connector

(x18)

#A22910

connector bolt

(x8)

#A17400

7/8" bolt

(x40)

#A12120

7/16" screw

(x40)

#A11080

7/16" screw

(x6)

#A21960

hidden fastener

(x16)

#A21975

drive fastener

(x4)

#A23030

confirmat

(x1)

#A20940

wall anchor

(x1)

#A13950

3-1/2" screw

9

ameriwoodhome.com

PartList

Tube

You

NotActualSize

14c

14a

14d

14b

leftcabinetmember

rightcabinetmember

leftdrawermember

rightdrawermember

(x4)

#A56770

slide

(x4)

#A54900

drawerbrace

(x4)

#A50160

handle

(x1)

#A43105

plastic foot

(x1)

#A43490

plastic spacer

(x8)

#A54520

drawer bracket

15 16

10

ameriwoodhome.com

STEP1

(x2)

Proper orientation of CAM LOCK

Tip

Assembly

Quick

(x2) (x2) (x4)

Besureconnector(4)is

positionedasshownbefore

insertingintohole.Tapwitha

hammertofullyinsert.
