Ameriwood HOME B345047196PCOM Manuale utente

B345047196PCOM

Do Not Return This Product!

Contact our customer service team for help rst

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

–Unit can p over causing severe injury or death.

–Anchor unit to stud in wall (if instructed to)

–Do not allow children climb on unit

–Put heavy items on lower shelves or drawers

Carver CoCee Table

5047196PCOM

Date of Purchase: ____/____/_____

Lot Number:

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

WARNING

Easy Tough

Assembly Diculty Meter

Follow Ameriwood Home

Helpful Hints

Do NOT return this product!

Contact our friendly customer service team rst for help

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 1 HOUR

Visit ameriwoodhome.com

Assembly Tips

ameriwoodhome.com

- Open your item in the area you plan to keep it for less heavy liing

- Idenfy, sort and count the parts before aempng assembly

- Compression dowels are tapped in with a hammer

- Slides are labeled with a R (right) and L (le) for proper placement

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge

- Use all the nails provided for the back panel and spread them out equally

- Back Panel must be used to make sure your unit is sturdy

- Do NOT use harsh chemicals or abrasive cleaners on this item

- Never push, pull, or drag your furniture

Before You Start

Cam Lock Fastening System

ameriwoodhome.com

This Cam Lock Fastening System will be usedthroughoutthe assembly process.

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Cauon: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is ght.

Failure to do so may result in stripping the screw.

Quick

Tip

Assembly

Board Identfcaton

Notactual size

ameriwoodhome.com

T5047196011

SIDE TOP

T5047196020

MIDDLE TOP

T5047196031

UPPER SUPPORT PANEL

T5047196041

SIDE BOTTOM

T5047196050

MIDDLE BOTTOM

2 3

T5047196061

LOWER SUPPORT PANEL

T5047196071

LOWER SUPPORT PANEL

T5047196081

BOTTOM SUPPORT PANEL

T5047196091

LEG

T5047196101

FOOT

Part List

Actual Size

ameriwoodhome.com

TUD0029

BOLT

M6 X 70

x42

TUD0001

Cam Bolt

M6 X 23

x42

TUD0002

Cam Lock

15-12

x26

TUD0030

DOWEL

M6 X 30

Hardware Bag Reference Number:

25047196PCOM0

ameriwoodhome.com

* raw edges are shaded

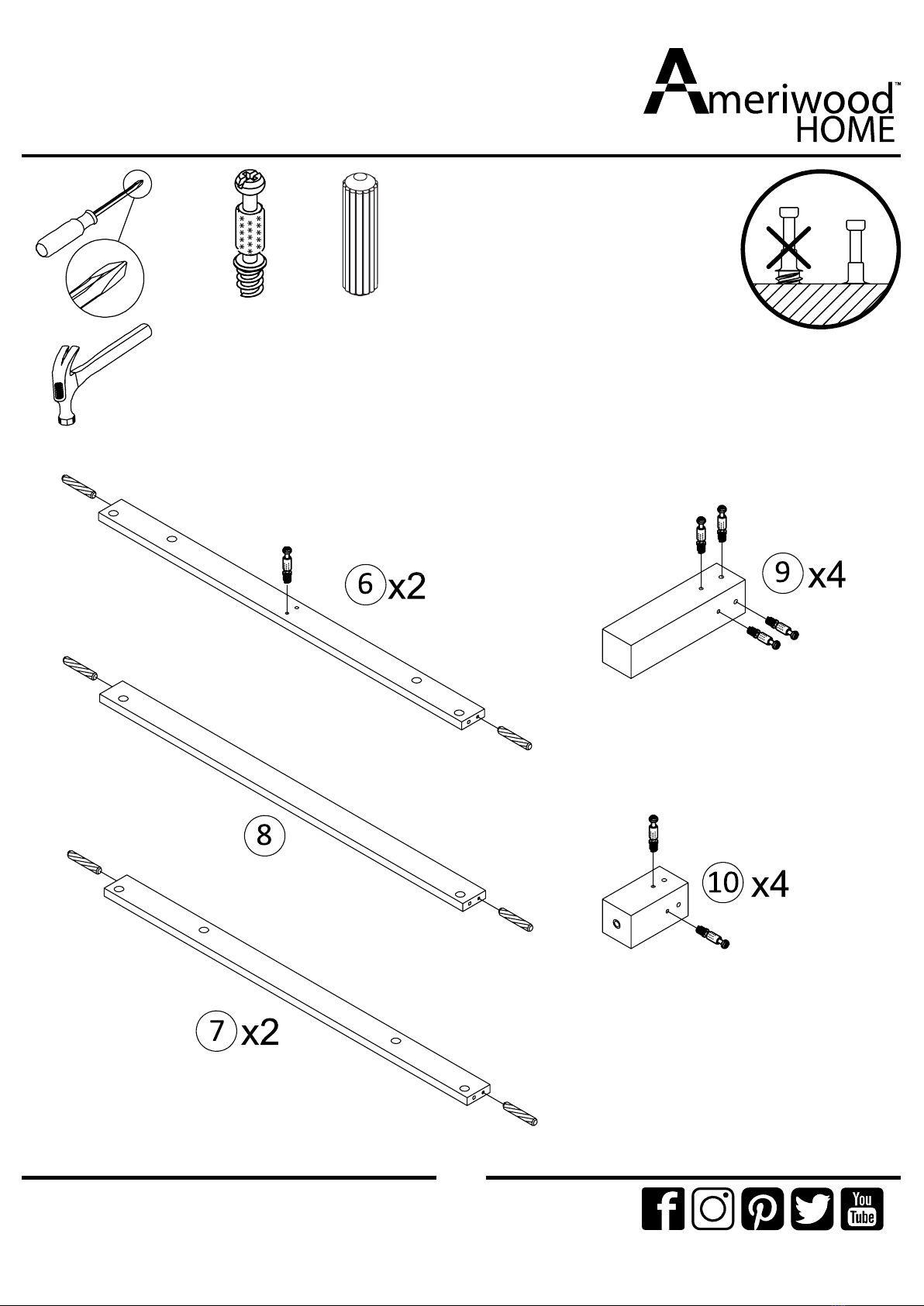

Step 1

x26

TUD0001

x10

TUD0030

ameriwoodhome.com

* raw edges are shaded

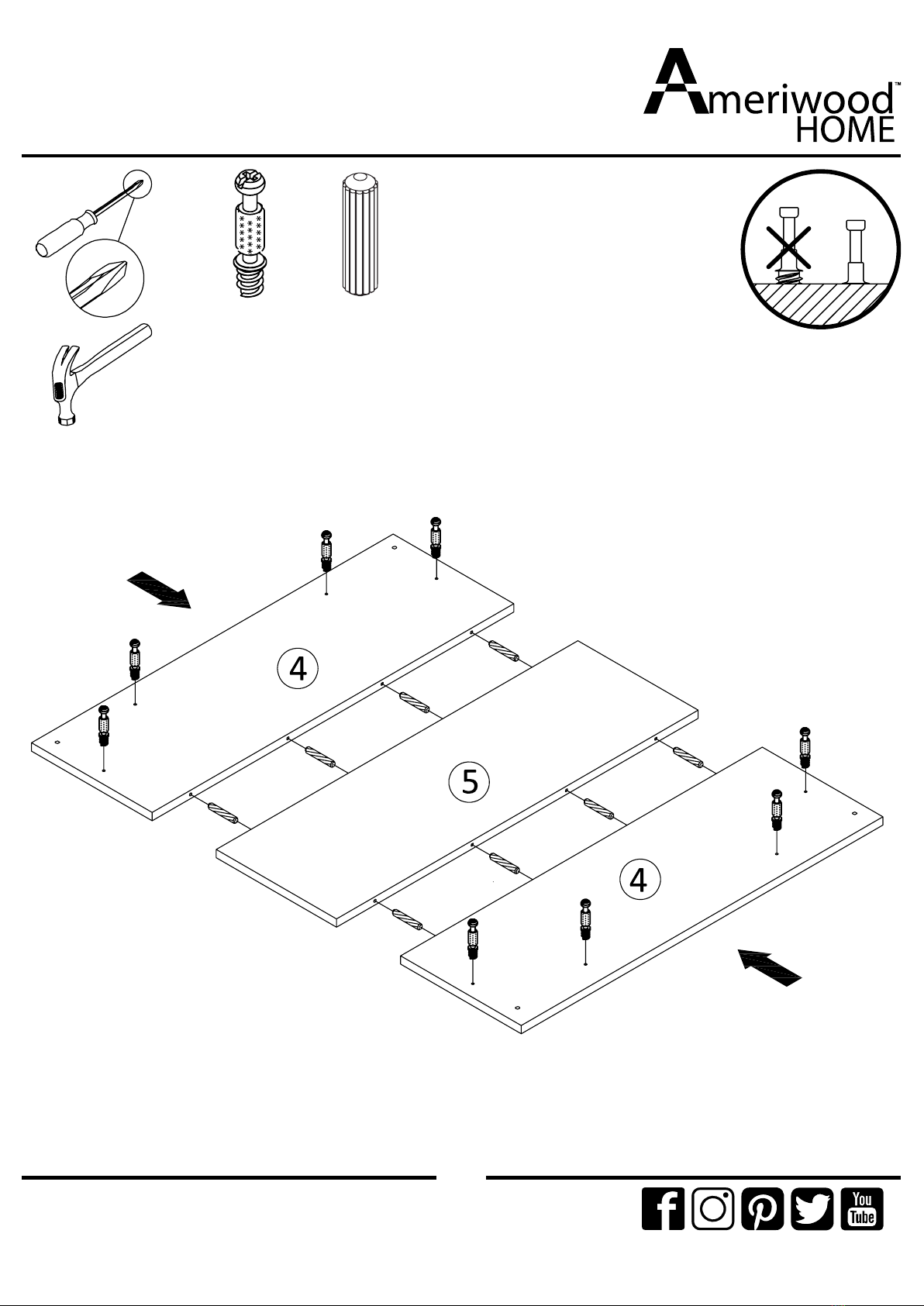

Step 2

TUD0001

TUD0030

ameriwoodhome.com

Proper orientation of CAM LOCK

Tip

Assembly

Quick

* raw edges are shaded

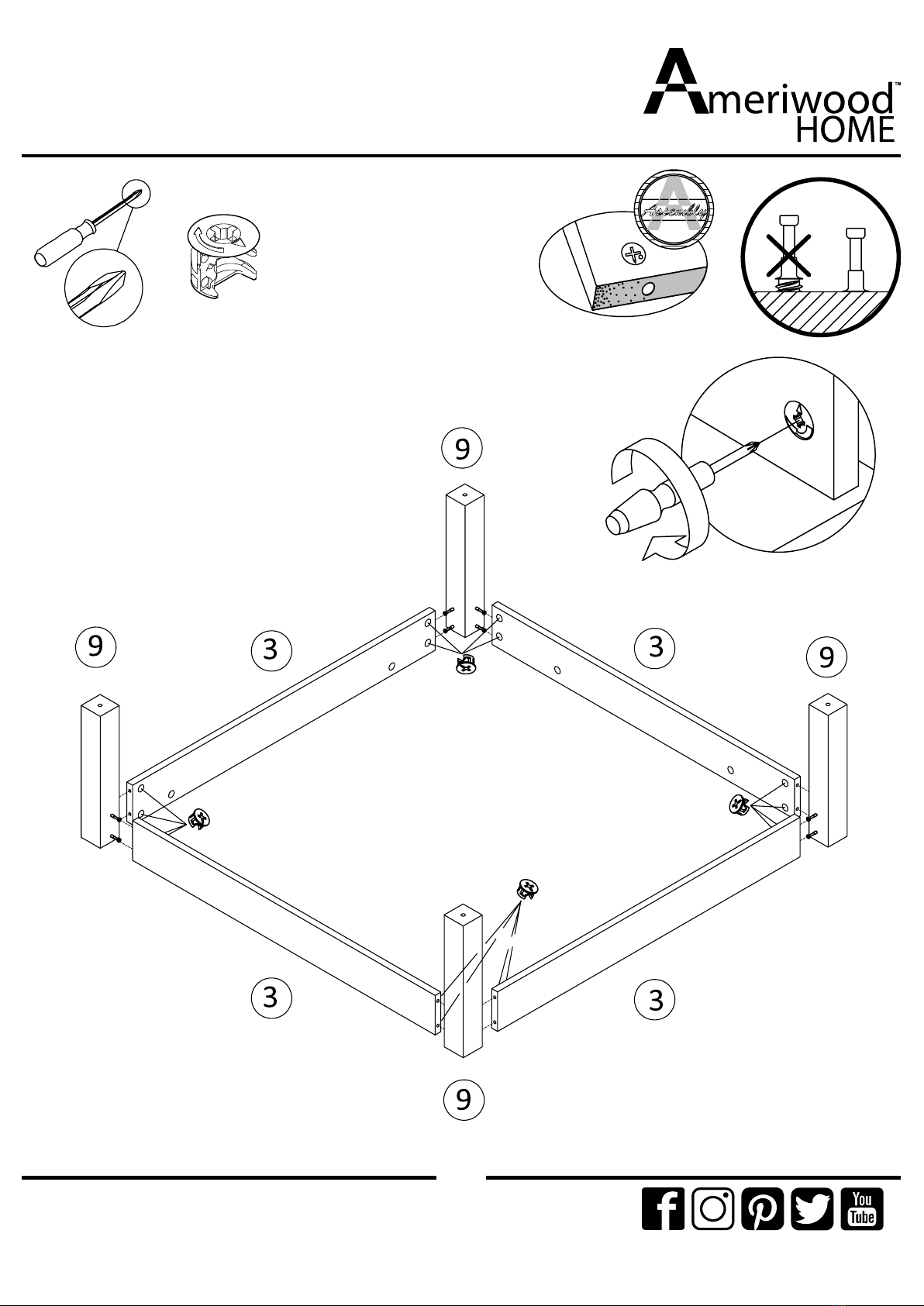

Step 3

x18

TUD0002

ameriwoodhome.com

* raw edges are shaded

Step 4

TUD0001

TUD0030

ameriwoodhome.com

Proper orientation of CAM LOCK

Tip

Assembly

Quick

* raw edges are shaded

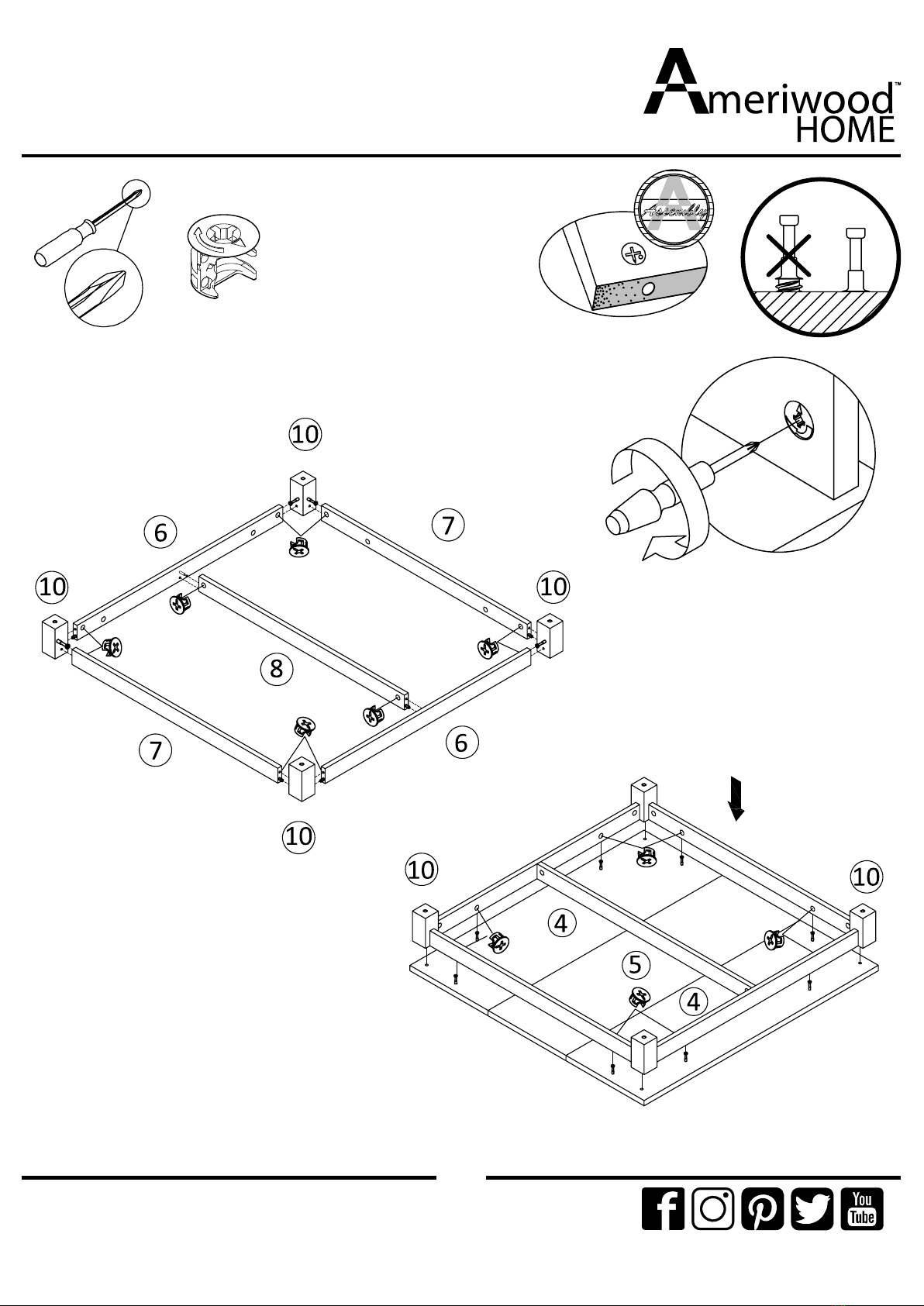

Step 5

x16

TUD0002
