Ameriwood HOME 1781096PCOM Manuale utente
B341781096PCOM01
Do Not Return This Product!
Contact our customer service team for help first
Call: 1-800-489-3351 (toll free)
Monday-Friday 9am - 5pm CST
Visit: www.ameriwoodhome.com
–Unit can !p over causing severe injury or death.
–Anchor unit to stud in wall (if instructed to)
–Do not allow children climb on unit
–Put heavy items on lower shelves or drawers
TV Stand
1781096PCOM
Date of Purchase: ____/____/_____
Lot Number:
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
WARNING Follow Ameriwood Home
Easy Tough
Assembly Difficulty Meter
Contact Us!
Helpful Hints
Do NOT return this product!
Contact our friendly customer service team first for help
Call us!
1-800-489-3351
Monday-Friday
9am - 5pm CST
PEOPLE NEEDED FOR ASSEMBLY: 1-2
ESTIMATED ASSEMBLY TIME: 1 HOUR
Visit ameriwoodhome.com
Assembly Tips
2
ameriwoodhome.com
- Open your item in the area you plan to keep it for less heavy li!ing
- Iden"fy, sort and count the parts before a#emp"ng assembly
- Compression dowels are tapped in with a hammer
- Slides are labeled with a R (right) and L (le!) for proper placement
- Make sure to always face the point on the top of the Cam Lock towards the
outer edge
- Use all the nails provided for the back panel and spread them out equally
- Back Panel must be used to make sure your unit is sturdy
- Do NOT use harsh chemicals or abrasive cleaners on this item
- Never push, pull, or drag your furniture
Before You Start
Cam Lock Fastening System
3
ameriwoodhome.com
P
P
P
P
P
This Cam Lock Fastening System will be used throughout the assembly process.
Read through each step carefully and follow the proper order
Separate and count all your parts and hardware
Give yourself enough room for the assembly process
Have the following tools: Flat Head Screwdriver, #2 Phillips Head
Screwdriver and Hammer
Cau!on: If using a power drill or power screwdriver for screwing,
please be aware to slow down and stop when screw is !ght.
Failure to do so may result in stripping the screw.
Quick
Tip
Assembly
1
3
2
4
Board Iden•fica•on
Not actual size
4
ameriwoodhome.com
x1
T1781096010UD
TOP PANEL
x1
T1781096020UD
BOTTOM PANEL
x1
T1781096030UD
FIXED SHELF
x2
T1781096040UD
BOTTOM RAIL
x1
T1781096050UD
LEFT SIDE PANEL
1
5
2 3
4
x1
T1781096060UD
RIGHT SIDE PANEL
6
x2
T1781096070UD
UPPER PARTITION
7
x1
T1781096080UD
LOWER PARTITION
8
x1
T1781096090UD
LEFT DRAWER FRONT
9
Board Iden•fica•on
Not actual size
5
ameriwoodhome.com
x1
T1781096100UD
RIGHT DRAWER FRONT
10
x2
T1781096110UD
LEFT DRAWER SIDE
11
x2
T1781096120UD
RIGHT DRAWER SIDE
12
x2
T1781096130UD
DRAWER BACK
13
x1
T1781096160UD
LOWER BACK PANEL
16
x2
T1781096170UD
DRAWER SUPPORT
17
x1
T1781096150UD
UPPER BACK PANEL
15
x2
T1781096140UD
DRAWER BOTTOM
14
Part List
Actual Size
6
ameriwoodhome.com
Hardware Bag Reference Number:
21781096PCOM0
x32
TUD0030
DOWEL M6 X 30
x4
TUD0036
DOWEL M6 X 50
x28
TUD0001
Cam Bolt
x28
TUD0002
Cam Lock
15-12
x26
TUD0009
CBS M4 X 38
x28
TUD0008
CBS M3.5 X 16
x4
TUD0033
PH SCREW
M4 X 20
Part List
Not Actual Size
7
ameriwoodhome.com
x2 SETS
TUD0016
DRAWER SLIDE 12”
x2
TUD0039
RECTANGLE
HANDLE
(SILVER)
x1
TUD0038
WARNING LABEL
Hardware Bag Reference Number:
21781096PCOM0
x22
TUD0040
COVER
8
ameriwoodhome.com
* raw edges are shaded
Step 1
x24
TUD0001
9
10
1
3
3
9
ameriwoodhome.com
* raw edges are shaded
Step 2
x4
TUD0001
x2 SETS
TUD0016
x16
TUD0008
x12
TUD0030
56
88
10
ameriwoodhome.com
* raw edges are shaded
Step 3
x20
TUD0030
x4
TUD0036
TUD0036
(Long Size)
3
15
16
7
X 2
Indice
Altri manuali Ameriwood HOME Rack e supporto
Ameriwood HOME
Ameriwood HOME 8968885COM Manuale utente
Ameriwood HOME
Ameriwood HOME 1753196COM Manuale utente
Ameriwood HOME
Ameriwood HOME 1766396COM Manuale utente
Ameriwood HOME
Ameriwood HOME 1819412COM Manuale utente
Ameriwood HOME
Ameriwood HOME 3325335COM Manuale utente
Ameriwood HOME
Ameriwood HOME 1125333WCOM Manuale utente
Ameriwood HOME

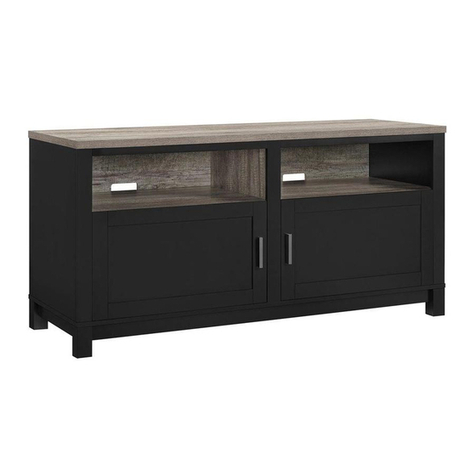

Ameriwood HOME 1753296PCOM Manuale utente
