Amica 601EE1.37YFG Manuale utente

INSTRUCTION MANUAL

IOAK-1022 / 8034978

(01.2011./1)

601EE1.37YFG(W)

601EE1.37YFG(Xx)

601EE2.37TaYFG(W)

601EE2.37TaYFG(Xx)

ELECTRIC COOKER

DEAR CUSTOMER,

The cooker is exceptionally easy to use and extremely efcient. After reading the instruction

manual, operating the cooker will be easy.

Before being packaged and leaving the manufacturer, the cooker was thoroughly checked

with regard to safety and functionality.

Before using the appliance, please read the instruction manual carefully.

By following these instructions carefully you will be able to avoid any problems in using the

appliance.

It is important to keep the instruction manual and store it in a safe place so that it can be

consulted at any time.

It is necessary to follow the instructions in the manual carefully in order to avoid possible

accidents.

Caution!

Do not use the cooker until you have read this instruction manual.

The cooker is intended for household use only.

The manufacturer reserves the right to introduce changes which do not affect the

operation of the appliance.

TABLE OF CONTENTS

Safety instructions ............................................................................................................. 4

Description of the appliance ............................................................................................. 7

Installation......................................................................................................................... 10

Operation........................................................................................................................... 12

Baking in the oven – practical hints ............................................................................... 20

Cleaning and maintenance.............................................................................................. 25

Technical data................................................................................................................... 29

SAFETY INSTRUCTIONS

The appliance becomes hot during operation. Take care not to touch the hot parts inside

the oven.

Always keep children away from the cooker.

While in operation direct contact with the cooker may cause burns!

Ensure that small items of household equipment, including connection leads, do not touch

the hot oven or the hob as the insulation material of this equipment is usually not resistant

to high temperatures.

 Do not leave the cooker unattended when frying. Oils and fats may catch re due to

overheating or boiling over.

Do not put pans weighing over 15 kg on the opened door of the oven and pans over 25

kg on the hob.

Do not use harsh cleaning agents or sharp metal objects to clean the door as they can

scratch the surface, which could then result in the glass cracking.

 Donotusethecookerintheeventofatechnicalfault.Anyfaultsmustbexedbyan

appropriatelyqualiedandauthorisedperson.

In the event of any incident caused by a technical fault, disconnect the power and report

the fault to the service centre to be repaired.

The rules and provisions contained in this instruction manual should be strictly observed.

Do not allow anybody who is not familiar with the contents of this instruction manual to

operate the cooker.

The cooker should not be cleaned using steam cleaning equipment.

Using energy in a respon-

sible way not only saves

money but also helps the

environment. So let’s save

energy! And this is how you

can do it:

Use proper pans for cooking.

Panswiththick,atbasescansaveupto1/3

on electric energy. Remember to cover pans

if possible otherwise you will use four times

as much energy!

Match the size of the saucepan to the

surface of the heating plate.

A saucepan should never be smaller than a

heating plate.

Ensure heating plates and pan bases

are clean.

Soils can prevent heat transfer – and repeat-

edly burnt–on spillages can often only be

removed by products which cause damage

to the environment.

Do not uncover the pan too often

(a watched pot never boils!).

Do not open the oven door unnecessarily

often.

Switch off the oven in good time and make

use of residual heat.

For long cooking times, switch off heating

plates5to10minutesbeforenishingcook-

ing. This saves up to 20% on energy.

Only use the oven when cooking larger

dishes.

Meat of up to 1 kg can be prepared more

economically in a pan on the cooker hob.

HOW TO SAVE ENERGY

Make use of residual heat from the

oven.

If the cooking time is greater than 40 minutes

switch off the oven 10 minutes before the

end time.

Important! When using the timer,

set appropriately shorter cooking

times according to the dish being

prepared.

Make sure the oven door is properly

closed.

Heat can leak through spillages on the door

seals. Clean up any spillages immediately.

Do not install the cooker in the direct

vicinity of refrigerators/freezers.

Otherwise energy consumption increases

unnecessarily.

During transportation, protec-

tive packaging was used to

protect the appliance against

any damage. After unpacking,

please dispose of all elements

of packaging in a way that will

not cause damage to the environment.

All materials used for packaging the appli-

ance are environmentally friendly; they are

100% recyclable and are marked with the

appropriate symbol.

Caution! During unpacking, the packag-

ing materials (polythene bags, polystyrene

pieces, etc.) should be kept out of reach of

children.

UNPACKING DISPOSAL OF THE APPLIANCE

Old appliances should not sim-

ply be disposed of with normal

household waste, but should

be delivered to a collection and

recycling centre for electric and

electronic equipment. A symbol

shown on the product, the in-

struction manual or the packaging shows that

it is suitable for recycling.

Materials used inside the appliance are

recyclable and are labelled with information

concerning this. By recycling materials or

other parts from used devices you are making

asignicantcontributiontotheprotectionof

our environment.

Information on appropriate disposal centres

for used devices can be provided by your

local authority.

DESCRIPTION OF THE APPLIANCE

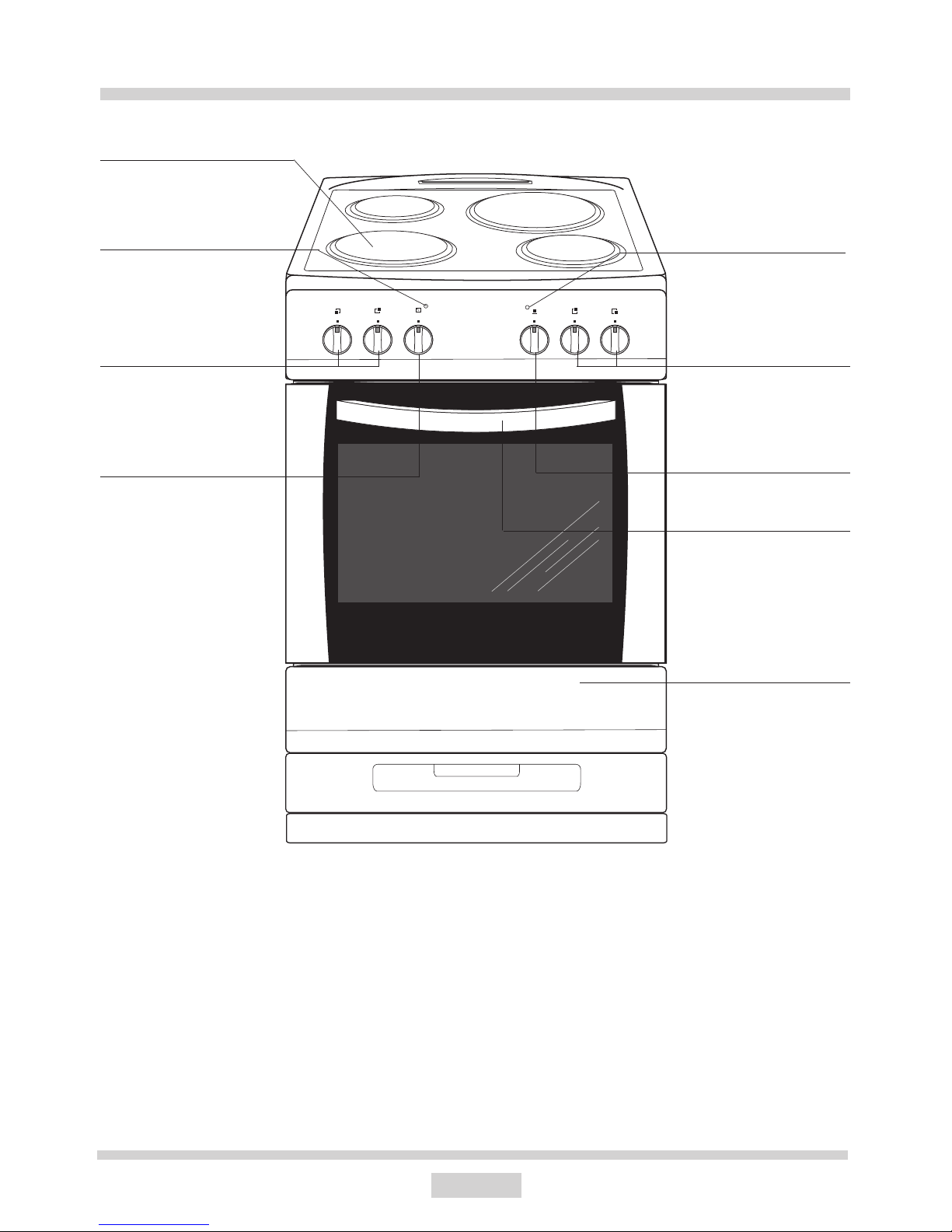

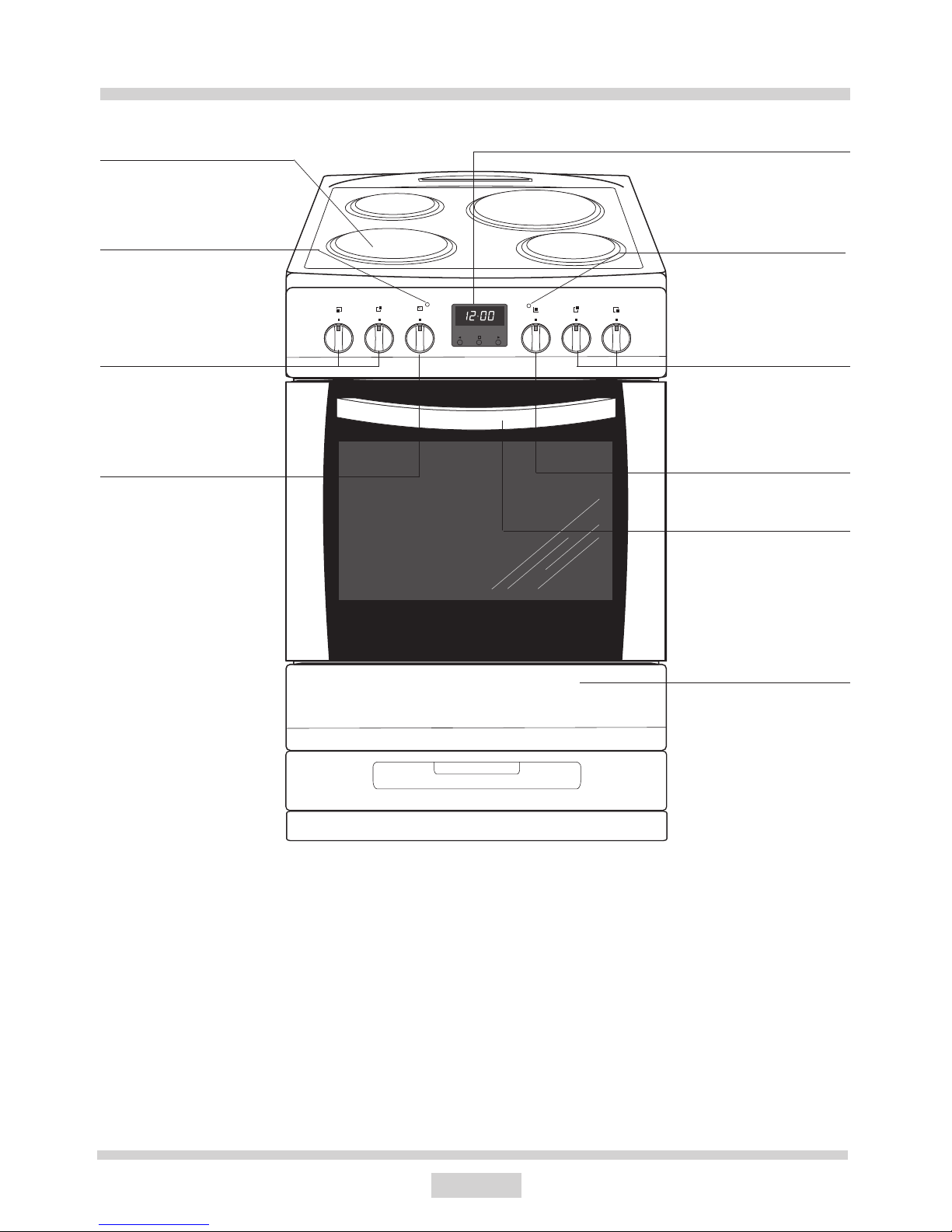

1Temperature control knob

2Oven function selection knob

3, 4, 5, 6 Heating plate control knobs

7Temperatureregulatorsignal light red

8Cooker operation signal light yellow

9 Oven door handle

10 Drawer

11 Electric hob

3, 4

5, 6

DESCRIPTION OF THE APPLIANCE

1Temperature control knob

2Oven function selection knob

3, 4, 5, 6 Heating plate control knobs

7Temperatureregulatorsignal light red

8Cooker operation signal light yellow

9 Oven door handle

10 Drawer

11 Electric hob

12 Electronic programmer

3, 4

5, 6

11 12

SPECIFICATIONS OF THE APPLIANCE

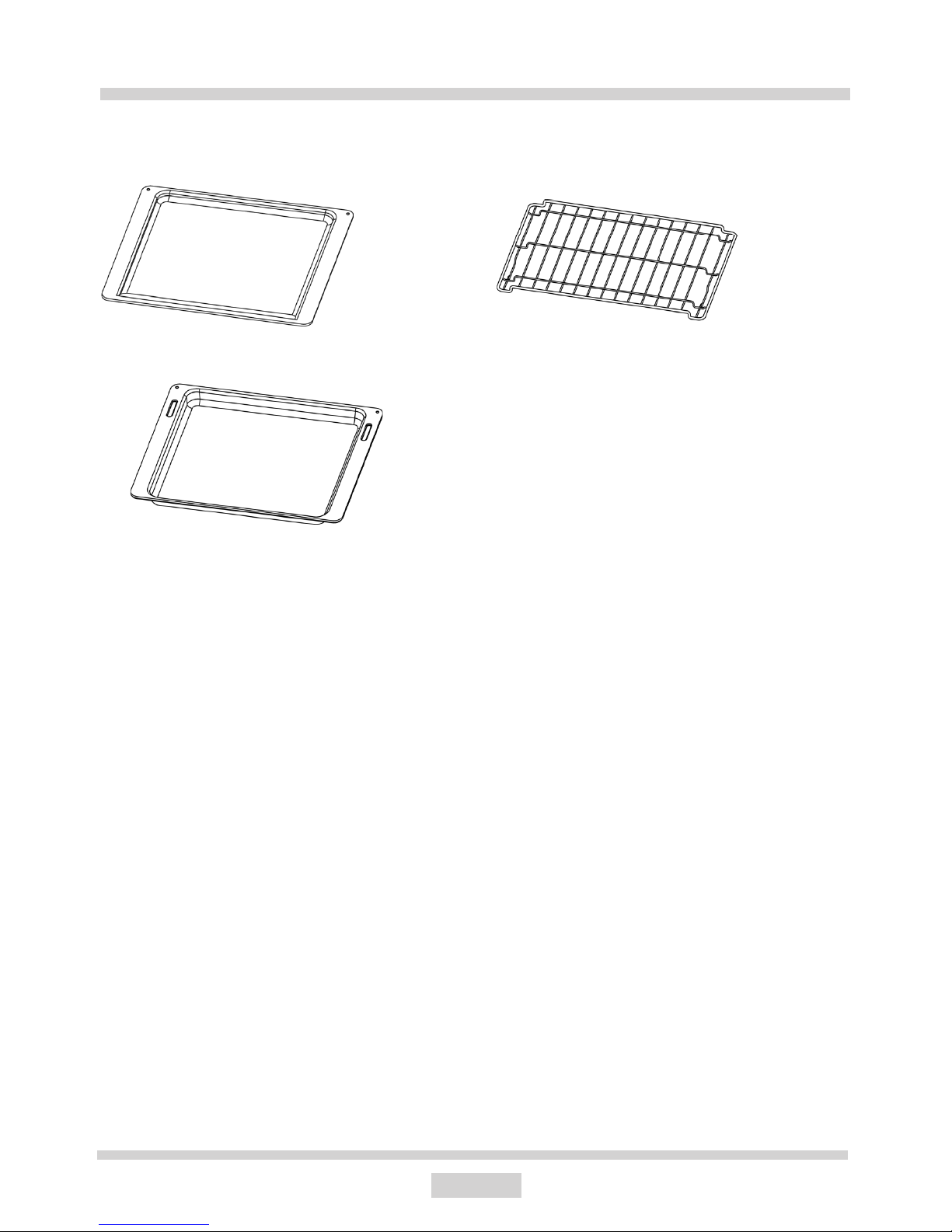

Oventtings:

Baking tray* Grill grate

(drying rack)

Roasting tray

*optional

INSTALLATION

Installing the cooker

The kitchen should be dry and airy and

have effective ventilation according to the

existingtechnicalprovisions.

The room should be equipped with a ven-

tilationsystemthatpipesawayexhaust

fumes created during combustion. This

system should consist of a ventilation

grid or hood. Hoods should be installed

according to the manufacturer’s instruc-

tions. The cooker should be placed so

as to ensure free access to all control

elements.

 Coatingorveneerusedonttedfurniture

must be applied with a heat resistant

adhesive (100°C). This prevents surface

deformation or detachment of the coat-

ing. If you are unsure of your furniture’s

heat resistance, you should leave ap-

proximately 2 cm of free space around

the cooker. The wall behind the cooker

should be resistant to high temperatures.

During operation, its back side can warm

up to around 50°C above the ambient

temperature.

The cooker should stand on a hard, even

oor(donotputitonabase).

Before you start using the cooker it should

be leveled, which is particularly important

for fat distribution in a frying pan. To this

purpose, adjustable feet are accessible

after removal of the drawer. The adjust-

ment range is +/- 5 mm.
