INSTRUCTION MANUAL
IOAK-1928 / 8050624
(10.2011./2)
BUILT-IN ELECTRIC OVEN
C
O
2
DEAR CUSTOMER,
The oven is exceptionally easy to use and extremely efcient. After reading the instruction
manual, operating the oven will be easy.
Before being packaged and leaving the manufacturer, the oven was thoroughly checked with
regard to safety and functionality.
Before using the appliance, please read the instruction manual carefully.
By following these instructions carefully you will be able to avoid any problems in using the
appliance.
It is important to keep the instruction manual and store it in a safe place so that it can be
consulted at any time.
It is necessary to follow the instructions in the manual carefully in order to avoid possible
accidents.
Caution!
Do not use the oven until you have read this instruction manual.
The oven is intended for household use only.
The manufacturer reserves the right to introduce changes which do not affect the
operation of the appliance.
3
TABLE OF CONTENTS
Safety instructions ............................................................................................................. 4
Description of the appliance ............................................................................................. 7
Installation........................................................................................................................... 9
Operation............................................................................................................................11
Baking in the oven – practical hints ............................................................................... 15
Cleaning and maintenance.............................................................................................. 17
Technical data................................................................................................................... 21
4
SAFETY INSTRUCTIONS
The appliance becomes hot during operation. Take care not to touch the hot parts inside
the oven.
Always keep children away from the oven.
While in operation direct contact with the oven may cause burns!
Ensure that small items of household equipment, including connection leads, do not touch
the hot oven as the insulation material of this equipment is usually not resistant to high
temperatures.
Donotleavetheovenunattendedwhenfrying.Oilsandfatsmaycatchreduetoover-
heating or boiling over.
Do not put pans weighing over 15 kg on the opened door of the oven.
Do not use harsh cleaning agents or sharp metal objects to clean the door as they can
scratch the surface, which could then result in the glass cracking.
Donotusetheovenintheeventofatechnicalfault.Anyfaultsmustbexedbyanap-
propriatelyqualiedandauthorisedperson.
In the event of any incident caused by a technical fault, disconnect the power and report
the fault to the service centre to be repaired.
The rules and provisions contained in this instruction manual should be strictly observed.
Do not allow anybody who is not familiar with the contents of this instruction manual to
operate the oven.
This appliance is not intended for use by persons (including children) with reduced physical,
sensoryormentalcapabilities,orlackofexperienceandknowledge,unlesstheyhavebeen
given supervision or instruction concerning use of the appliance by a person responsible
for their safety.
Children should be supervised to ensure that they do not play with the appliance.
The oven should not be cleaned using steam cleaning equipment.
5
Using energy in a respon-
sible way not only saves
money but also helps the
environment. So let’s save
energy! And this is how you
can do it:
Do not uncover the pan too often
(a watched pot never boils!).
Do not open the oven door unnecessarily
often.
Switch off the oven in good time and
make use of residual heat.
For long cooking times, switch off heating
zones5to10minutesbeforenishingcook-
ing. This saves up to 20% on energy.
Only use the oven when cooking larger
dishes.
Meat of up to 1 kg can be prepared more
economically in a pan on the cooker hob.
Make use of residual heat from the
oven.
If the cooking time is greater than 40 minutes
switch off the oven 10 minutes before the
end time.
Important! When using the timer,
set appropriately shorter cooking
times according to the dish being
prepared.
Make sure the oven door is properly
closed.
Heat can leak through spillages on the door
seals. Clean up any spillages immediately.
Do not install the oven in the direct
vicinity of refrigerators/freezers.
Otherwise energy consumption increases
unnecessarily.
HOW TO SAVE ENERGY
6
During transportation, protec-
tive packaging was used to
protect the appliance against
any damage. After unpacking,
please dispose of all elements
of packaging in a way that will
not cause damage to the environment.
All materials used for packaging the appli-
ance are environmentally friendly; they are
100% recyclable and are marked with the
appropriate symbol.
Caution! During unpacking, the packag-
ing materials (polythene bags, polystyrene
pieces, etc.) should be kept out of reach of
children.
UNPACKING DISPOSAL OF THE APPLIANCE
Old appliances should not sim-
ply be disposed of with normal
household waste, but should
be delivered to a collection and
recycling centre for electric and
electronic equipment. A symbol
shown on the product, the in-
struction manual or the packaging shows that
it is suitable for recycling.
Materials used inside the appliance are
recyclable and are labelled with information
concerning this. By recycling materials or
other parts from used devices you are making
asignicantcontributiontotheprotectionof
our environment.
Information on appropriate disposal centres
for used devices can be provided by your
local authority.
7
C
O
DESCRIPTION OF THE APPLIANCE
Oven function
selector knob
Timer
Temperature adjust-
ment knob
Temperature regula-
tor pilot light
Oven operation pilot
light
8

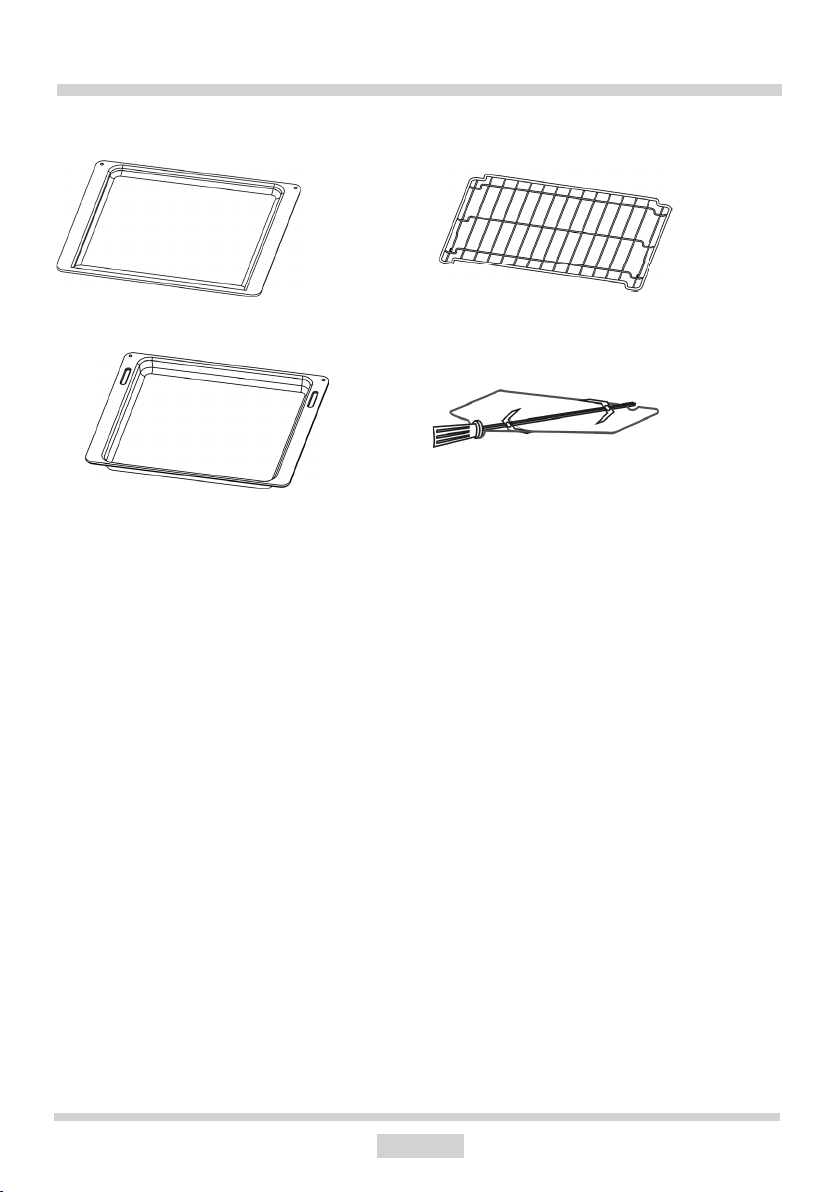

SPECIFICATIONS OF THE APPLIANCE
Cookerttings:
Baking tray Grill grate
(drying rack)*
Roasting tray*
Fork and rotisserie frame*
*optional
9
Installing the oven
The kitchen area should be dry and aired
and equipped with efcient ventillation.
When installing the oven, easy access to
all control elements should be ensured.
This is a Y–type design built–in oven,
which means that its back wall and one
side wall can be placed next to a high
piece of furniture or a wall. Coating or
veneerusedonttedfurnituremustbe
applied with a heat–resistant adhesive
(100°C). This prevents surface deforma-
tion or detachment of the coating.
Hoods should be installed according to
the manufacturer’s instructions.

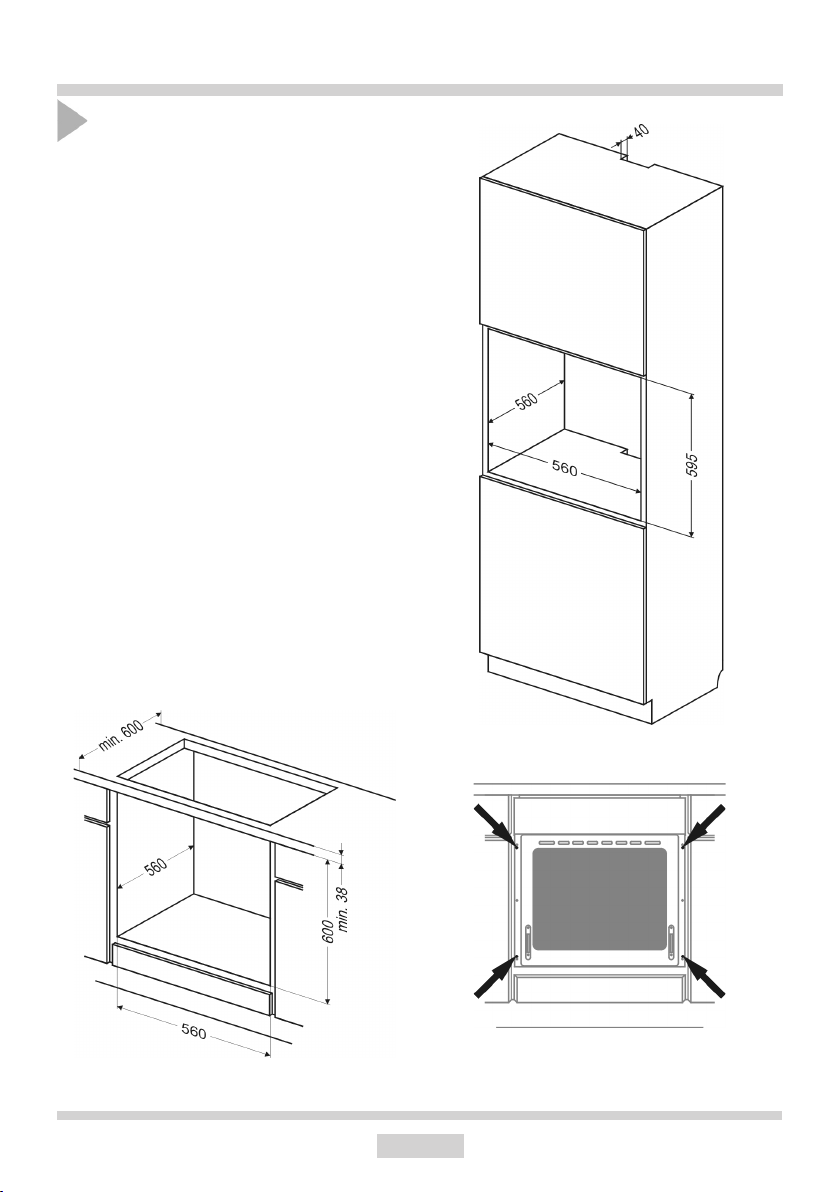

Make an opening with the dimensions
given in the diagram for the oven to be
tted.
Make sure the mains plug is disconnected
and then connect the oven to the mains
supply.
Insert the oven completely into the open-
ing without allowing the four screws in the
places shown in the diagram to fall out.
INSTALLATION
10
2
1
230V 1N~
INSTALLATION
Electrical connection
Warning: This appliance must be earthed.
The appliance must be installed by a com-
petent electrician using a double pole control
unit of 16 ampere minimum capacity with
3mm minimum contact separation at all
poles.
We recommend that the appliance is con-
nectedbyaqualiedelectricianwhoismem-
ber of the N.C.E.I.C. and who will comply with
the I.E.E. and local regulation.

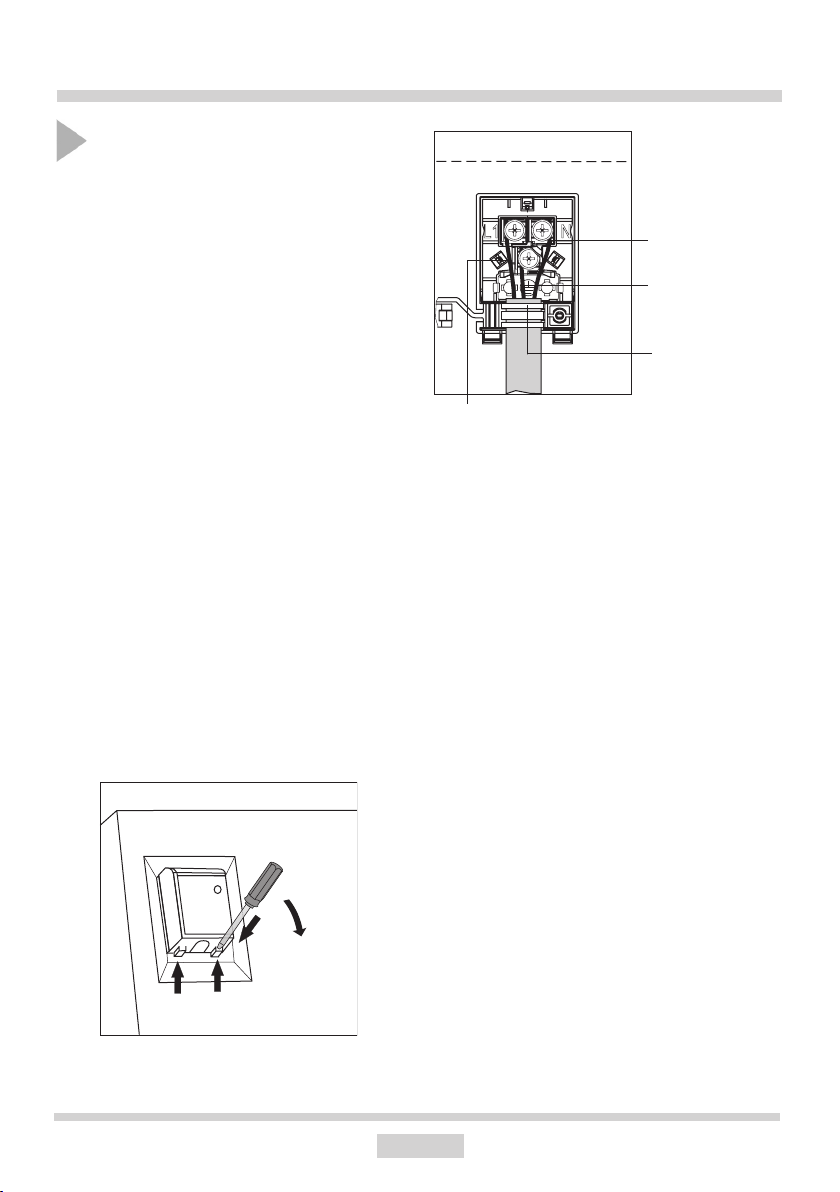

Access to the main terminal is gained by
opening the terminal block cover at the
rear of the appliance (use a small at-
bladed screwdriver).
Connection shuld be made with 1,5mm2
twin and earth cable.
First strip the wires, then push the cab-
lethrough the cable clamp in the terminal
block cover.
Connect the cable to the terminal block
and tighten the cable clamp screw (see
diagram).
Closetheterminalbox,ensuringthatthe
cover is engaged on the locking tabs.
Live
(Red or Brown)
Neutral
(Black or Blue)
Earth
(Green/Yellow
or sleeving)
Cable clamp
