WASHING MACHINE

Please read this User Manual carefully before using the appliance!

INSTRUCTION MANUAL

CONTENTS

Basic Information.......................................................................................................................3

Notes on Safety..............................................................................................................4

Installing the Washing Machine...................................................................................................6

Understanding the symbols on clothes labels................................................................8

Description of control panel..........................................................................................9

Using the appliance................................................................................................13

Table of programmes.........................................................................................14

Troubleshooting..................................................................................................................15

Maintenance and Cleaning.......................................................................................17

Practical tips on washing.....................................................................................................18

Specification......................................................................................................21

Service and Warranty..................................................................................................21

Product Fiche........................................................................................................22

In accordance with European Directive 2002/96/EC and Polish legislation regarding

used electrical and electronic goods, this appliance is marked with the symbol of the

crossed-out waste container.

This marking means that the appliance must not be disposed of together with other

household waste after it has been used. The user is obliged to hand it over to a waste

collection centre collecting used electrical and electronic goods. The collectors, inclu-

ding local collection points, shops and local authority departments provide recycling

schemes. Proper handling of used electrical and electronic goods helps to avoid

environmental and health hazards resulting from the presence of dangerous components and the

inappropriate storage and processing of such goods.

BASIC INFORMATION

From today, washing will be easier than ever before. The Amica washing machine combines

exceptional ease of use with excellent effectiveness. Once you have read the instructions,

operating the washing machine will not be a problem.

Before being packed and leaving the factory, the safety and functions of this washing machine

were carefully tested. These tests may have resulted in some damp or traces of water being

left inside the machine.

We ask you to read the User Manual carefully before switching on the appliance. Following

the directions in this manual will protect you from any misuse.

Keep this User Manual and store it near at hand. The instructions should be followed carefully

to avoid any unfortunate accidents.

Important!

This washing machine is intended for purely domestic use to wash textiles and clothes

which are designed to be machine washed in a detergent bath.

Before plugging the washing machine into the mains, remove the safety packaging and

ensure the machine is level.

The manufacturer reserves the right to introduce changes which do not affect the operation

of the appliance.

Use

lThe machine should only be used after the instructions below have been read carefully.

lNever use the machine outdoors or anywhere the temperature may fall below freezing.

lThe machine should not be operated by children or anyone who has not read the instruc-

tions.

Important! Temperatures below 0°C can damage the washing machine! In the event of the

machine being stored or transported in sub-zero temperatures, it should be left to acclimatise

in a temperature above zero for 8 hours before being used.

Manufacturer’s Declaration

The manufacturer hereby declares that this product meets the requirements of the follo-

wing European directives:

lLow Voltage Directive 2014/35/EC,

lElectromagnetic Compatibility (EMC) Directive 2004/30/EC

lErP Directive 2009/125/EC

and has thus been marked with the symbol and been issued with a declaration of com-

pliance made available to market regulators.

Use only those detergents and additives which are designed for automatic

washing machines, especially when using the TOWELS programme.

Do not use any agents containing solvents, as these may damage certain

parts of the machine, or cause them to emit poisonous gases. There may

also be a risk of ignition and explosion.

Ensure no unwanted objects are put inside the appliance. Completely

empty all pockets in the clothing to be washed and fasten buttons and

zips. Place small, loose objects in a washing bag, or inside a pillow case,

as they may be destroyed or else damage the drum or internal tank. Do

not exceed the recommended maximum load of washing.

NOTES ON SAFETY

lDetergents

lLoading the

Machine

lControl Panel

lTransport

lData Plate

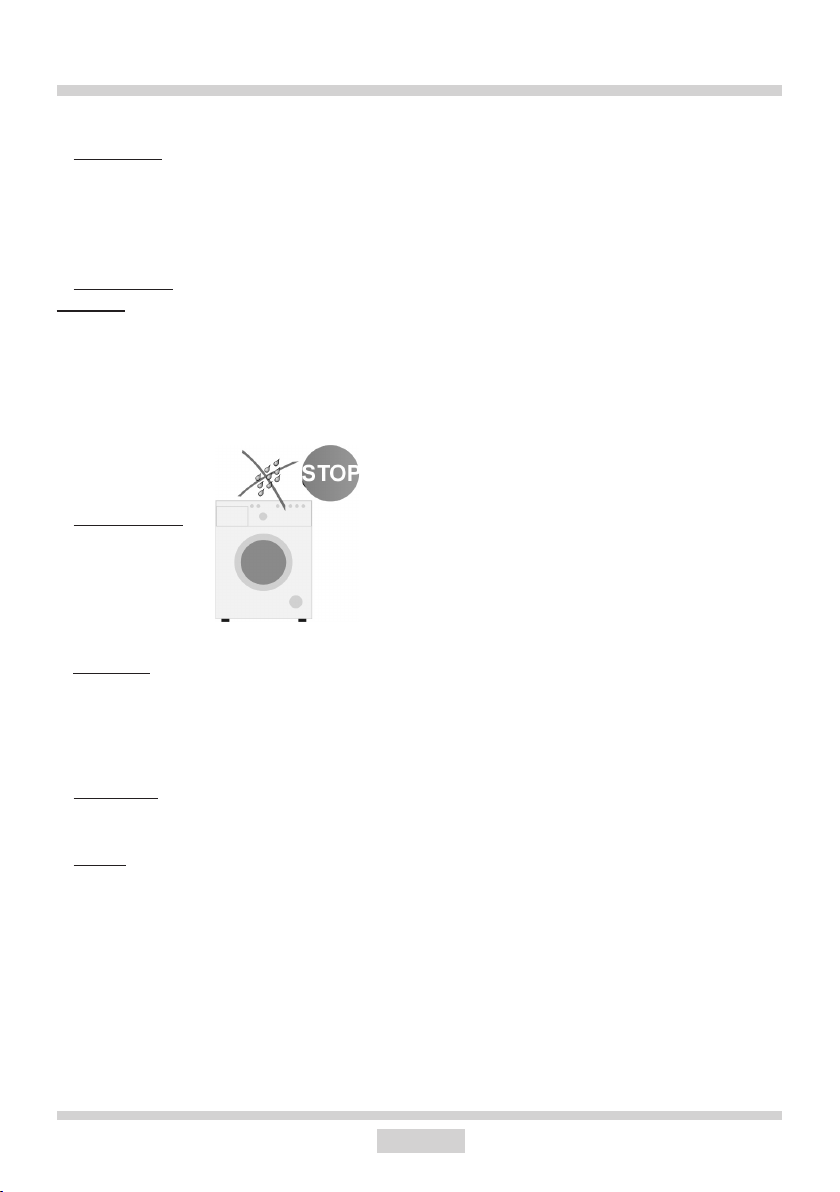

Unplug the machine before preparing the machine for transport. Do not

transport the washing machine if drum locking bolts are not in place. See

the chapter INSTALLING THE MACHINE (page 6). Keep the appliance

in upright position when transported.

Data plate indicating basic information about the washing machine is

located at the top part of the rear casing.

The door glass of your washing machine is hot during operation. Do not

allow children in the vicinity of the appliance.

Protect the control panel from water spillage.

Do not put washed clothes on top of the machine!

lBurns

Checking stability

Once the washing machine is in position and levelled, it must be checked to ensure it rests

rmly on all four legs.

In order to check this, press down each corner of the appliance in turn to see if it moves.

Safe, long-term and reliable operation of the washing machine depends on it being correctly

positioned and level.

Important! Level the appliance, remove the drum locking bolts and wait 3 hours

before using the appliance for the rst time.

Important! Incorrect levelling, especially instability, may cause the washing machine

to move around during operation.

This appliance can be used by children aged 8 years and

older or by persons with physical, mental or sensory handi-

caps, or by those who are inexperienced or unfamiliar with

the appliance, provided they are supervised or have been

instructed how to safely use the appliance and are familiar

with risks associated with the use of the appliance.

Ensure that children do not play with the appliance.

Cleaning and maintenance of the appliance should not be

performed by children unless they are 8 years or older and

are supervised by a competent person.

NOTES ON SAFETY

DISPOSAL OF THE APPLIANCE

To ensure safety, the washing machine must be rendered unsuitable for use once its useful

life comes to an end. First unplug it and then cut off the power lead. Scrap the appliance in

line with local waste disposal legislation.

This appliance is not intended for use by persons (including children) with physical, mental

or sensory handicaps, or by persons inexperienced or unfamiliar with the appliance, unless

under supervision or in accordance with the instructions as communicated to them by persons

responsible for their safety.

Children shall not play with the appliance.

INSTALLING THE MACHINE

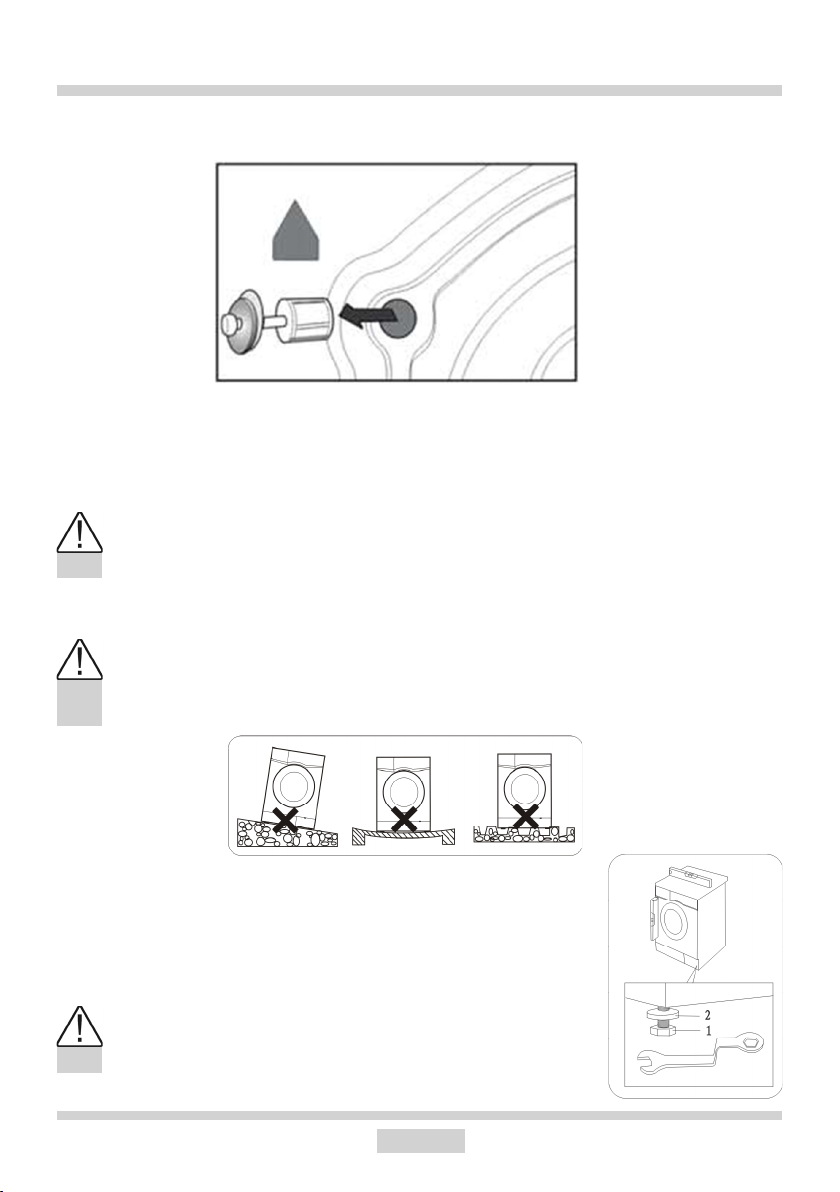

I. Remove the protection used for transporting the appliance (keep the locking bolts

for future use, e.g. when moving house).

lUnscrew the 4 locking bolts with a spanner.

lRemove the rubber and plastic transport

brackets from the sockets along with the wa-

shers and bolts.

The locking bolts MUST be removed before the washing machine is used!

lStop up the holes with the stoppers

enclosed in the accessories bag.

lDo not place the washing machine on a carpet!

lThe oor surface should not be either concave or sloping!

lAttention should be paid to the shape of the surface of the oor, so that the

entire weight of the appliance rests on its legs (not its body)!

II. Positioning and levelling the machine

After positioning and levelling the machine,

check that it is stable by pressing down each

corner and ensuring it does not move!

lPlace the washing machine on a solid, even surface.

lLoosen the plastic washer (2)

lLock with washers (2)

lLevel the machine by adjusting the legs (1)

The drain hose is at the back of the

machine. Fix the drain hose so that it

does not move while the machine is

in operation (use the elbow as shown

below). Do not place the hose too deep

into the outlet pipe!

max 100 cm

min 60 cm

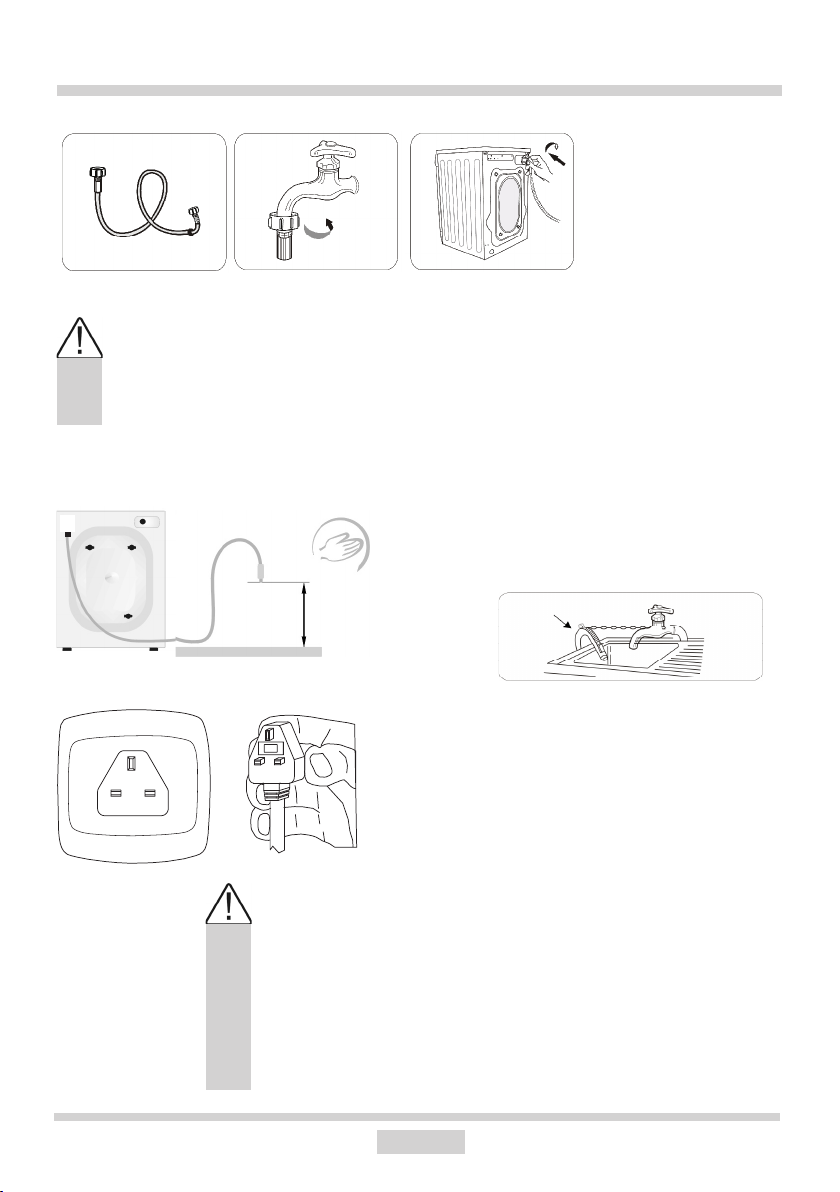

III. Connecting the water supply

IV. Water drain

V. Connecting the electric power supply

A water supply hose with seals is inside the drum of the machine.

lOnly plug the machine into a properly installed socket

with an earth pin!

lDo not connect to an adaptor or an extension cord!

lIn the event of the power lead being damaged, it must be

replaced by an authorised technician.

lThe electrical system to which the appliance is to be

connected must be protected with a 10 A fuse.

INSTALLING THE MACHINE

Water pressure min. 0,1 MPa (1 bar), max.1 MPa (10 bar). Supply the machine

with cold water

lafter connecting, make sure the hose is not twisted

lafter connecting the hose and the valve, check they are sealed tight

lregularly check the condition of the supply hose.

Use the new hoses sup-

plied with the machine.

Do not re-use old hoses.

lThe appliance’s mains connection (electrical wall socket)

should be in a visible and accessible place!

Detergent Drawer

Drum

Pump lter

cover

Door

handle

Control panel

■■

■

DESCRIPTION OF THE APPLIANCE

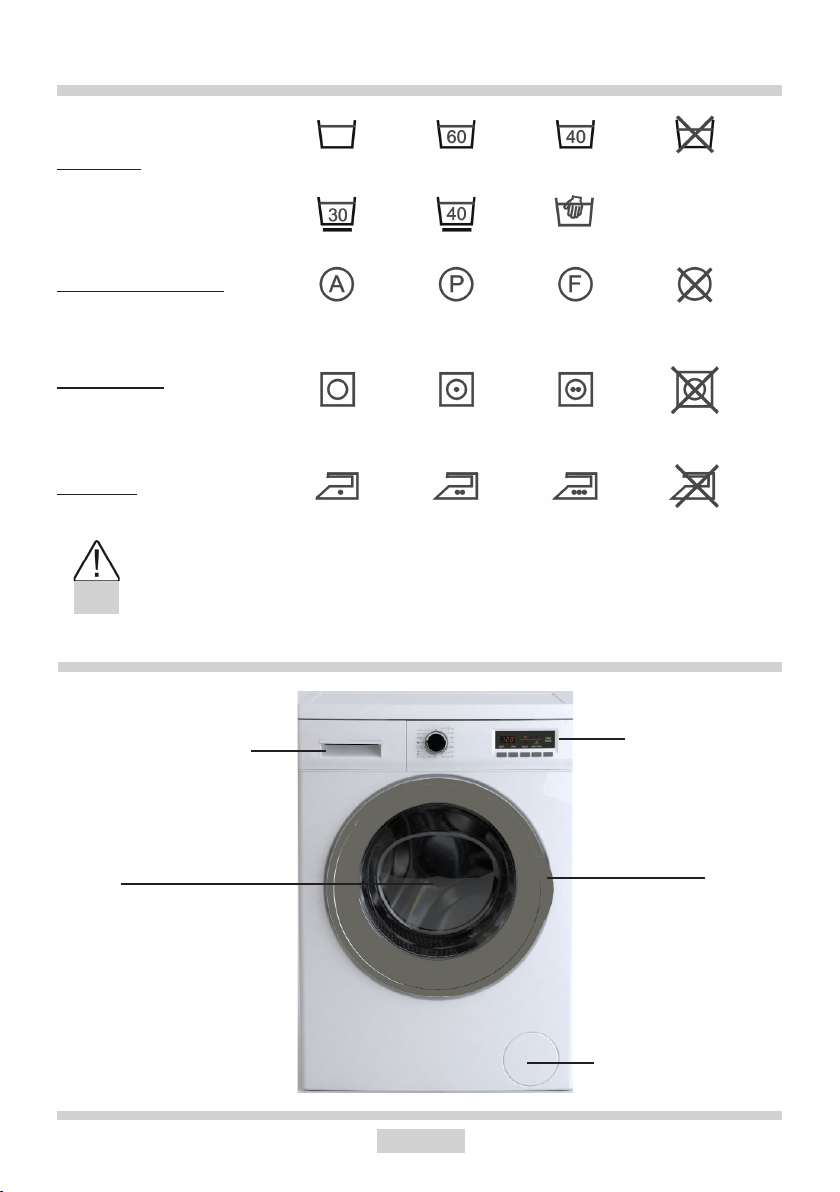

UNDERSTANDING THE SYMBOLS ON CLOTHES LABELS

Always pay attention to the symbols on garments’ labels

when choosing a washing setting.

I. Washing

II. Chemical cleaning

III. Spin dryer

boiling

temp. 900

normal

temp 600C

normal

temp 400C

DO NOT

wash!

delicate handwash

all

solvents

all

except TRI

petrol

only

DO NOT

dry clean!

normal low high DO NOT

dry!

IV. Ironing

1100C1500C 2000CDO NOT

iron!

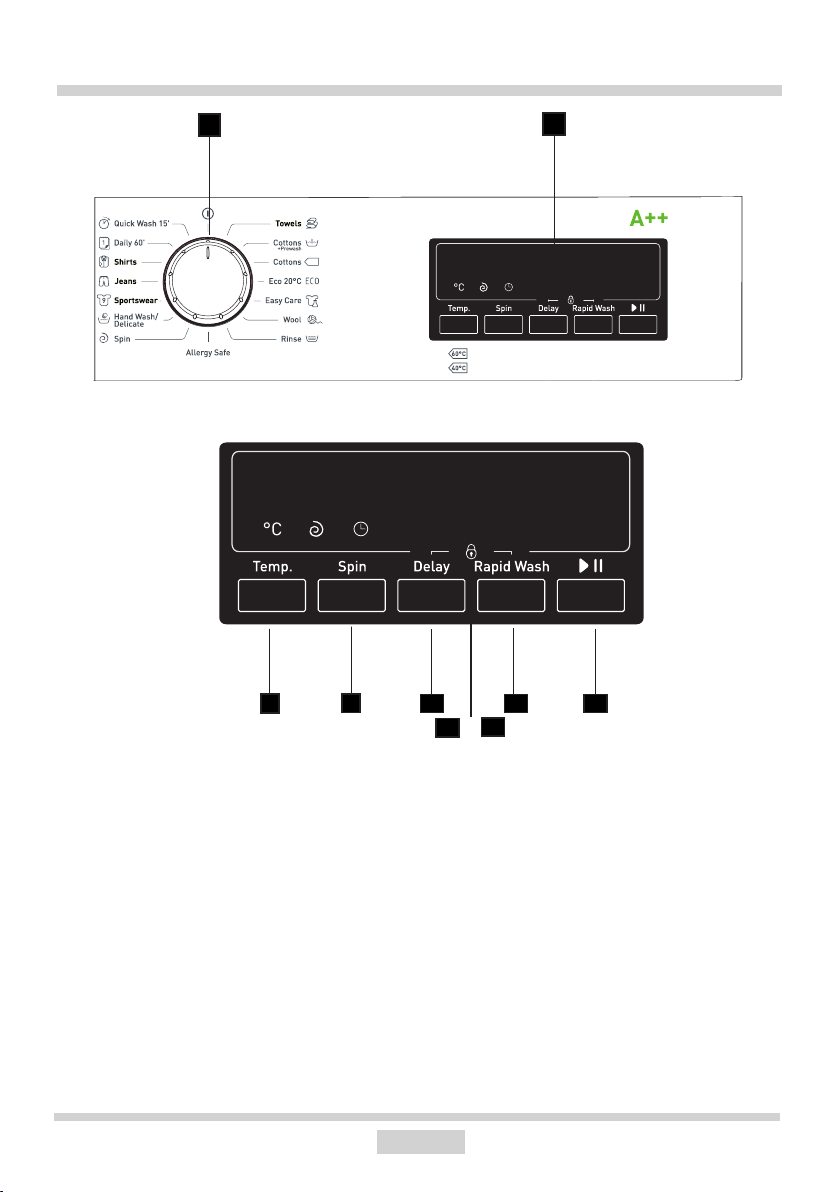

1. Programme selector knob

2. Display

3. Temperature selector button

4. Spin speed button

5. Delay button

6. Rapid wash button

7. START/PAUZA button

5+6. Child Lock

35 6 7

■■

■■■ ■ ■

■

DESCRIPTION OF CONTROL PANEL

2. Display

l Time, temperature, spin speed, delay start 1-23 h are available on display.

In addition, additional function indicators are displayed (delay start and

rapid wash), and START/PAUSE. Message End is displayed at the end of

programme.

lThe remaining time is displayed during wash cycle. The displayed time is an

estimate and may differ from actual wash cycle time, depending on temperature,

water pressure, load size, quantity of washing powder used etc. The time is

automatically updated during wash cycle. Displaying the same time for an

extended period or abrupt changes are normal.

l Child Lock

When Child Lock is active if you attempt to change the wash cycle or settings

the CL symbol will ash on the display.

3. Temperature selector button

This button allows the washing temperature to be set. Press this button to display water

temperature settings available for a given programme or an option for washing in cold

water (no heating). Depending on the programme selected, the display shows the follo-

wing temperatures - - °C (cold water) - - 30°C - 40°C - 50°C - 60°C -70°C - 80°C - 90°C.

For the Eco programme you can select the cold water option or 20°C on the display.

4. Spin speed button

Press this button to set the spin speed when water is being pumped out of the washing

machine. Press the button to change the setting. Depending on the programme selec-

ted, the display shows the following options - - (spin off) - 400 - 600 - 800 – 1000

- 1200 - 1400.

5. Delay Start button

Press this button to set the delay time for starting washing. The setting range available is

from 1-23 hours. Press the button to set the time after which washing is to commence.

NOTE: If there is a power outage during Delay Time, countdown will resume

immediately after the power is restored.

DESCRIPTION OF CONTROL PANEL

1. Programme selector knob

Choose the appropriate wash programme as required, depending on the degree of soil,

and type and amount of laundry loaded, which ensures better results and more effective

washing. Once the wash programme is started, turning the programme selector knob to

another position (except ) does not change the previously selected programme.

Indice

Altri manuali Amica Lavatrice

Amica

Amica AWN614D Manuale utente

Manuali Lavatrice popolari di altre marche

Beko

Beko WMB 61031 M Manuale utente

LG FH695BDH0N Manuale utente

Indesit

Indesit XWA 61251 Manuale utente

Bosch

Bosch WAT2878XZA Scheda tecnica

NEFF

NEFF W7 Manuale utente

Beko

Beko WMY 81233 LMB3 Manuale utente

Beko

Beko WMB 71442 LMA Manuale utente

LG WM3170CW Manuale utente

Beko

Beko WTV 7832 X00 Manuale utente

Beko

Beko WMB 81442 LW Manuale utente

Beko

Beko WMB 61021 MS Manuale utente

Indesit

Indesit IWE 61051 Manuale utente

Beko

Beko WMP601W Manuale utente

LG WT1201CV Manuale utente

AEG

AEG L 76285 FL Manuale utente

Beko

Beko WMB81241LS Manuale utente

arcelik

arcelik 9123 HE Manuale utente

Beko

Beko WMB 651241 L Manuale utente
