AMP Research BedXTender HD Max 74840-00A Manuale utente

rev 05.14.19

1/6

www.amp-research.com

ASSEMBLY & INSTALLATION GUIDE

APPLICATION YEAR

RAM DT 2019

Remove contents from box and check for damage.

Verify all parts against parts list.

Read and understand instructions completely before attempting assembly

and installation.

INSTALLATION TIME

SKILL LEVEL

1= Easy

2 3 4

PART #

74840-00A (Silver) 74840-01A(Black)

TOOLS REQUIRED

Phillips screw driver

Torx T-25 driver

Power drill

5/32” drill bit

Center punch

Supplied templates

Soapy Water

BEDXTENDER HD™ shown assembled and installed on truck.

1 Hour

Invented, engineered and manufactured exclusively by AMP Research in the USA. May be covered by one of the

following patents:

5,700,047; 6,113,173; 6,402,215; 6,805,392; 7,063,366; 7,393,035; 7,654,598; 7,681,935; 7,841,638

3-Year Limited Warranty

WARRANTY

rev 05.14.19

2/6

www.amp-research.com

AMP RESEARCH BEDXTENDER HD™

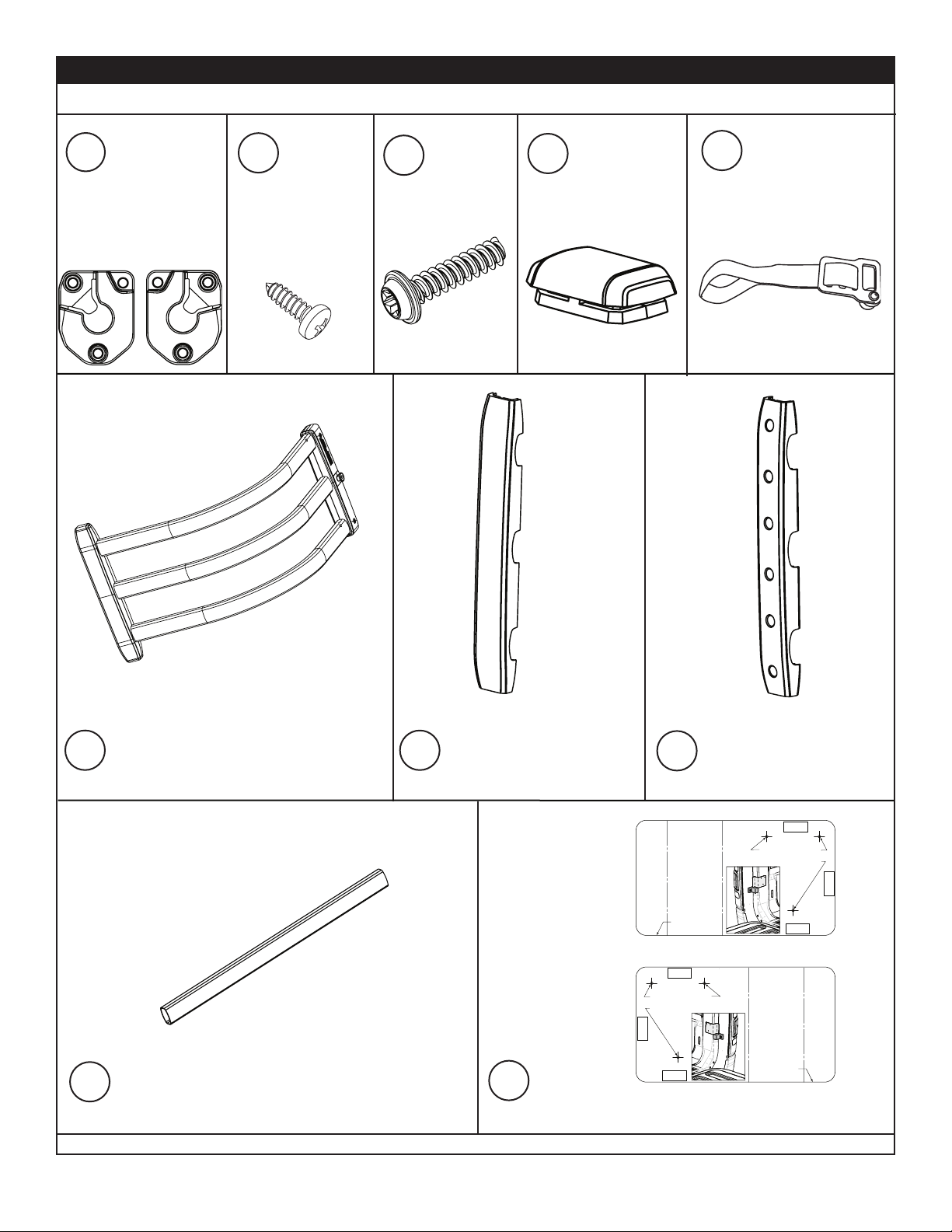

PARTS LIST AND HARDWARE IDENTIFICATION

Quick Mount

Bracket Set

1x2

Phillips head

screw

(included in 74608-01A)

2x6 x4

Bumper

Center Tube

PT-Screw

x12 x2

Strap Buckle Assembly

Rest lower edge on

lower tailgate bumper.

RAM Bed Extender - Drill Template

Driver Side

Mark all three hole locations

with center punch and then

drill hole size to 5/32”(4mm)

CAUTION: Make sure center punch

indentations are deep enough to

prevent the drill bit from wandering.

Misdrilled holes may adversely aect

installation of brackets.

BEND DOWN 90°

BEND UP 90°

TAPE

CAUTION: Make sure center punch

indentations are deep enough to

prevent the drill bit from wandering.

Misdrilled holes may adversely aect

installation of brackets.

BEND DOWN 90°

BEND UP 90°

RAM Bed Extender - Drill Template

Passenger Side

TAPE

Rest lower edge on

lower tailgate bumper.

Mark all three hole locations

with center punch and then

drill hole size to 5/32”(4mm)

TAPE

Drill Templates

6x2

Pivot Upright Assembly

7x2

Bumper Upright Outer

8x2

Bumper Upright Inner

9x3

rev 05.14.19

3/6

www.amp-research.com

AMP RESEARCH BEDXTENDER HD™

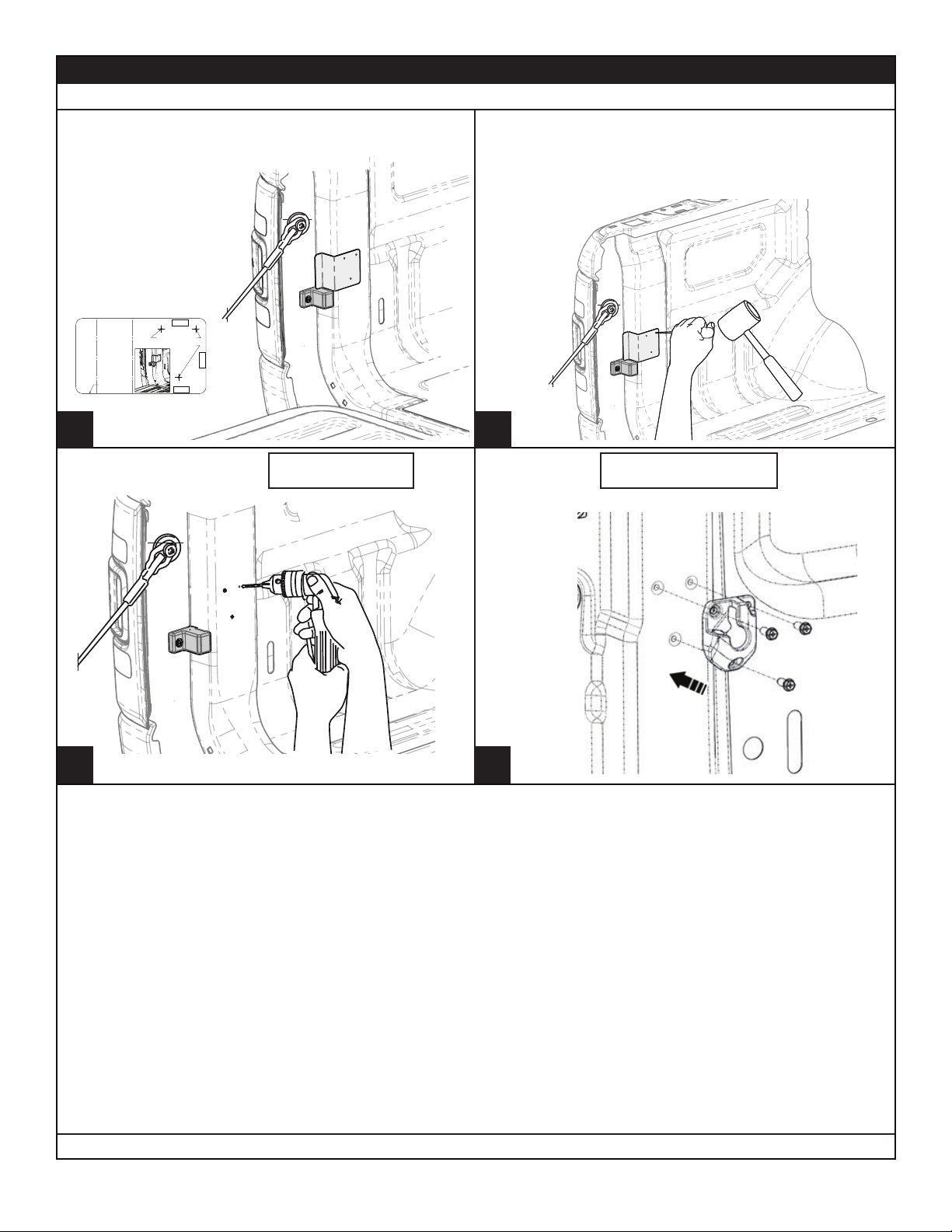

UNIVERSAL MOUNTING BRACKET INSTALLATION

Following instructions

on the supplied drill

templates, align

templates as shown,

with top edge parallel

to truck bed rail,

afxing with tape.

Drill at 3 indentations

created in Step 2.

Rest lower edge on

lower tailgate bumper.

RAM Bed Extender - Drill Template

Driver Side

Mark all three hole locations

with center punch and then

drill hole size to 5/32” (4mm)

CAUTION: Make sure center punch

indentations are deep enough to

prevent the drill bit from wandering.

Misdrilled holes may adversely aect

installation of brackets.

BEND DOWN 90°

BEND UP 90°

TAPE

CAUTION: Make sure center punch

indentations are deep enough to

prevent the drill bit from wandering.

Misdrilled holes may adversely aect

installation of brackets.

BEND DOWN 90°

BEND UP 90°

RAM Bed Extender - Drill Template

Passenger Side

TAPE

Rest lower edge on

lower tailgate bumper.

Mark all three hole locations

with center punch and then

drill hole size to 5/32” (4mm)

TAPE

Use center punch to rmly mark drill locations as

indicated on templates.

Left side shown, opening in

bracket faces Back of vehicle.

rev 05.14.19

4/6

www.amp-research.com

AMP RESEARCH BEDXTENDER HD™

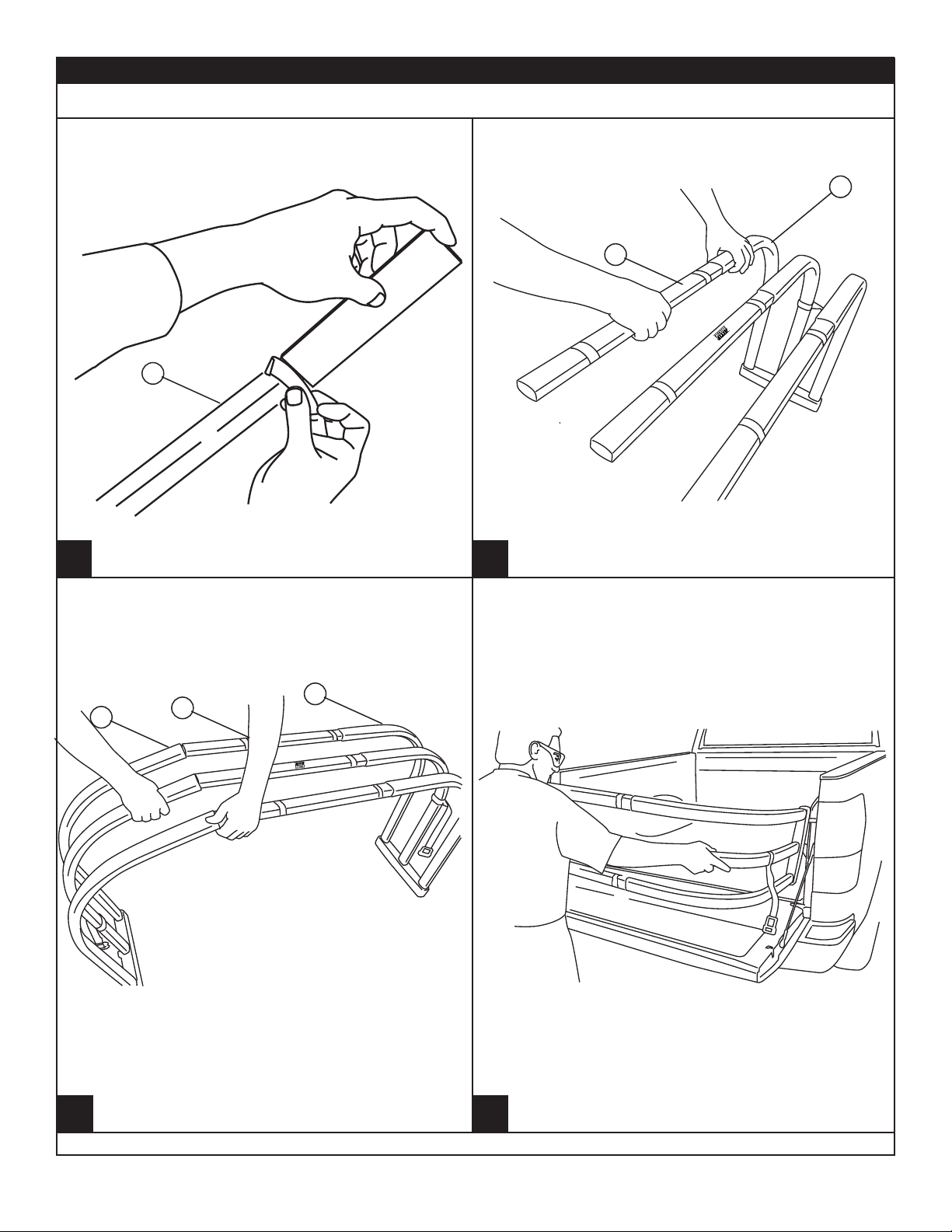

BED X-TENDER ASSEMBLY

Adjust the width of the BEDXTENDER by placing the

pivots into the mounting brackets. To keep overlap

consant, adjust each tube so that the gap between the

edge and the tape is the same.

3 4

Slide 3 center tubes into the open ends of the bent

tubes as shown. Insert center tube with logo into the

center tube.

Connect the two halves. Make sure there is at least 3”

overlap with the bent tubes on each side.

Measure 7” from each end of the three center

tubes and mark with tape. Tape is to be used as a

reference point

Note: Template located on inside of

box.

rev 05.14.19

5/6

www.amp-research.com

AMP RESEARCH BEDXTENDER HD™

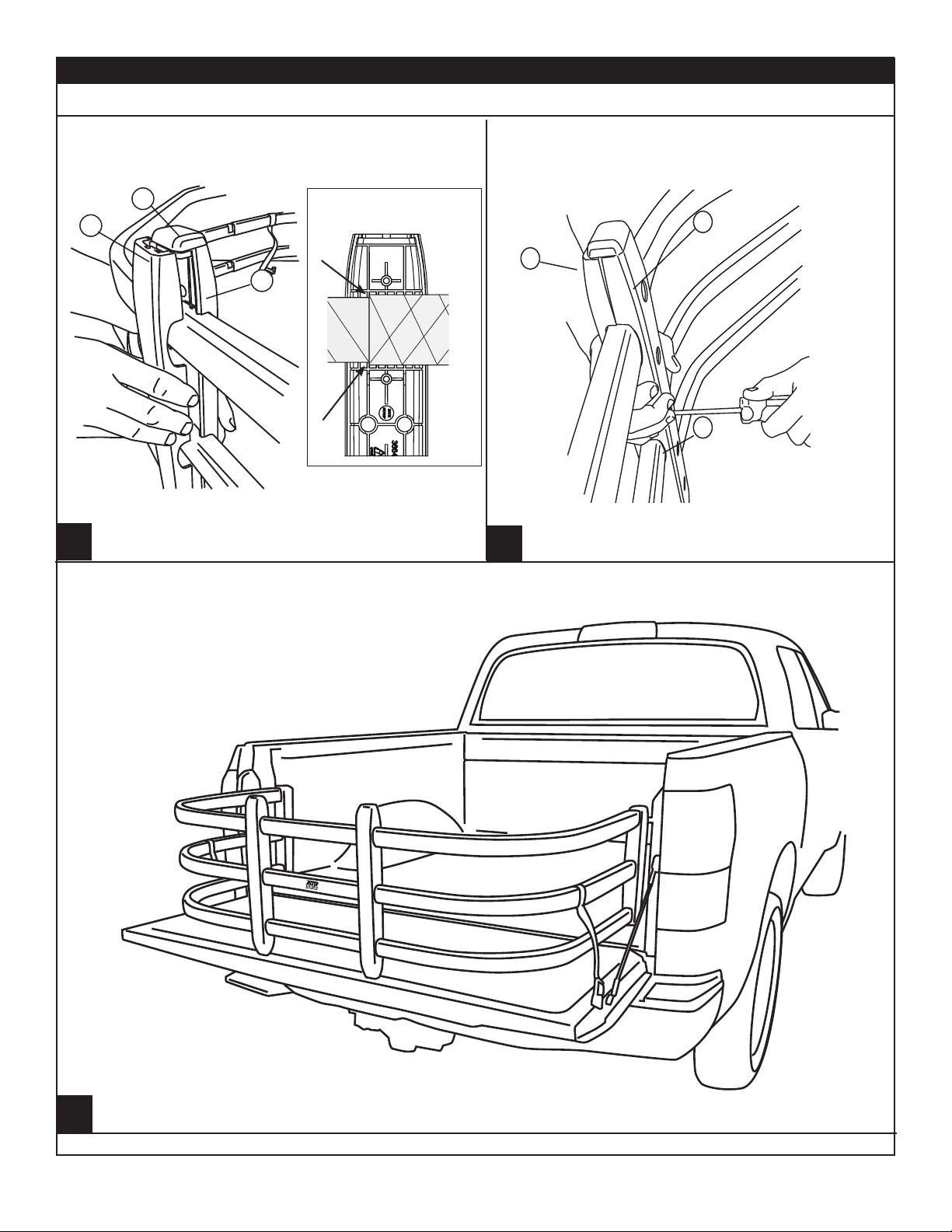

BED X-TENDER ASSEMBLY – CONTINUED

Adjust Strap Buckles to lock into the tailgate when BEDXTENDER is deployed.

Your assembly is now complete.

Tighten PT-Screws using a T-25 torx driver, starting

in the middle of each upright, then the outer screws

and lastly the remaining two to evenly tighten.

NOTE: Do not over tighten as this may strip out.

Fastener will reach a noticable stopping point.

Attach plastic upright around the tube juncture,

placing rubber bumpers into the two ends of the

upright.

NOTE: The inside of the upright is stepped

to t correctly around the small and large

diameter tubes.

Upright is not positioned in

center of tube joint.

rev 05.14.19

6/6

www.amp-research.com

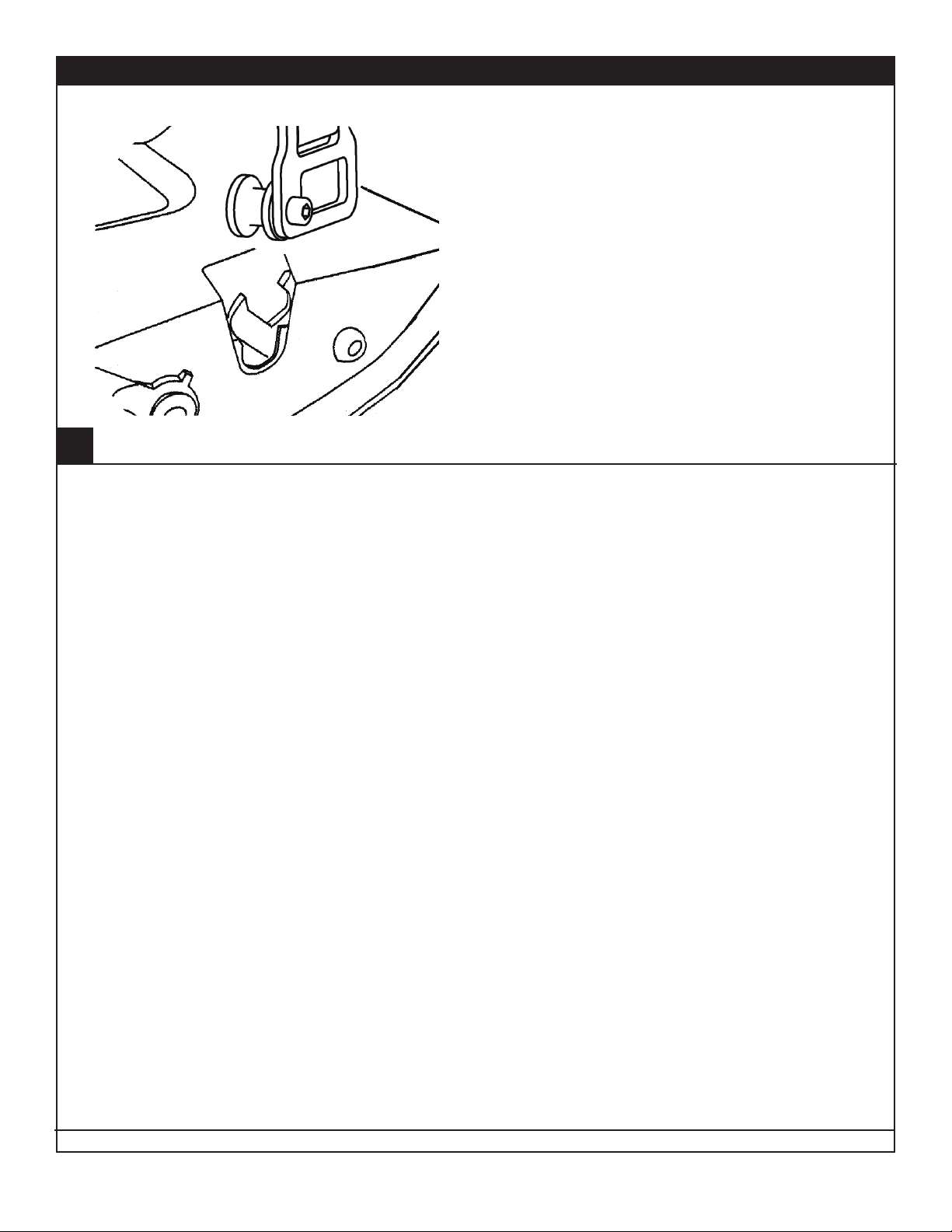

AMP RESEARCH BED X-TENDER™

AMP RESEARCH BEDXTENDER HD ™

When the BEDXTENDER is at the furthest rear position,

push down on the buckle to insert into tailgate latch. Tighten

straps. To release, pull tailgate handle.

NOTE: Ensure that buckles are properly inserted into

latches by pulling on the straps after both buckles have

been inserted.

rev 01.03.12

7/8

www.amp-research.com

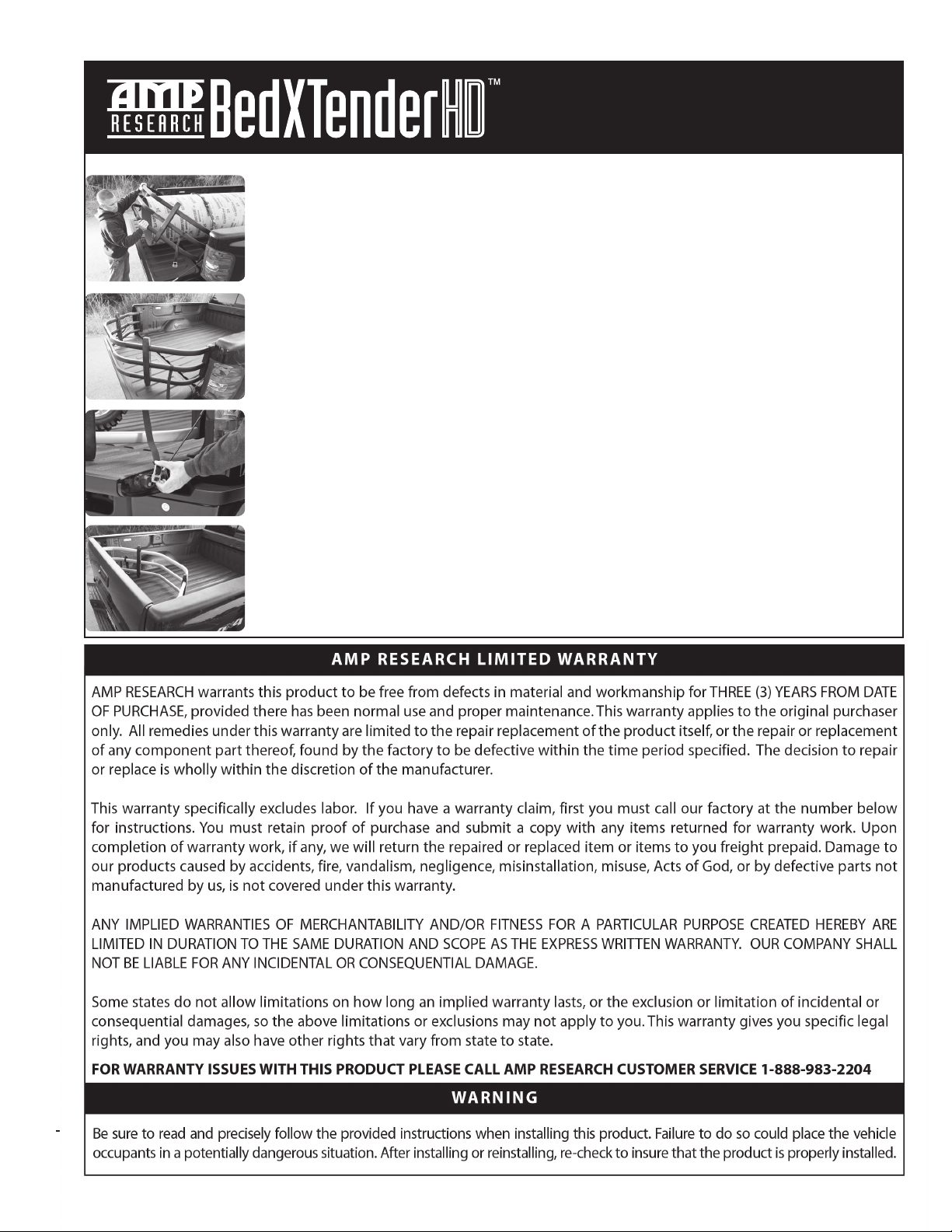

Congratulations on your purchase of the

AMP Research BEDXTENDER HD.

Here’s what you need know...

BEDXTENDER HD™ OPERATION

With the tailgate open, place BEDXTENDER pivot pins into the left and right mounting

brackets. Rotate to 45 until it drops into place, then lower onto the open tailgate.

Flip BEDXTENDER out to contain cargo in the truck bed when the tailgate is open.

CAUTION! 200lb maximum load on open tailgate. Always distribute cargo evenly and

properly secure inside bed. Do not secure cargo to the BEDXTENDER or the tailgate.

Before driving, secure BEDXTENDER by locking the provided strap buckles into the

truck’s tailgate latches. To release, pull tailgate handle. NOTE: Ensure that both

buckles are properly locked into the latches by pulling up on each strap.

Flip BEDXTENDER forward and close the tailgate to keep smaller cargo safe and

organized.
