AMPTech S Manuale utente
SOFTCLOSE AUTOMATIC
MODEL S
INSTALLATION GUIDE
V. M3 SOC20-MKII FD/AD
Table of contents
2
Specifications 4
Below you will find more detailed information about the supplied
components. 4
Technical data of the Soft Close doors 4
Technical data ens engine for theSoftclose automatic 4
List of the required tools for the installation 5
Please check the scope of delivery of the order before starting the installation.
7
List about the scope of delivery 7
Installation guide 8
Front door 8
Table of contents
3
About this guide
Product
descriptions
All specifications and descriptions of the products in this installation
manual have been verified and tested at the time of writing and are valid
for the respective version mentioned in the manual. We reserve the right
to make modifications and improvements to the products at any time.
Errors and inaccuracies
If you notice any errors or inaccuracies in this installation guide, or if you
notice that some descriptions are not complete, please use the following
We are open to your recommendations and suggestions and will gladly
accept them under the e-mail.
Copyright
This document is protected by copyright and is the intellectual property of
AMP Engineering GmbH. The contents of this manual may not be
modified, duplicated or copied in whole or in part without the express
written consent of AMP Engineering GmbH.
Safety instructions
The softclose automatic system has been designed to allow the doors to close
comfortably and safely. Nevertheless, pay attention to possible warnings on the
display of your on-board computer and do not start the journey under any
circumstances if an error is displayed. If you have any questions or problems with
the Softclose automatic, please contact AMPTech by phone +49 176 64990890 or
by e-mail support@amptech.store.
4
Specifications
Below you will find more detailed information about the supplied components.
Technical data of the Soft Close doors
Softclose
Operating voltage
12 V direct current
Operating current
5 A
Technical data ens engine for theSoftclose automatic
Softclose motor
Operating voltage
12 V direct current
Operating current unloaded
≤1,1 A
Motor speed unloaded
280 - 360 rpm
Locking torque
≥4 Nm
Maximum current
20 A
Transmission ratio
26,4
Acoustic emission
≤60 dB
5
Preparations
To ensure that the installation can be carried out quickly, tools required for
the installation should be provided before starting. The required tools are
listed below.
List of the required tools for the installation
Tool list
Position
Designation
1
Pliers
2
Soft pad (blanket or similar)
4
Scissors
5
Plastic mounting lever
7
Ratchet/Ratchet
8
Socket wrench set / nut
9
Cordless screwdriver
10
Cable ties in large and small
11
Adhesive tape
12
Cutting tool (knife)
13
Torx set
14
Storage box for screws
6
15
Flashlight
16
Insulating tape
17
Rust protection
18
Cable lubricant
19
Alubutyl
💡Tip
A commercially available toolbox contains many of the
tools needed.
Preparations
7
Please check the scope of delivery of the order before starting the
installation.
List about the scope of delivery
Scope of delivery
Position
Designation
1
4 softclose motors
2
4 harnesses
3
2 Y connectors for power supply
4
2 Ground cable black
After checking the scope of delivery and providing the tools, you can
proceed with the installation instructions.
8
Installation guide
Before starting the installation, prepare a storage area for the components
to be removed during the installation. It is also recommended to store
clamps and screws in a labeled container to prevent confusion later.
This installation guide describes the installation of the softclose mechanism
on the two doors on the right-hand side of the vehicle in the direction of
travel. The installation is identical on the right-hand side of the vehicle in the
direction of travel and can therefore be carried out according to the same
instructions.
💡Tip
Start the installation at the passenger door.
Front door
Two T30 screws behind the metal door handle and a 10 mm hexagon
screw behind the handle trim are removed first.
These are each behind a plastic cover, which must be removed
beforehand using a plastic tool.
● The door panel can be levered out manually or with the help of a
plastic tool to the rear, starting from the front upper edge (at the level
of the side mirror).
● Cables connected to the door panel and the Bowden cable for
opening the door must be disconnected from the door panel in the
next step.
9
● 6 T20 screws are removed so that the plastic inner lining can be
dismantled
The speaker is also dismantled by removing 4 screws
● The next step is to remove 2 T30 screws from the lock unit so that the
lock can be carefully lifted out through the opening behind the
windowpane guide. The plug connected to the lock unit must be
disconnected before lifting it out.
ATTENTION:The window must be fully raised during this step.
● The Bowden cable must be removed from the old lock and connected
to the new lock unit. To do this, loosen the plastic barbs with a slotted
wrench.
The lock unit with yellow Styrofoam is used for the right side of the
vehicle (analogously, unit with blue Styrofoam is for the left side of the
vehicle).
First, the Bowden cable must be attached to this lock.
ATTENTION: The end piece of the Bowden cable must be hooked
behind the lug provided for this purpose in the new lock.
● Attach the plug for the lock unit to the new lock unit
● The new lock unit can now be inserted into the door behind the
windowpane guide. The two T30 screws previously loosened on the
old lock are used to secure the new lock unit.
● In the next step, the soft close motor is glued to the door body facing
outwards with the butyl already attached to the motor. Make sure
that the pull cable of the motor is not kinked and leads straight from
the motor to the lock unit.
10
● The cables of the lock should be fixed on the door body facing the
inside of the vehicle so that they do not interfere with the window
when it is lowered. Alubutyl strips can be used for this purpose.
● The cables of the soft close motor should be attached to the door body
facing outwards - Alubutyl can also be used here.

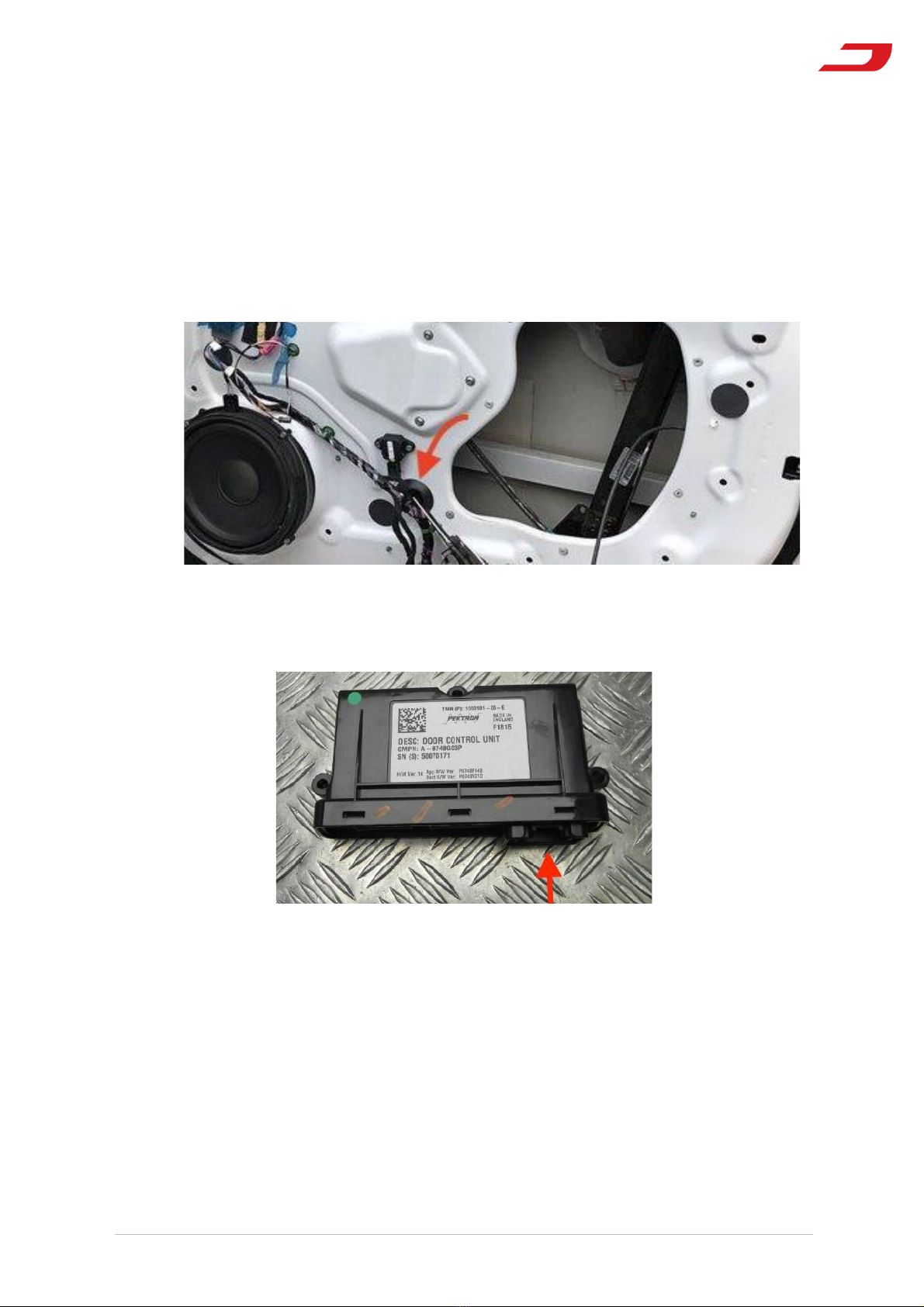

The black and yellow cable of the new unit are to be led out through
the rubber sealing hose from the inside of the door (see picture)
Attach the power supply Y-connector to the bottom of the Tesla
door control unit located on the plastic trim.
