Page 1

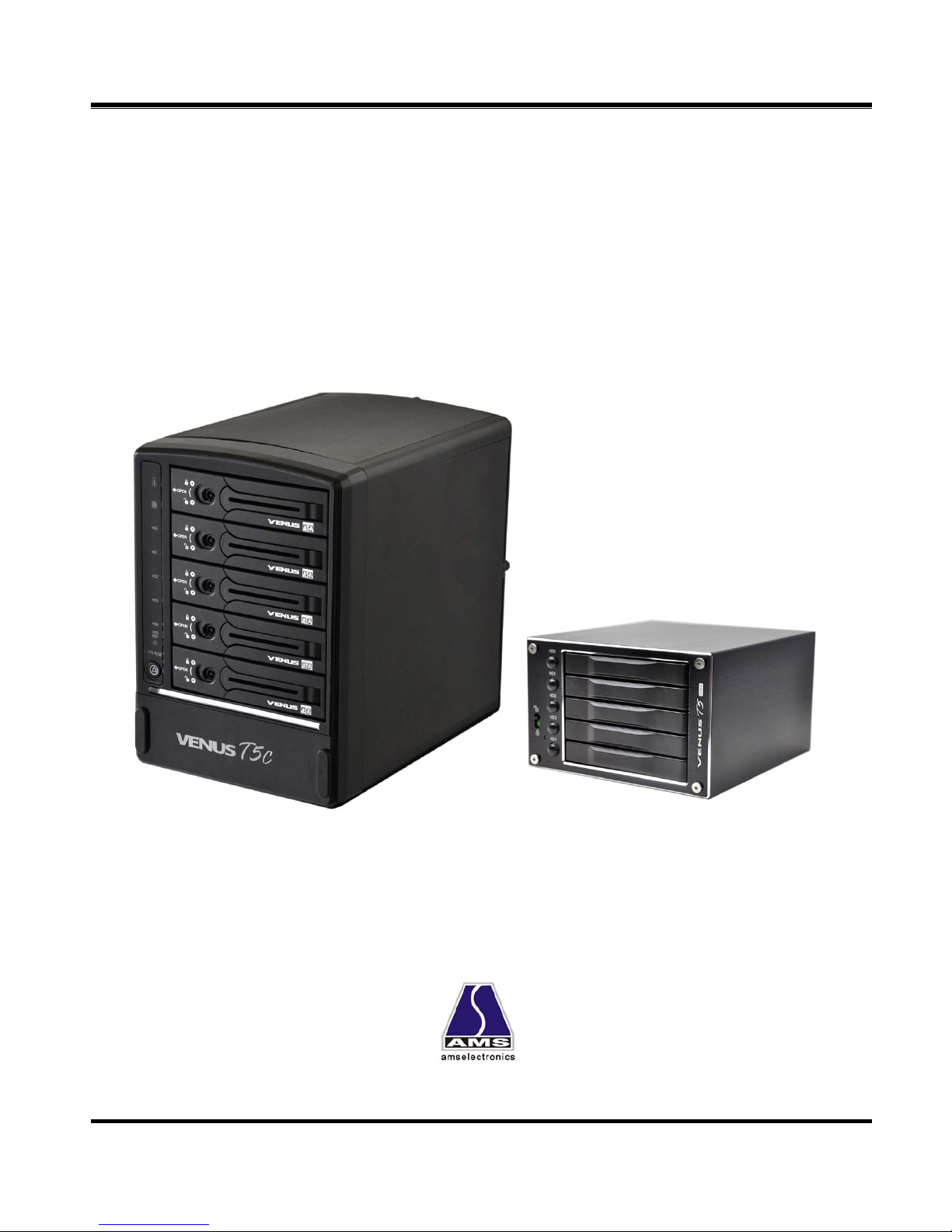

Venus T5c Series
Venus T5c series
SATA RAID
User Manual
Model: DS-2350C Model: DS-2250C
(For 3.5” SATA) (For 2.5” SATA)
www.american-media.com
Page 2
Venus T5c Series
1. Features of Venus T5c
Aluminum Frame, Aluminum cover
Interface support SATA-І, SATA-ІІ
Transfer rate: 3Gb/s(eSATA)、5Gb/s(USB3.0)
Plug & play ,hot swappable
AC Power control
Easy RAID setting by DIP switch & apply (change mode) switch
LED indicators(for System Ready, HDD Error, HDD Access, Temperature, fan)
8x8cm Fan X 2— High/Low speed selectable
Reset switch or OTB switch for option
Color: BLACK
Dim:215(L)x156(W)x211(H)mm

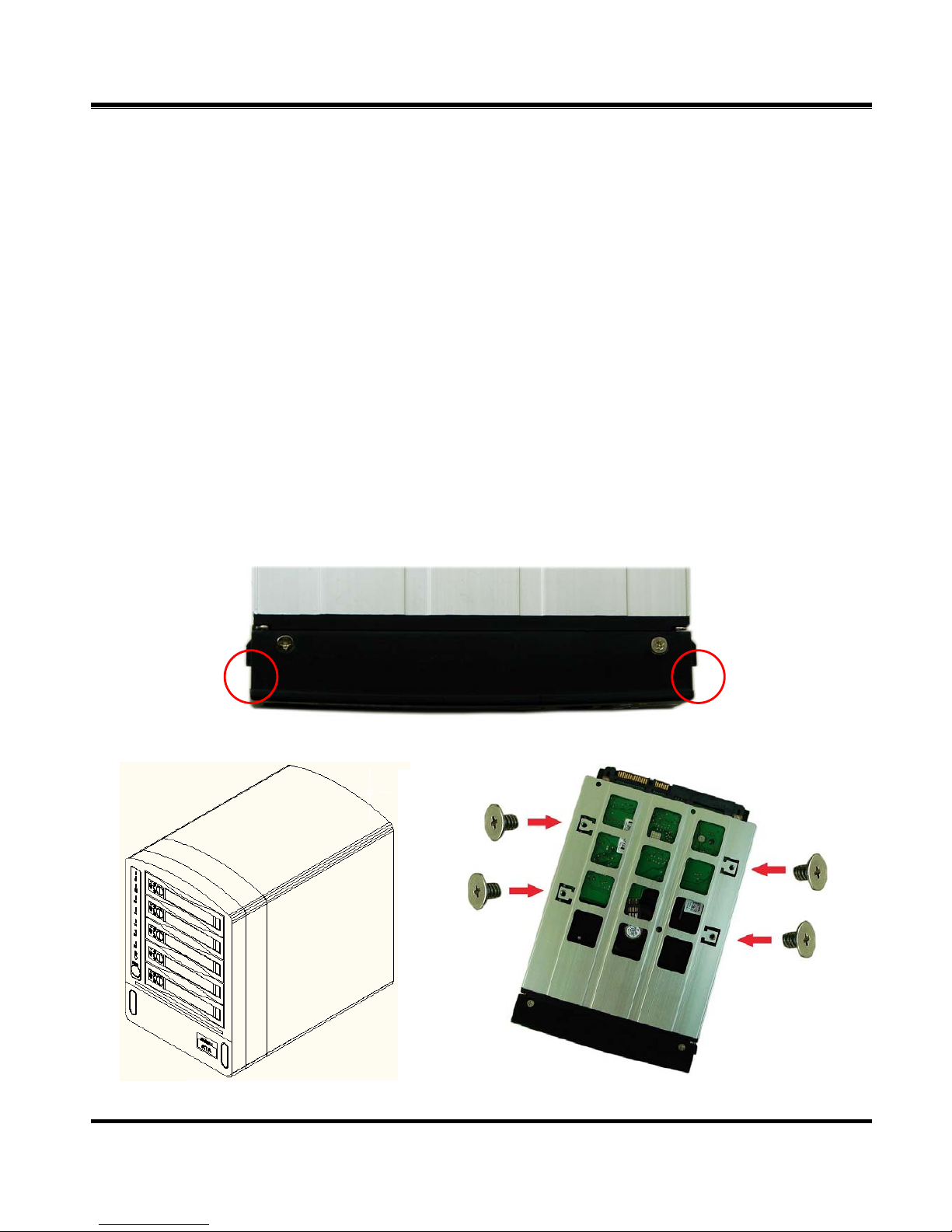

Patent products with advanced structure design
Patent balance handle-no skew in/out problem and avoid the abrasion during connection
Precisely connection on connector (see Figure 1)
Figure 1
Figure 2
`
Figure 3
www.american-media.com
Page 3
Venus T5c Series
---Front Panel--- (see Figure 4)
Figure 4
D1:Temperature LED
D2:Fan LED
D3---D7: HDD Access and failure LED (Green LED
is lighting when HDD link and blinking
when HDD access; the LED will turn red
when HDD failed. The green LED and red
LED will alternate during rebuilding)
D8:SYS LED: Lighting while system is ready
D9:SYS Reset or Backup (option)
D10:HDD Safety Lock
D11:Power LED
D12:Power Safety Lock (The safety lock prevent
it bouncing out while HDD is working)
D13:120W Switching Power Supply
---Rear View--- (see Figure 5)
Figure 5
E1:Cooling Fan #1 (8x8cm)
E2:Fan Speed Control FAN RPM HIGH(3600rpm)&
LOW(2800 rpm) Options(If you want the fan to
run at a hi
g
h speed ,switch to the ri
g
ht; otherwise
, switch to the left
E3: Cooling Fan #2 (8x8cm)
E4: Reset/Change Mode (push button less than 2
seconds for system reset / hold button over than
2 seconds for apply new RAID mode)
E5:RAID CONFIGURE SW
E6:ESATA
E7:Power SW
E8:Power Input(AC 100V-240V)
www.american-media.com
Page 4
Venus T5c Series

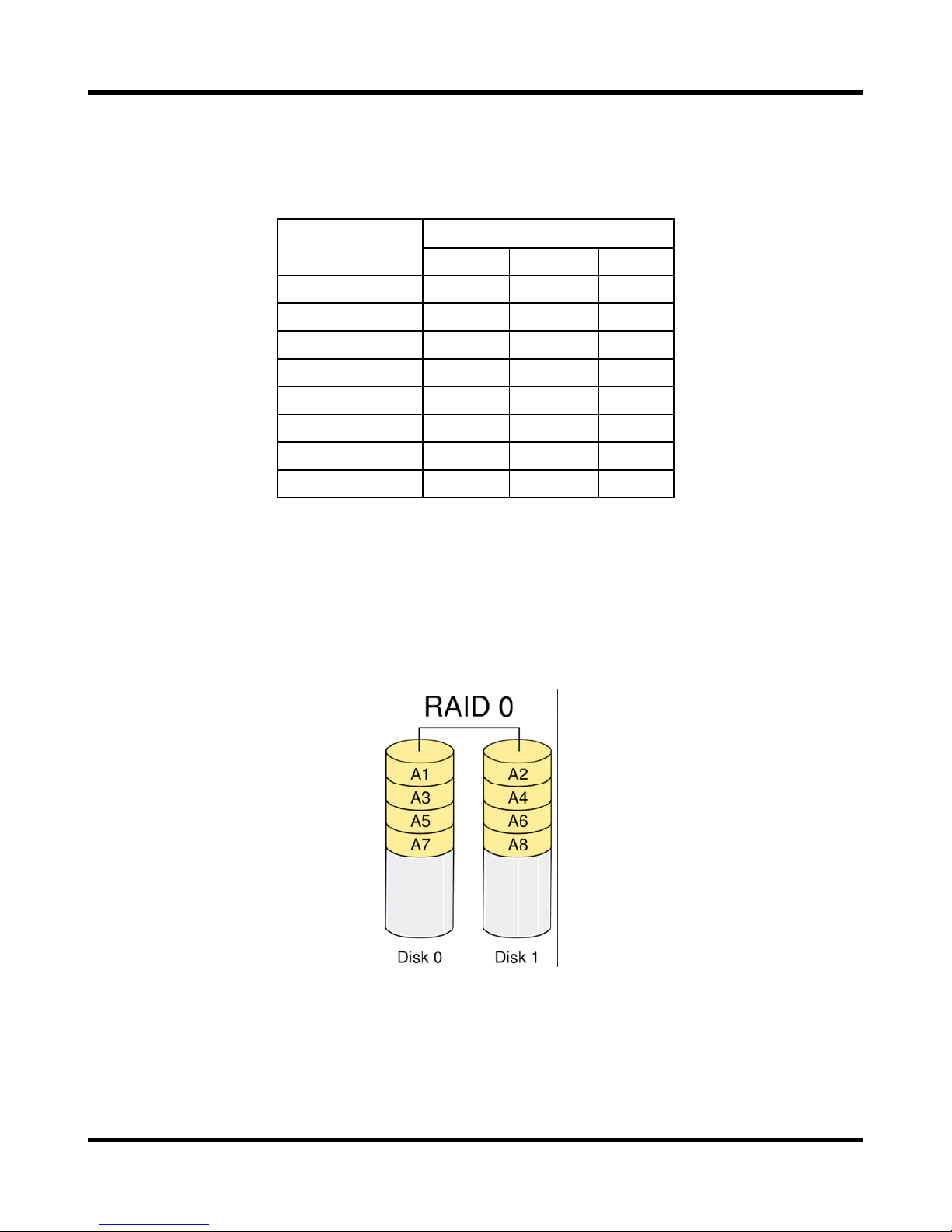

2. DIP Switch and RAID Mode cross reference
User can configure any RAID mode as below by DIP switch and apply change by Change Mode button.
Dip Switch
RAID Mode 1 2 3
RAID 0 ON ON ON
RAID 10 ON ON OFF
JBOD (Large) ON OFF ON
RAID 3 ON OFF OFF
Clone OFF ON ON
RAID 5 OFF ON OFF
Reserved OFF OFF ON
Normal (Single) OFF OFF OFF
＊PS: When DIP-SW is RAID10, 2 HDDs is RAID1 Mode and 4 HDDs is RAID10 Mode.
2.1 RAID 0 for High Performance
RAID 0(or Stripe) is the segmentation of logically sequential data, such as a single file, so that segments
can be assigned to multiple hard disks in a round-robin fashion and thus written concurrently. (If any hard
disk becomes defective, information stored in this RAID0 will be invalid.)
www.american-media.com
Page 5
Venus T5c Series

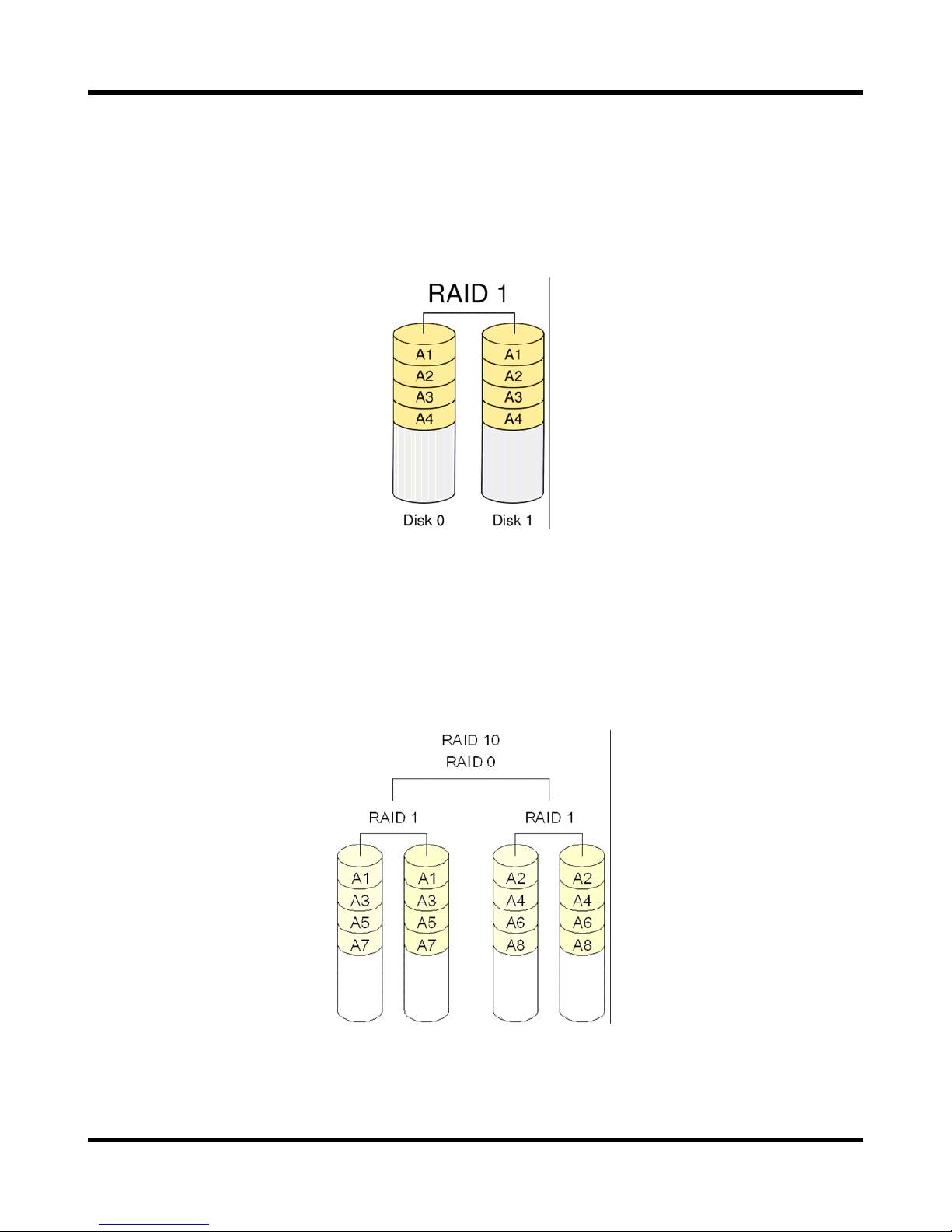

2.2 RAID 1 (Mirror) for High Security
Mirror or RAID 1 is the replication of data onto separate hard disks in real time to ensure continuous
availability. Take a RAID 1 system with two hard disks as an example, data in a hard disk will be exactly
the same as the data in another hard disk.
(Failure in a hard disk, Host controller still could read/write data. Users have to replace the defect hard disk.
T5 will enter on-line-auto-rebuild mode automatically)
2.3 Stripe + Mirror (RAID 10) for High Performance and High Security
T5 could be configured to support Stripe and Mirror at the same time, i.e. RAID 10. Take four hard drives
RAID 10 as an example. Hard drive 0 and hard drive 1 could act as Mirror 1. Hard drive 2 and hard drive 3
could act as Mirror 1 too. 2350ESR then configure these two Mirrors as Stripe.
2.4 Clone
www.american-media.com
Page 6
Venus T5c Series
The action of Clone is similar to RAID 1. However, all of the hard disks will be the mirrors. For example,
in a four hard drives Clone environment, data in each hard drive will be same. This mode is useful
especially when users would like to copy data from a hard drive to several hard drives at the same time.
2.5 JBOD (Concatenating)
This mode is also named Concatenating. In this mode, T5 will concatenate all of the hard drives into a
single hard drive with larger capacity. For example, if three 500GB hard disks is connected to T5 in
concatenating mode, user will get a single hard disk with capacity of 1,500 GB.
2.6 Parity Protection
XOR engine in T5 generate parity block. In RAID 3 mode, Parity Block will be stored in the same hard
drive. While in RAID 5 mode, Parity Block will be spread over all of the different hard drives.
www.american-media.com
Page 7
Venus T5c Series
T5 will also make use of same size disk space in each hard disk under RAID 3/5 condition. ( Failure
in a hard disk will cause T5 enter degrade mode. Host controller still could read/write data thru T5
normally without knowing any defects. Users have to replace the defective hard disk. T5 then will enter
on-line-auto-rebuild mode automatically.)
2.7 Normal Mode (Single)
Normal mode means all of the configured hard drives exist and T5 is not in rebuild condition. User can see
the original hard drives from the host which supports port multiplier technology. (If the host does not
support port multiplier, then you will find only one hard drive on operating system. The RAID tool is
useful in this case.)
