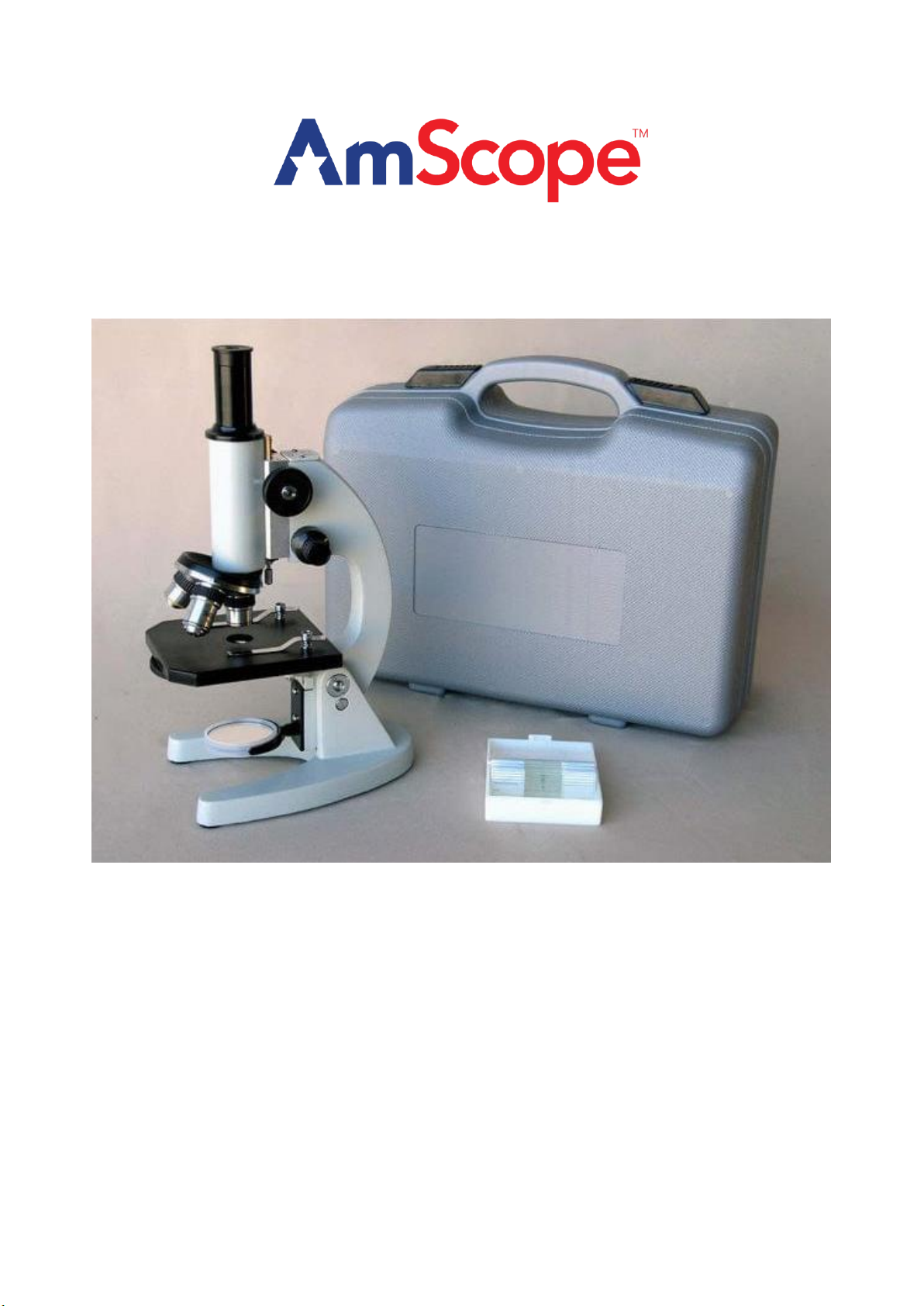

USER MANUAL

BIOLOGICAL MICROSCOPE

M60C-ABS-PB10

Summary:

The biological microscope model M60C-ABS-PB10 includes DIN achromatic objectives

and eyepieces. Perfect for use in k-12 education, higher education, hospitals, laboratories,

research institutes, and more.

Specifications:

1. Eyepiece:

Designation

Magnifications

field of view

focal length

Eyepieces

10X

25X,optional

2. Objective:

Designation

Magnifications

Numerical

Aperture

Focal

Length

Working

Distance

Achromatic

0.1

31.04

37.58

10X

0.25

17.13

7.316

40X

0.65

4.65

0.632

3. Total Magnifications:

Objective

Eyepiece

10X

40X

10X

40X

100X

400X

25X

100X

250X

1000X

4. Key Features:

Stage Dimensions: 110mm x 120mm (4.33”x 4.72”)

Head: Upright Monocular

Plain stage with slide clips

Disc diaphragm

Coarse focusing range: 50mm

Fine focusing range: 1.8mm

Diameter of reflecting mirror: 50mm

Microscope Body:

The base of the microscope holds the weight of the stage, mirror, arm, and head. The

head/ocular tube is aimed down at a 90° angle. You can adjust the angle of the arm to

your preferred position for a more comfortable viewing experience.

Illumination:

The mirror under the microscope reflects any light in the room up through a disc

diaphragm to illuminate slides from below.

Using Your Microscope:

1. Rotate the objectives in sequence, according to their magnification (4X, 10X, & 40X),

into the thread holes of the nosepiece. Insert the preferred eyepiece (10X or 25X) into

the eyepiece tube.

2. Put your slide on the stage and under the clips to prevent the slide from moving on its

own. Adjust it to align the specimen with the center of the stage.

3. Start with the 4X objective and 10X eyepiece. While looking into your eyepiece, adjust

the coarse focus until your specimen looks fairly visible. Switch to the fine focus to get

enhance and sharpen the image to your satisfaction.

4. Should you require more or less illumination, rotate the mirror to change how much

ambient light is reflected and rotate the disc diaphragm.

5. For a closer image, experiment with higher magnifications by changing the objective to

either 10X or 40X with both the 10X and 25X eyepieces. Adjust the coarse and fine

focus and lightning as necessary.

Storage:

1. Store your microscope in the provided plastic case with any accessories in a cool, dry

location to prevent degradation. When not storing in the case, we recommend a dust

cover.

2. Dismantling or modifying your microscope could void your warranty. If you have any

issues or questions, please reach out to AmScope customer service.

What’s Included?

Items

Contents

Quantity

Microscope

Eyepiece 10X, 25x

1pc each

Objective 4X, 10X, 40X

1pc each

Plane-concave Mirror

1pc

Plain Stage

1pc

User Manual

Download

Phone: 1-888-950-2888 (toll free) | Fax: 949-271-4795 | Email: i[email protected]

Our Office Hours are Monday to Friday, from 5:00am to 6:00pm Pacific Time

www.amscope.com
